a 50cc 'drag' bike to be towed behind the diesel outfit

NOT A SERIOUS DRAG BIKE! IT'S  NEVER GOING TO BREAK ANY RECORDS!

current fastest run:- 22MPH


Back ground to the project

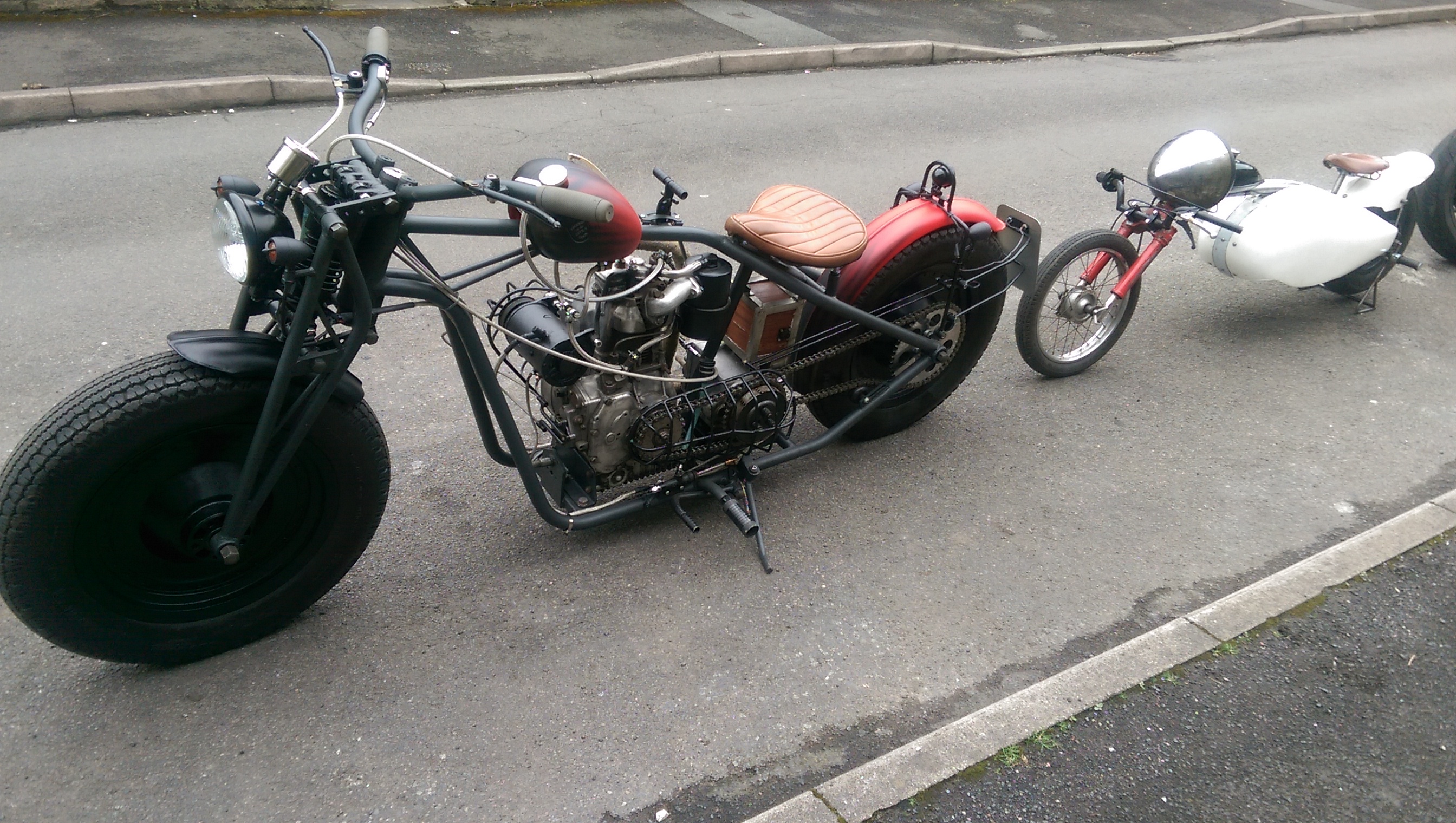

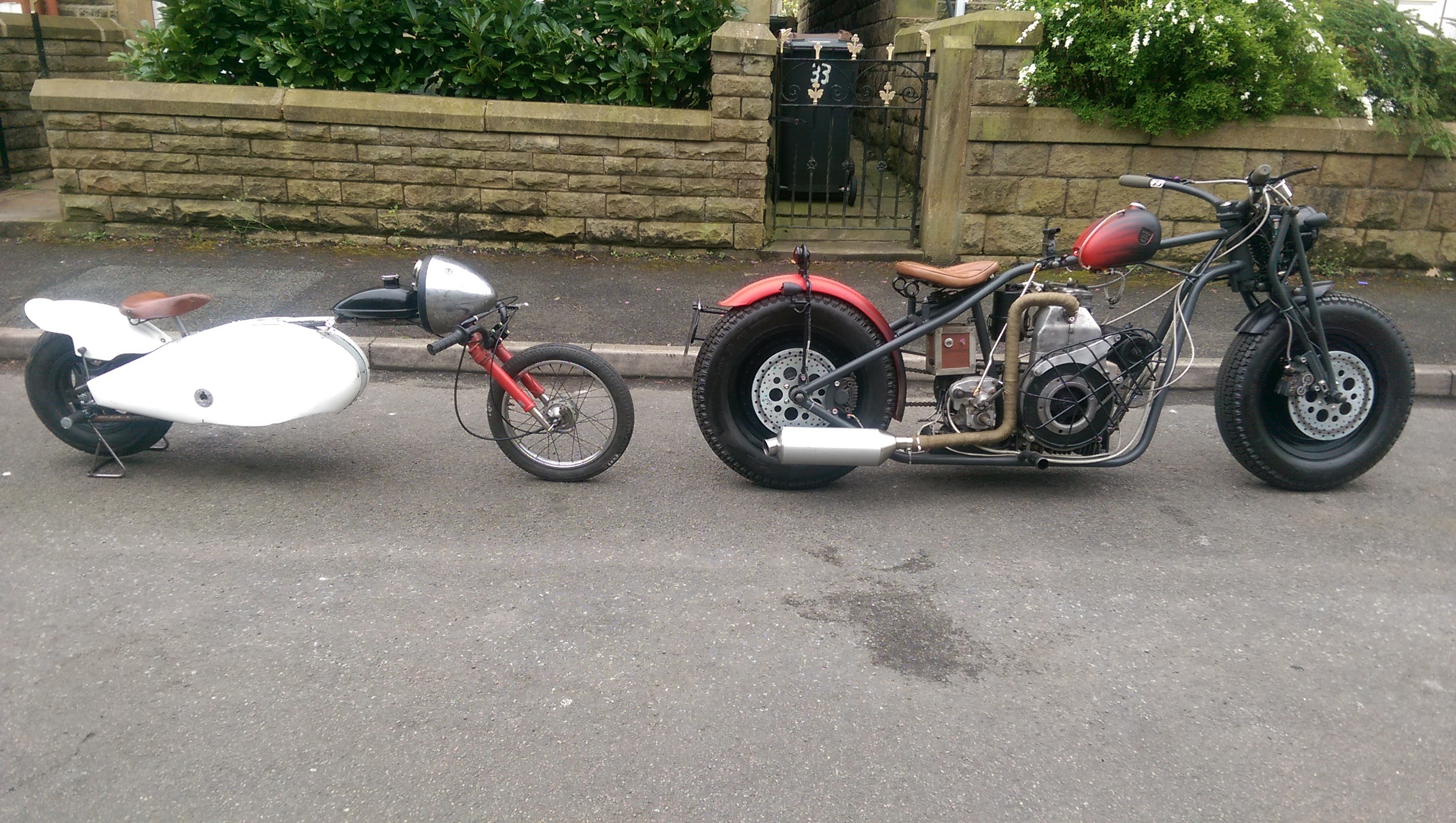

     After a night on the beer me and Flux decided to have a go at each building a trailer to two behind our respective chops. String had already started on one. I went with a one wheeled design that slowly morphed into a 50cc drag bike..... it will still be towed behind my outfit.

Home


 Initial drawings and ideas

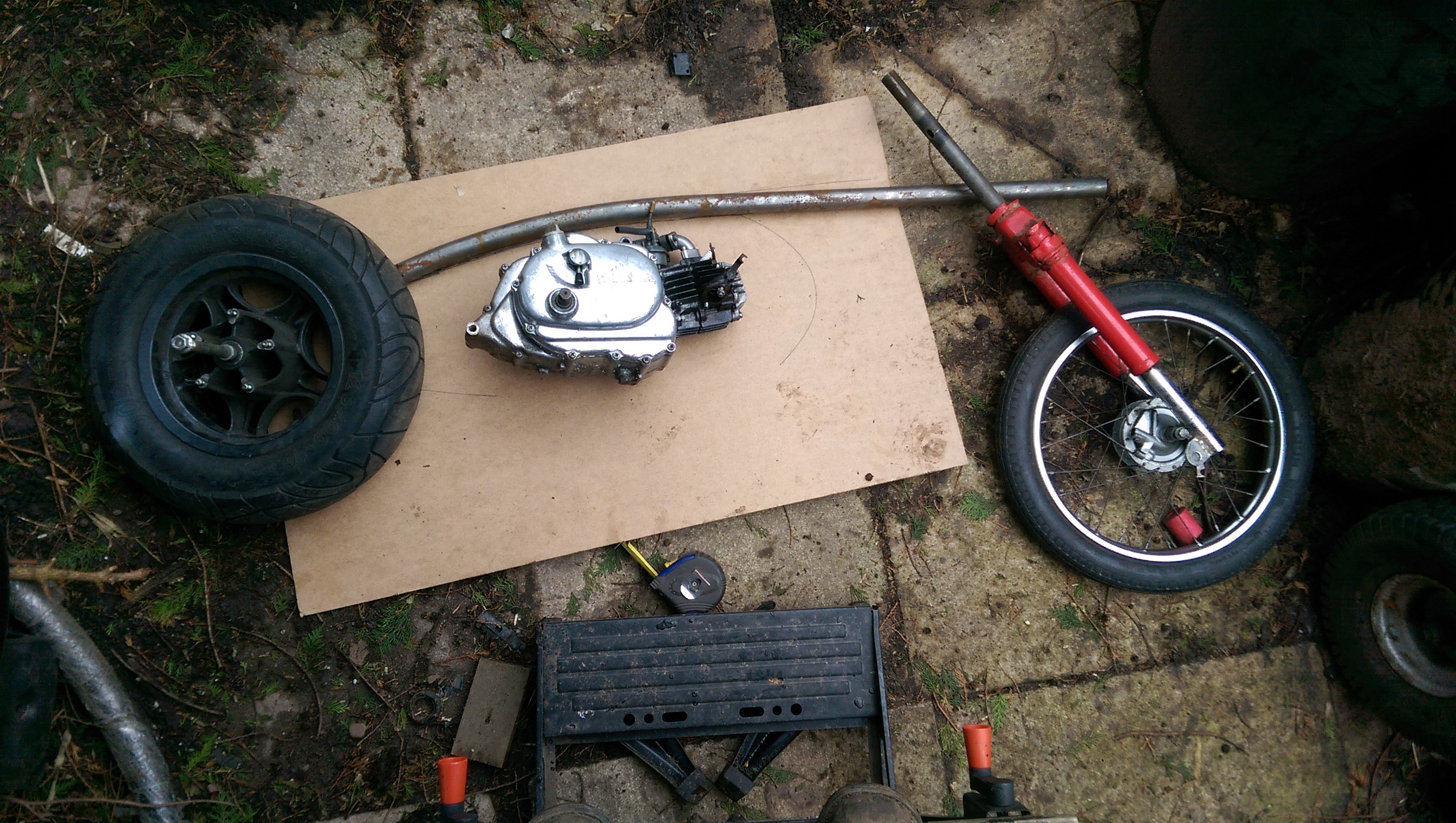

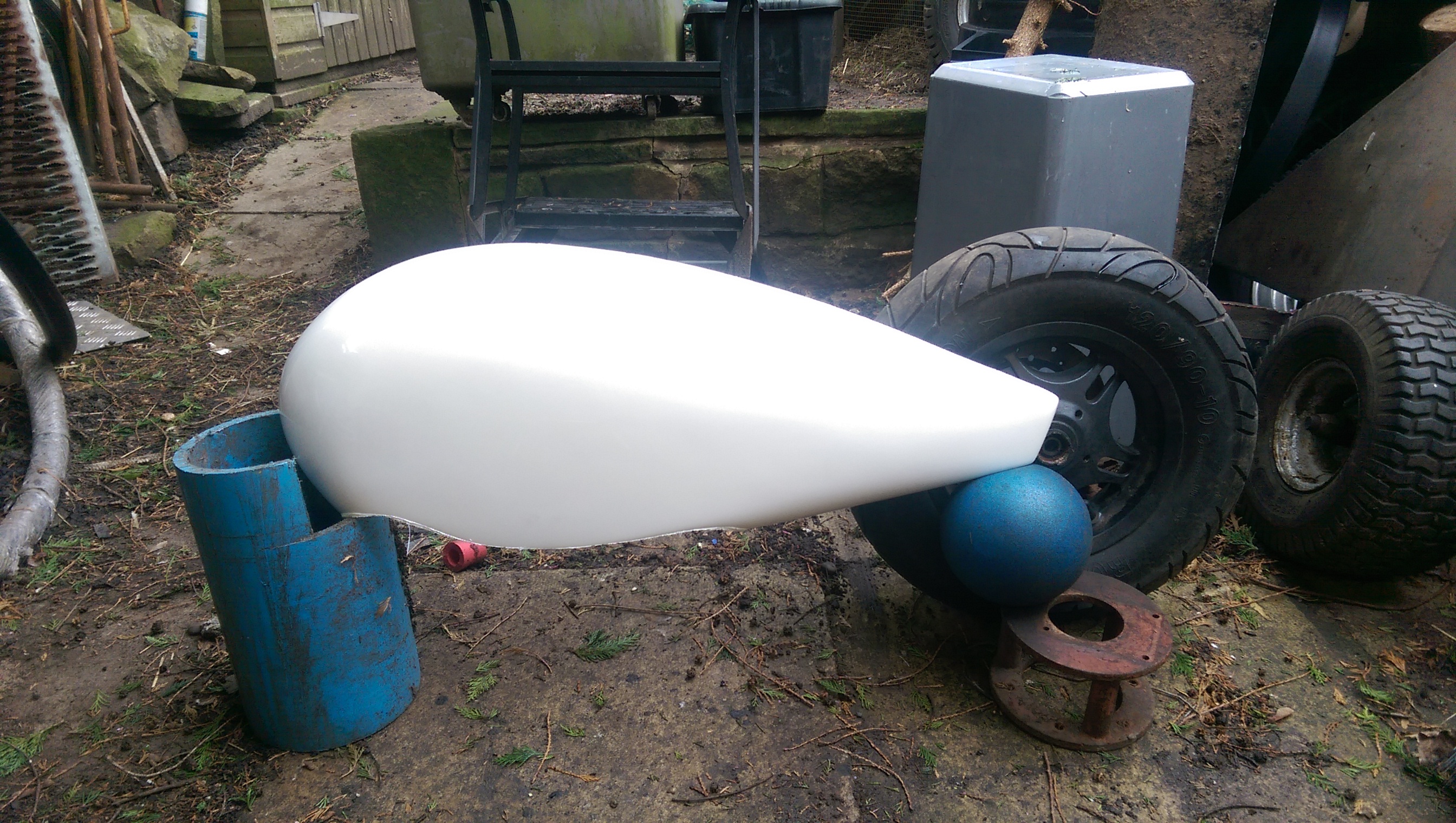

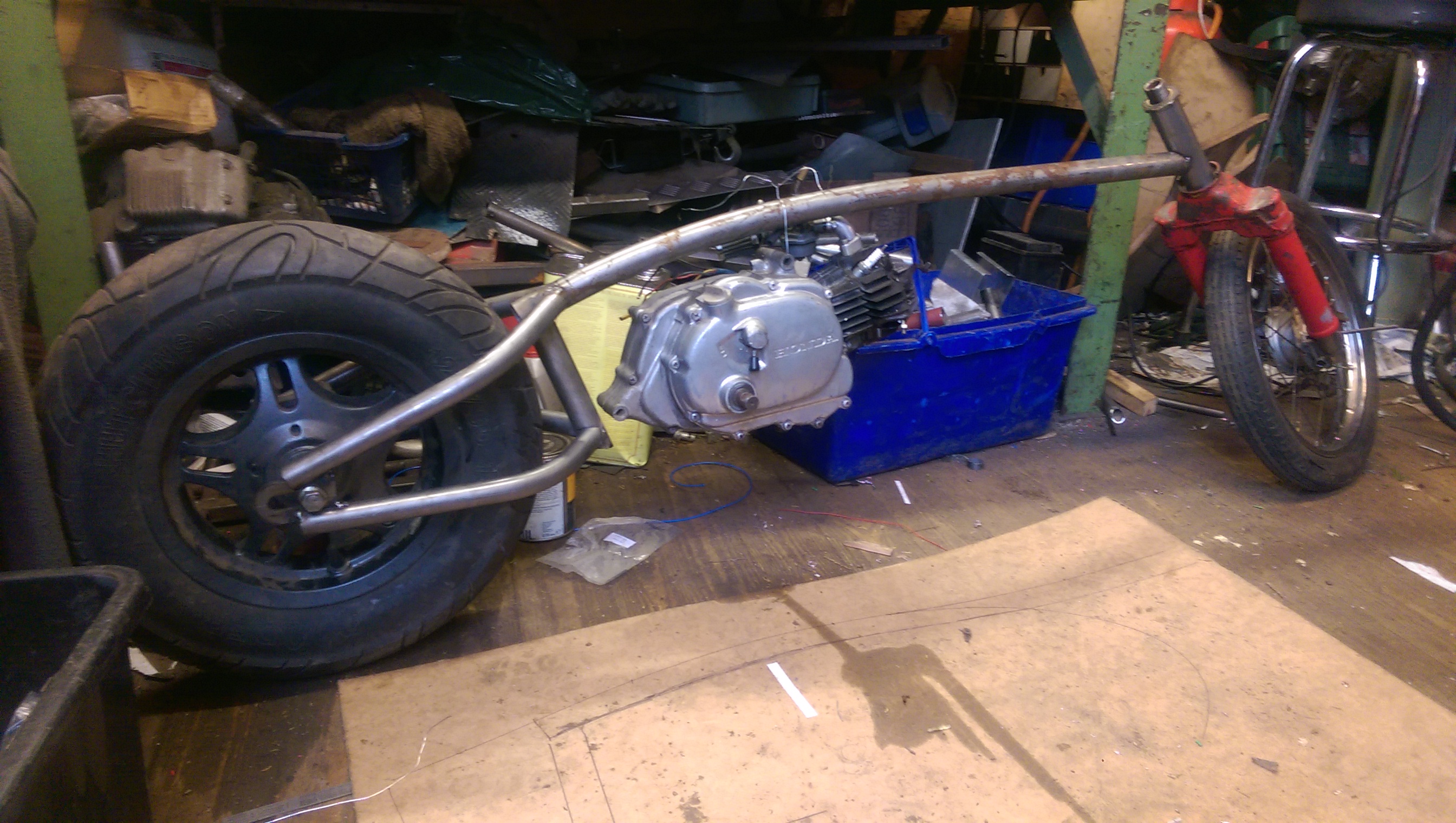

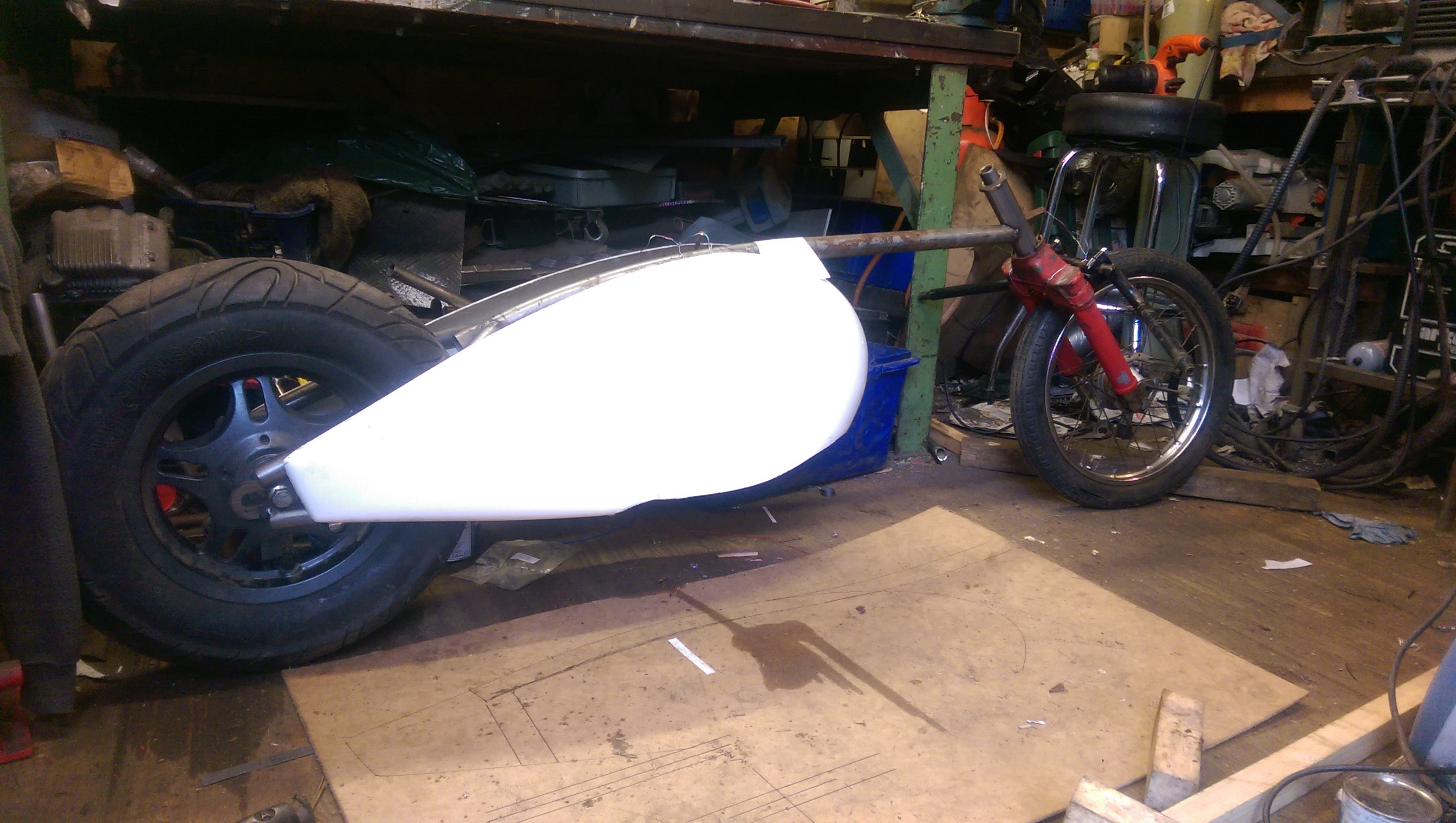

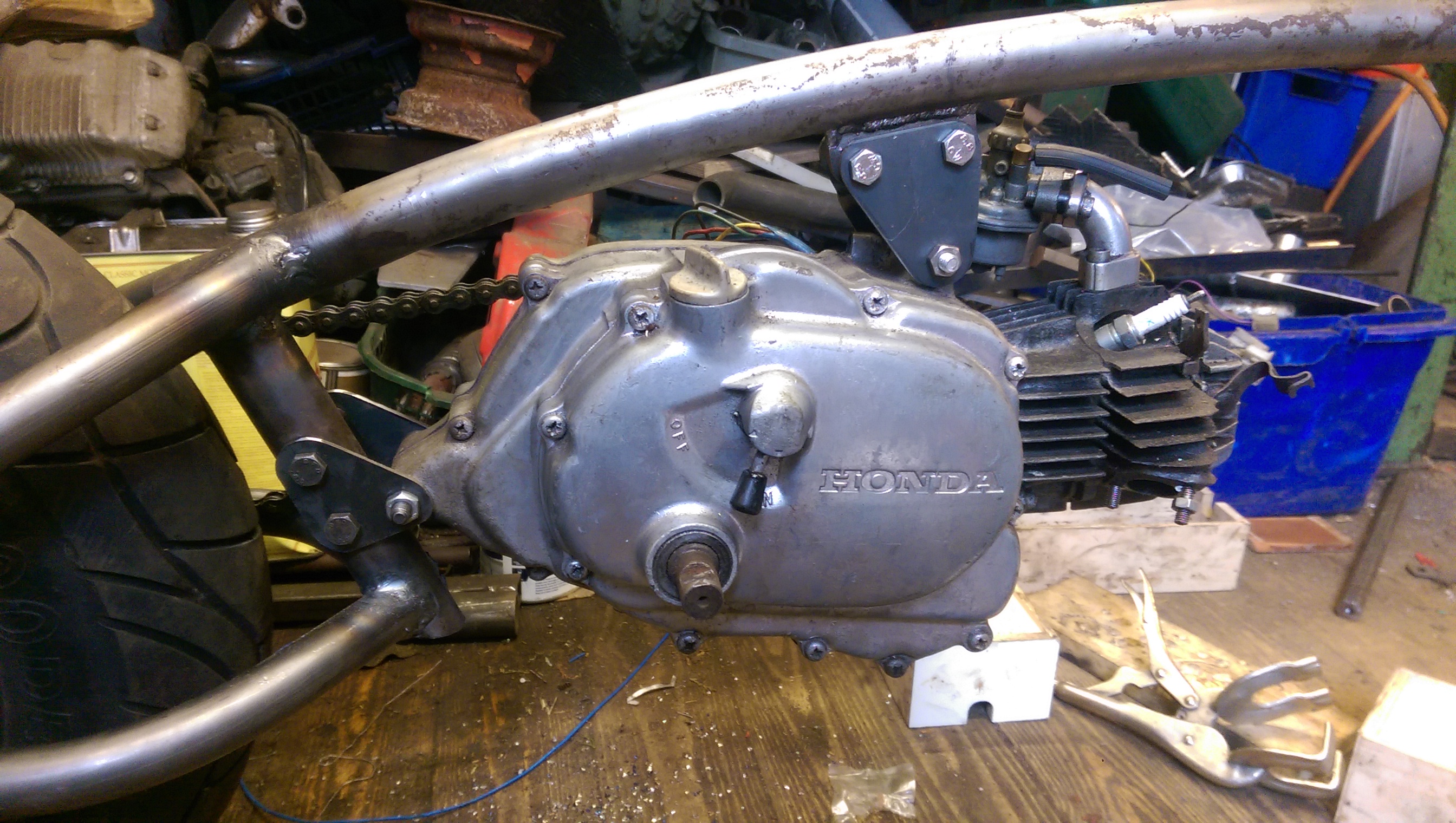

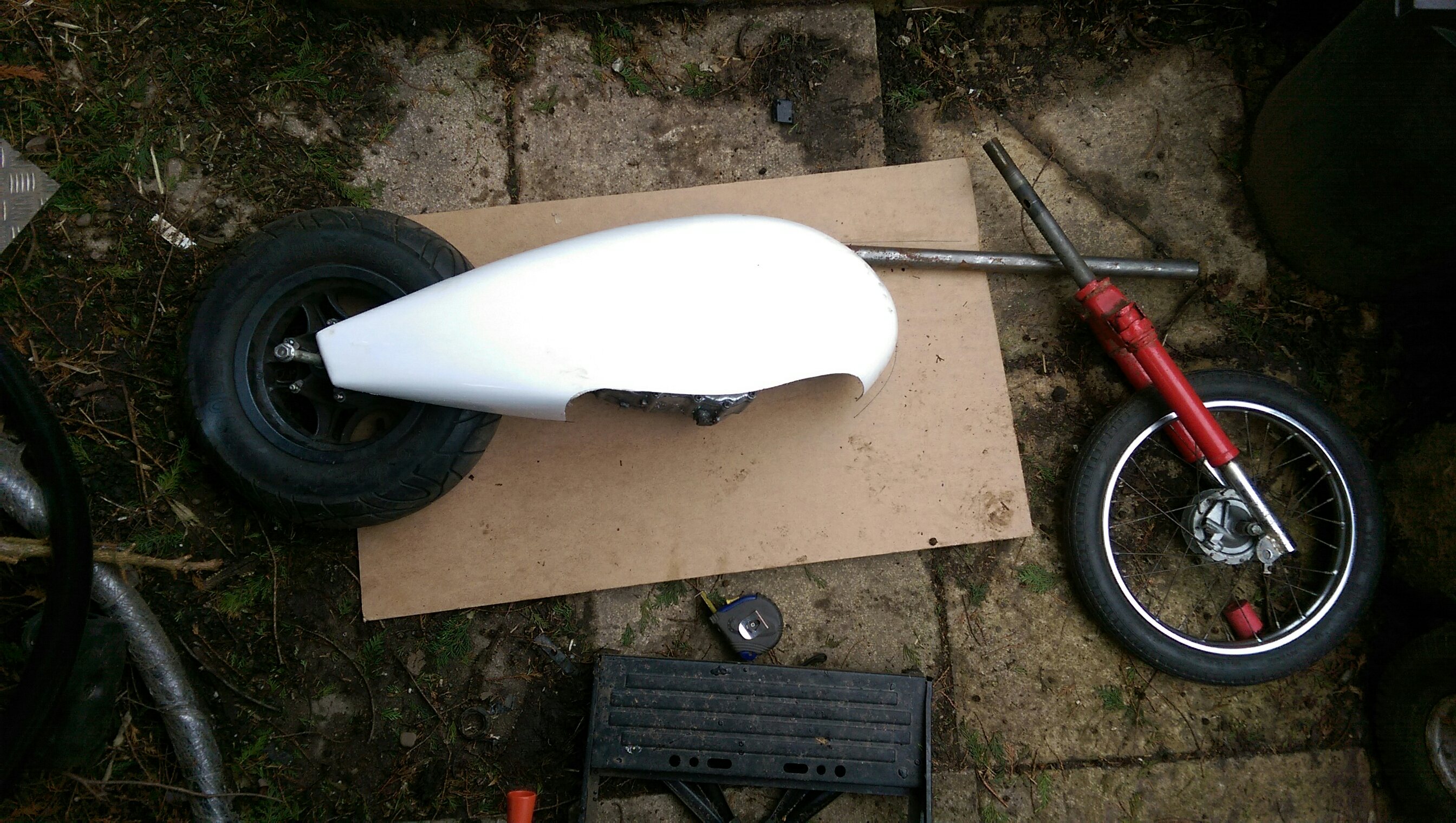

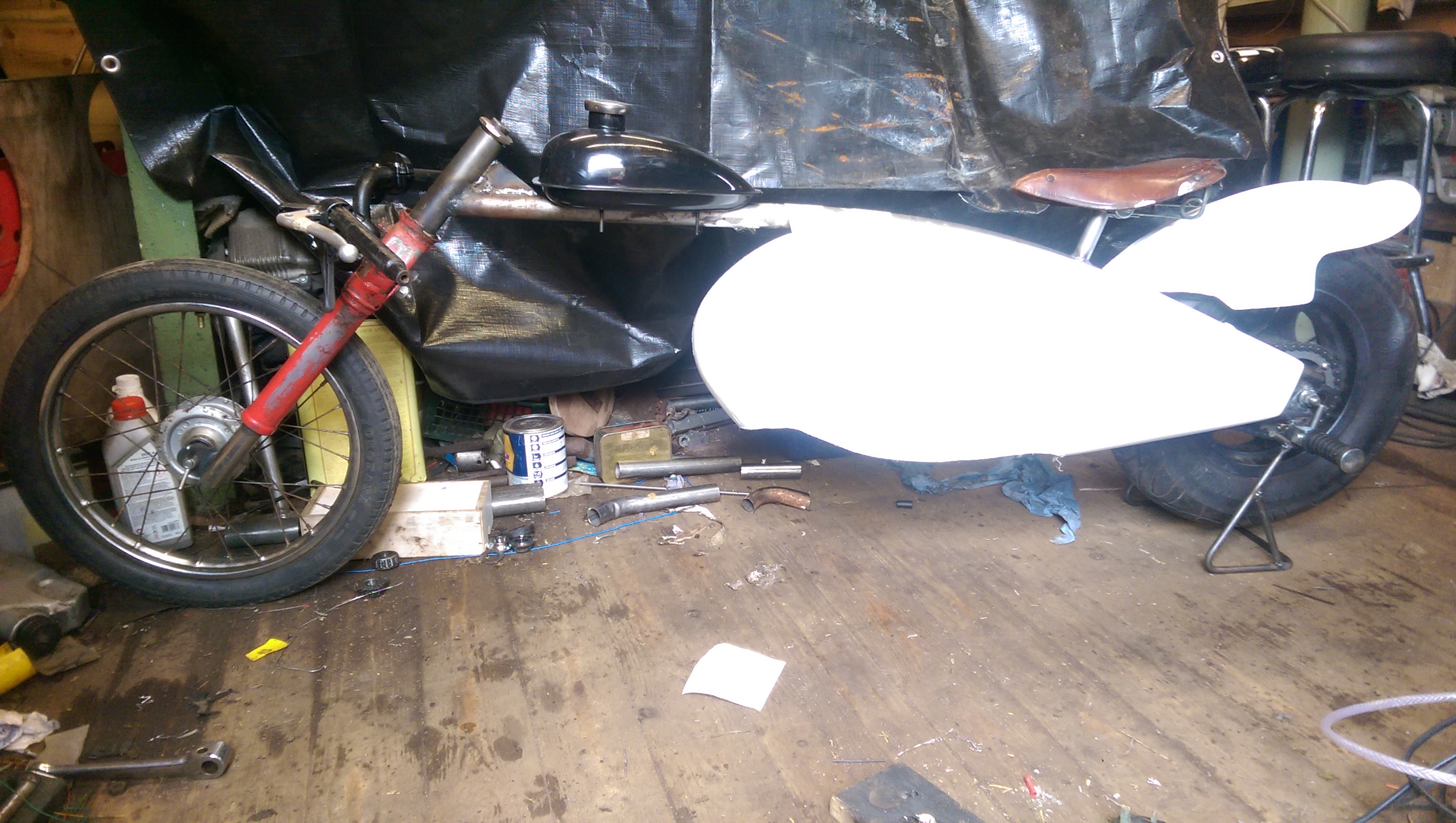

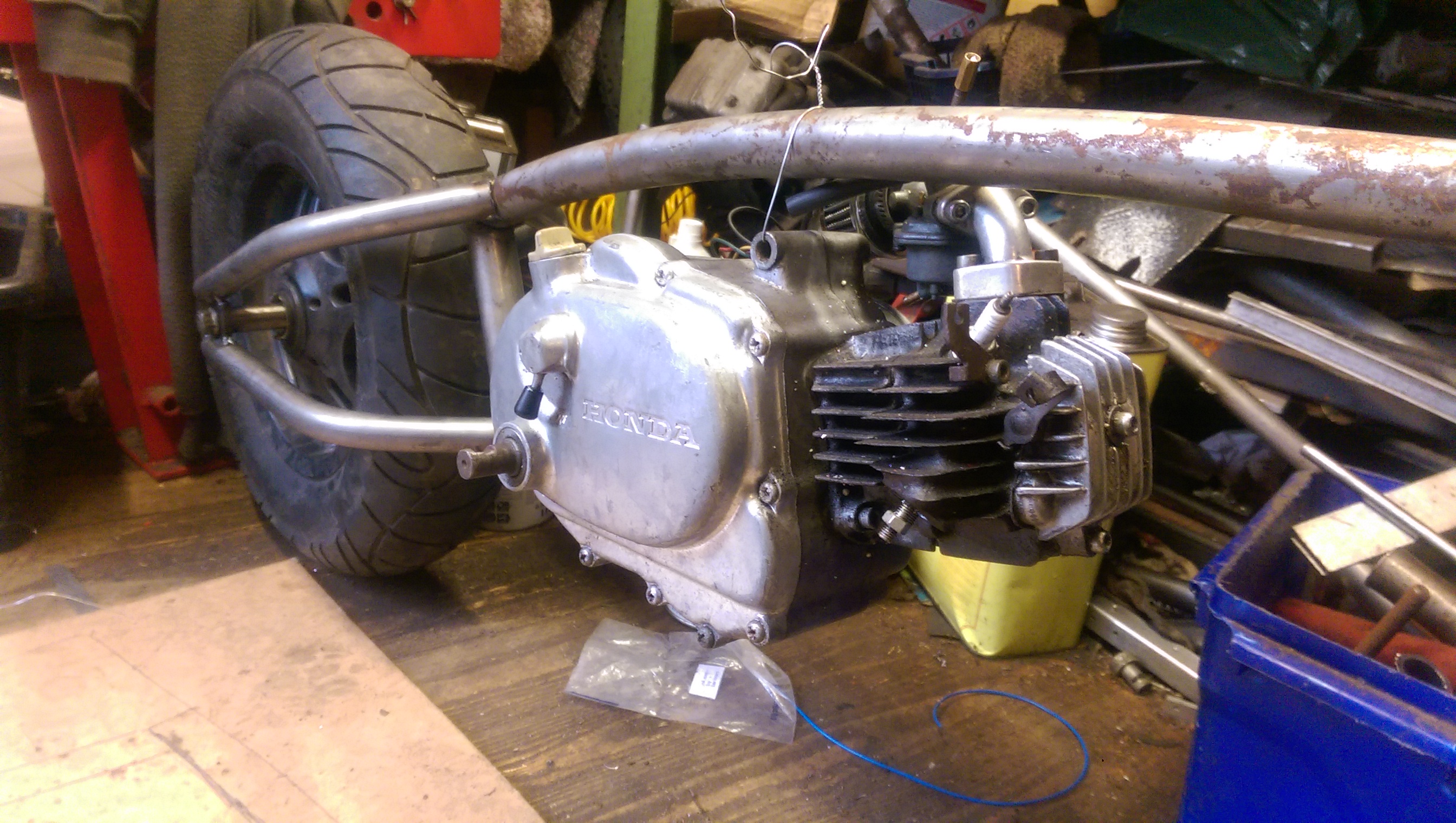

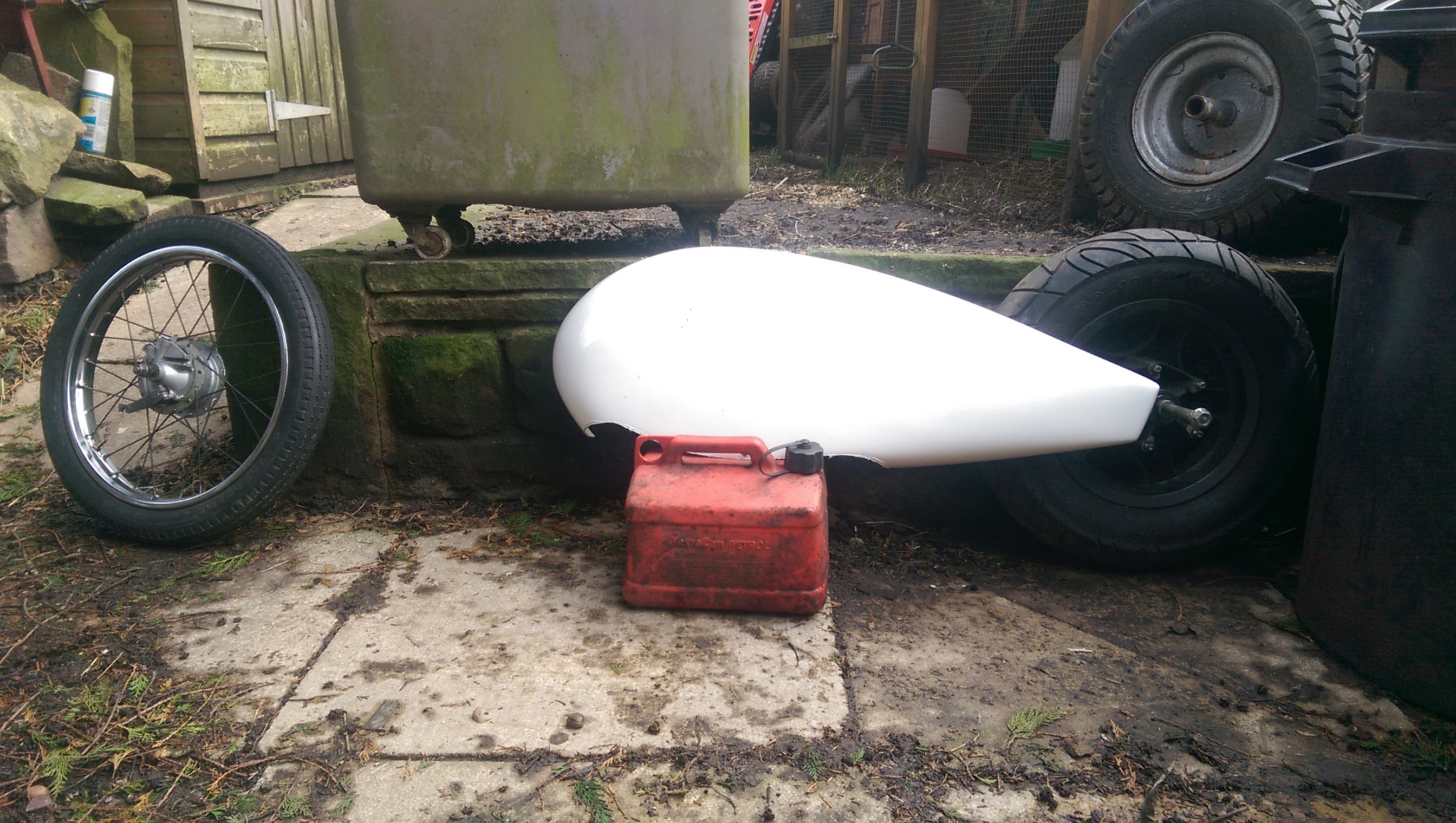

I kinda knew the shape I wanted and started looking. Found that the shape I wanted was already available as the wheel 'spats' from a Cessna light aircraft, result. Found a modern moped front wheel on eBay ( it's the rear on my design), so I was up and running. Then I found this little Honda PC50K1 engine and things started getting..... different.

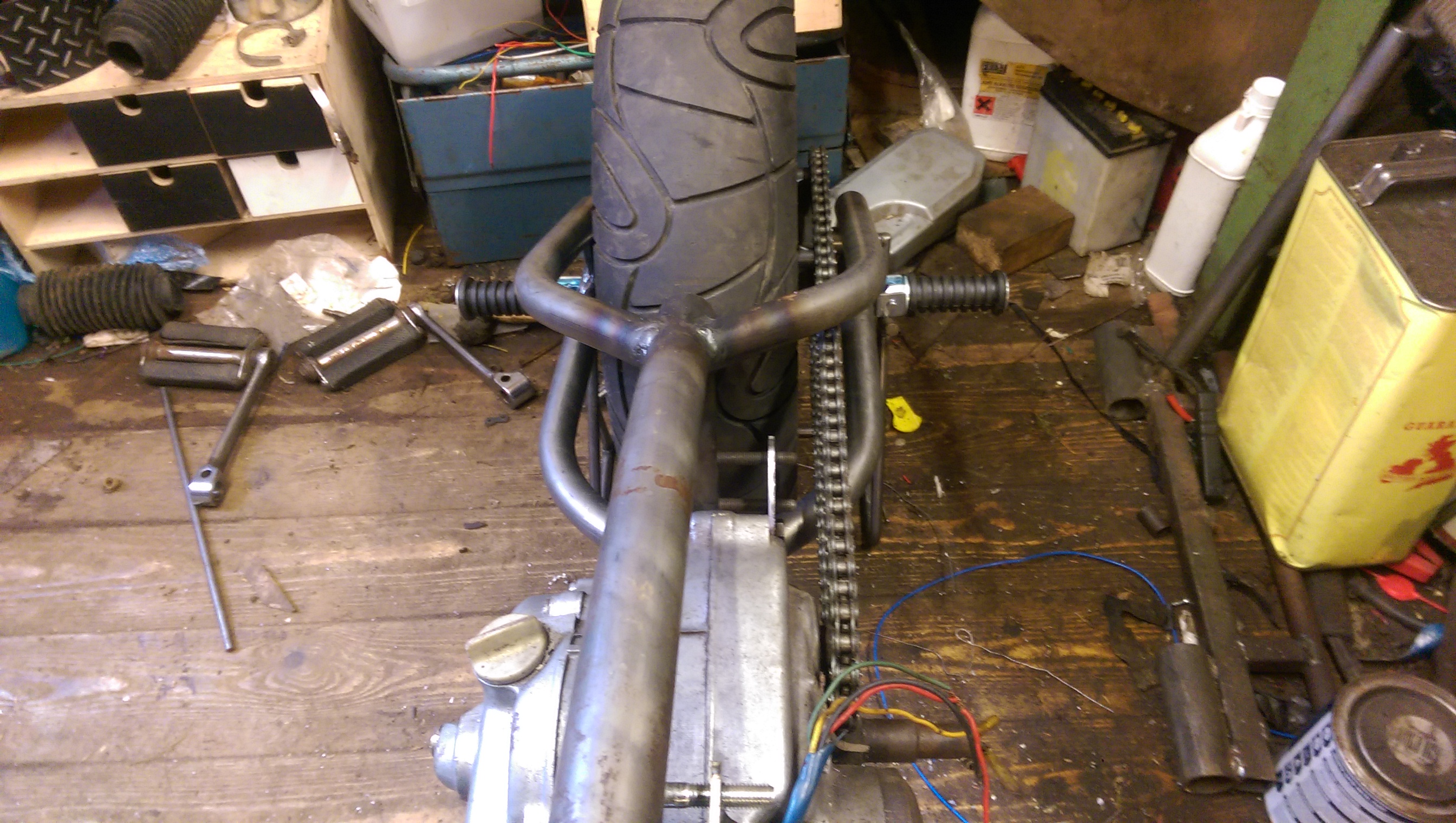

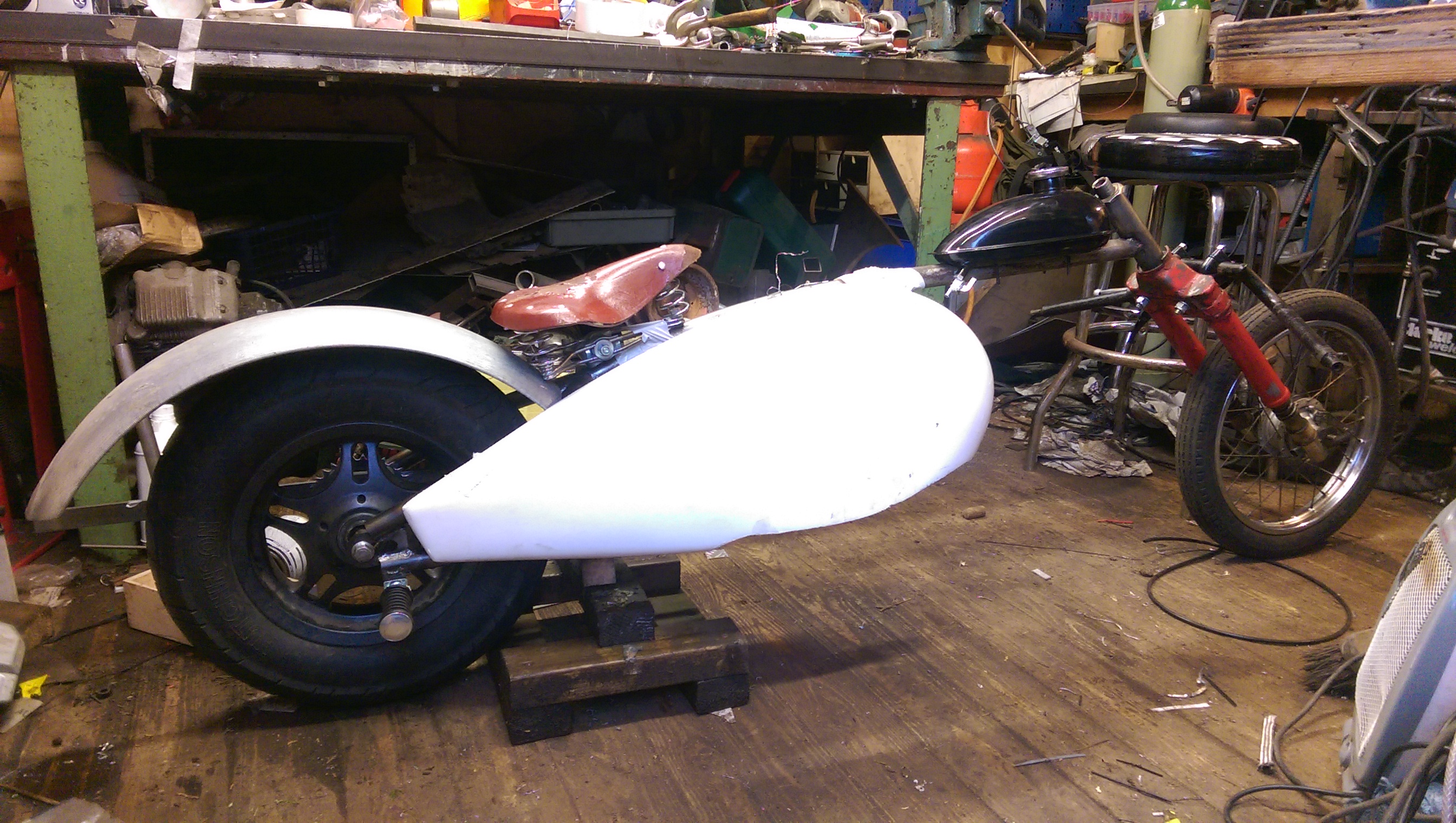

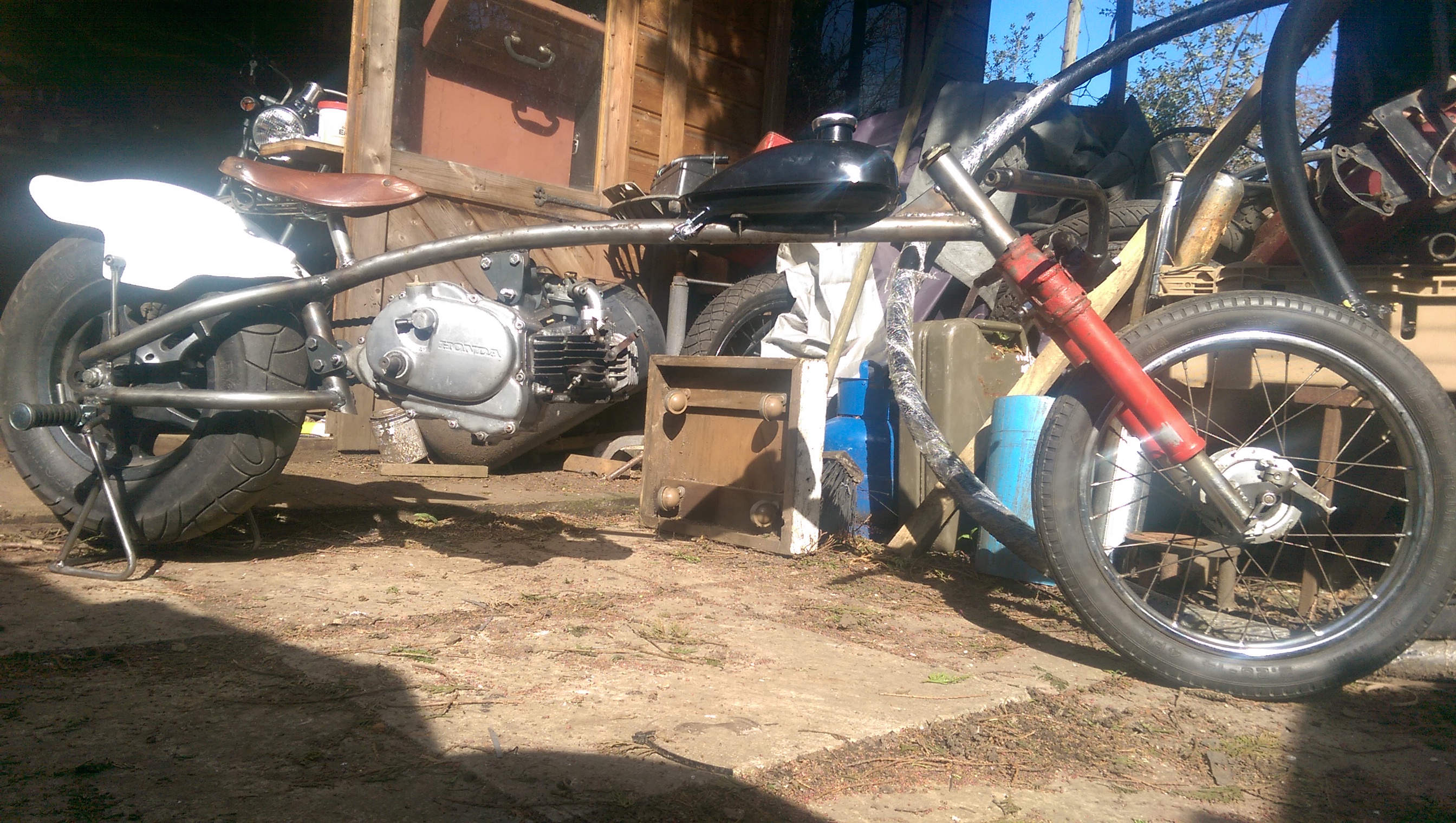

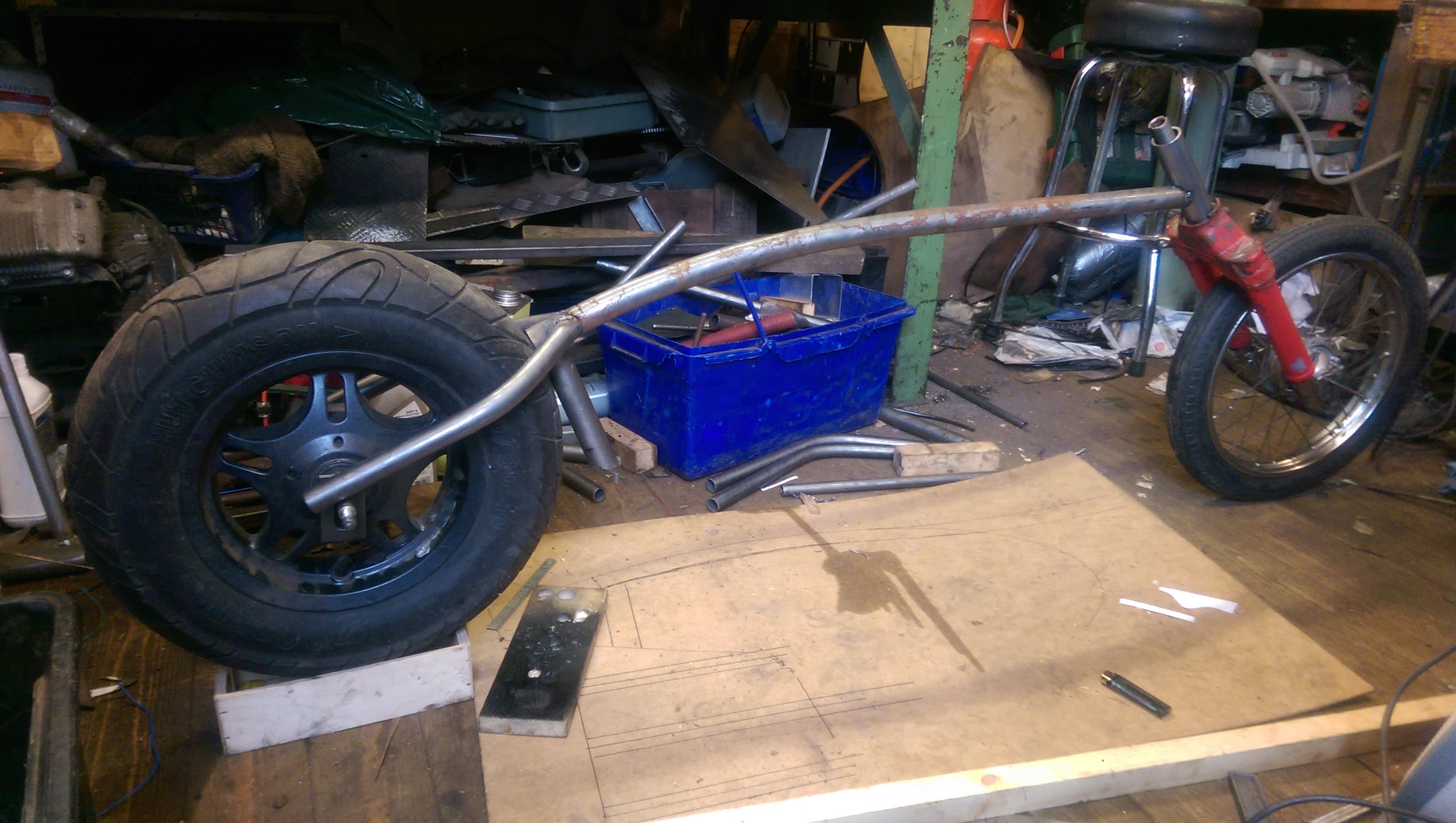

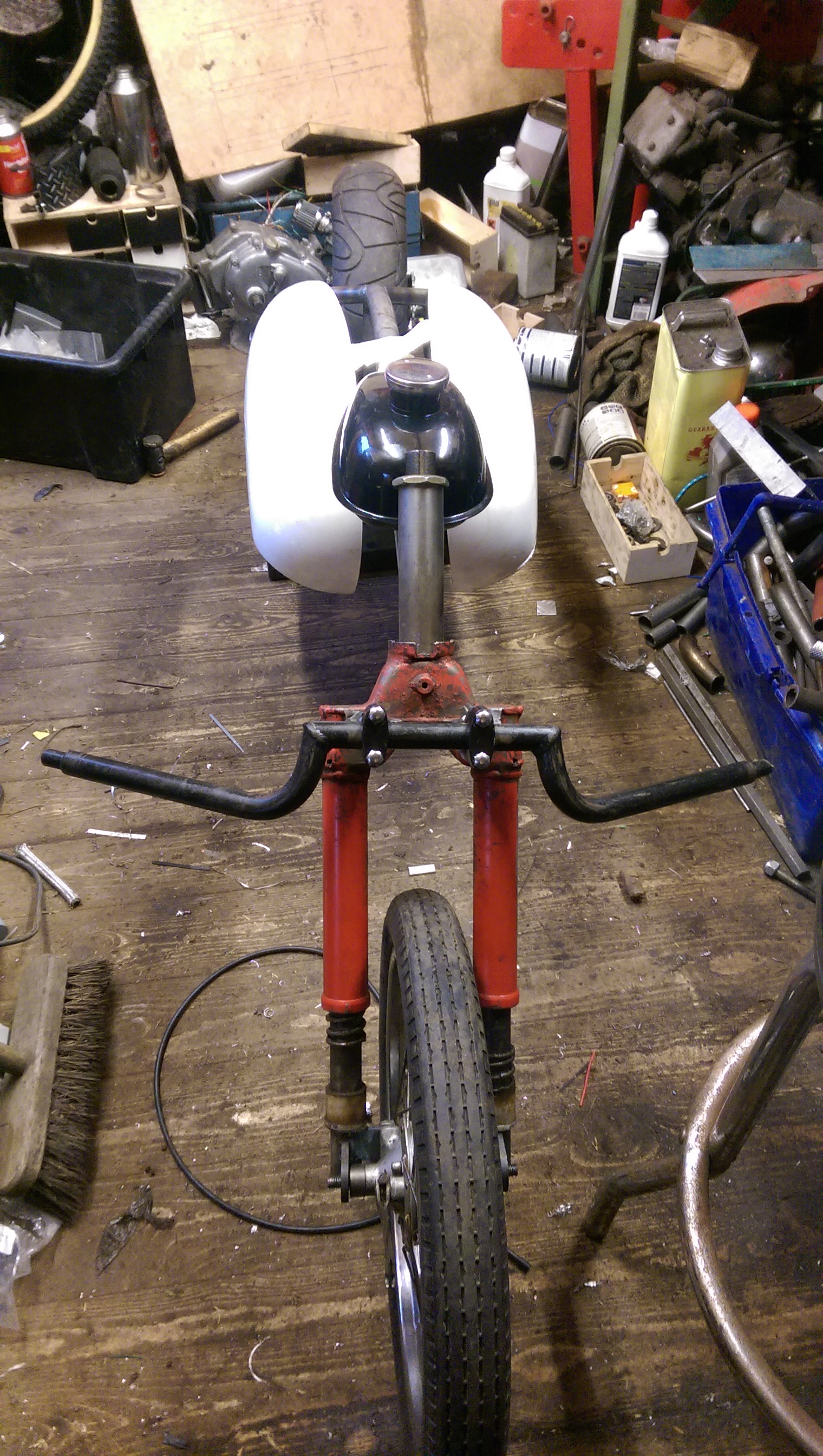

front forks are cut down Honda SH50, front wheel from a Honda NC50. Tank is from 'bicycle motor', rear mudguard is a fibreglass 'Harley' thing, nose cone is an old MG headlamp shell.

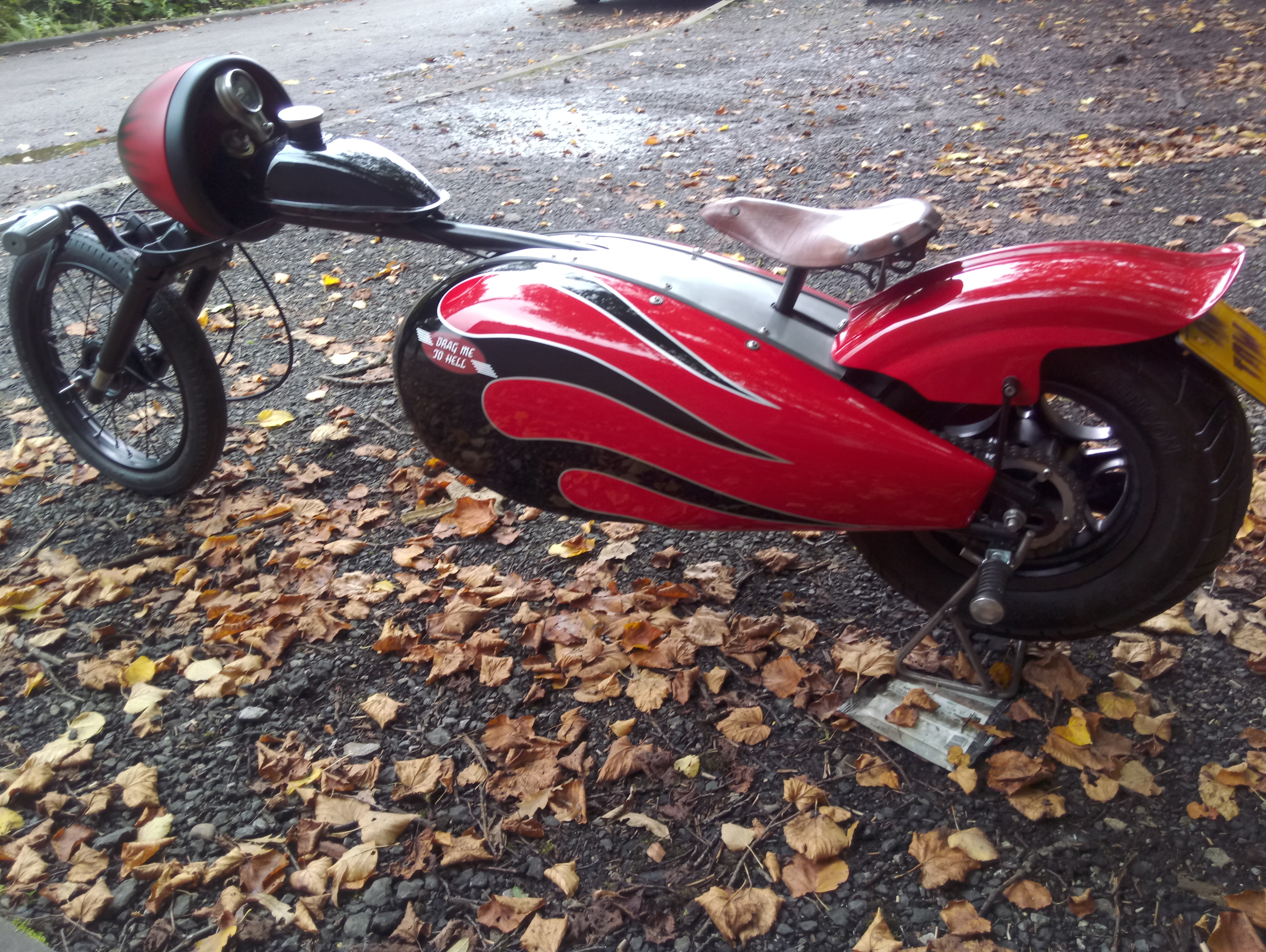

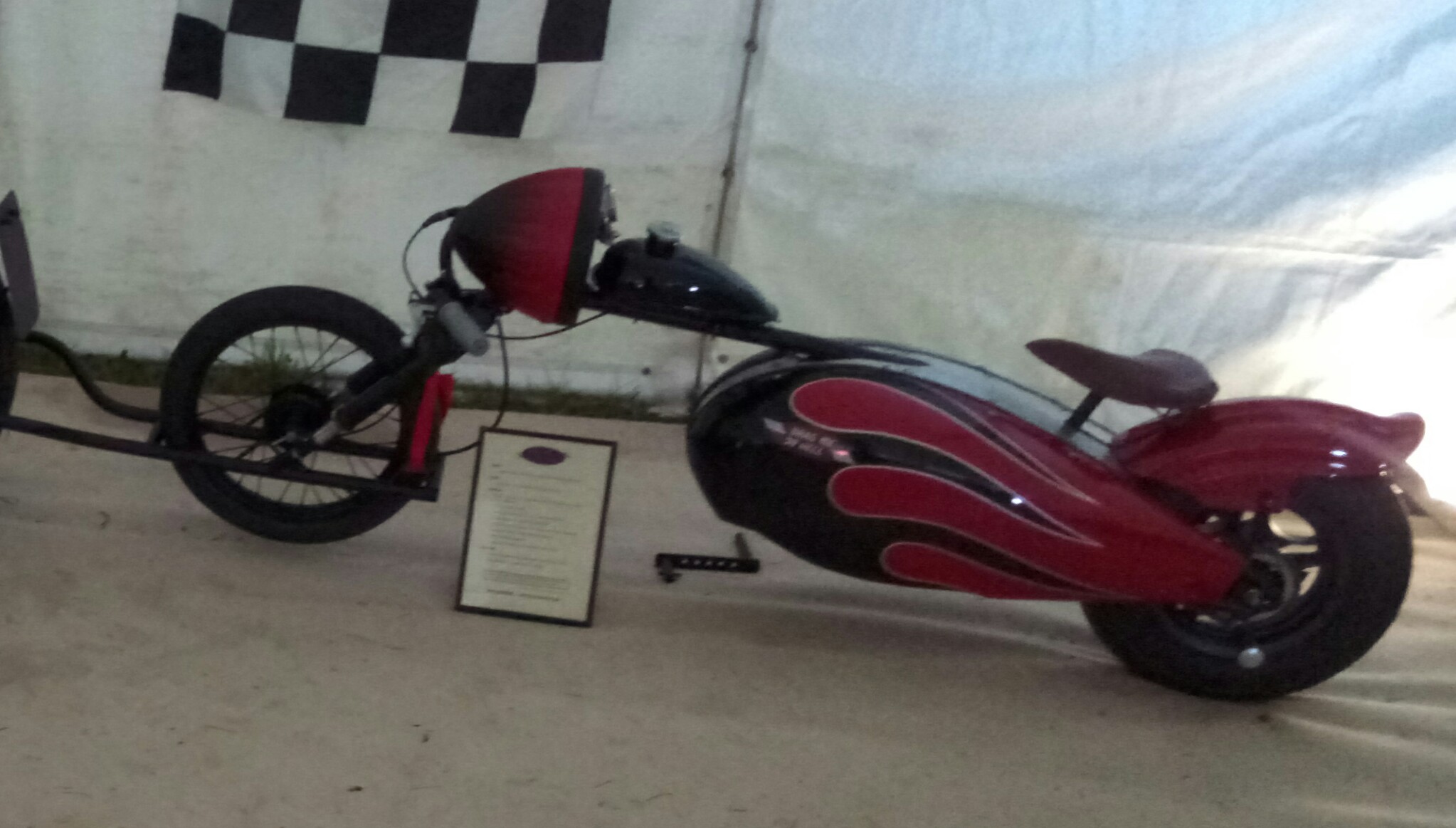

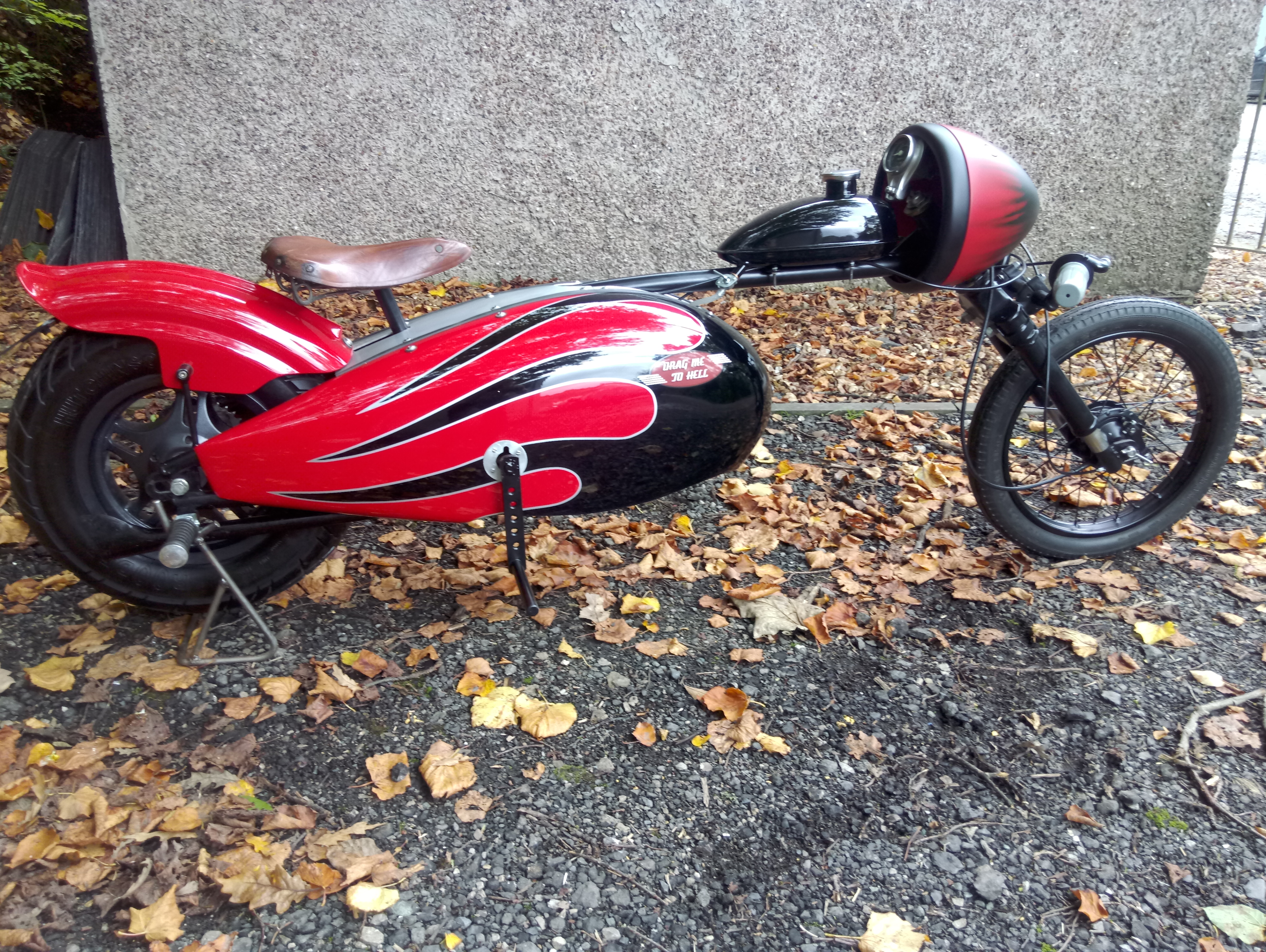

it's got a hot rod style 'scallop' paint job with a powder coated frame.

Home


Pictures

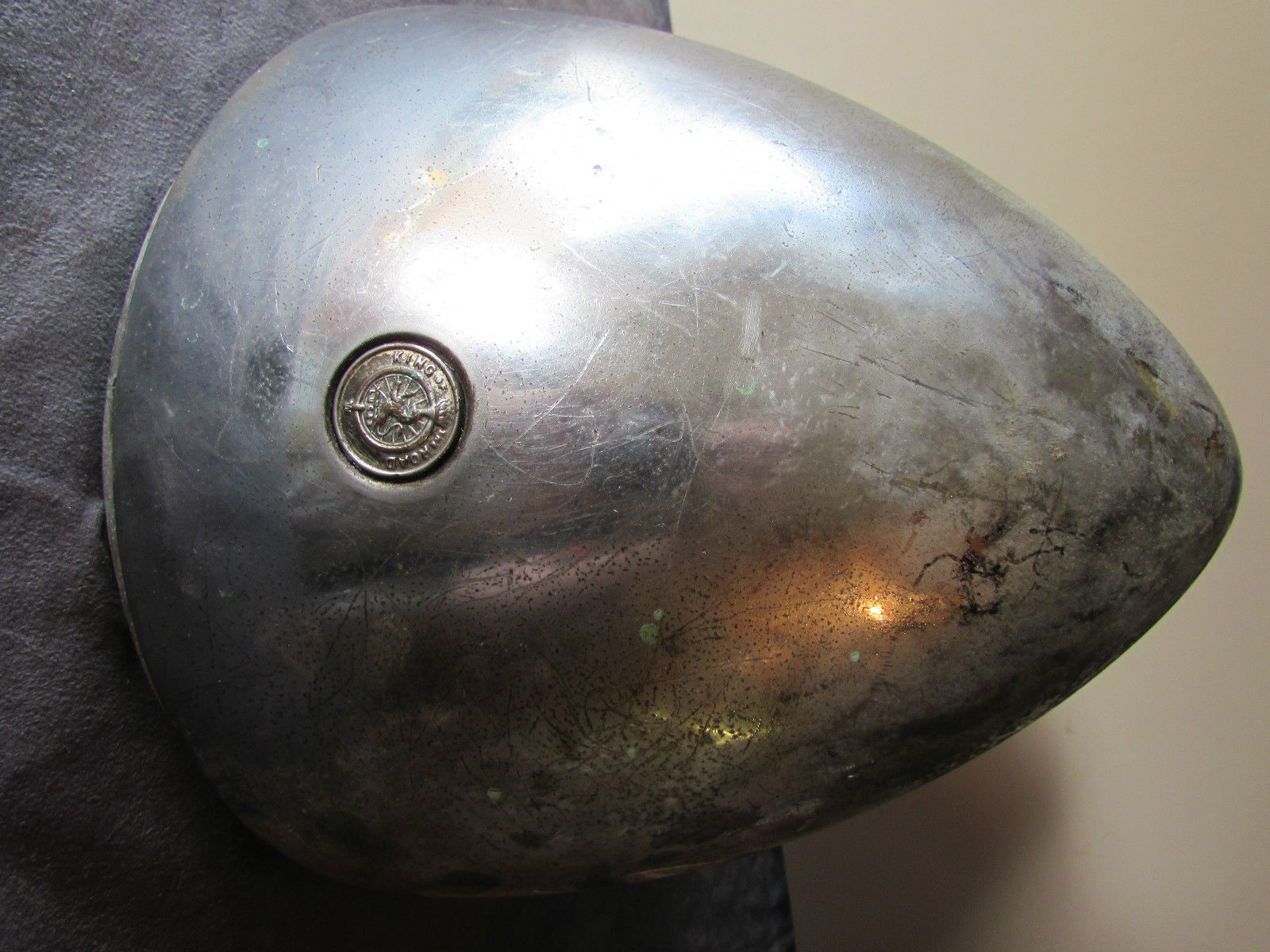

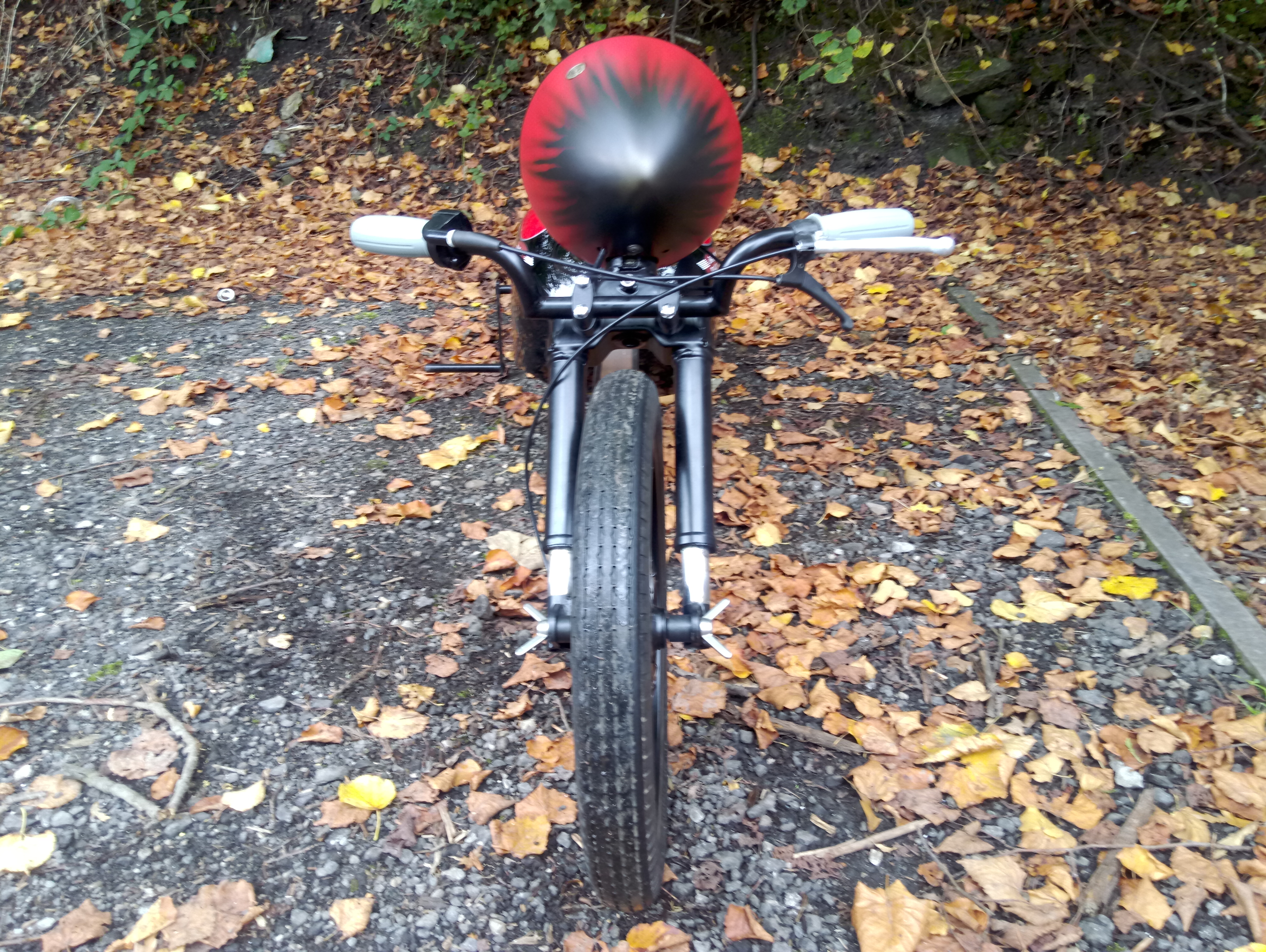

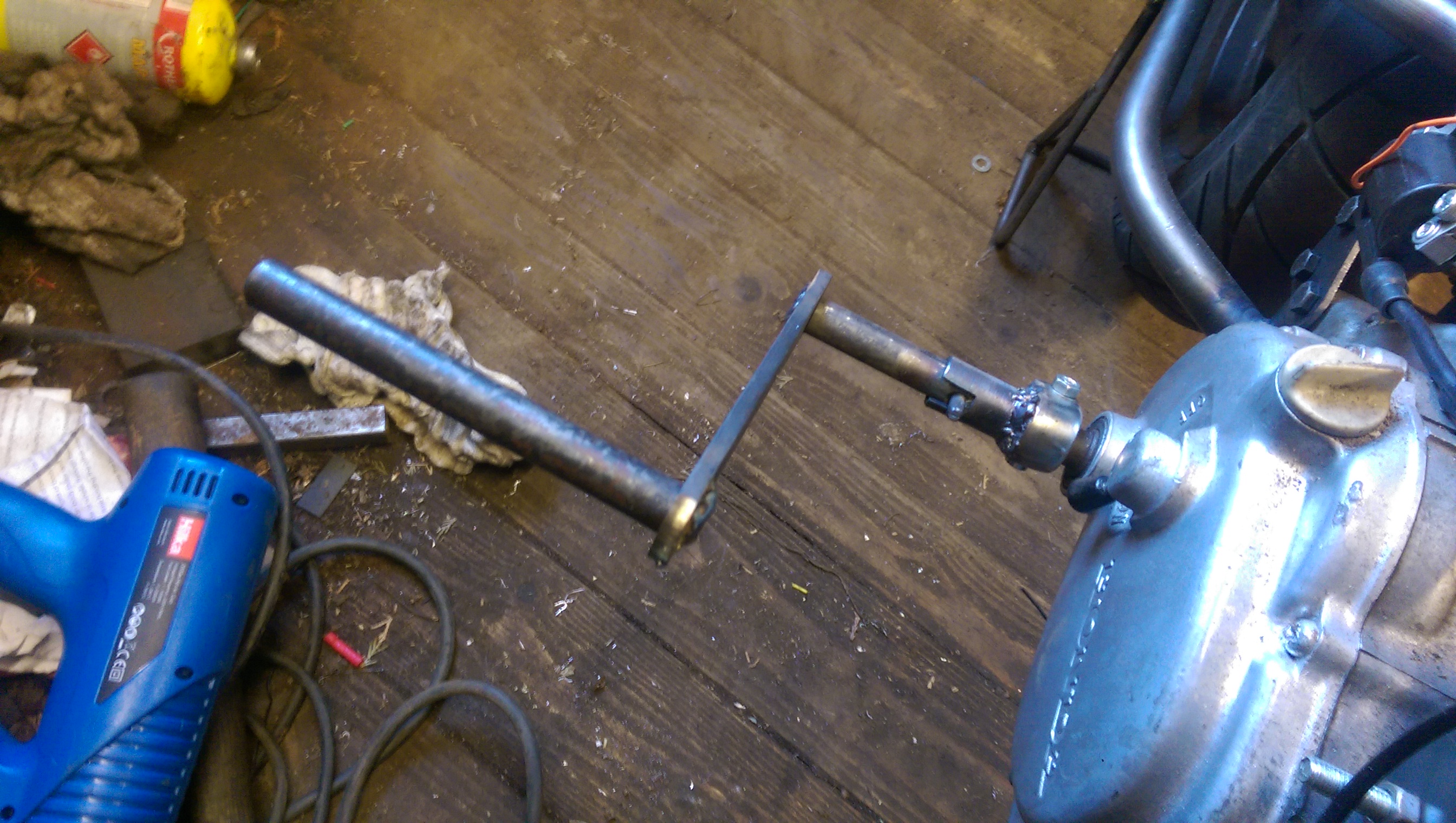

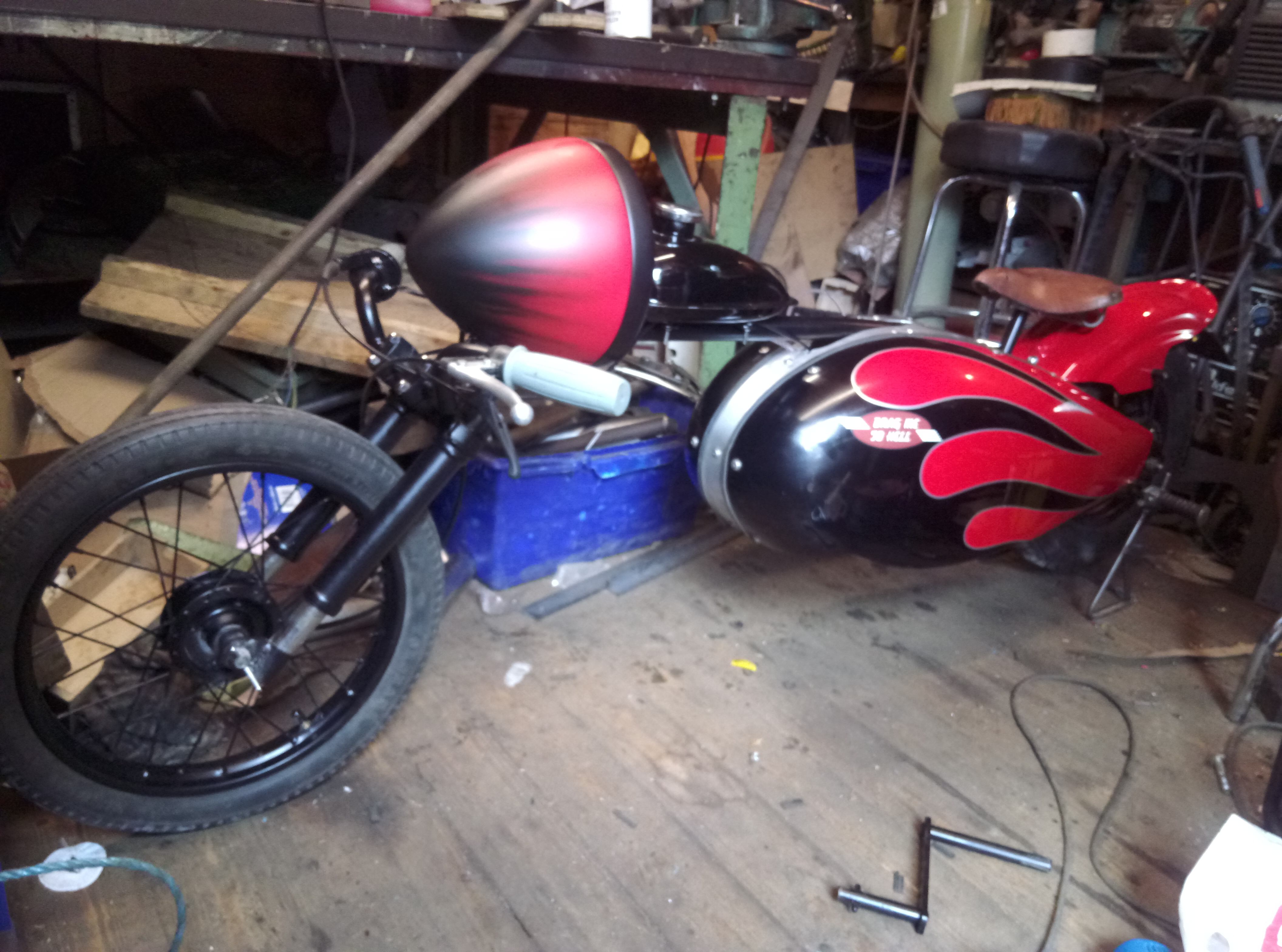

wanted a nose cone on it, found a old 9" head lamp shell on eBay, result again! and made a starting handle



speed demon!

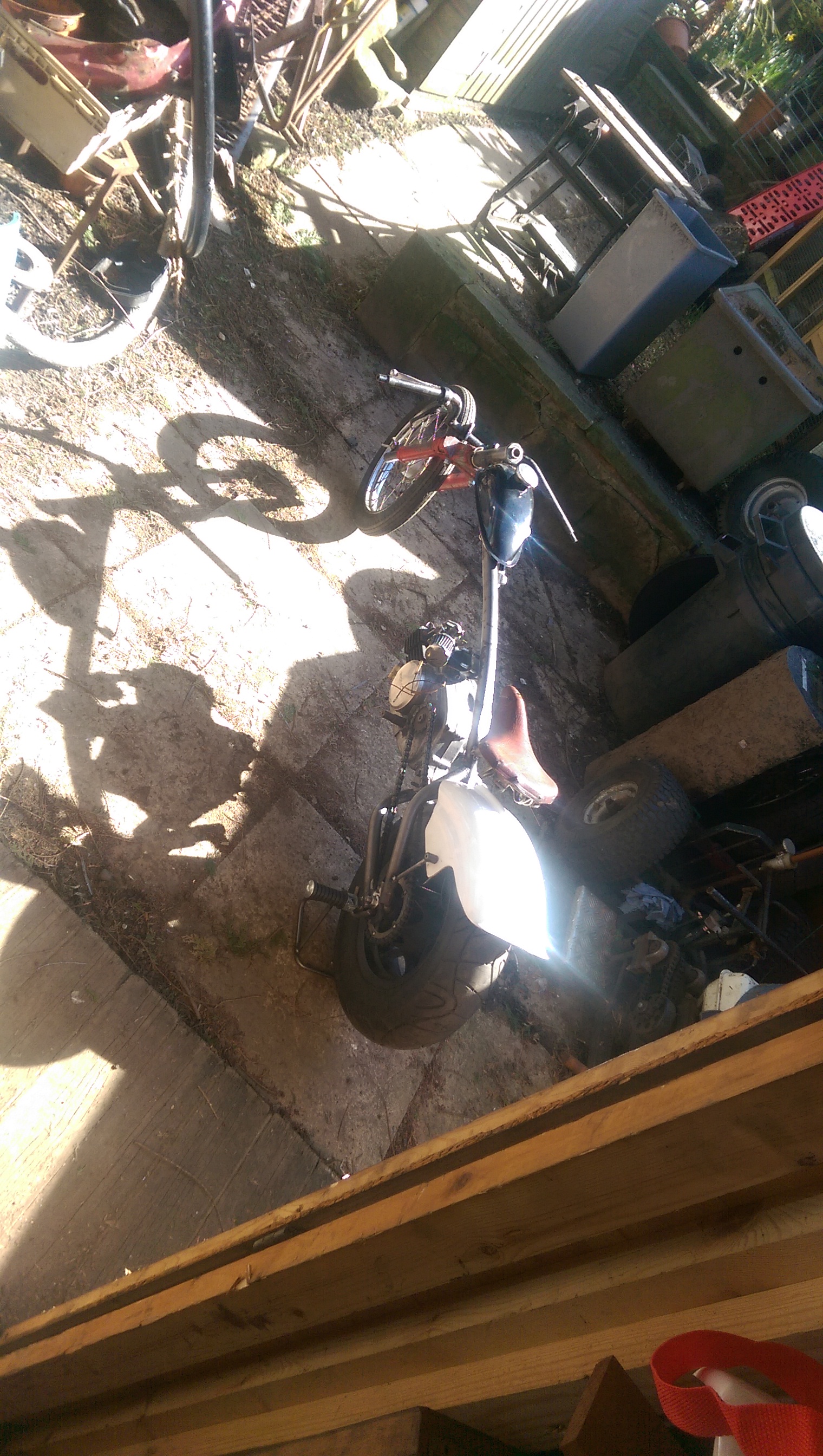

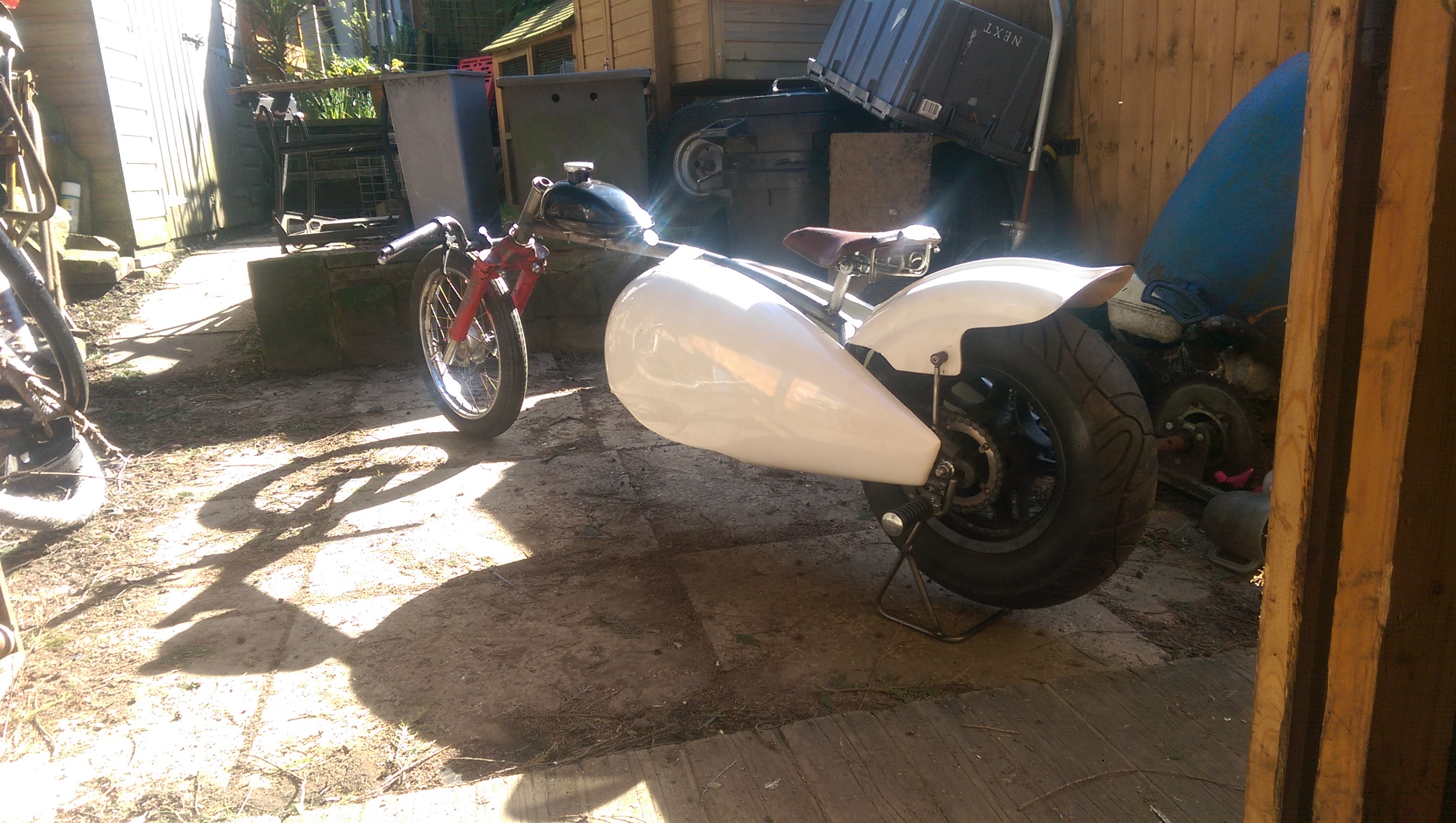

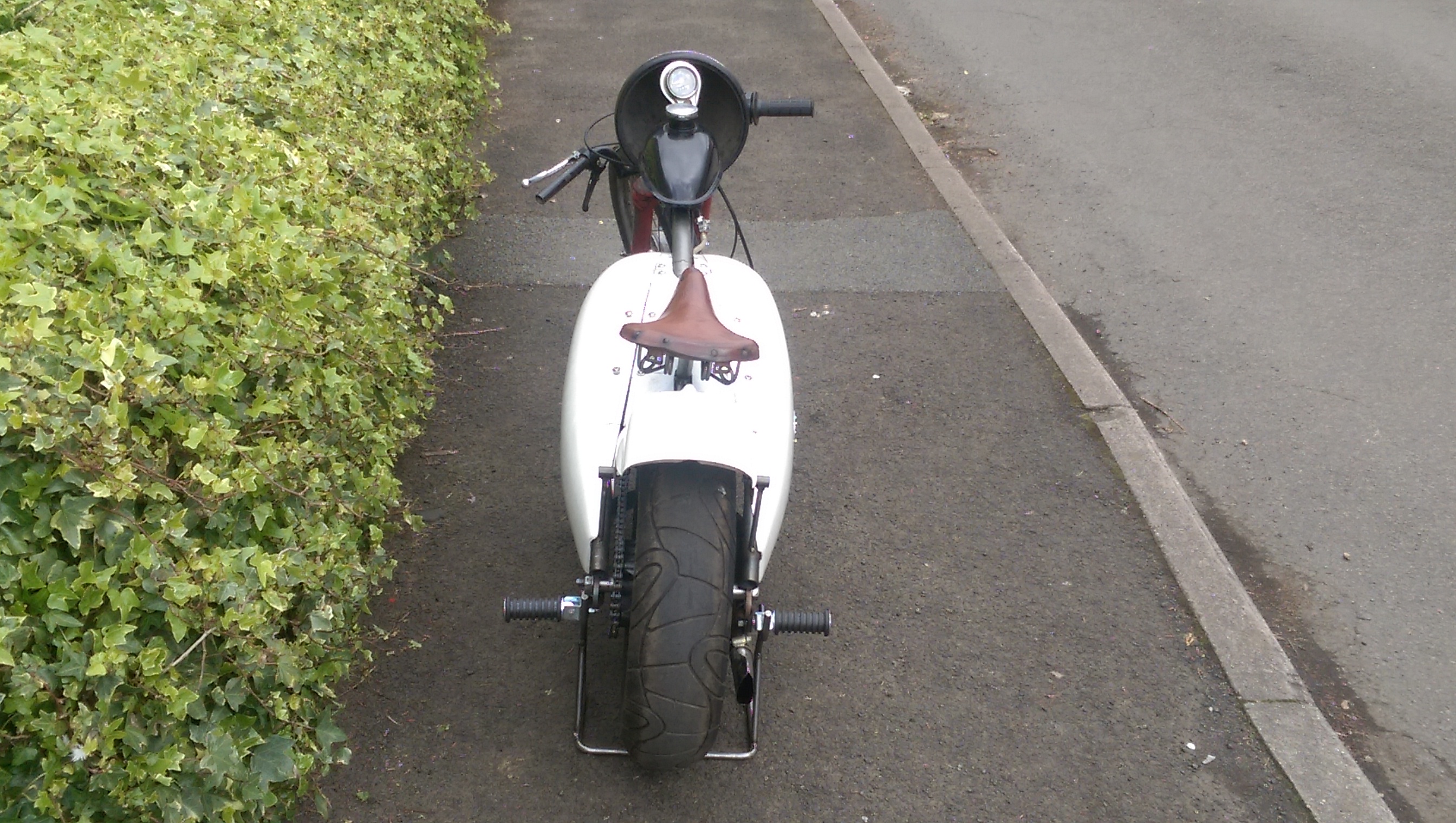

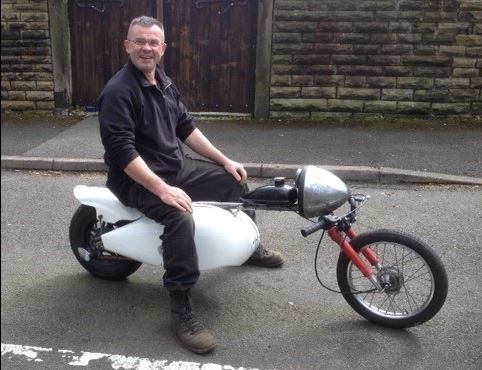

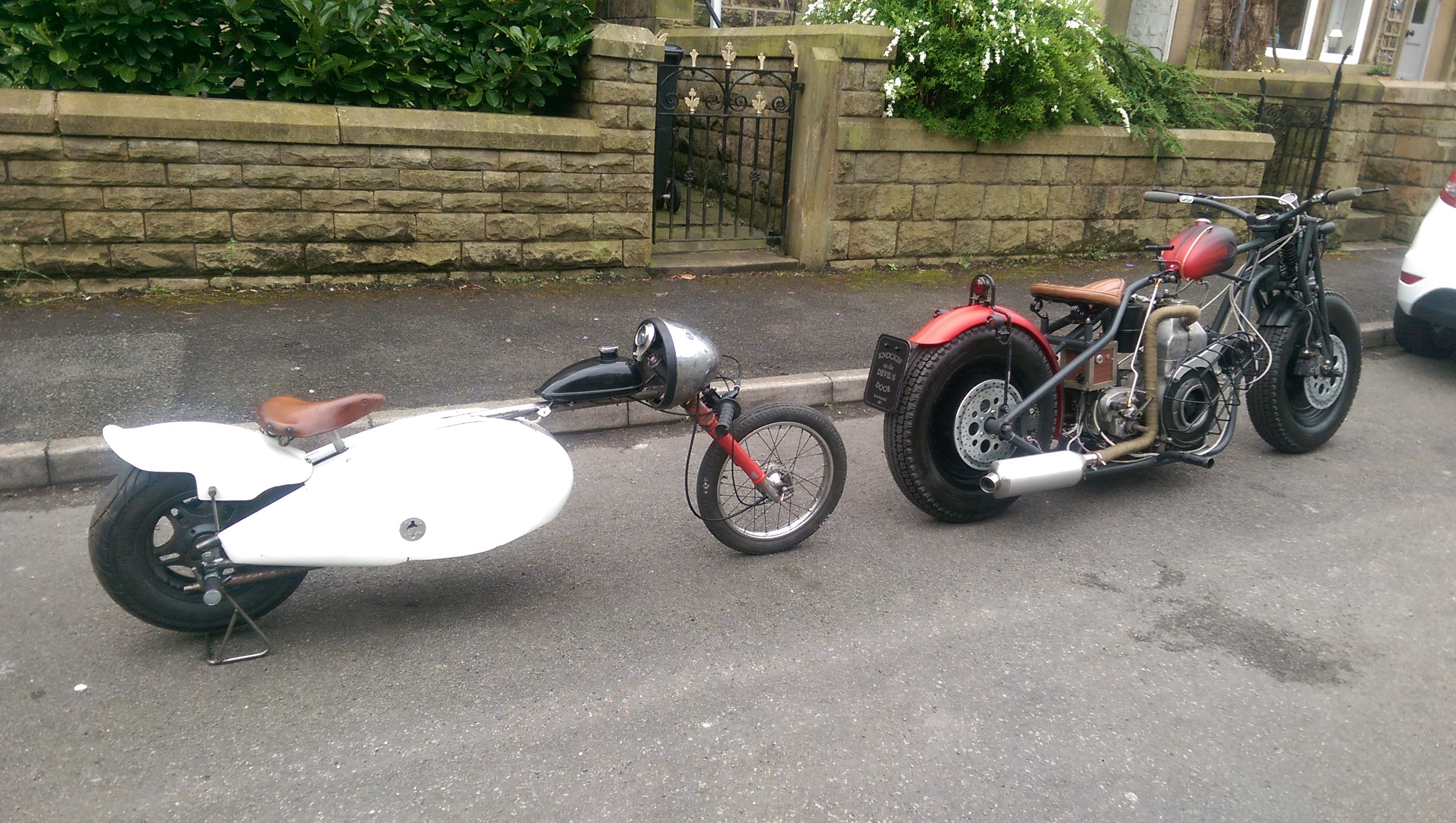

it's been out on the street and it works!

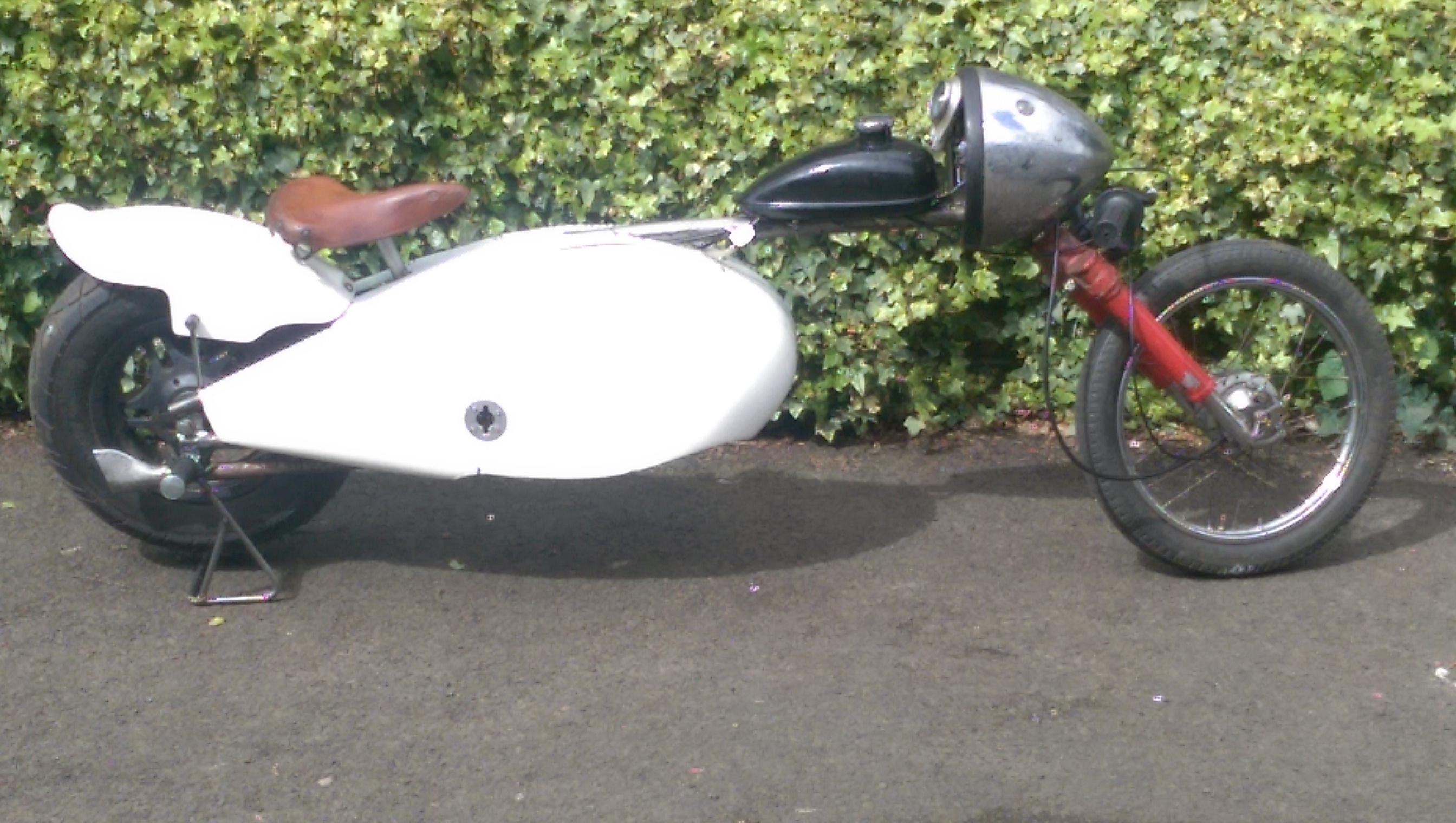

hole in the side is for the starting handle.

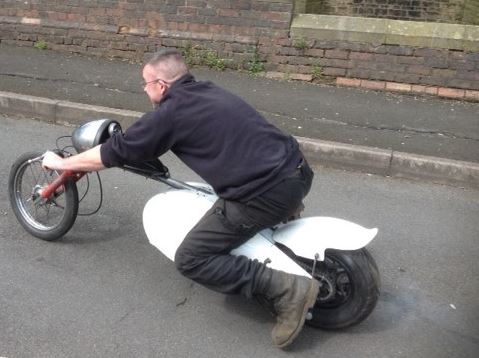

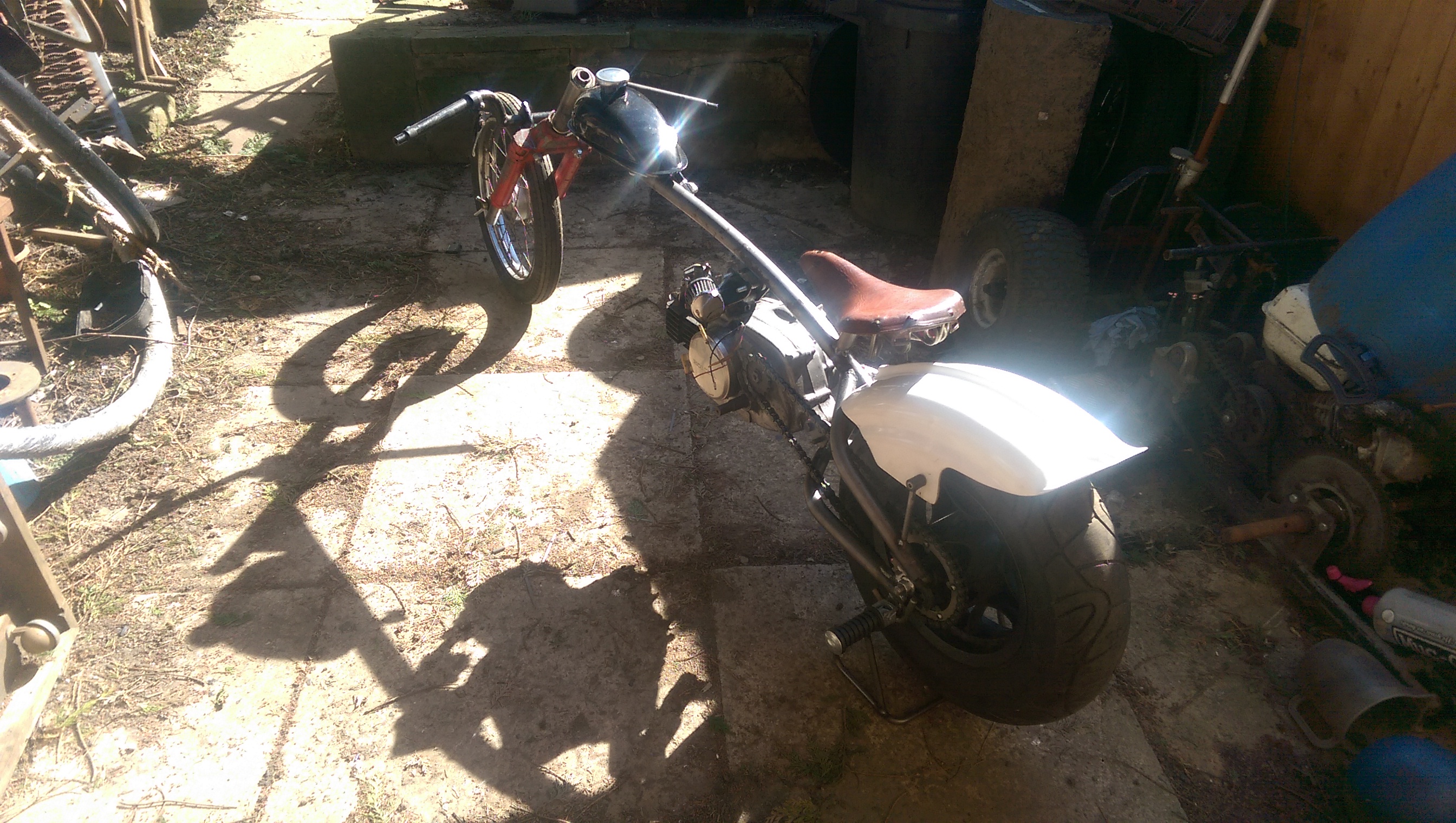

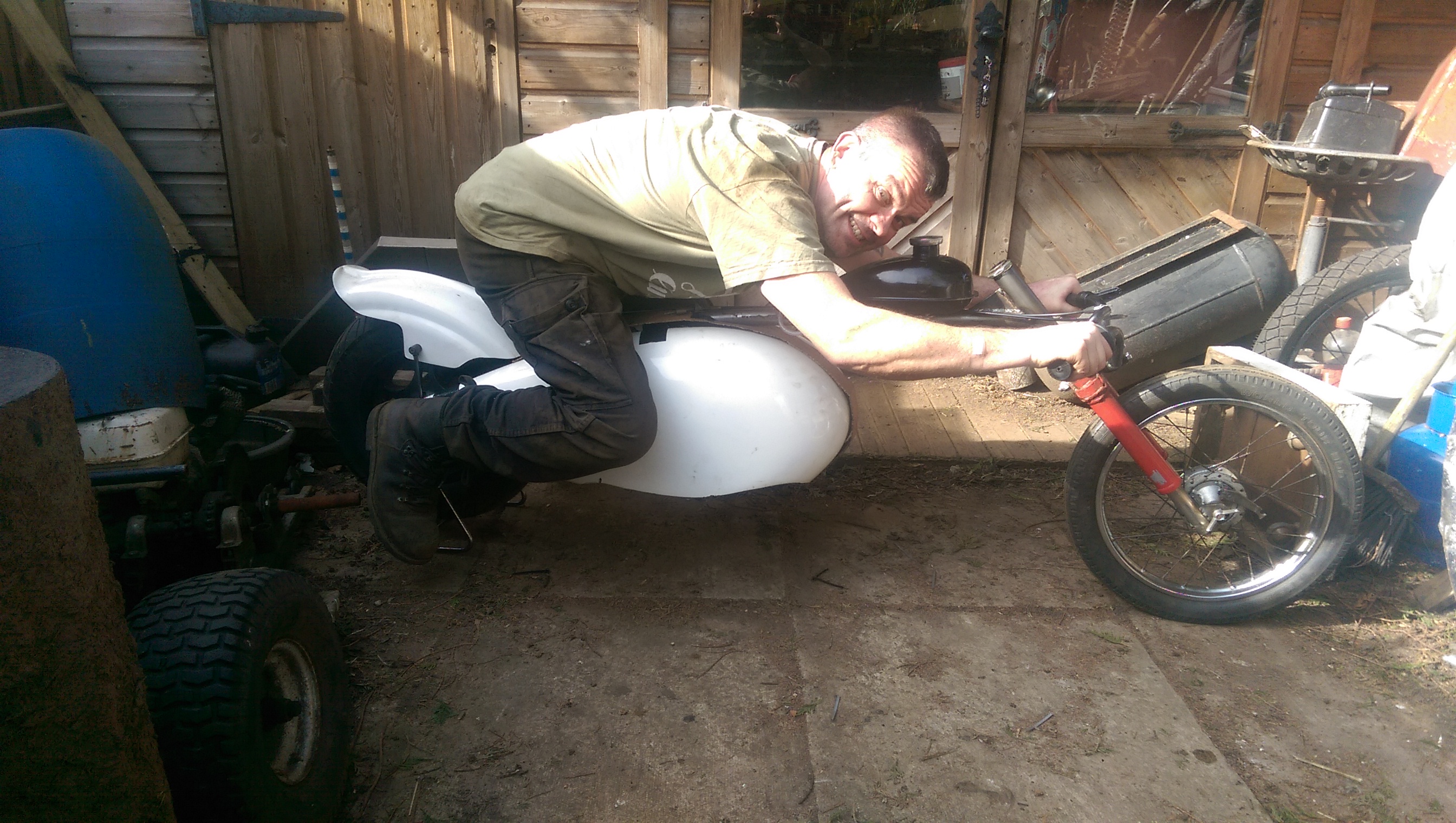

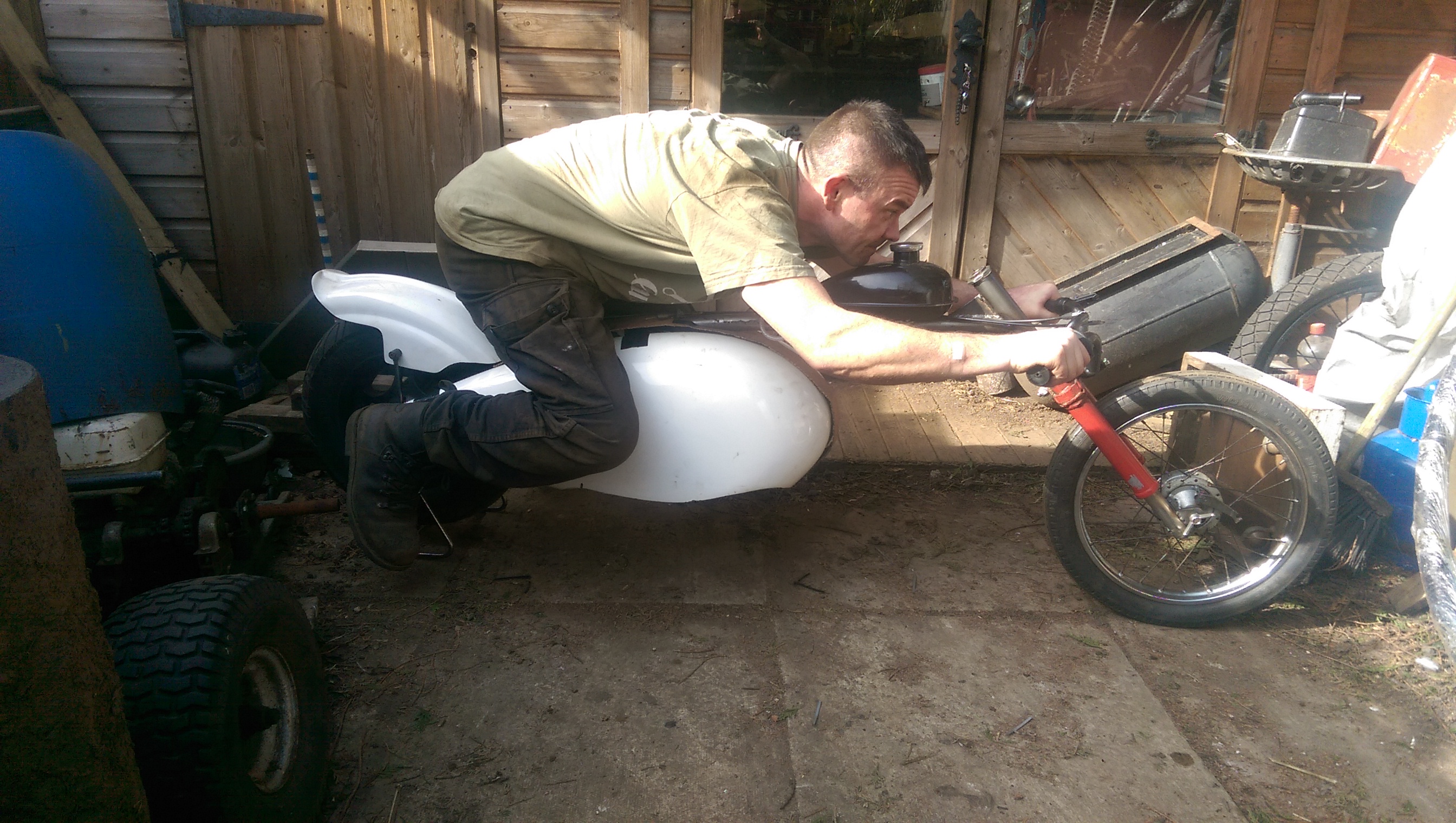

testing!

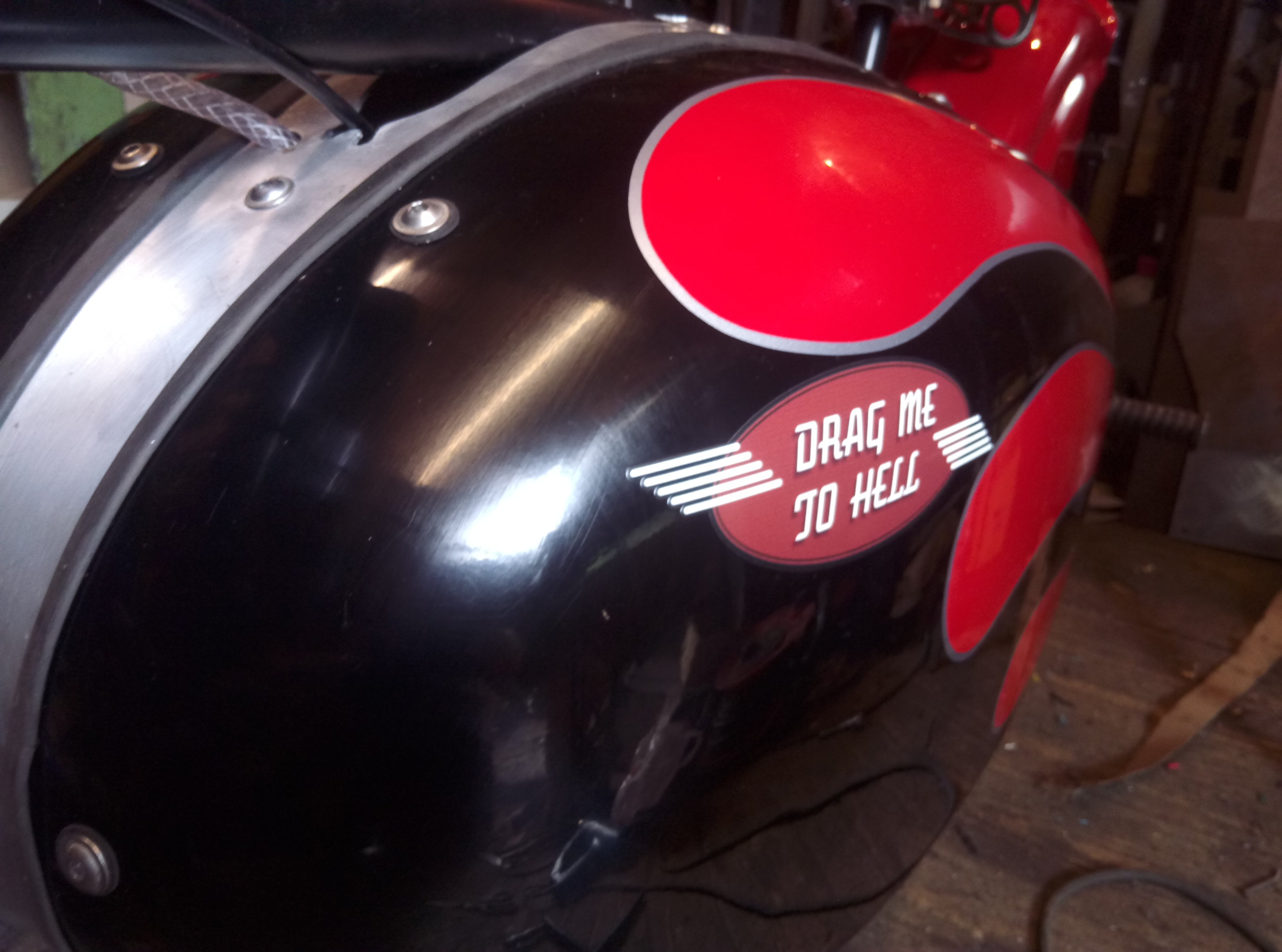

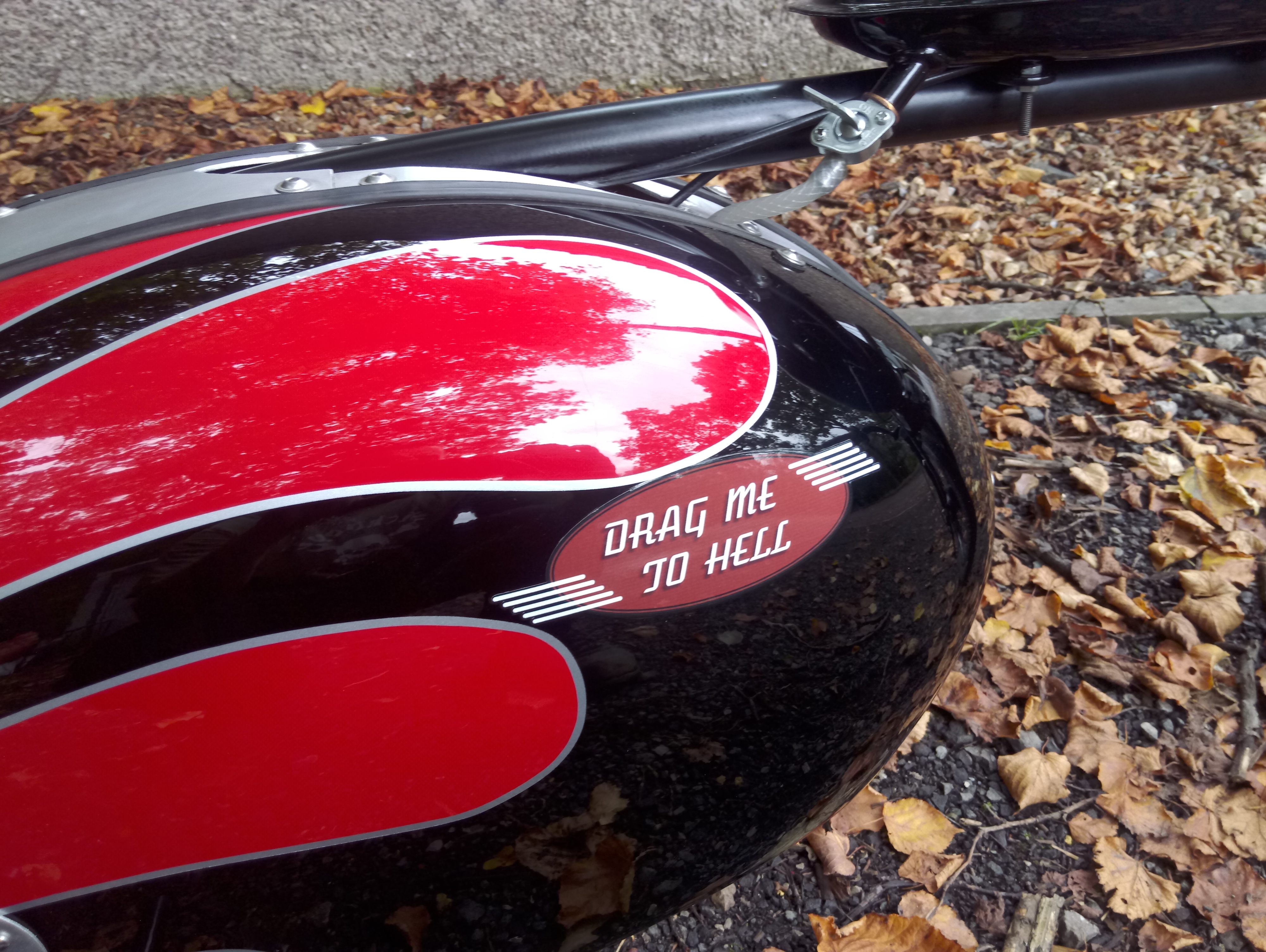

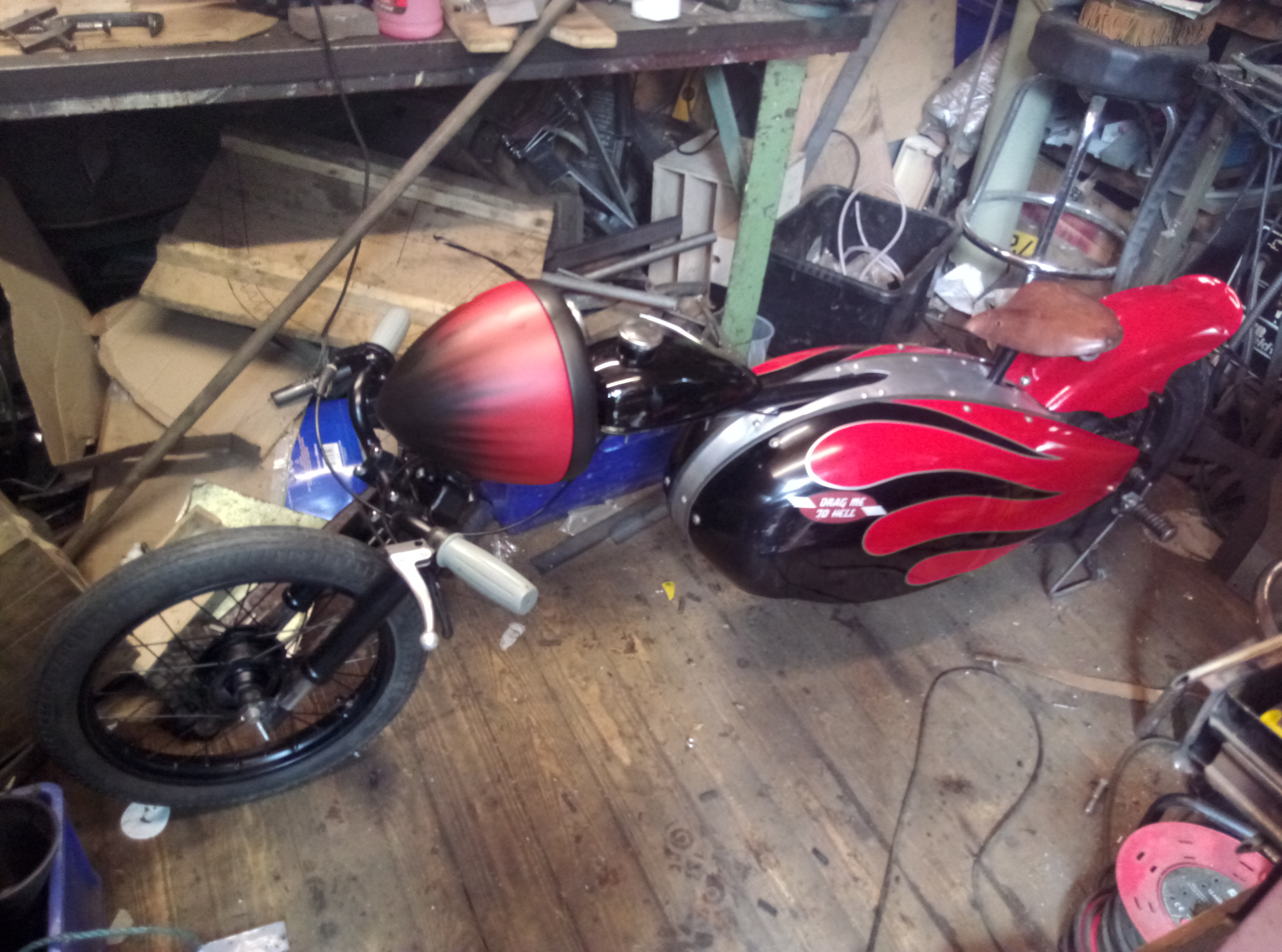

paint job is superb, thanks Dave!







Home


Movies



Home


What's it like to ride ?

GREAT FUN!

new speed record of 22MPH!, scary as shit! and it will go faster..........

Home


Questions

    If you have to ask why? then you will never understand...........

Q. Is it road legal?

A. only as a trailer and that's doubtful!

Q. Why use such a wimpy engine?

A. Because it a nice little 'compact' engine? it's only for fun and it's a mighty 1.8HP!!!!!!!!!!

Q. why not tune the engine?

A. it's a push rod moped engine, tuning it would probably blow the crank!
