Diesel Motorcycle

and 'Leaner' Sidecar *

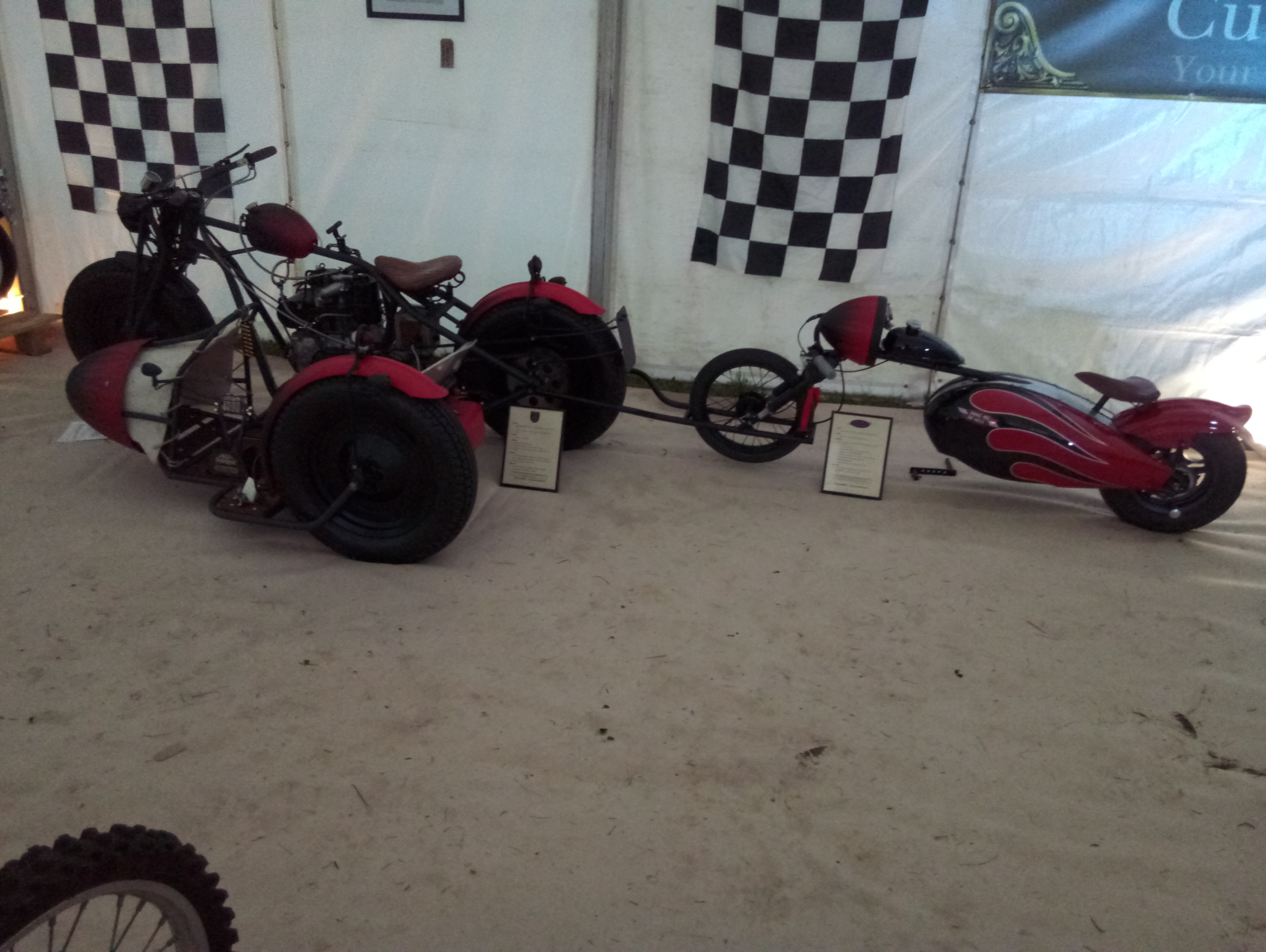

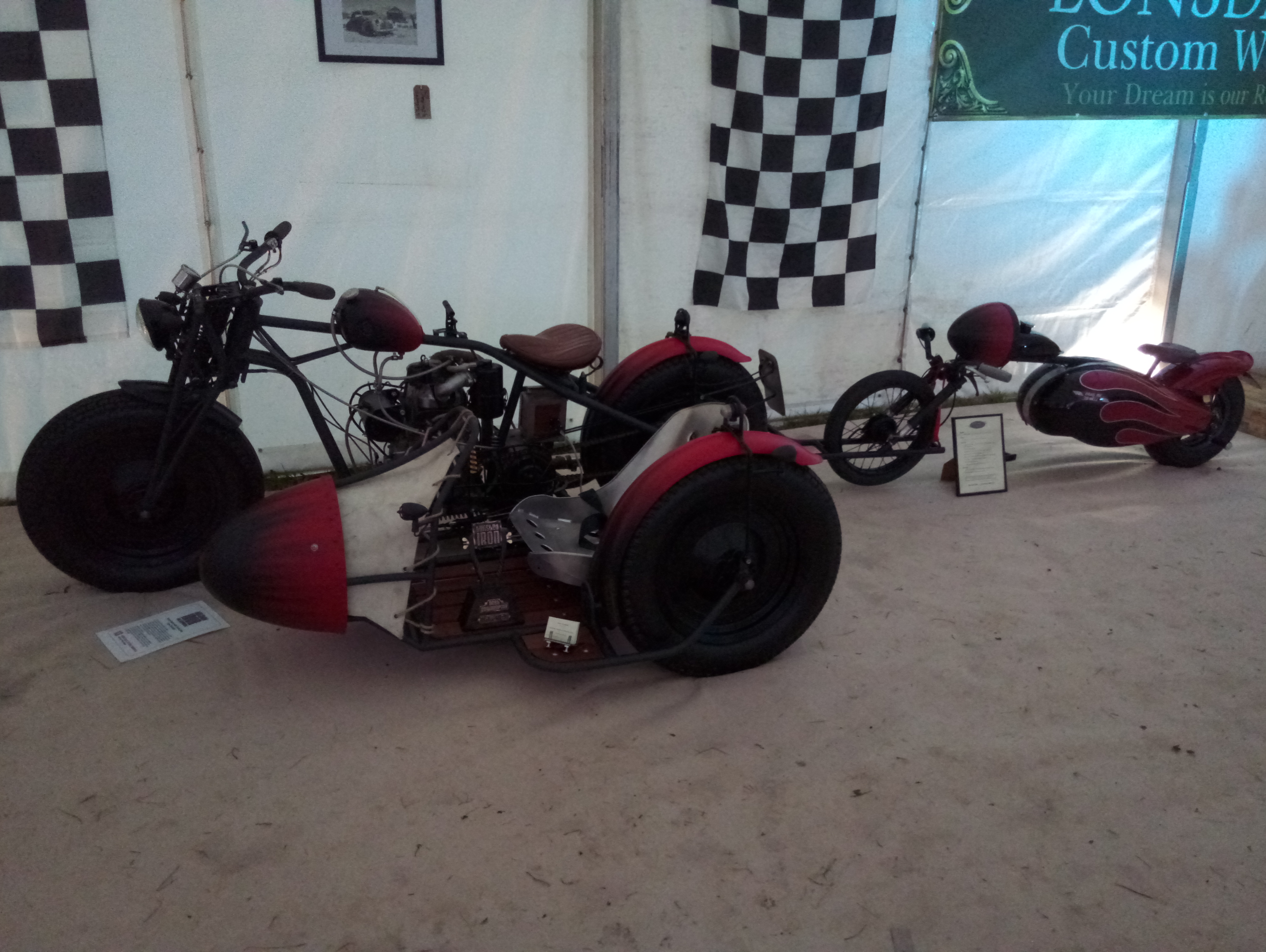

The award winning

KNOCKIN' on the DEVILS DOOR

Runner up in freestyle class at Kickback #10 2017

Best Engineering, Twisted Iron The happening 2017

* the sidecar 'pivots' on the mountings on the bike. see this video for a good explanation


Back ground to the project

     After the boardtracker and the butchers bike I was looking to build something else and as usual was looking for something a little different. I wanted to build another full custom made bike and I like the sidecar on the butchers bike so a plan was forming. searching for suitable engines on EBay I can across a Ducati IS9 Diesel for sale. I didn't know Ducati made diesels! It's a stationary engine used on boats and for agricultural use; perfect for lugging a sidecar!? I already had a three speed plus reverse Albion heavyweight gearbox so...... another project is go!

Home


 Initial drawings and ideas

Going to go for a sort of Rat Rod look, solid 16" wheels, girder forks, low and squat.

    this is the sort of thing...

from here

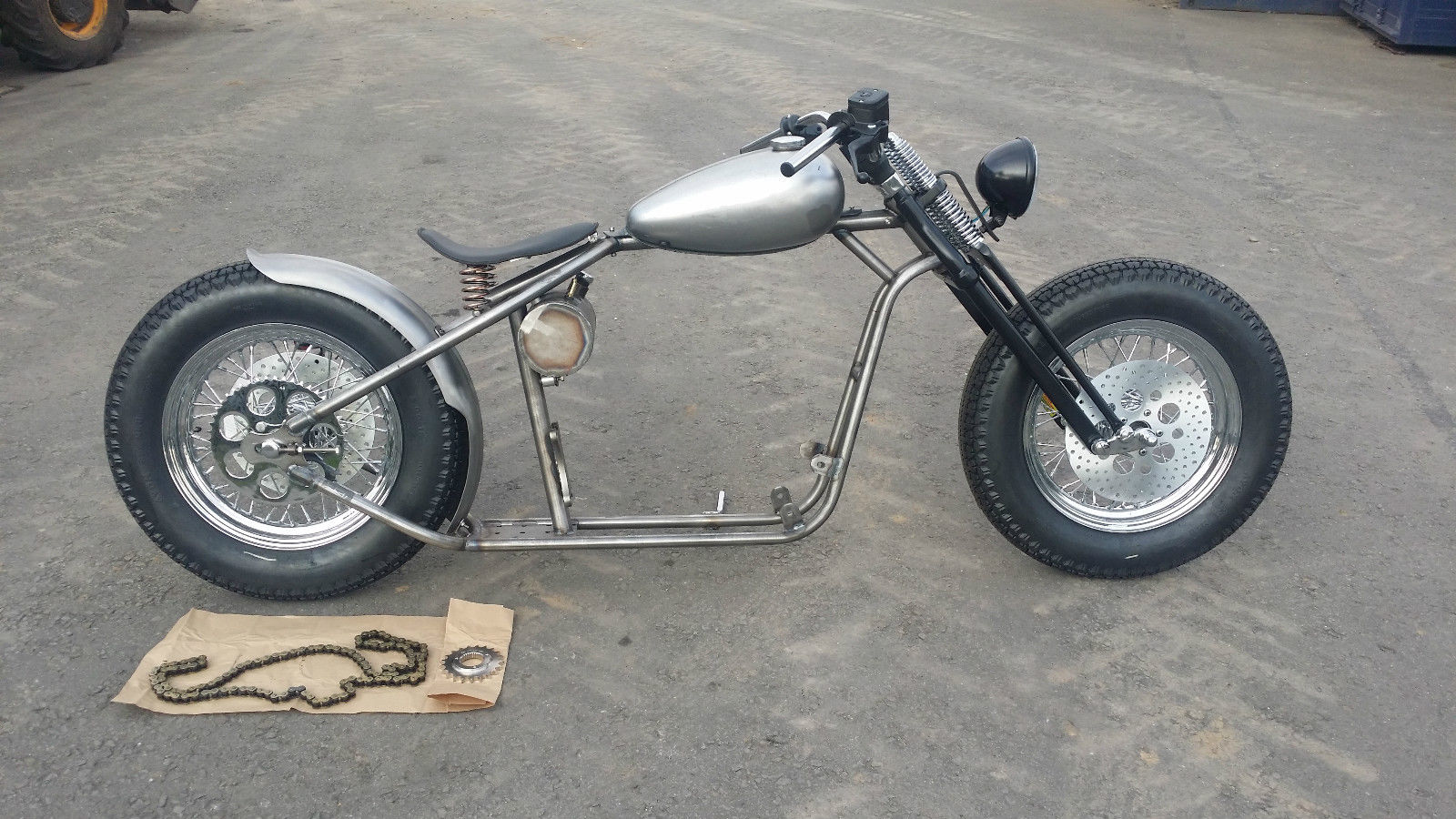

I really like this frame!

from here

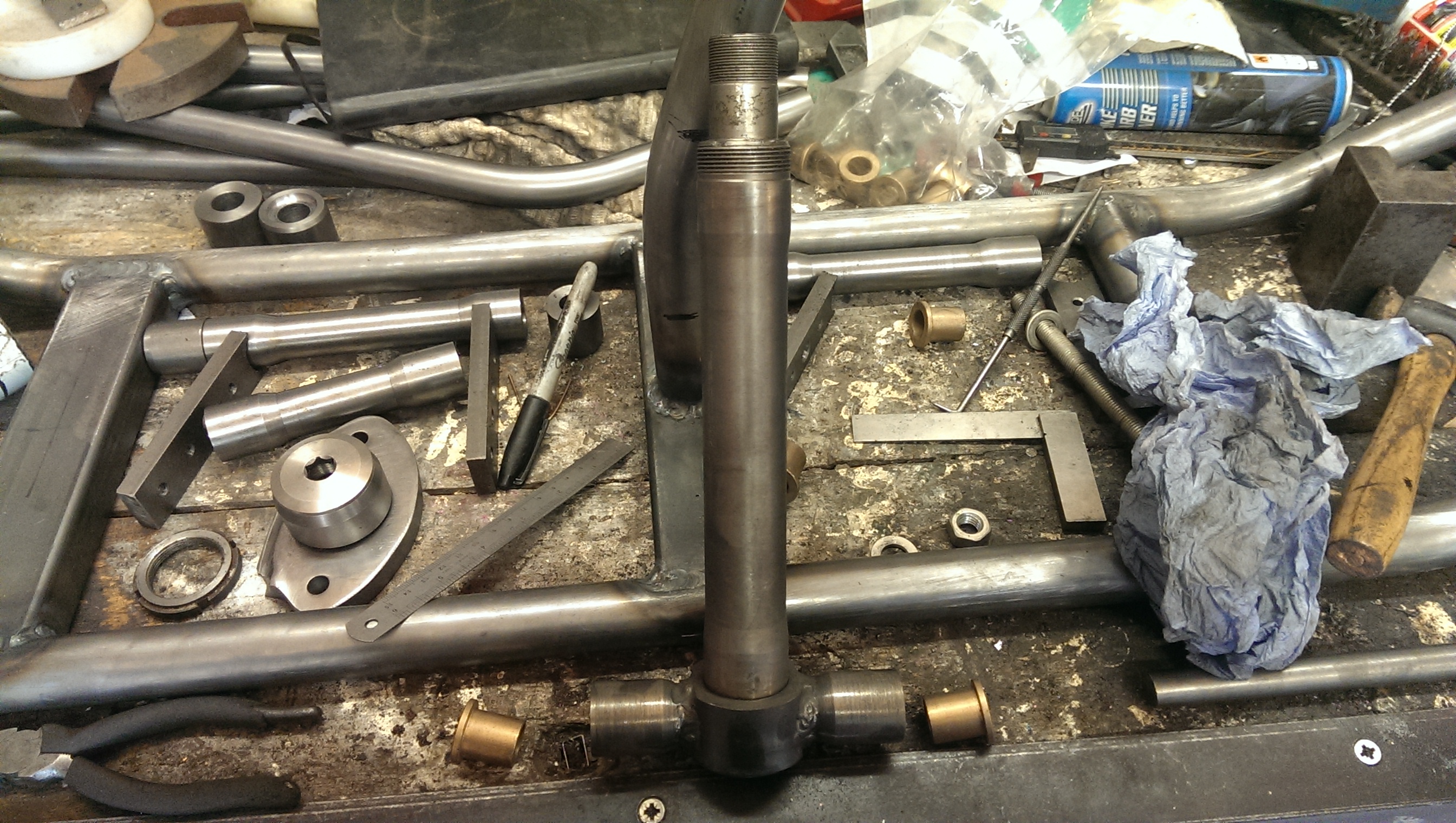

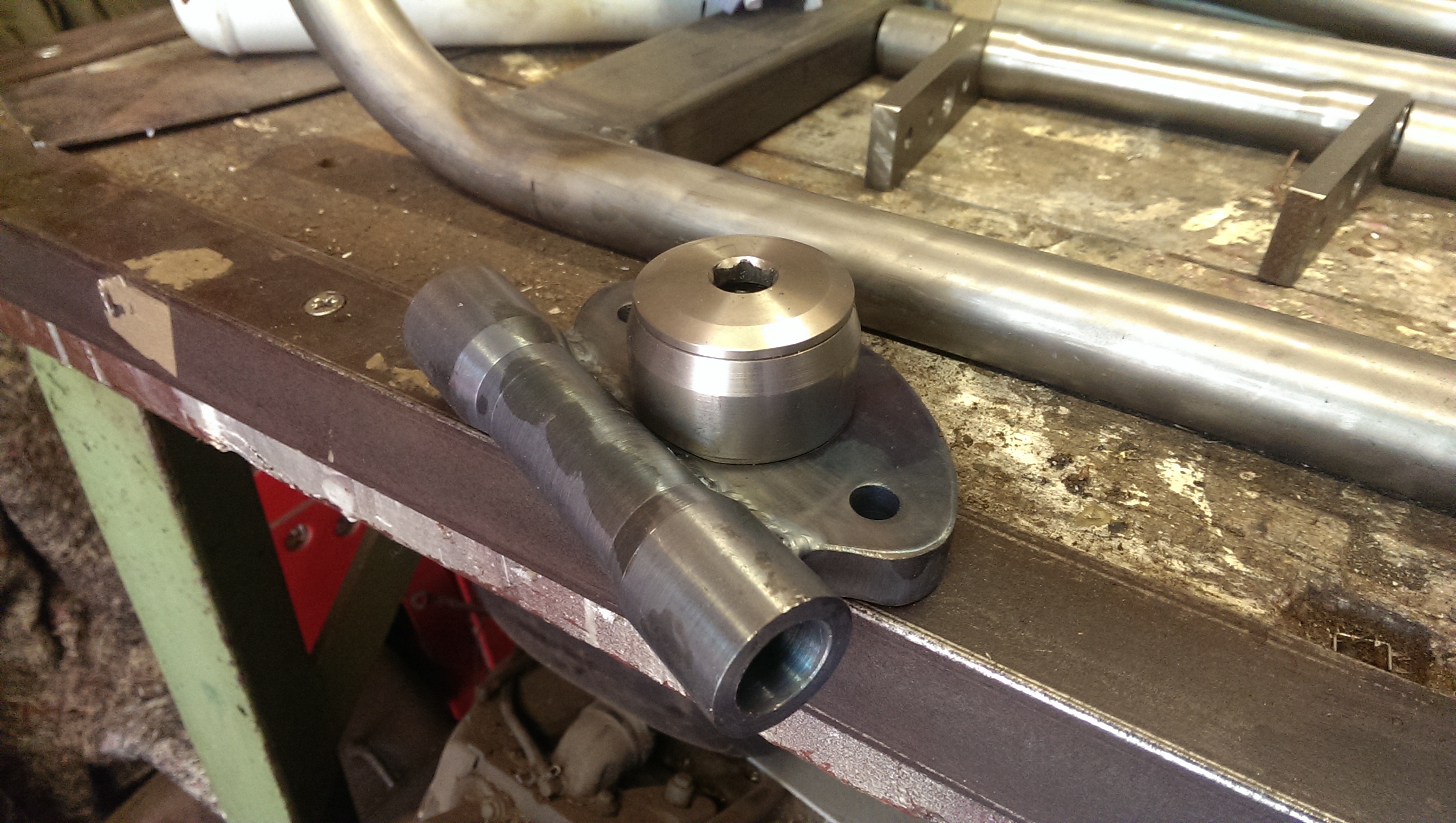

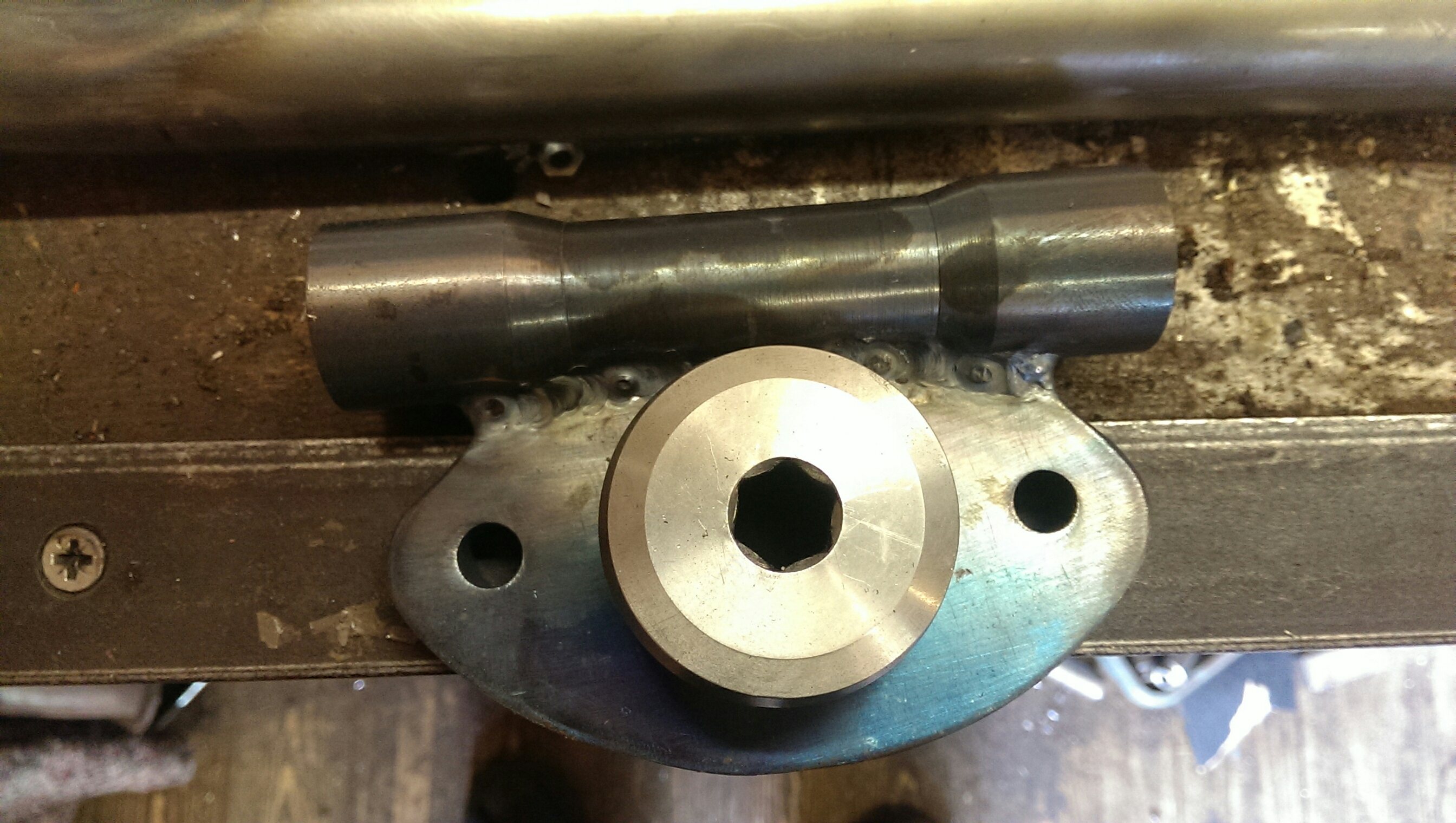

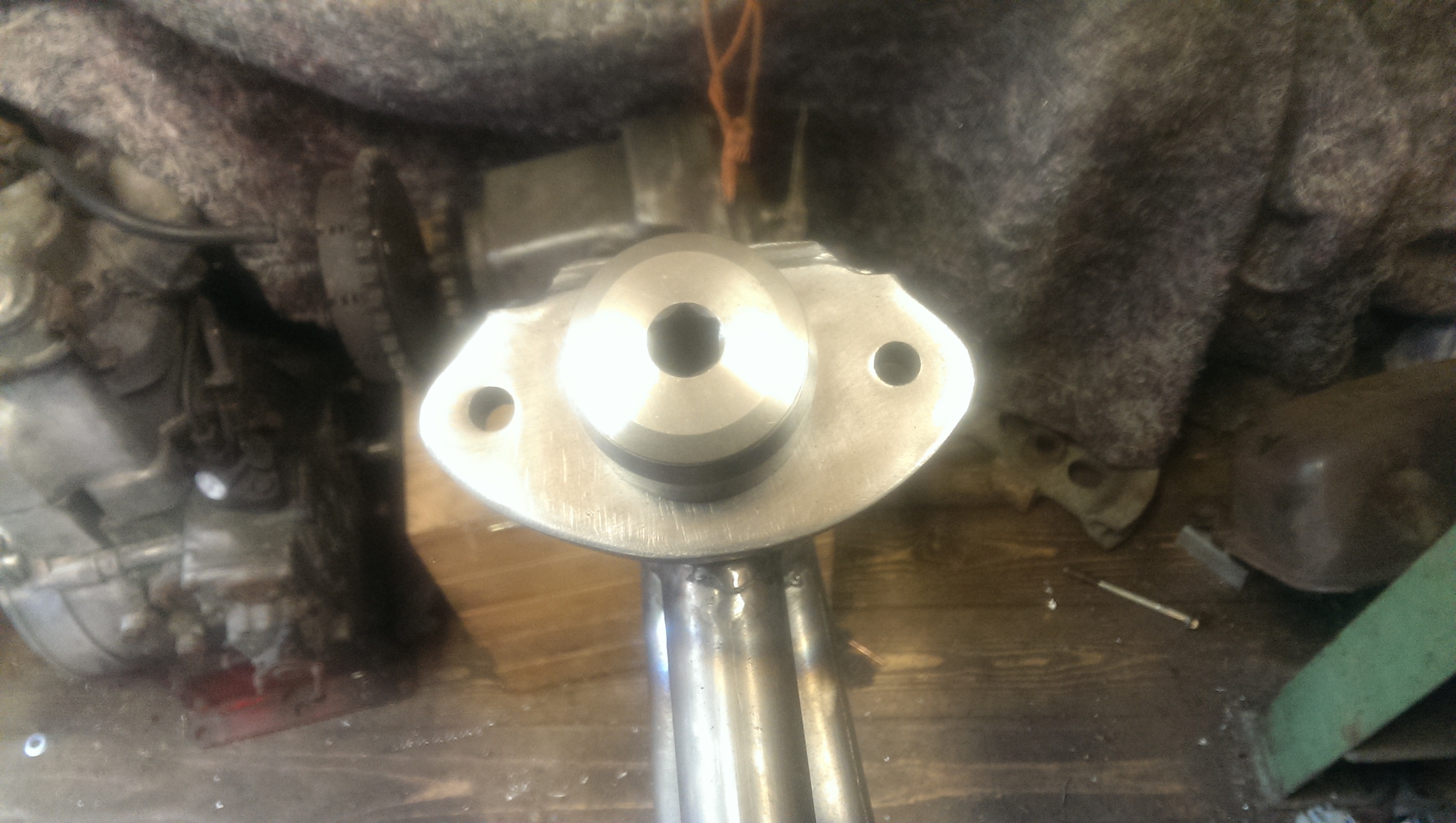

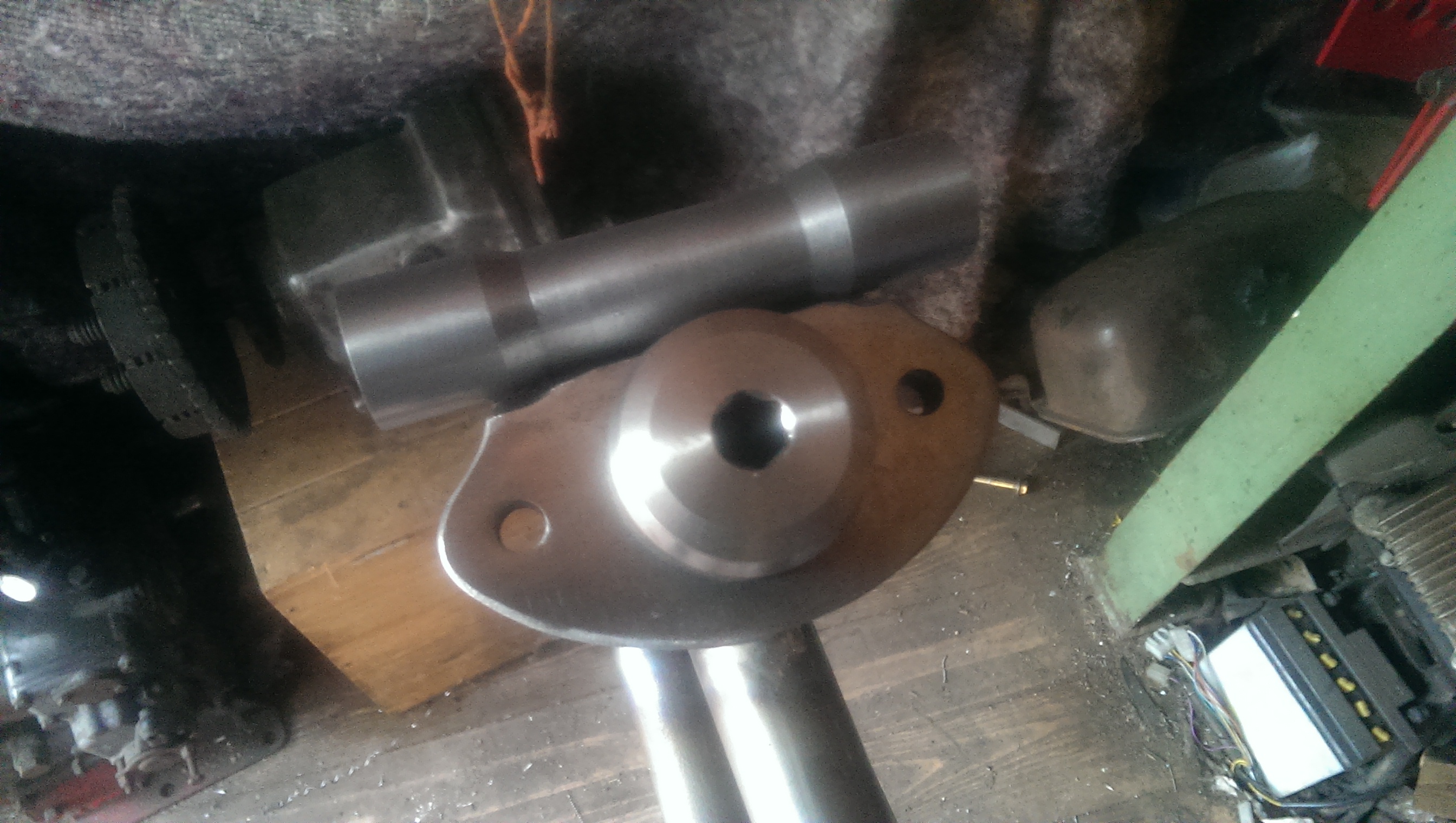

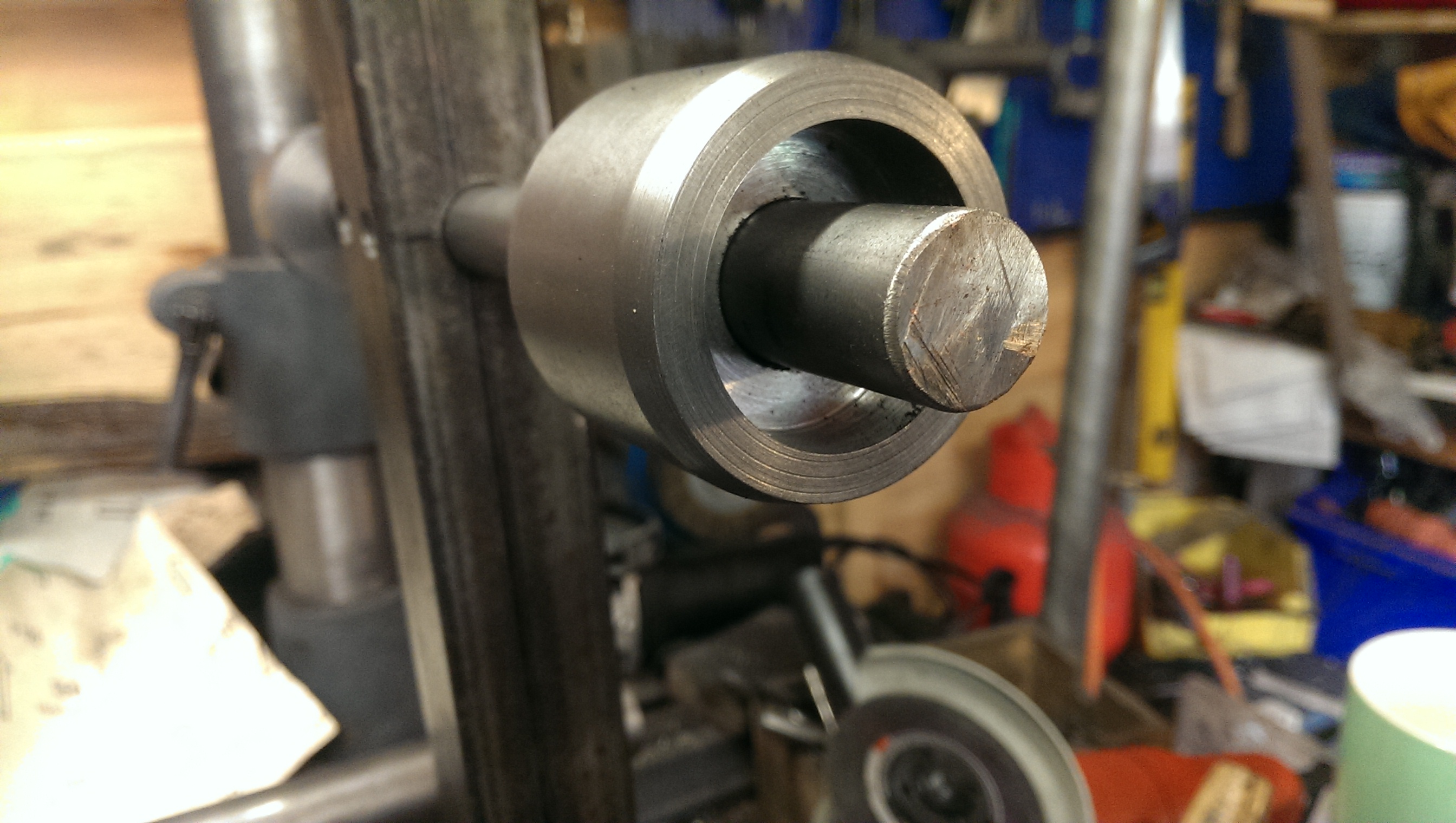

I got the lower yoke from a zzr1100, I am going to use the stem as the basis for my own design of girder forks.

made some progress on the design of the side car, going for a 'leaner' see this site for details:

www.haulnride.com/leaner_sidecars.html


Pictures

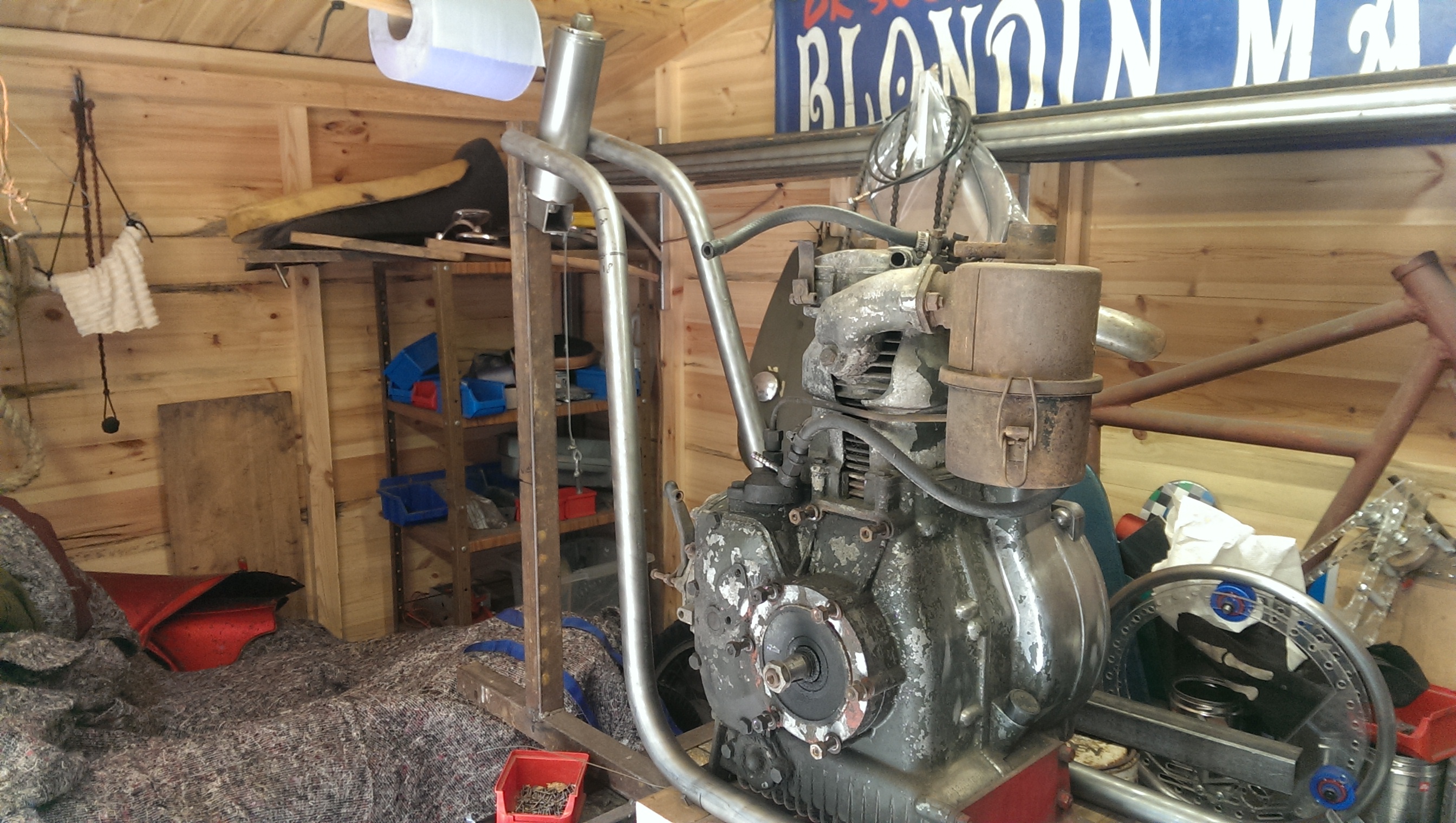

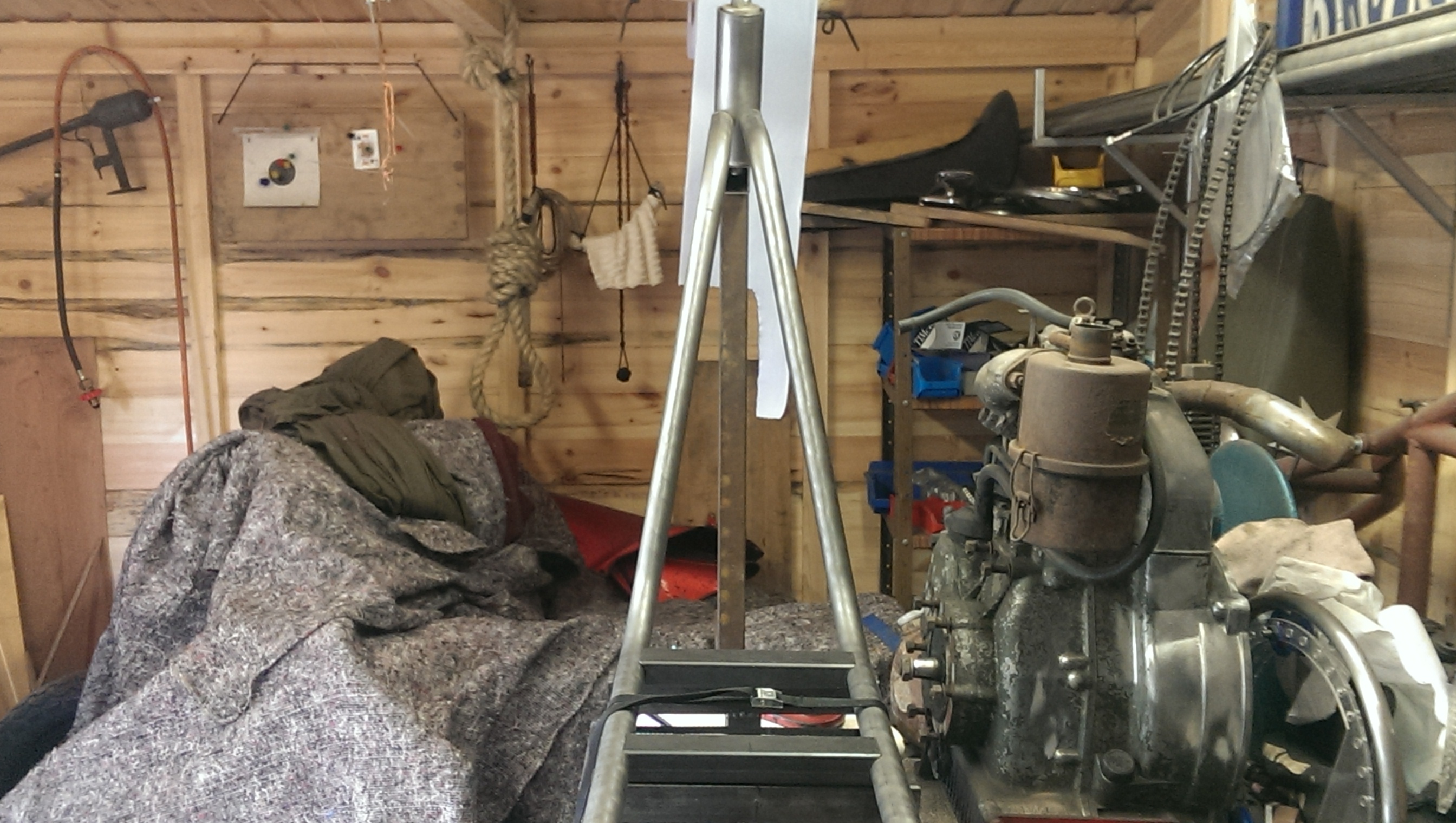

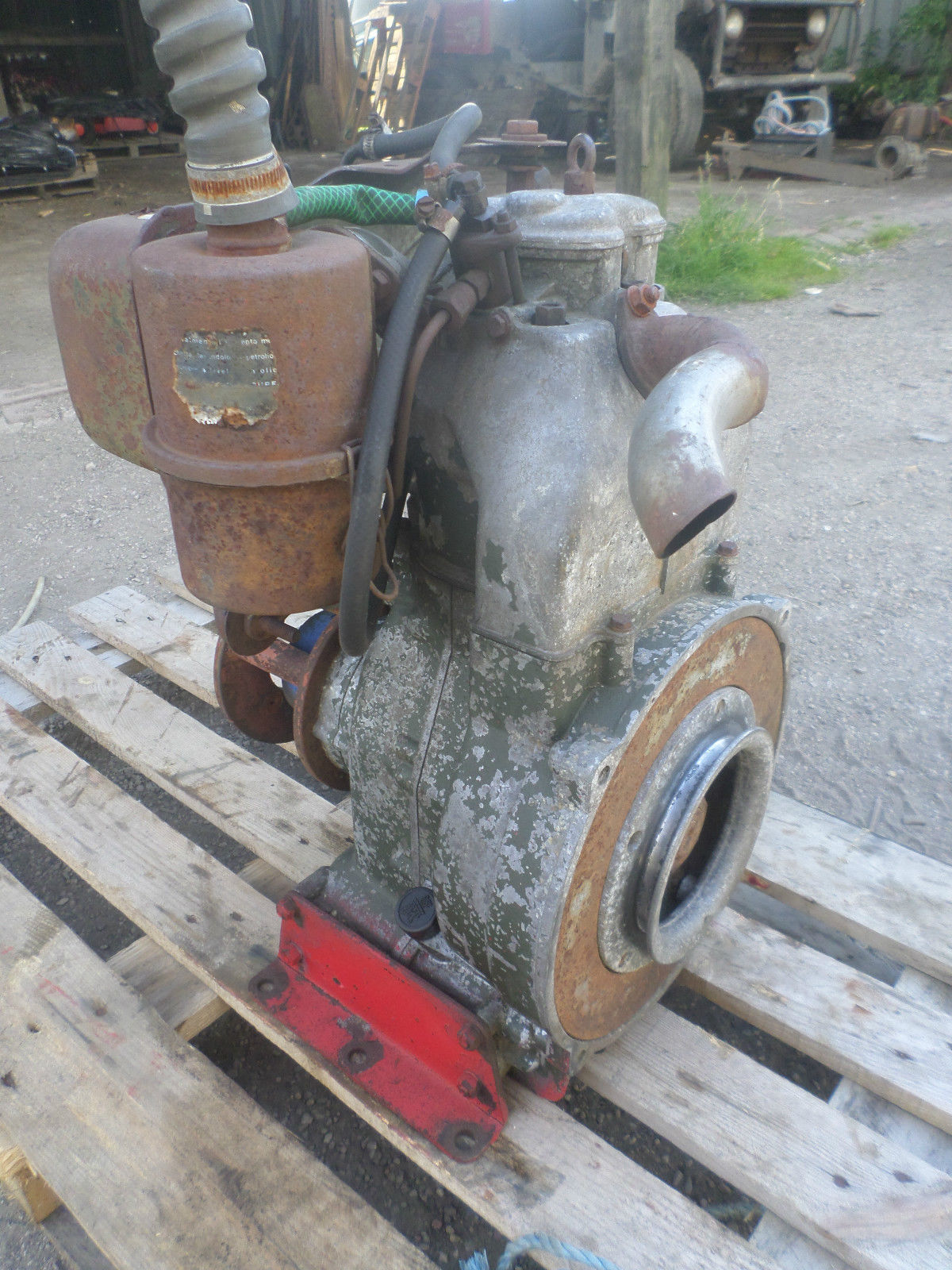

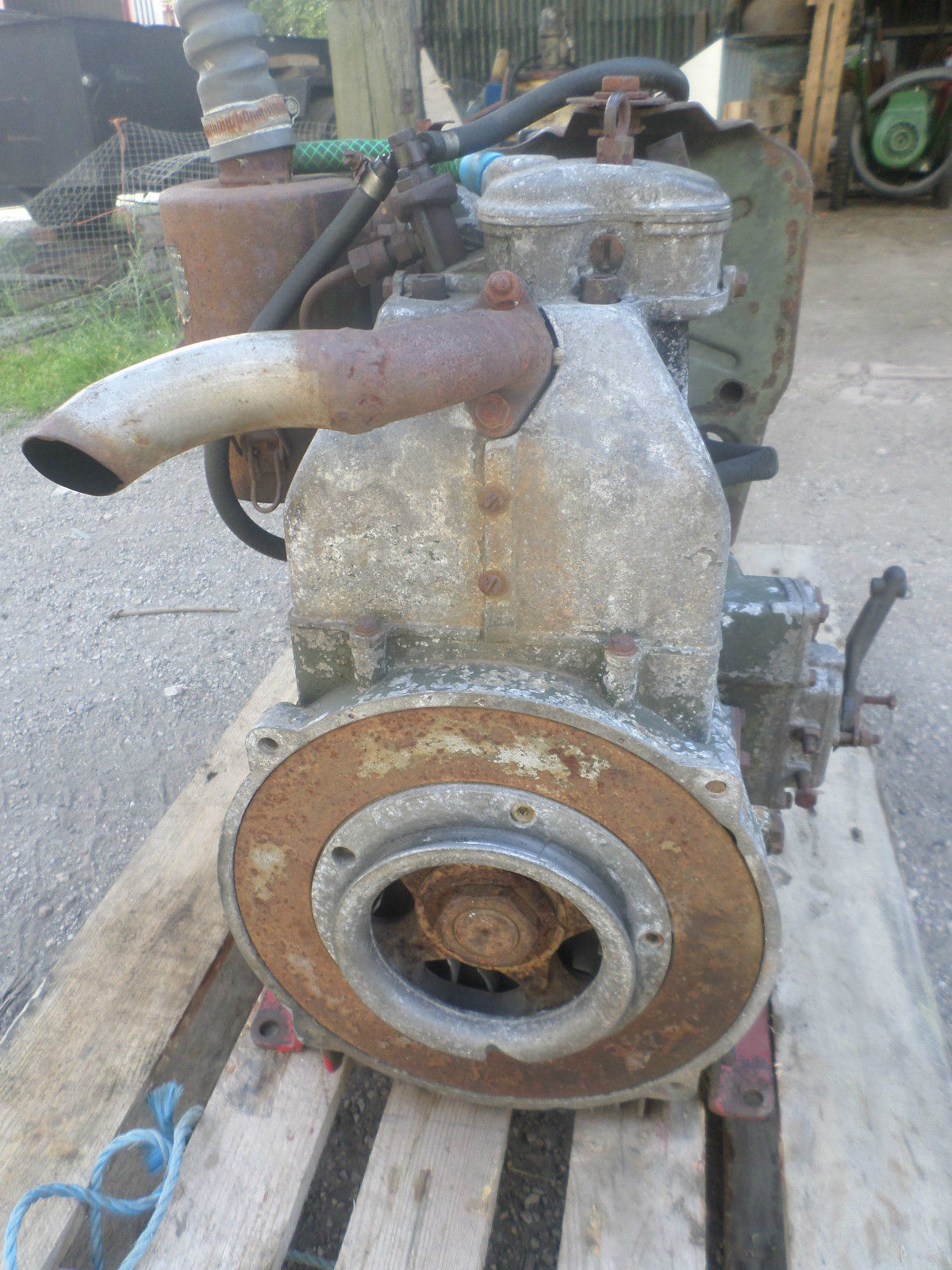

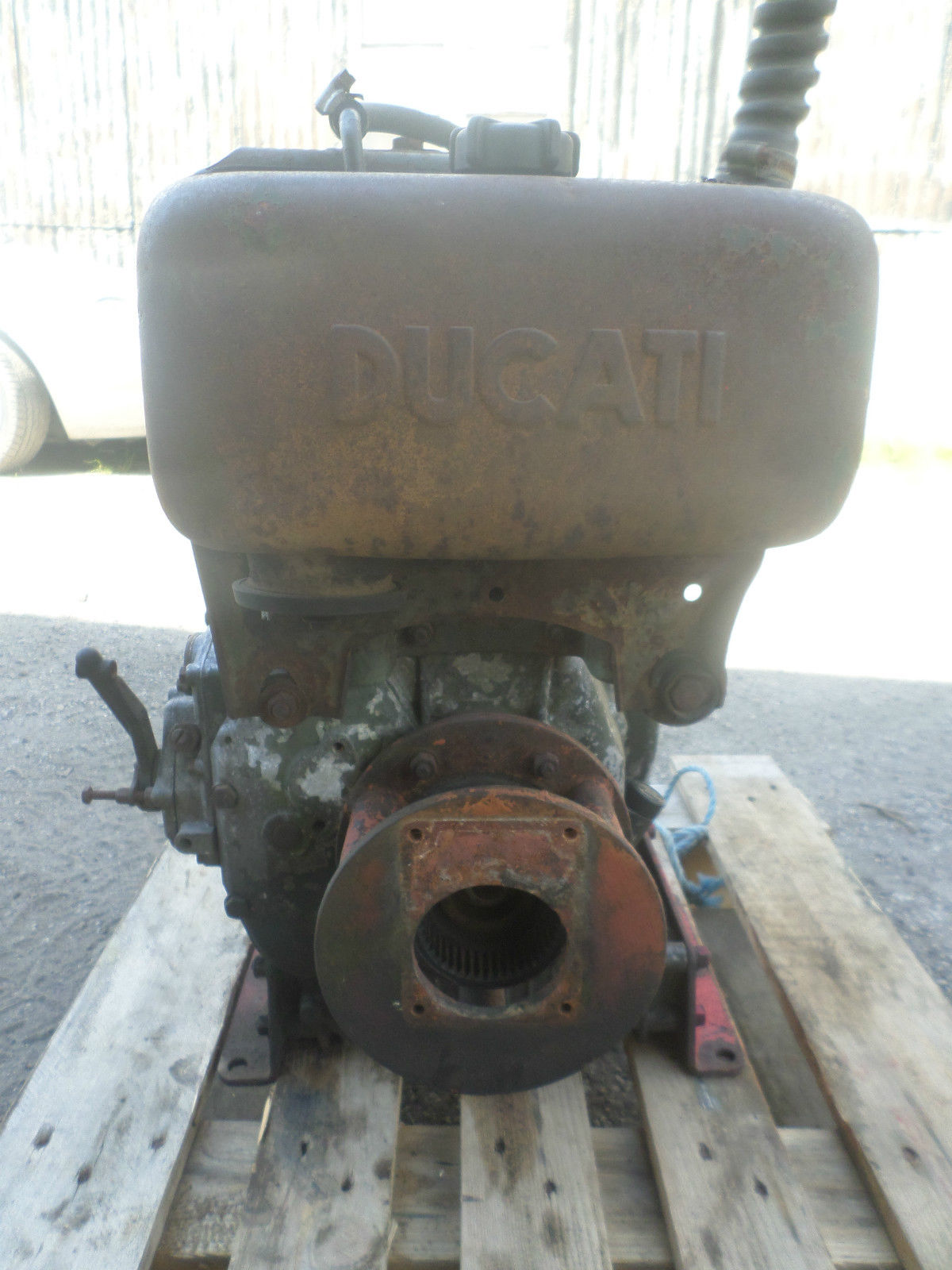

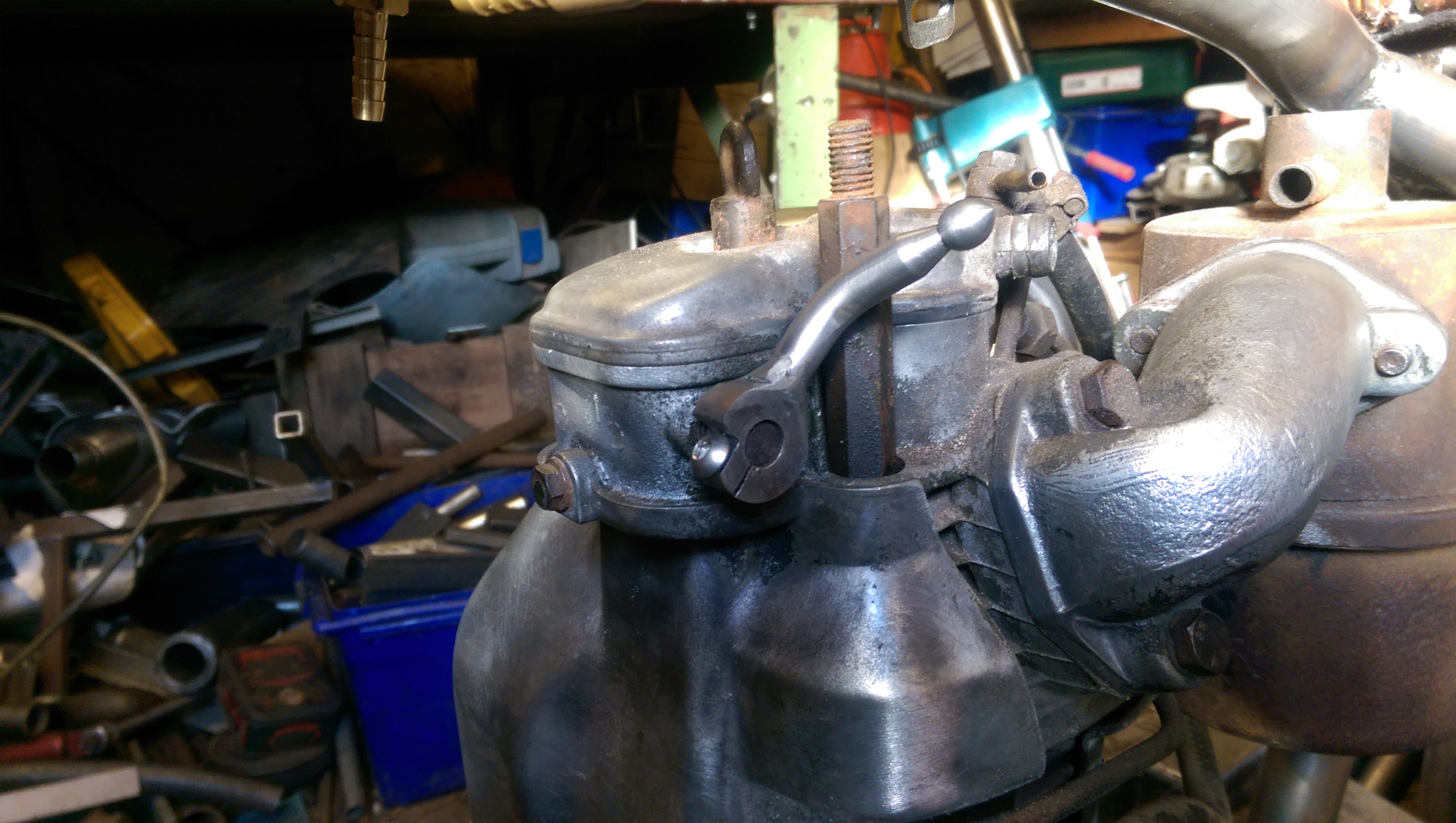

this is the engine

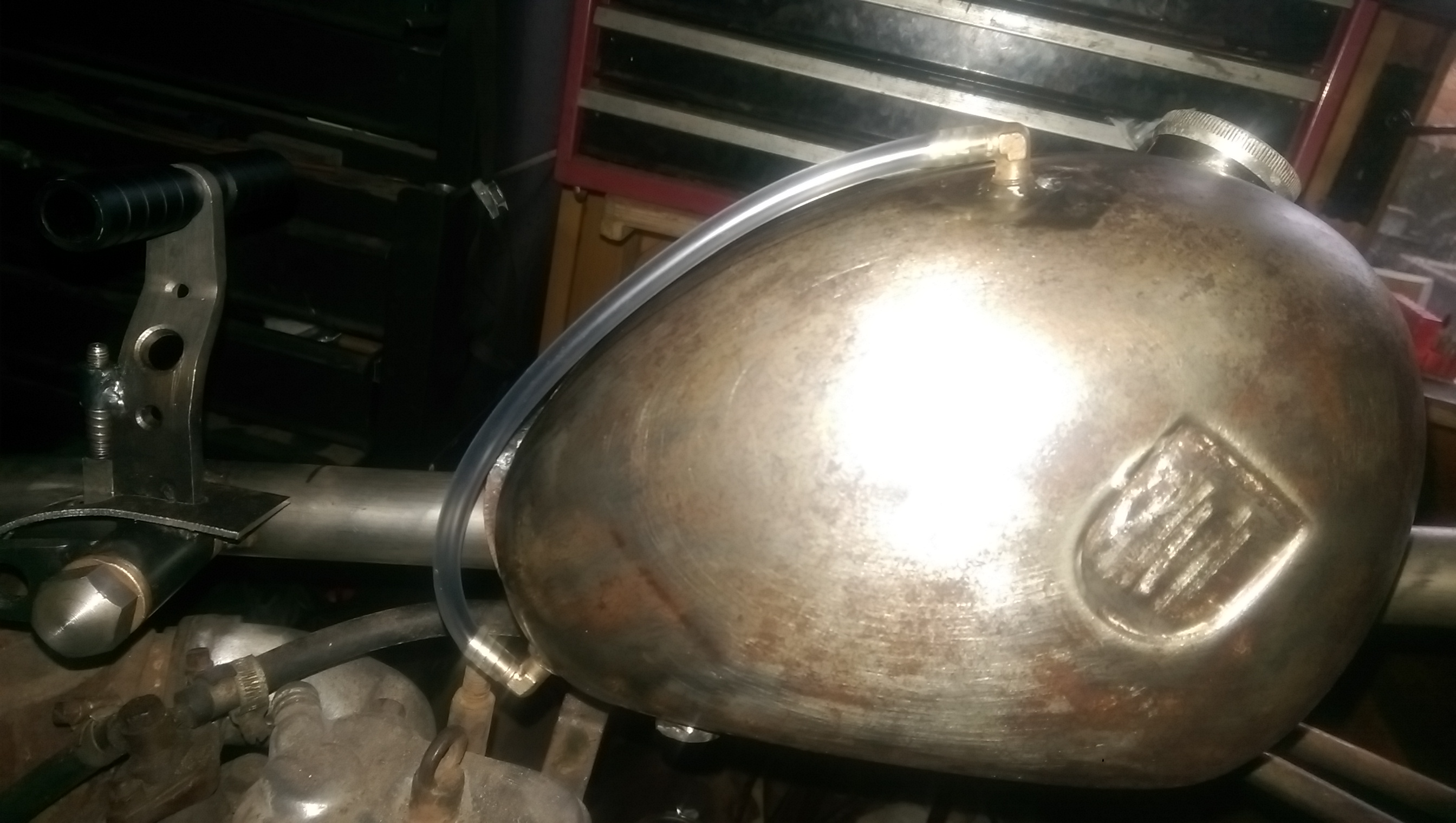

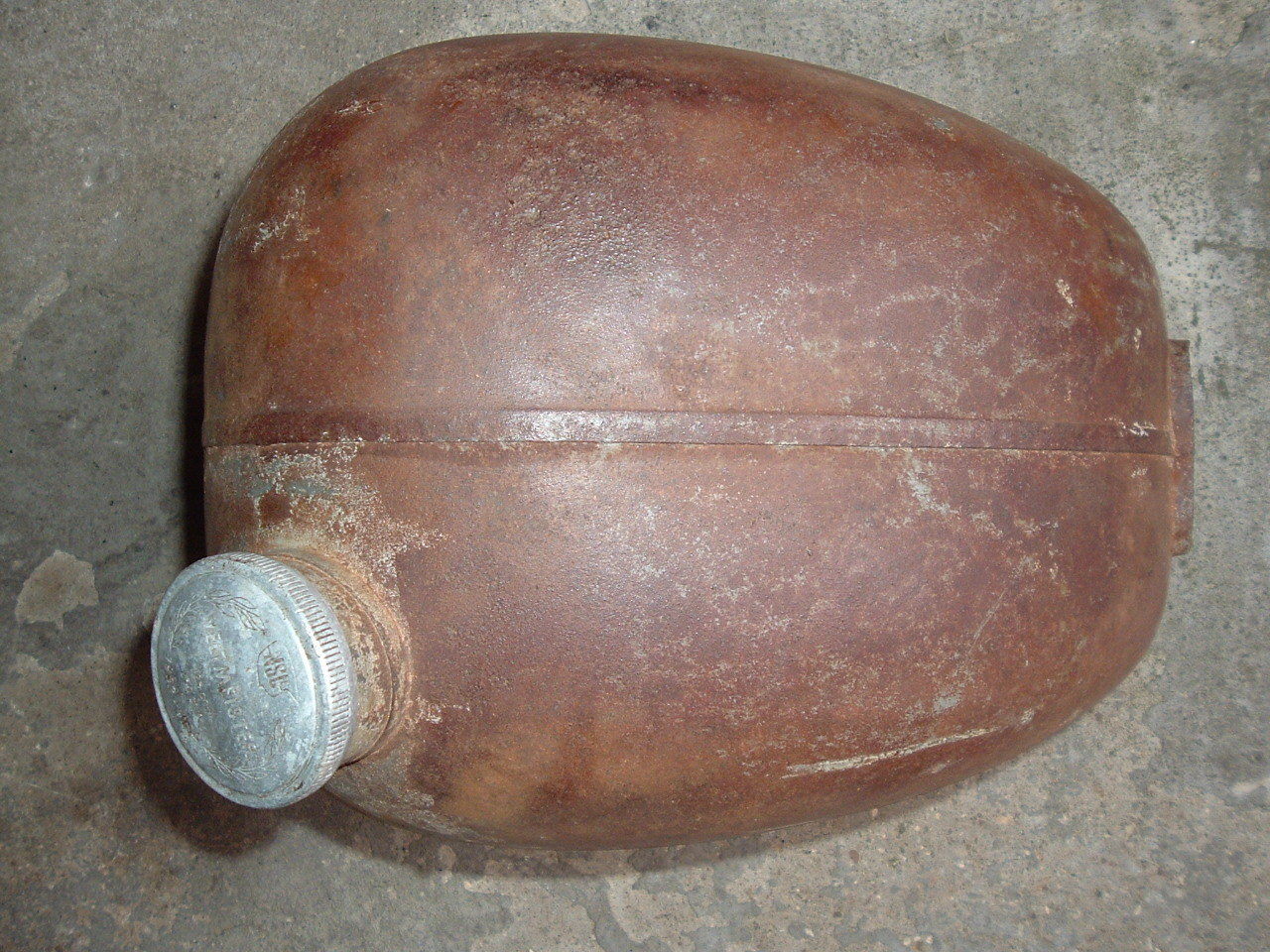

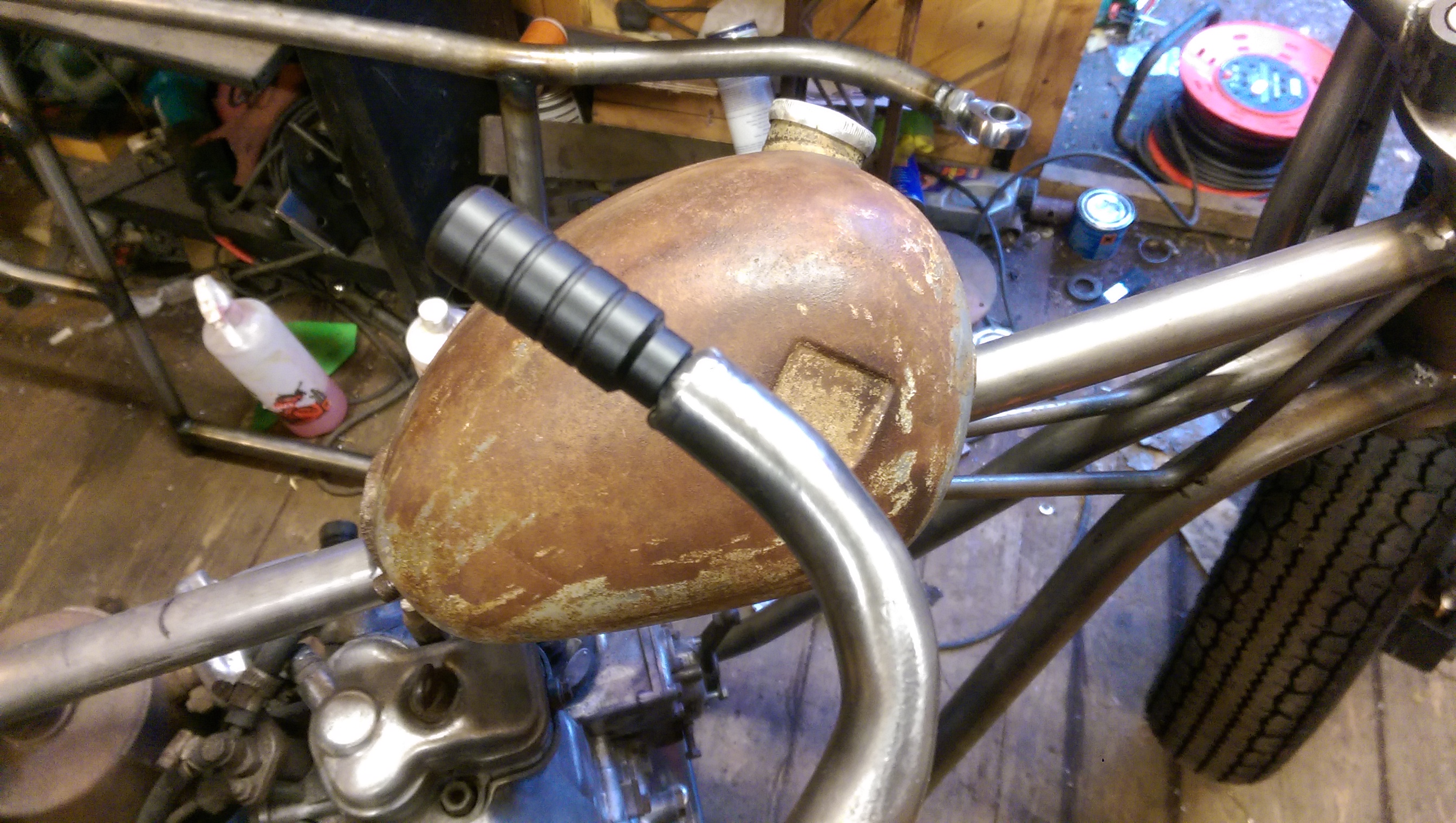

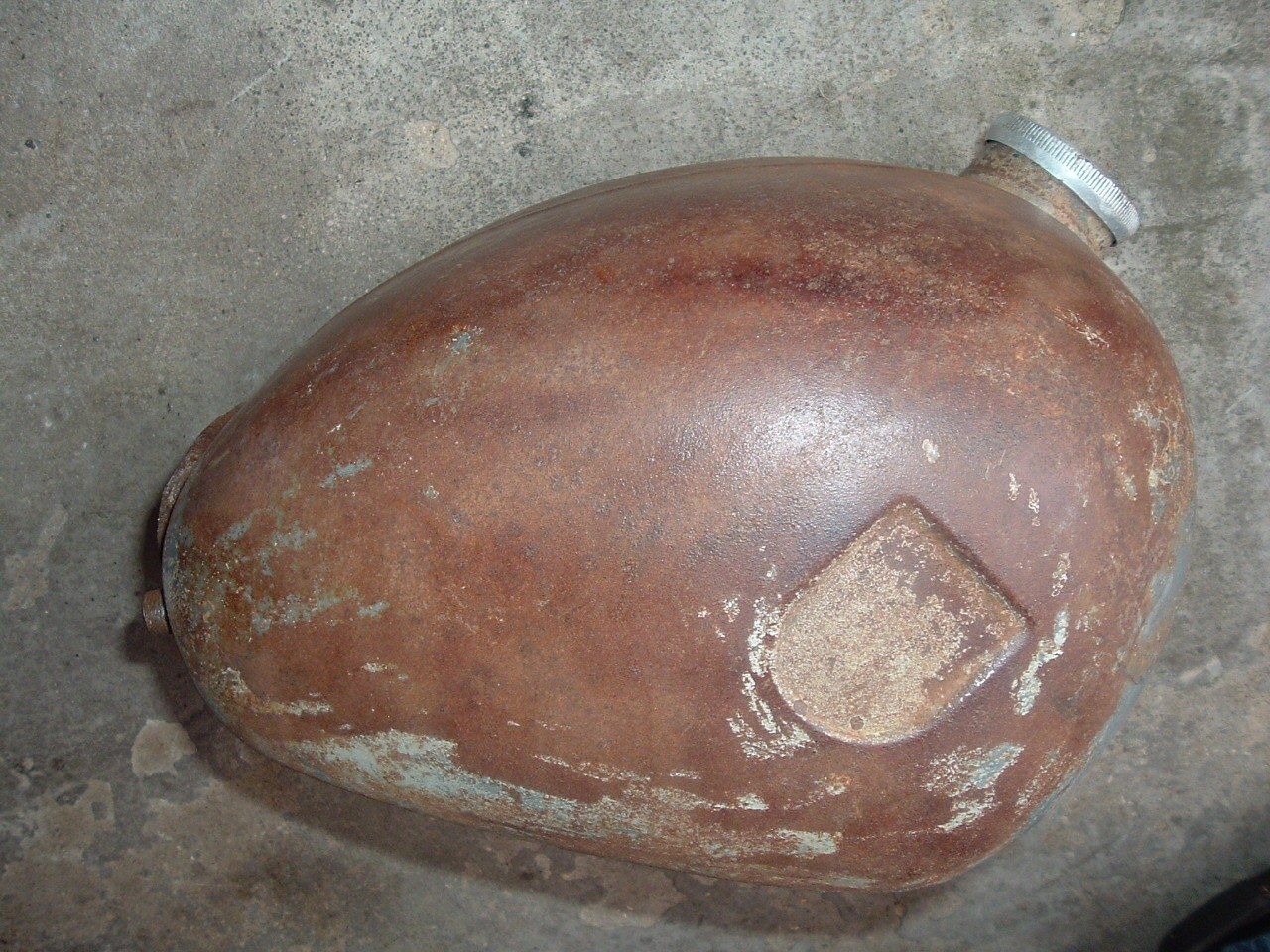

got a little NSU Quickly tank for it, Should get around 150MPG from the engine so I don't need a big tank....

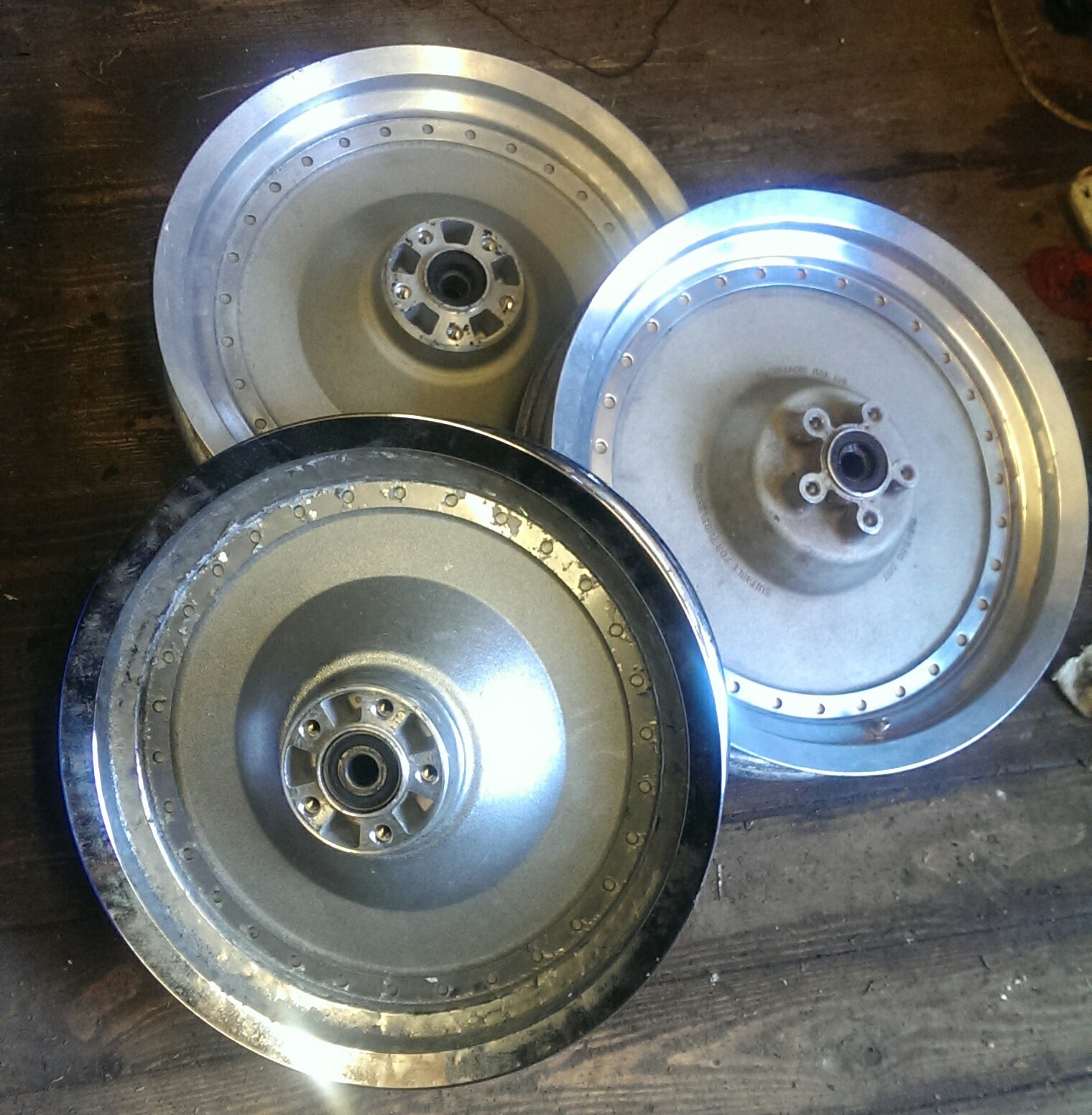

 and then there were three.....

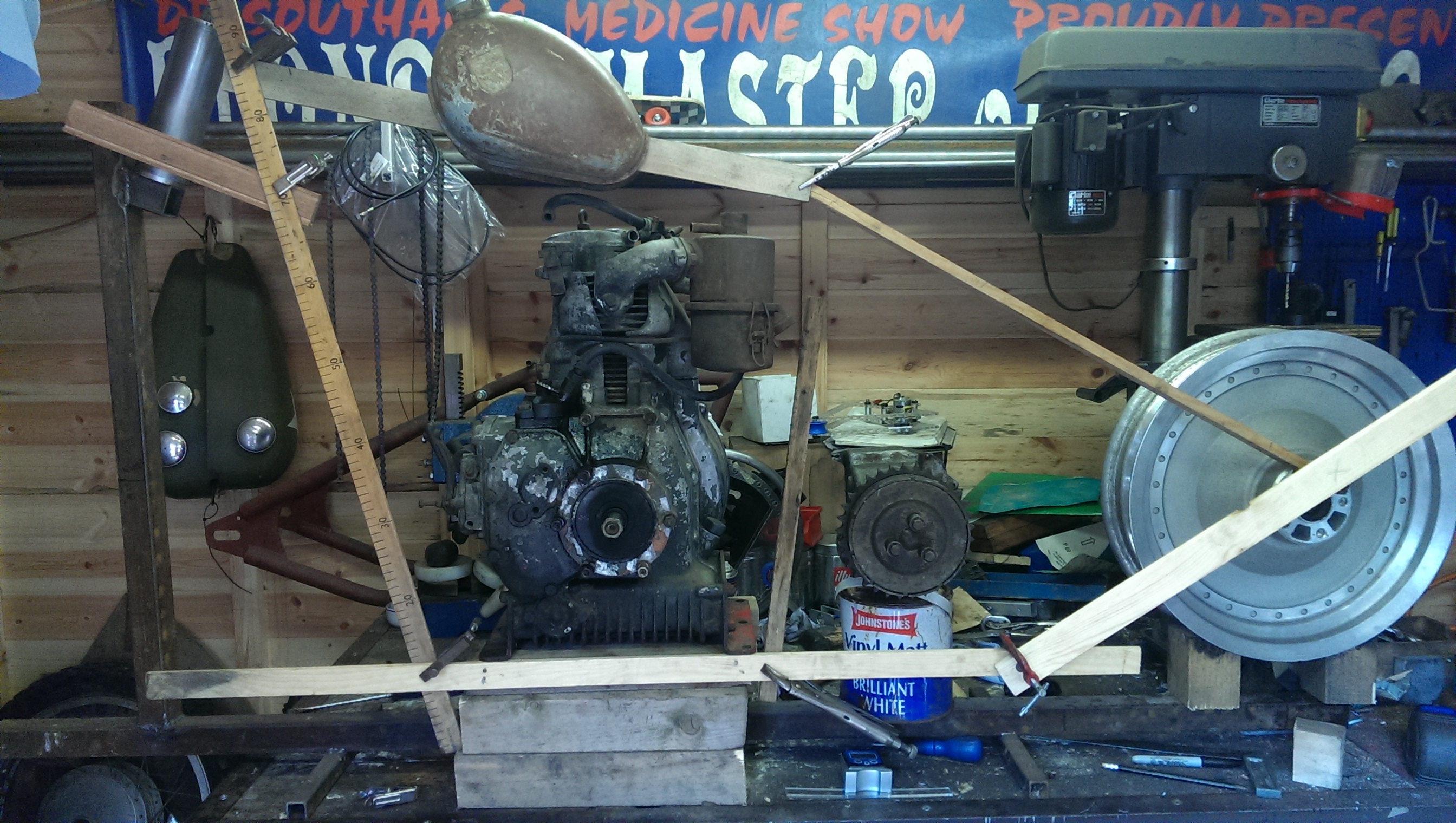

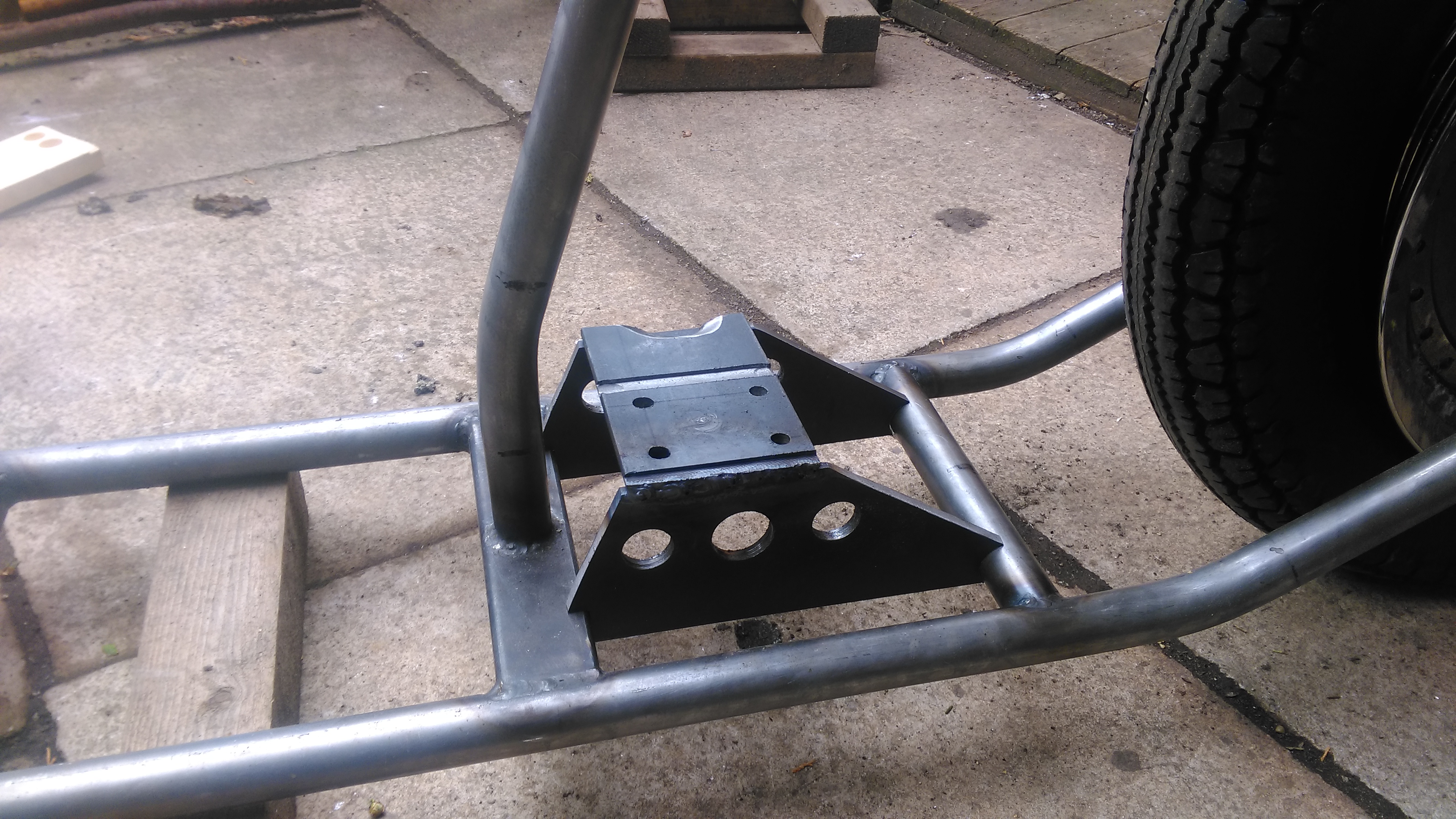

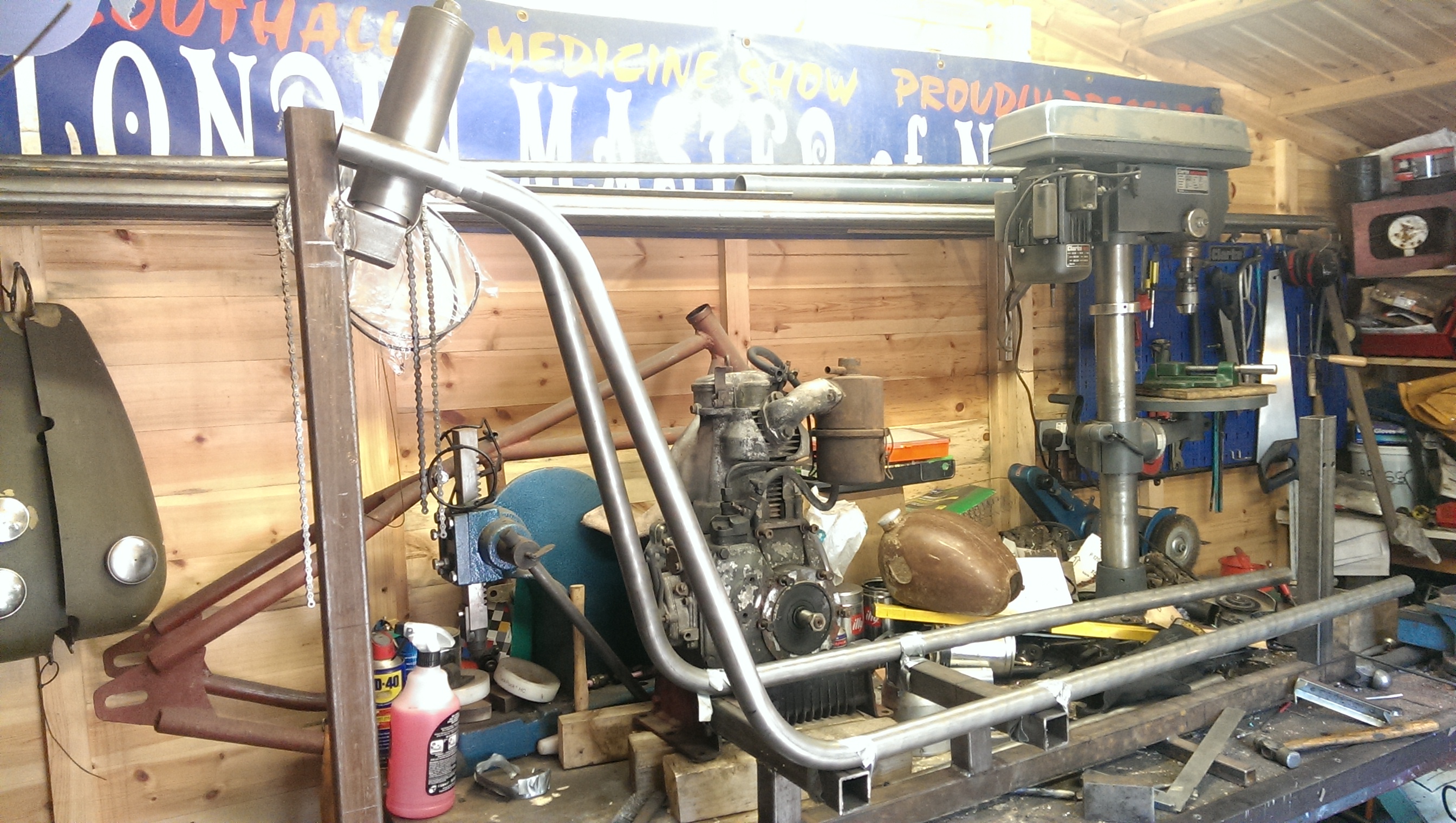

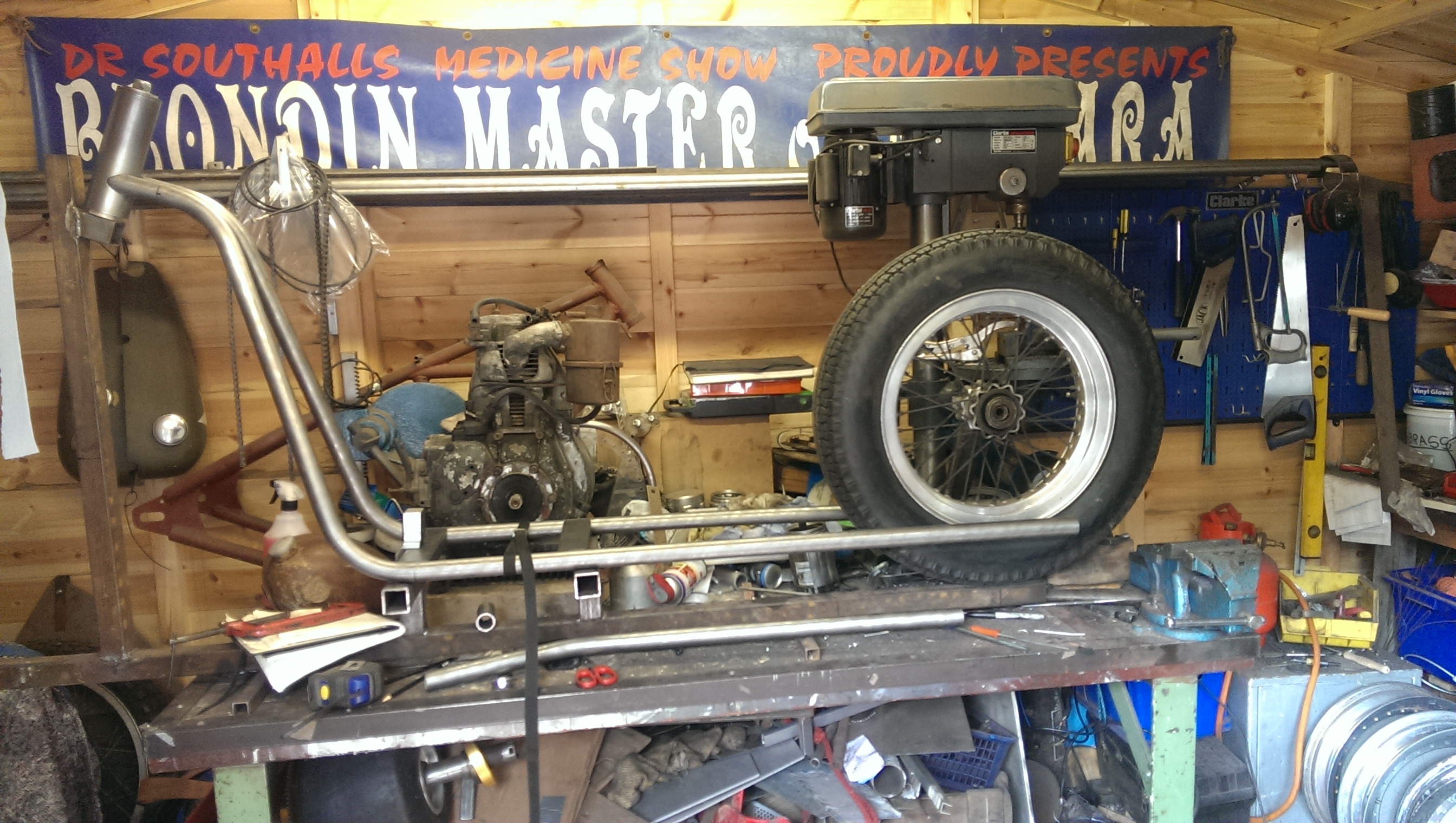

basic frame design

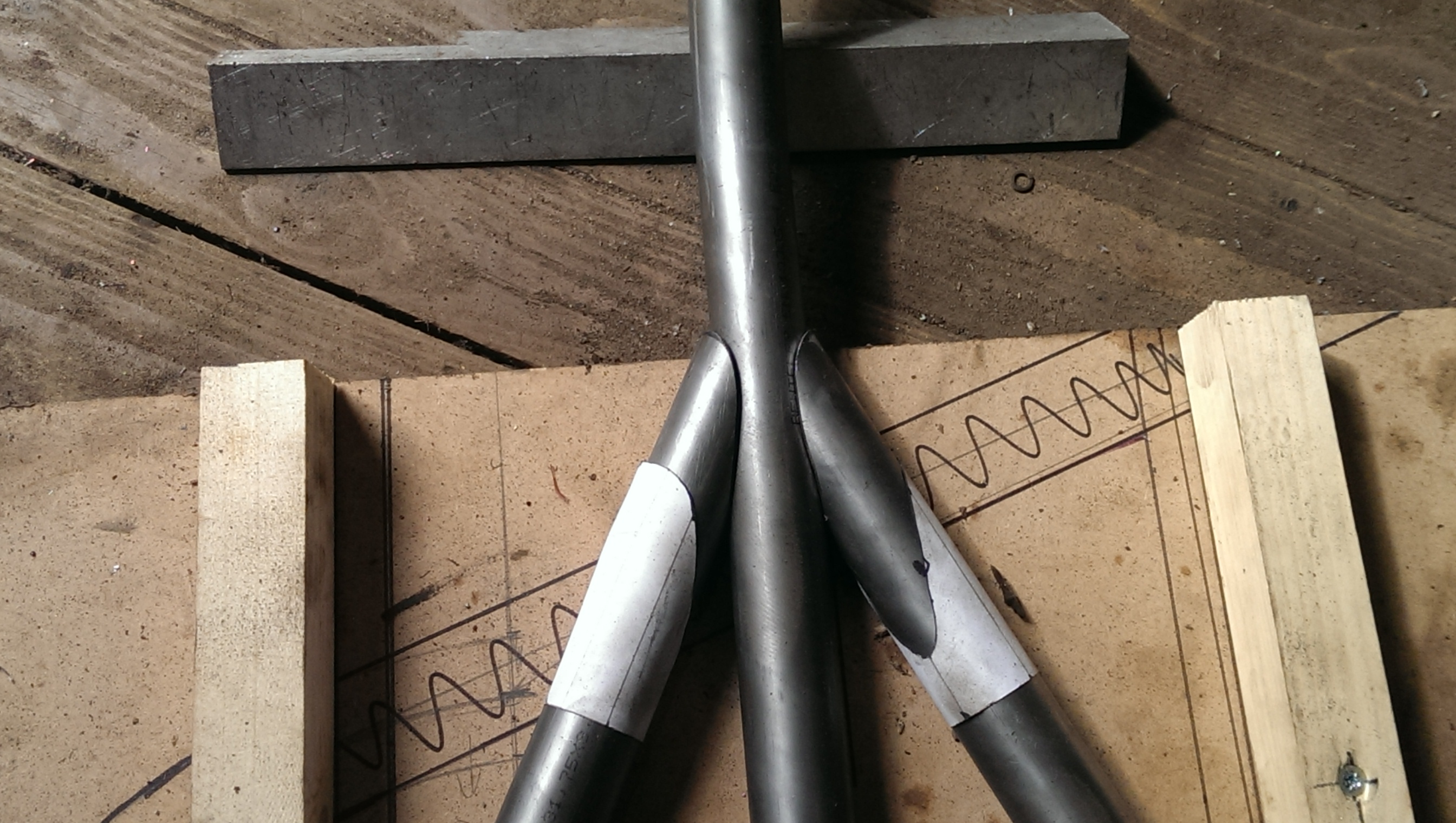

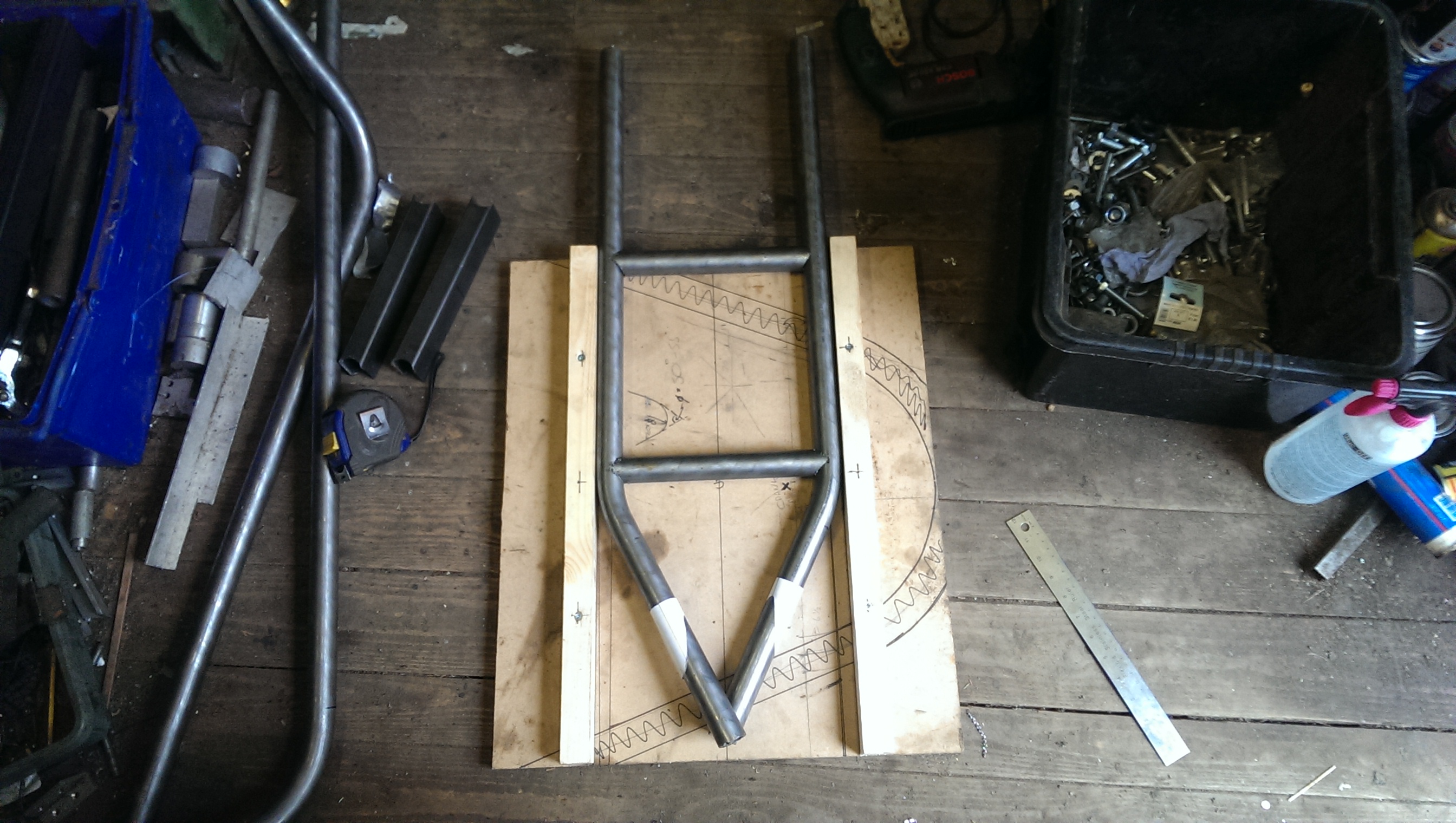

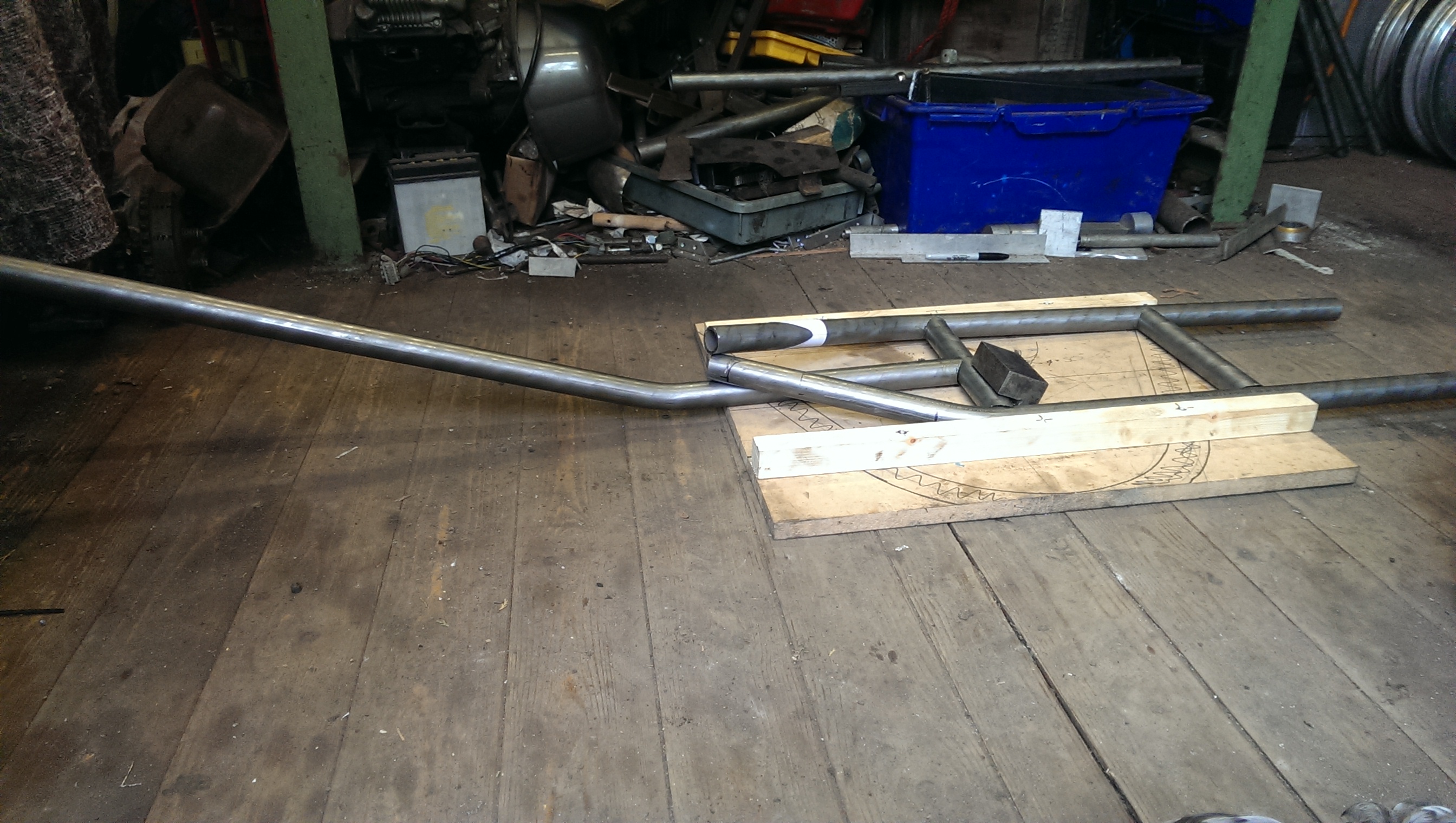

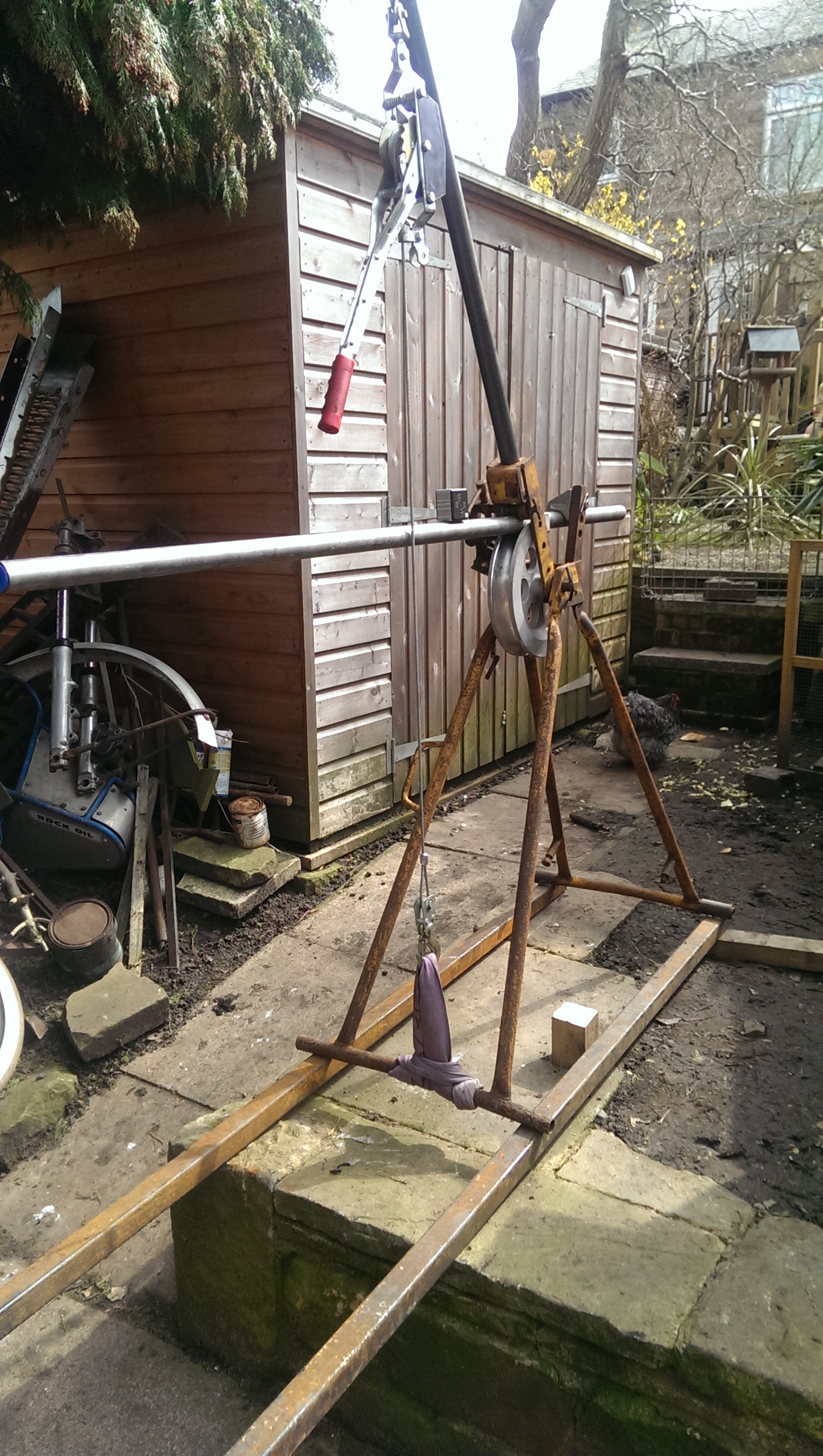

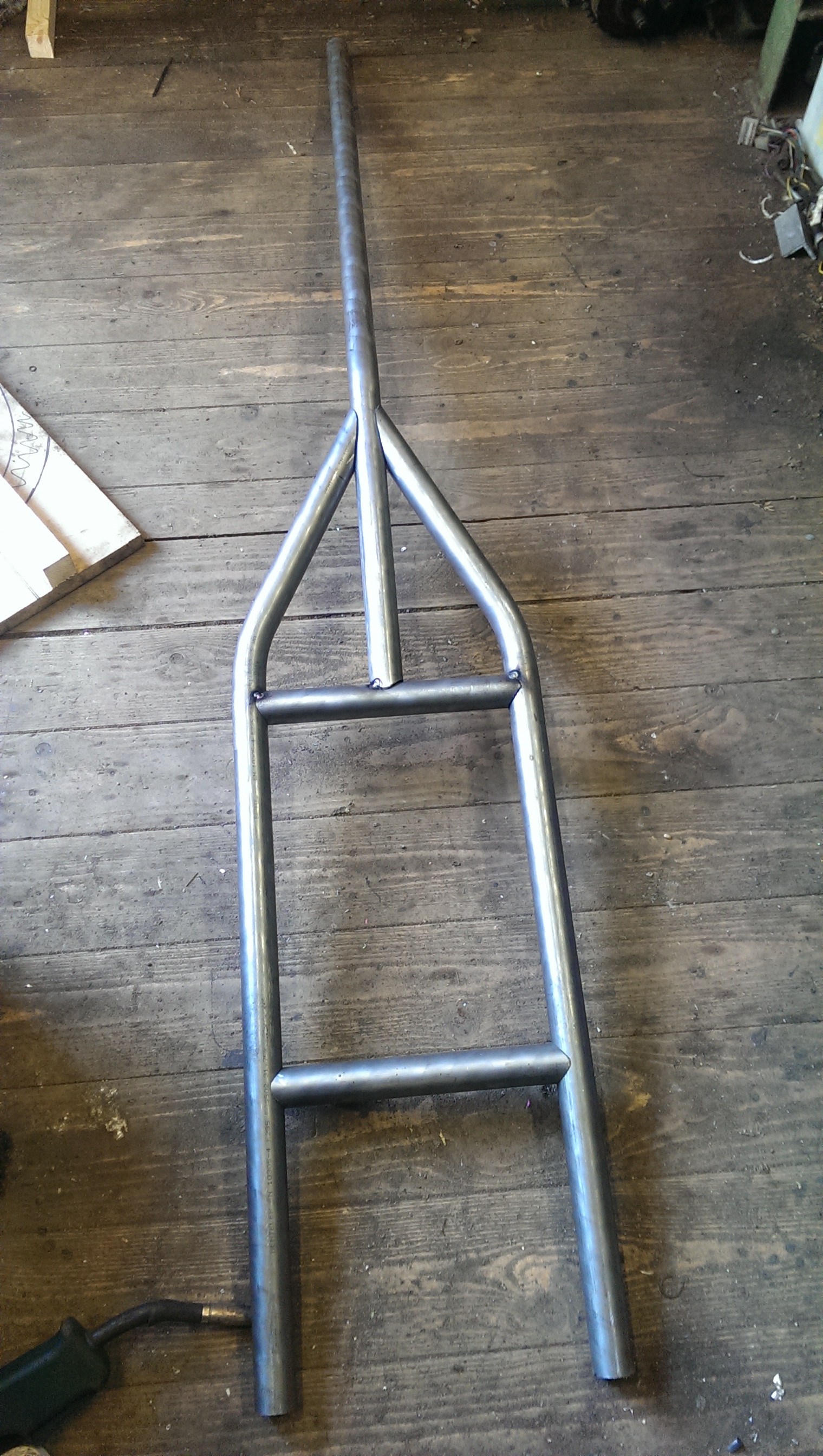

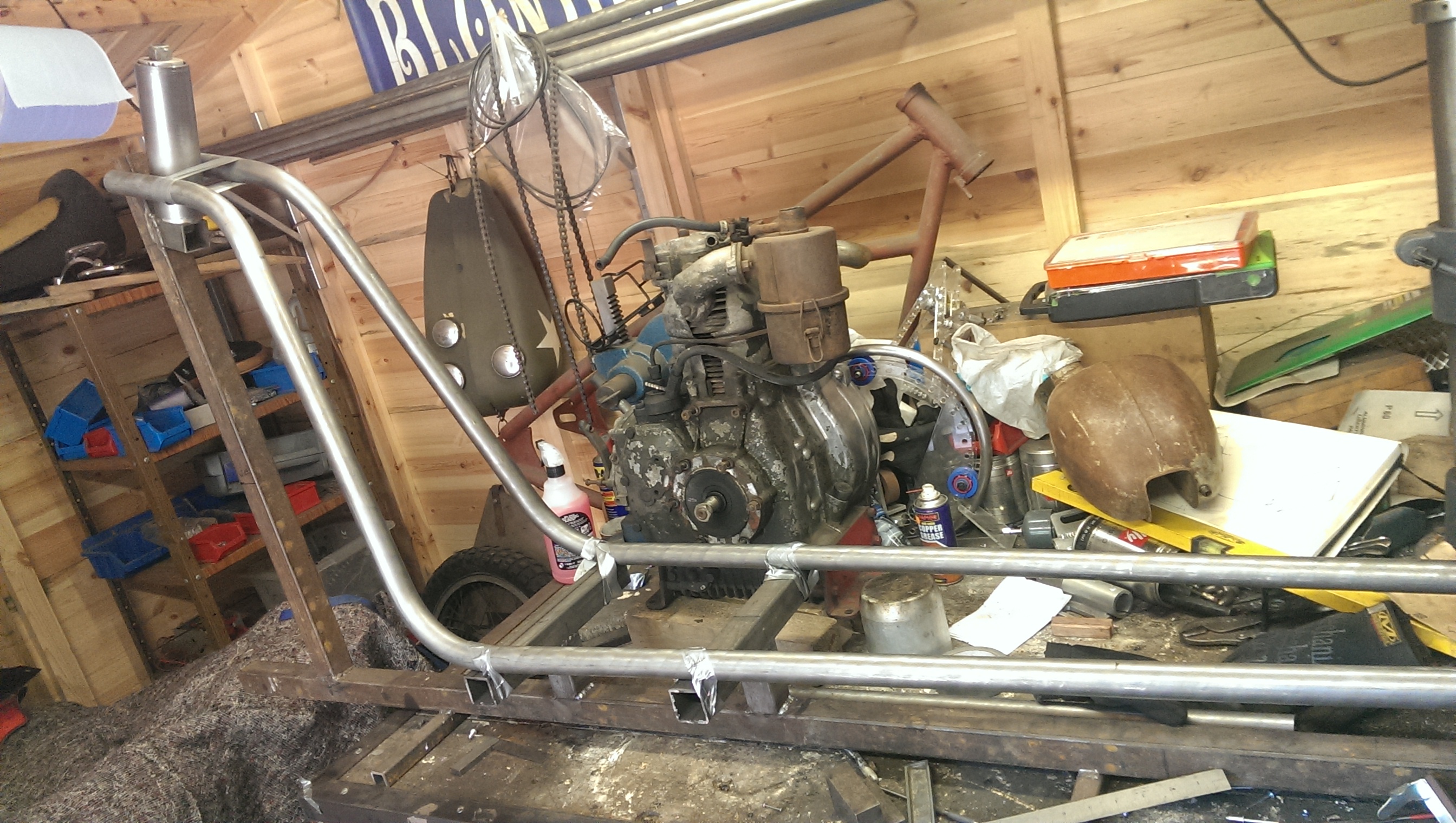

metal has been bent!

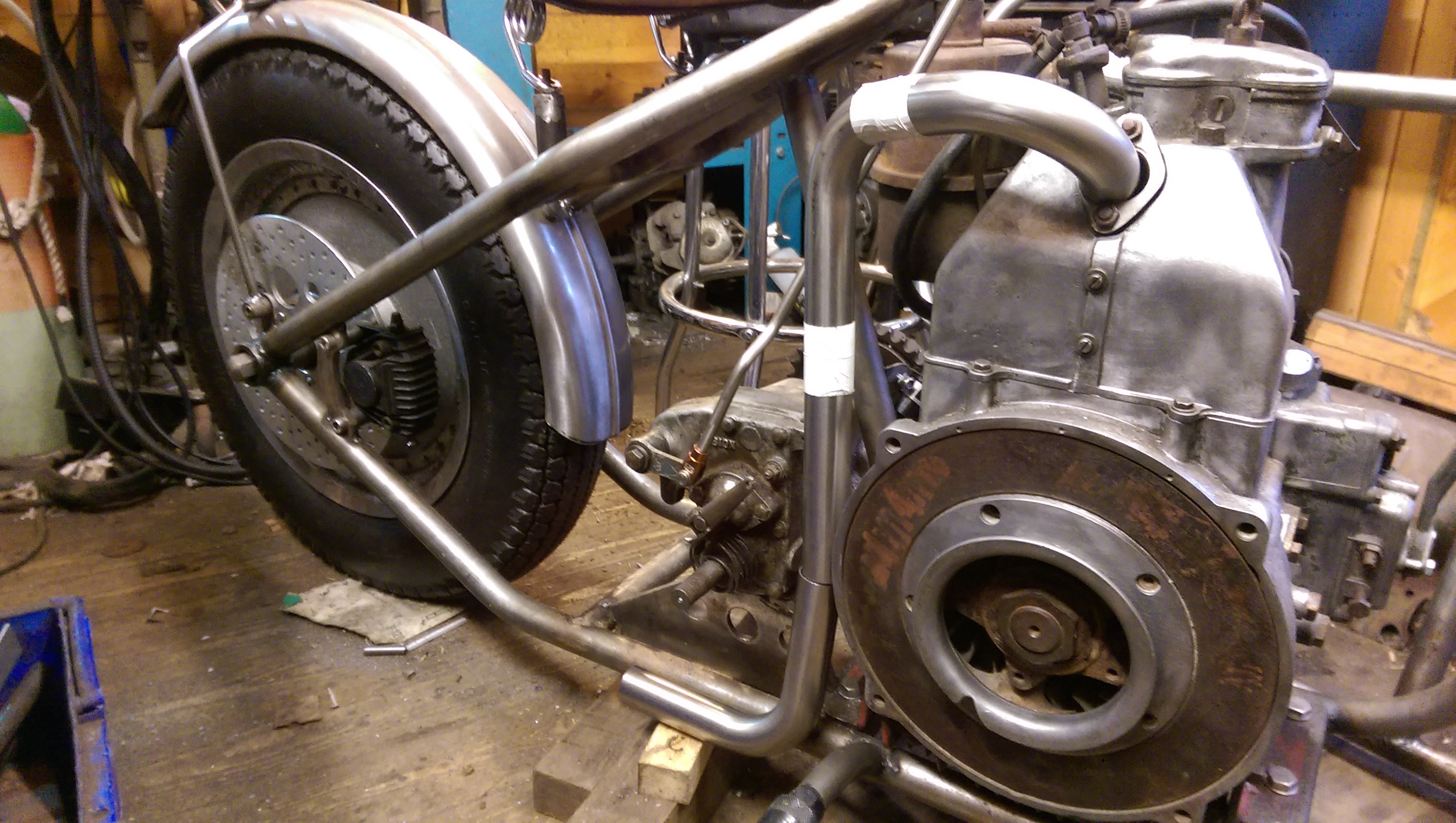

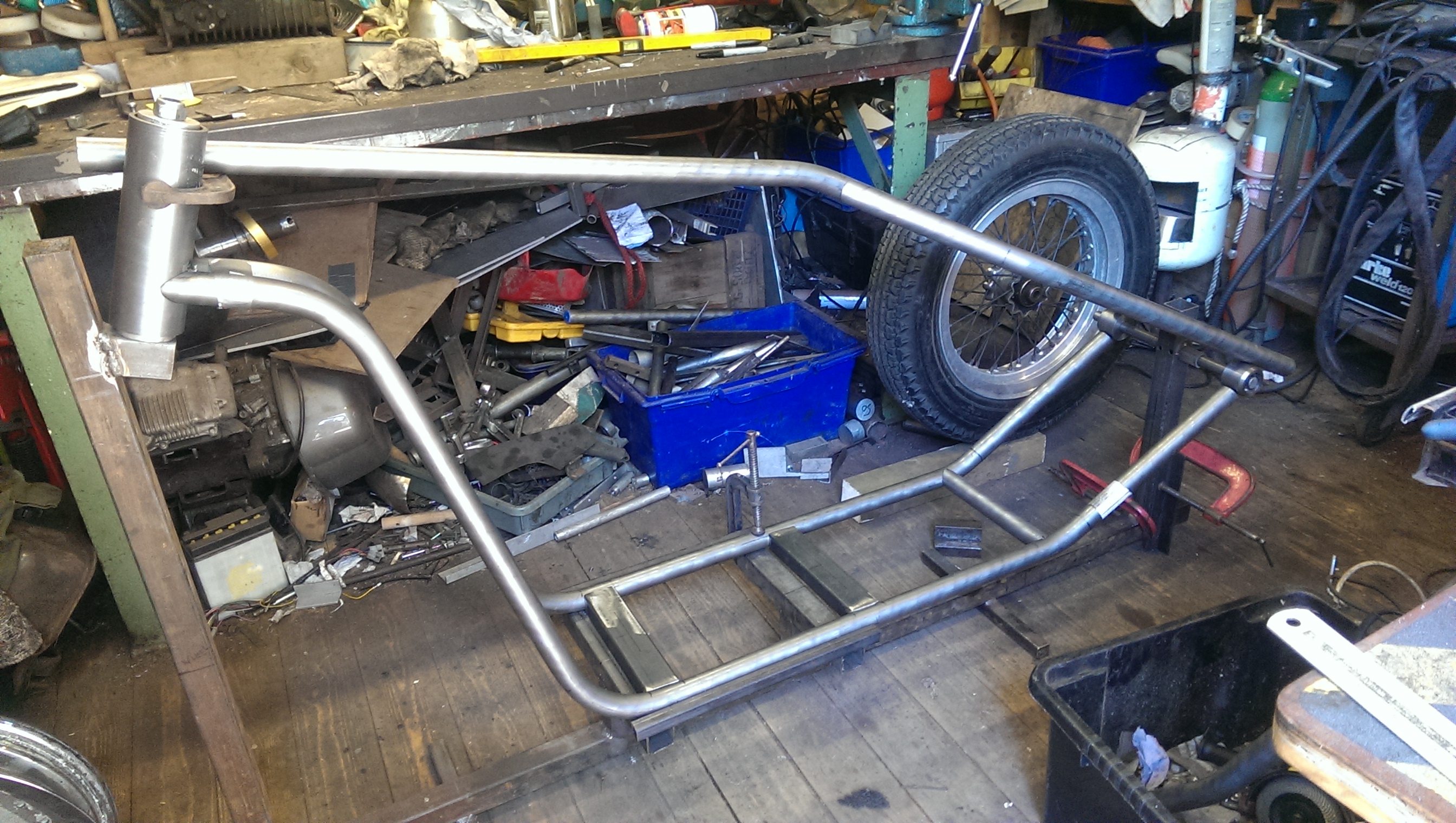

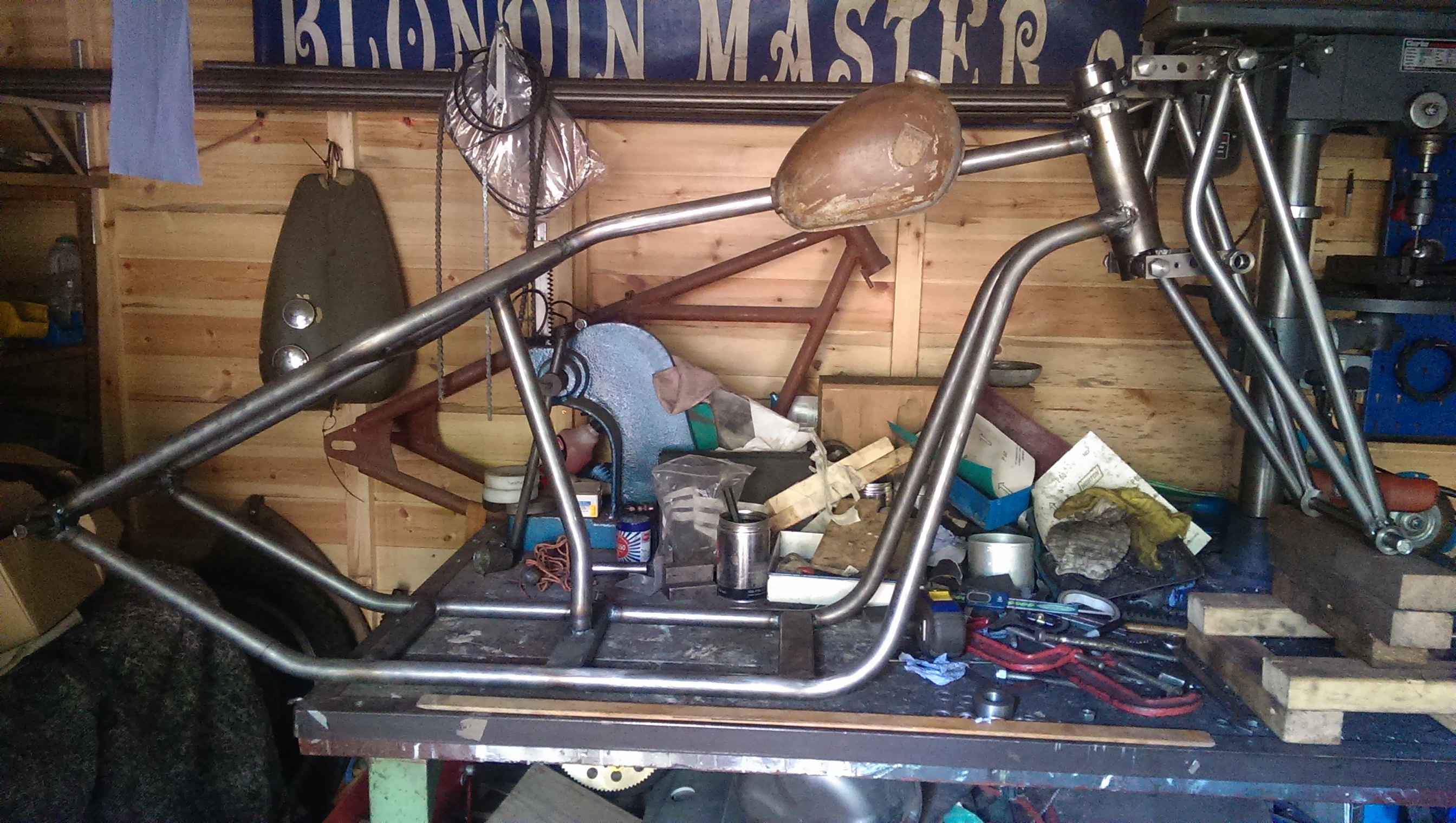

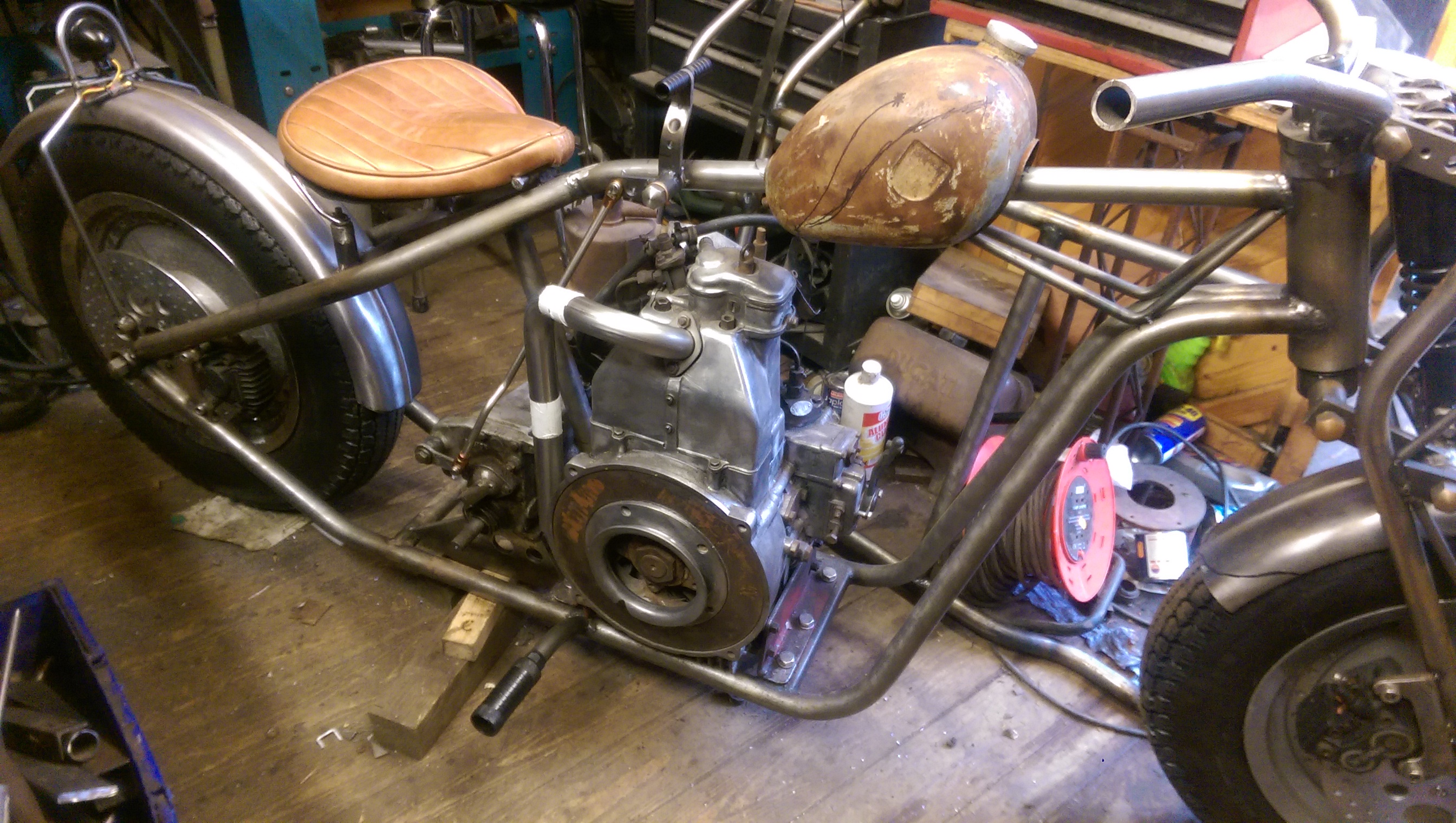

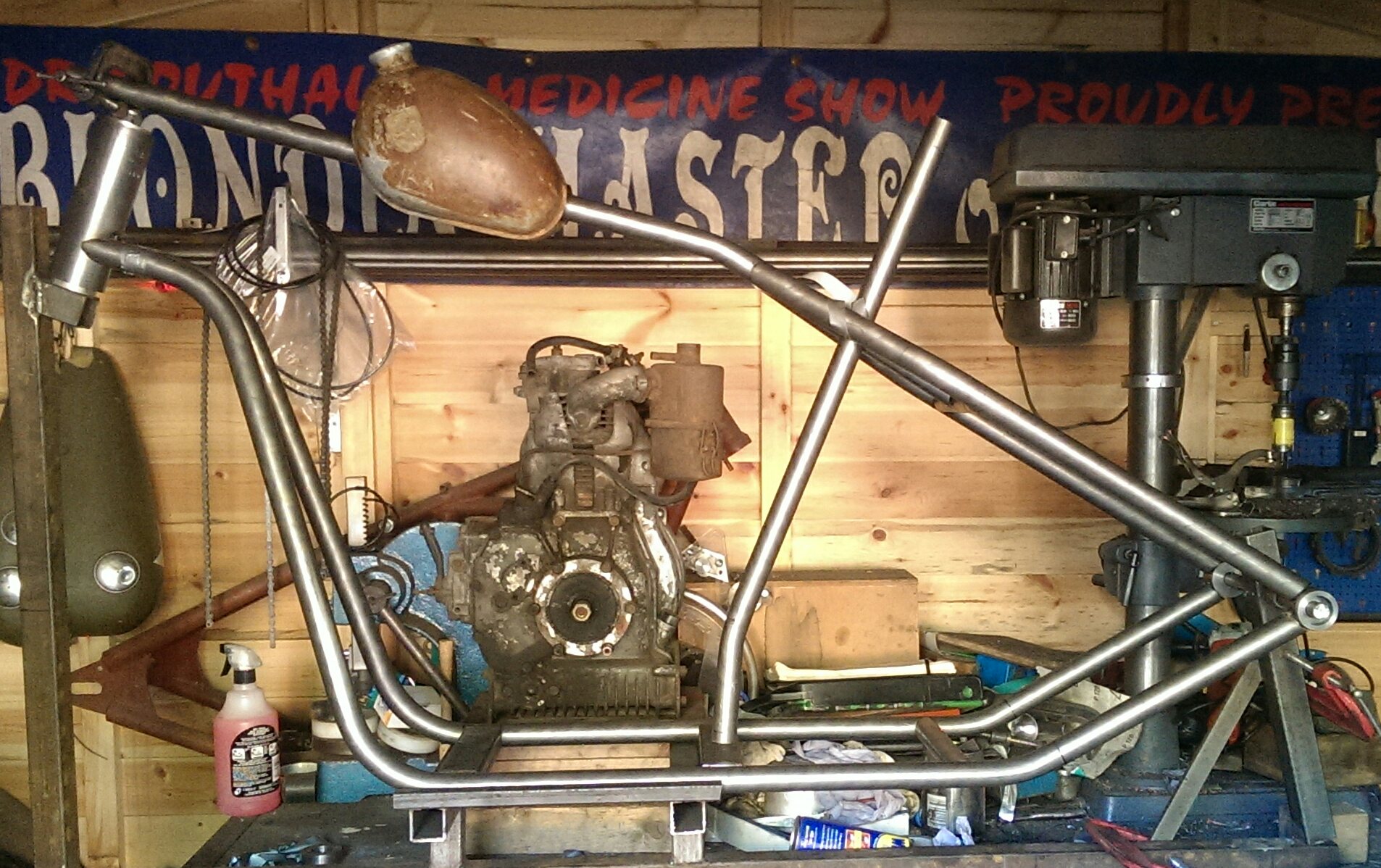

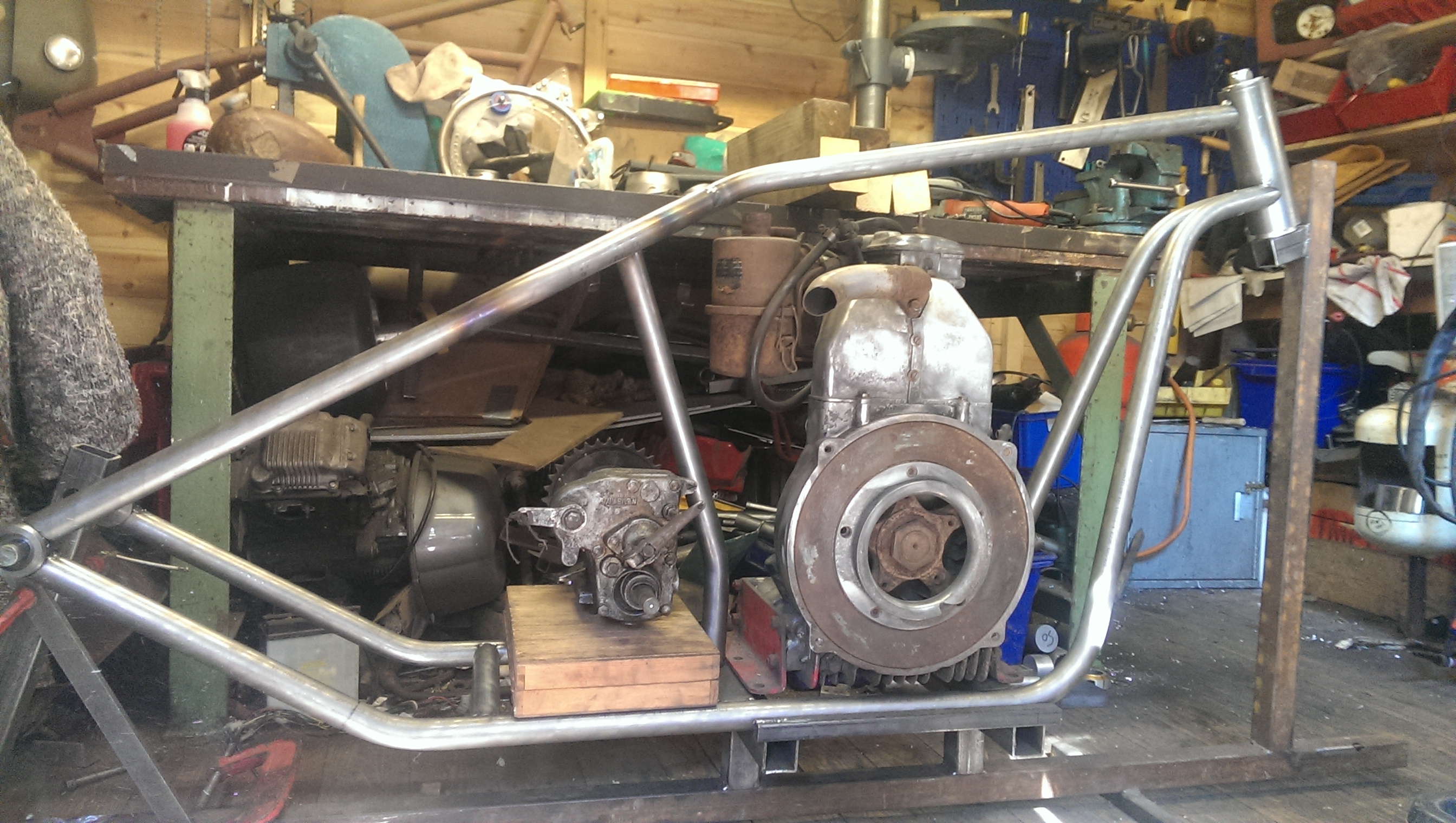

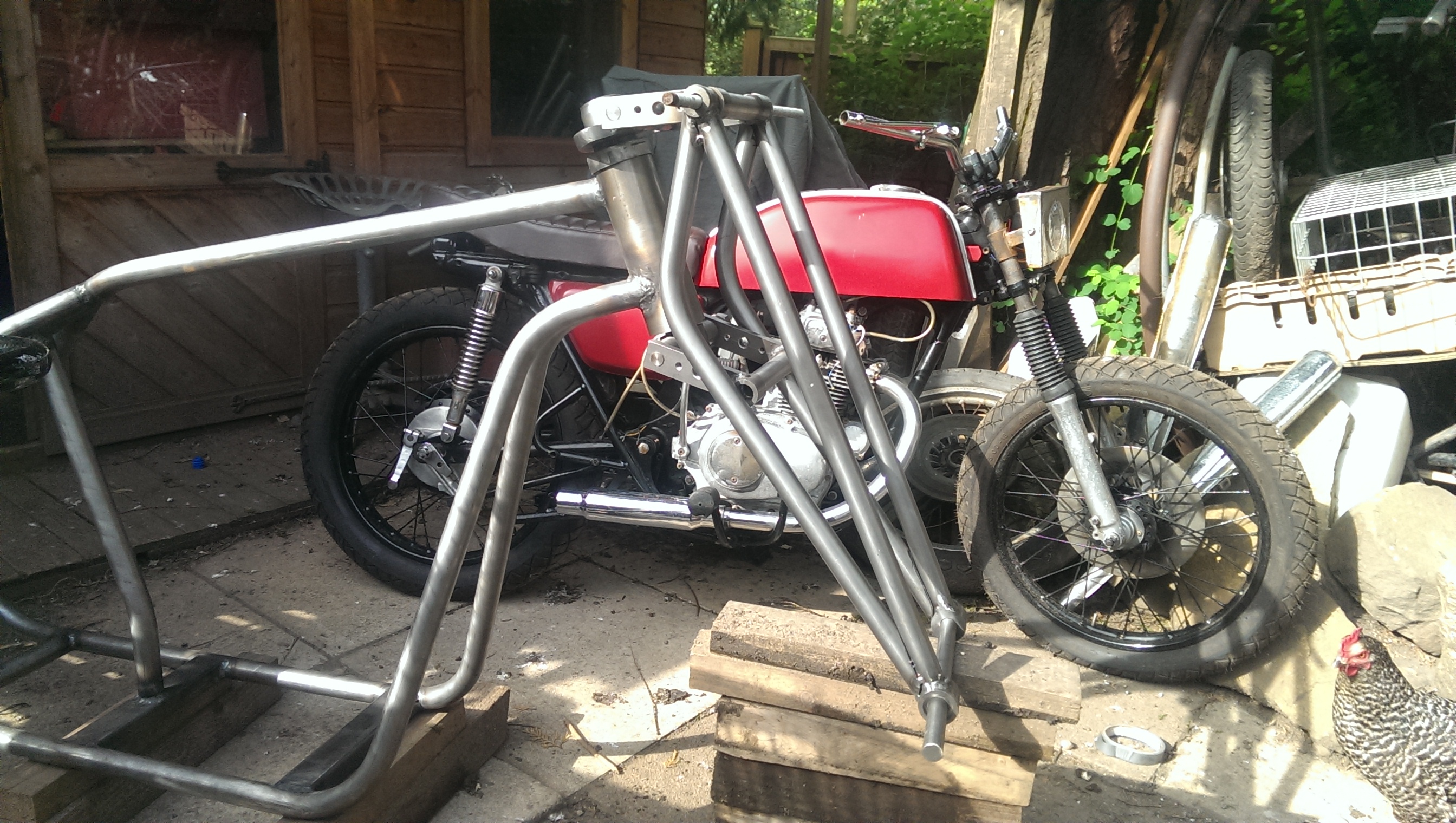

more frame done!

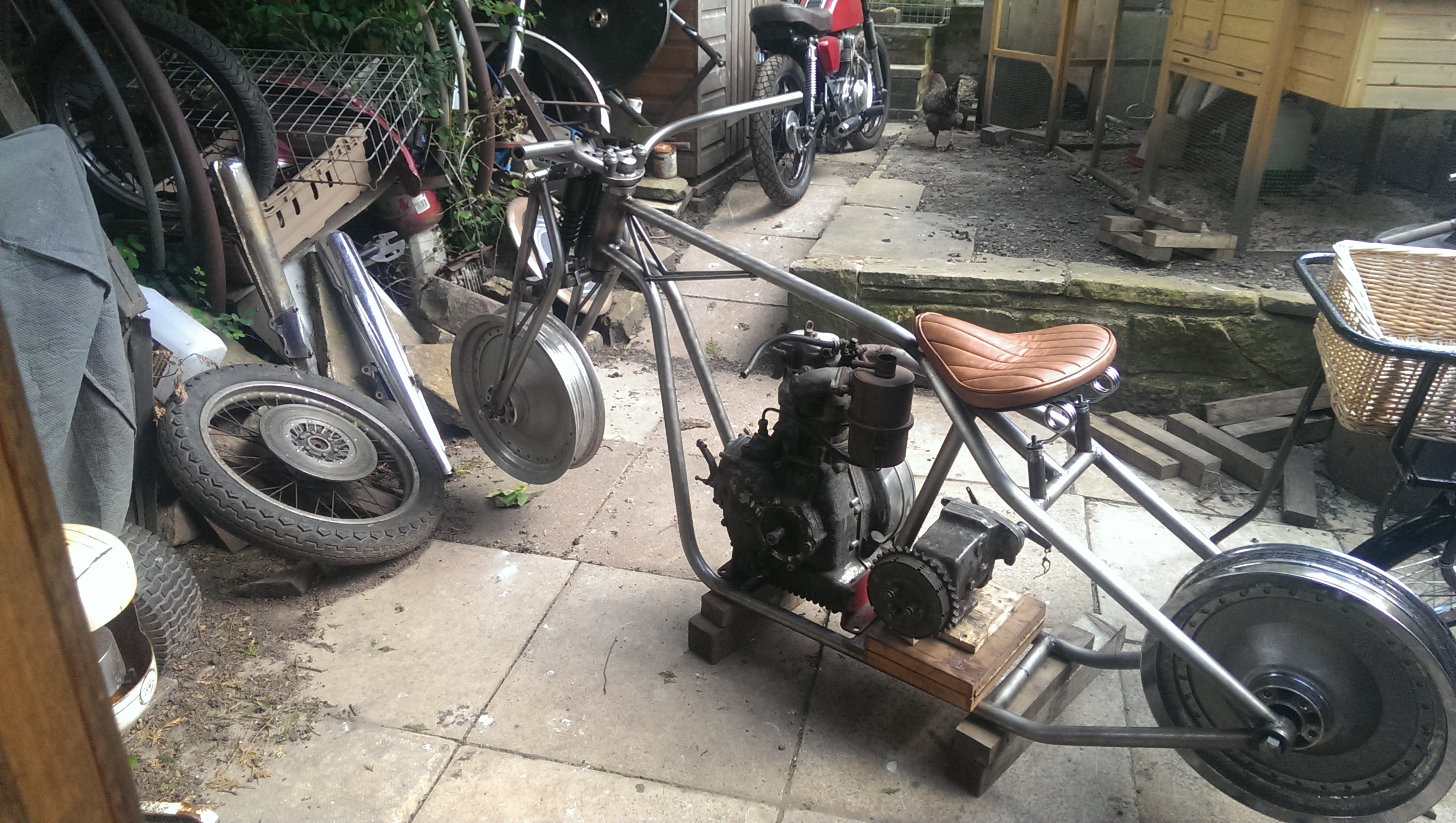

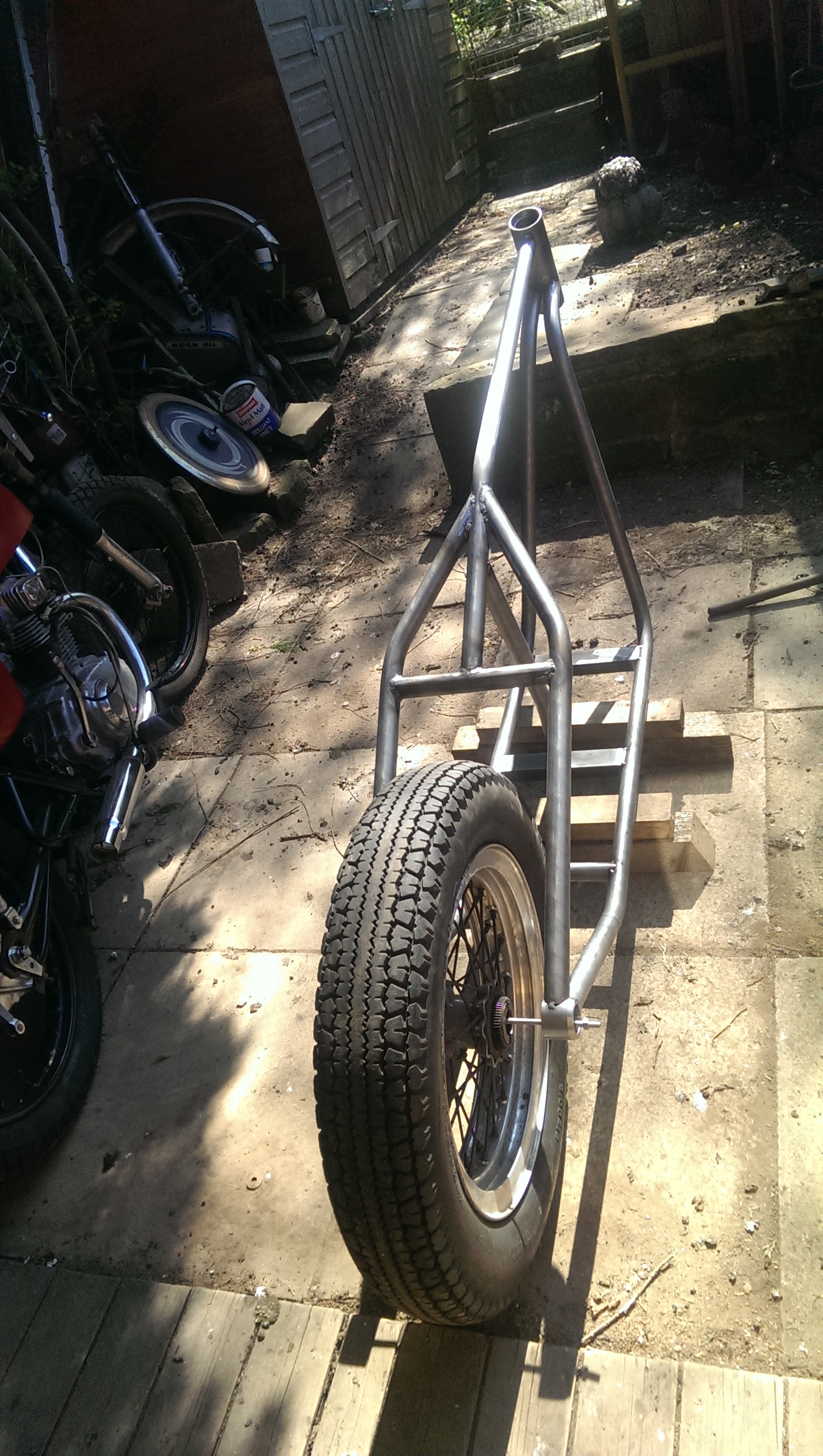

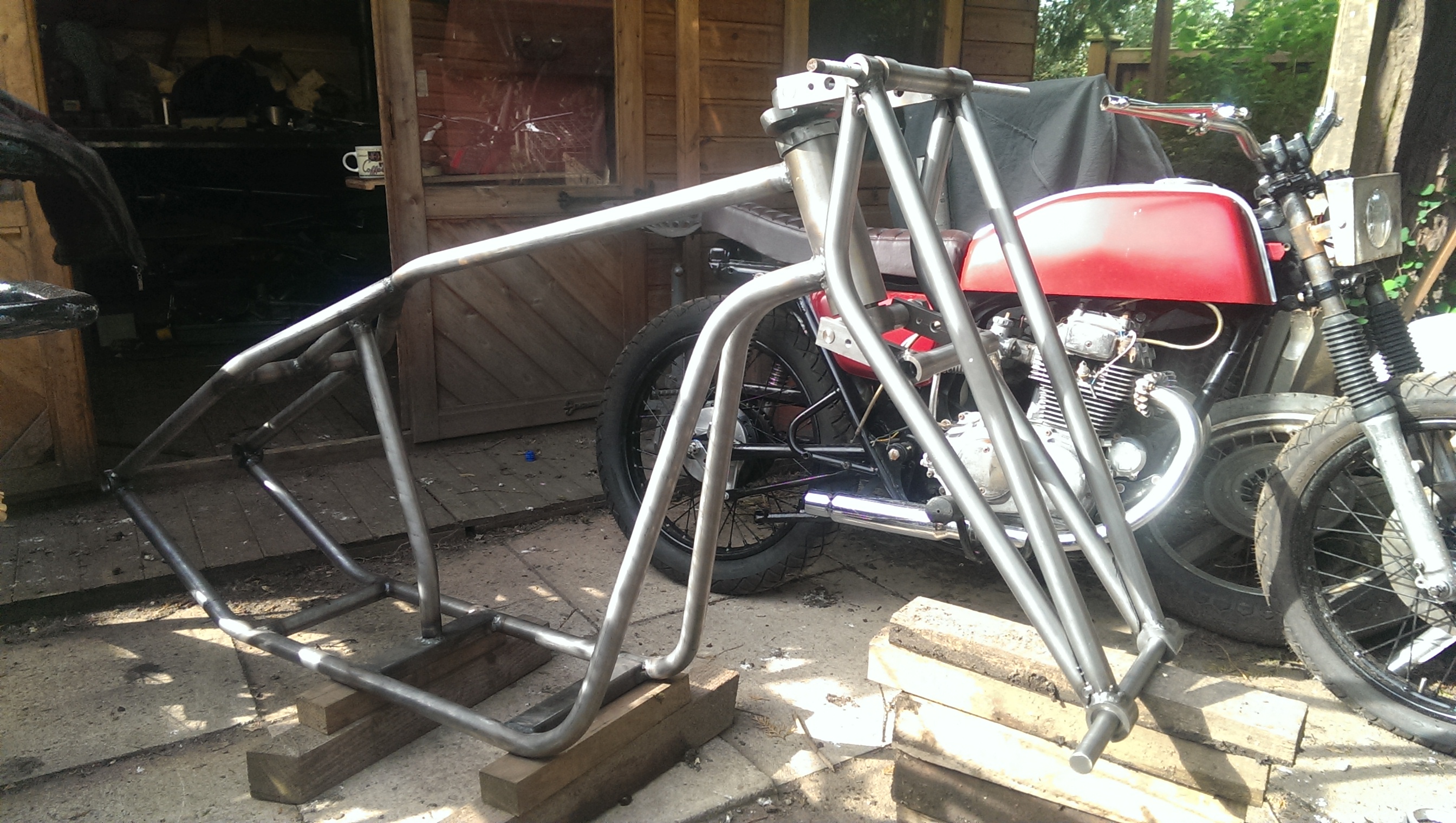

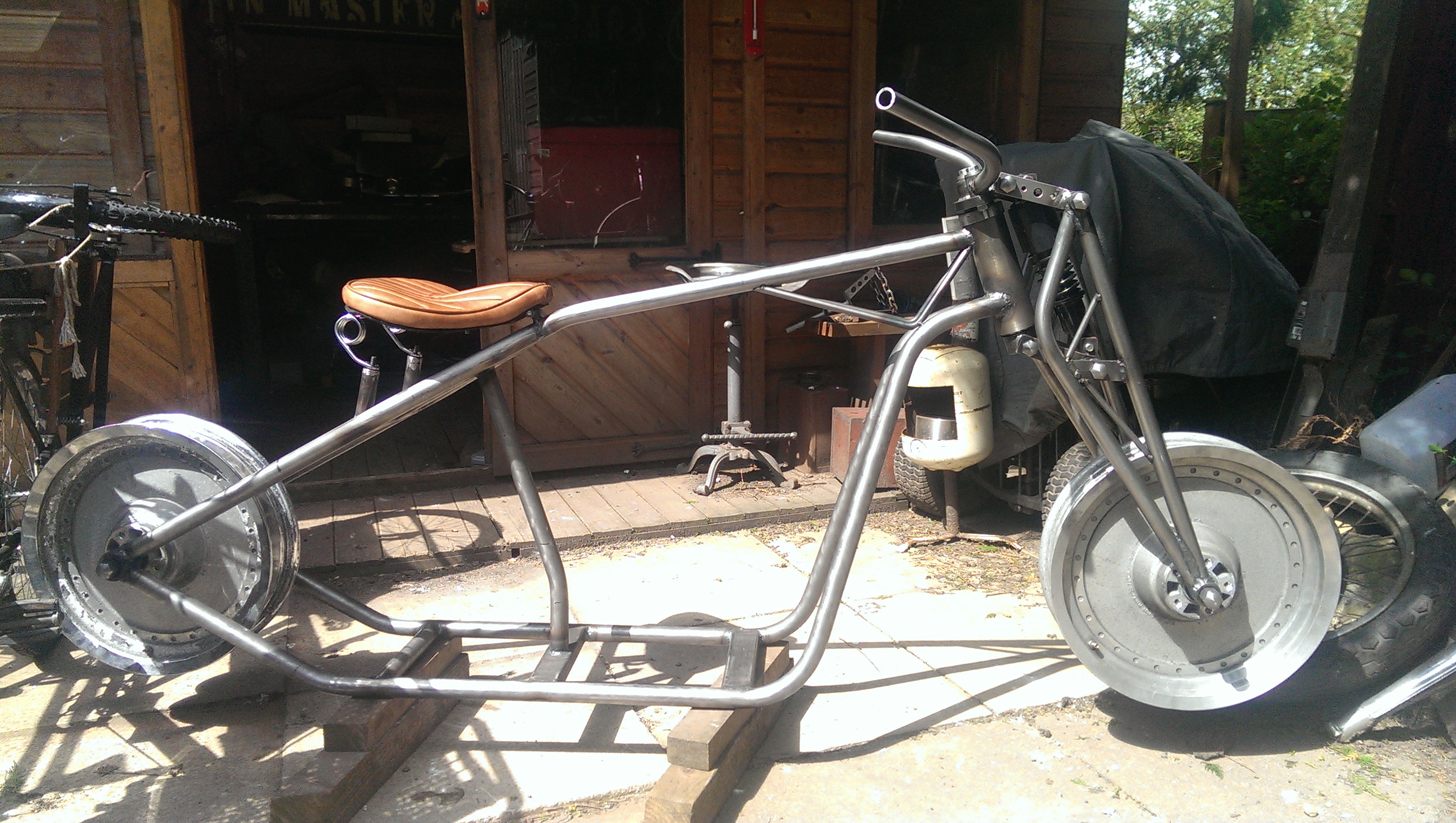

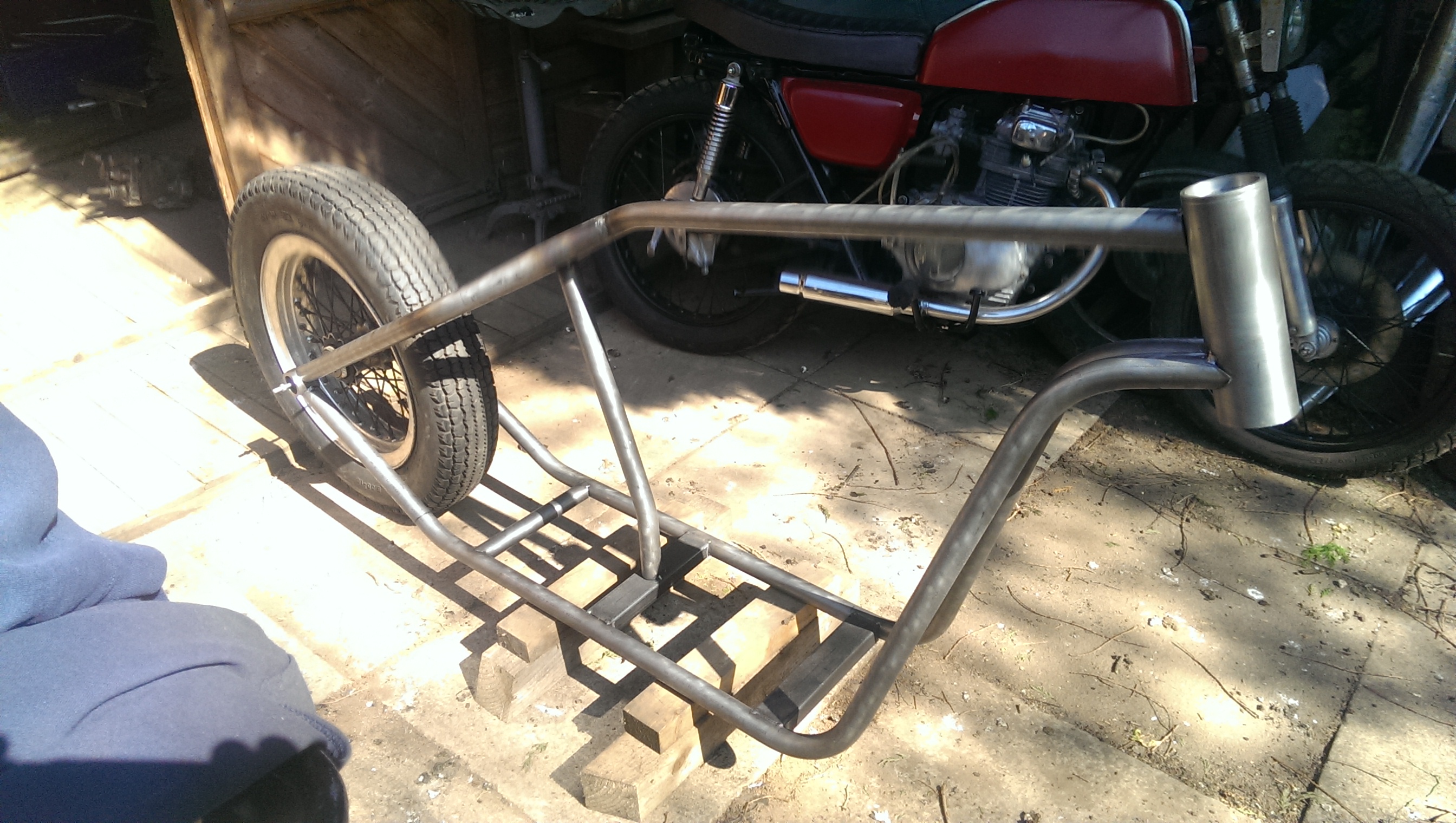

off the jig

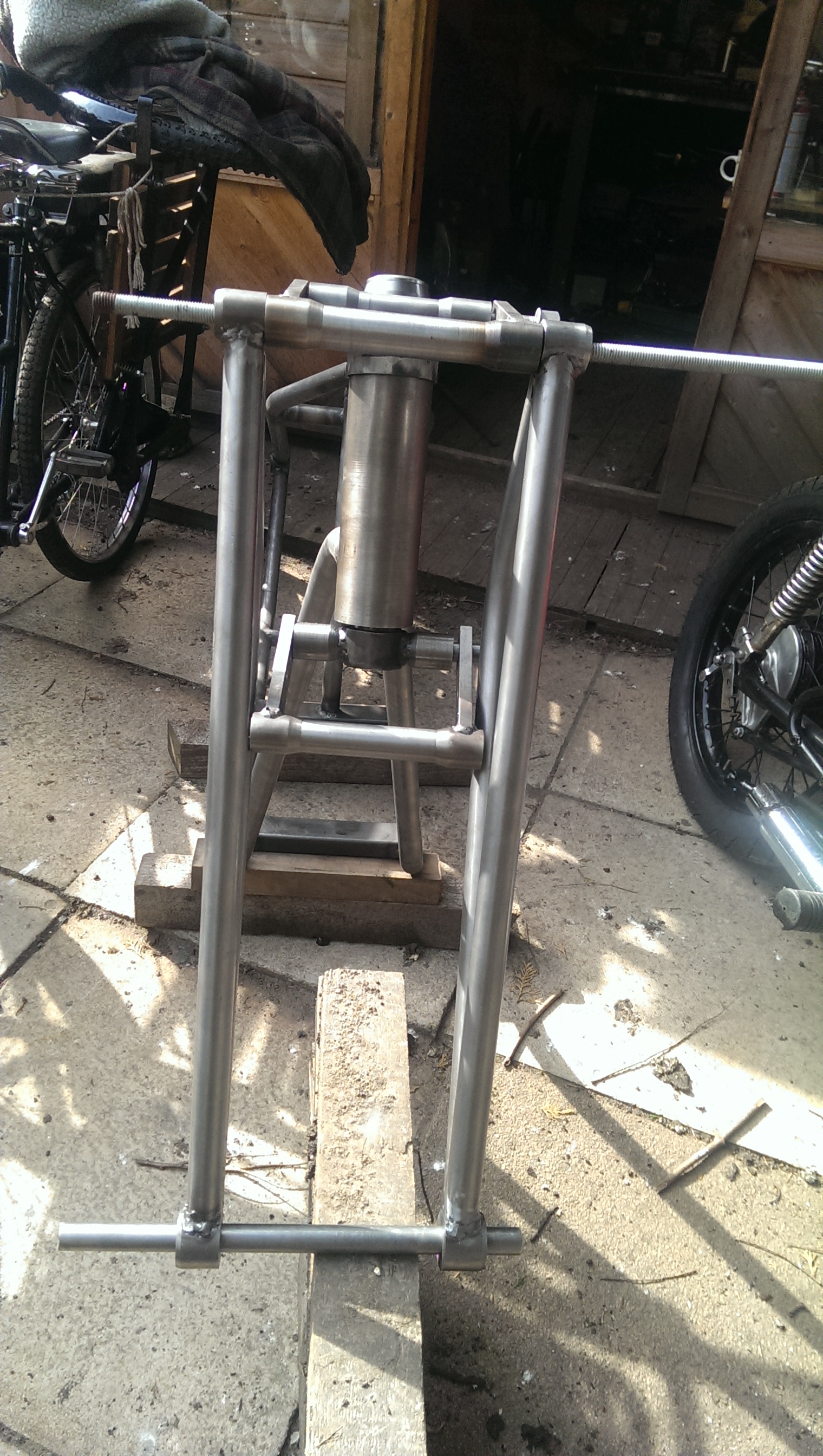

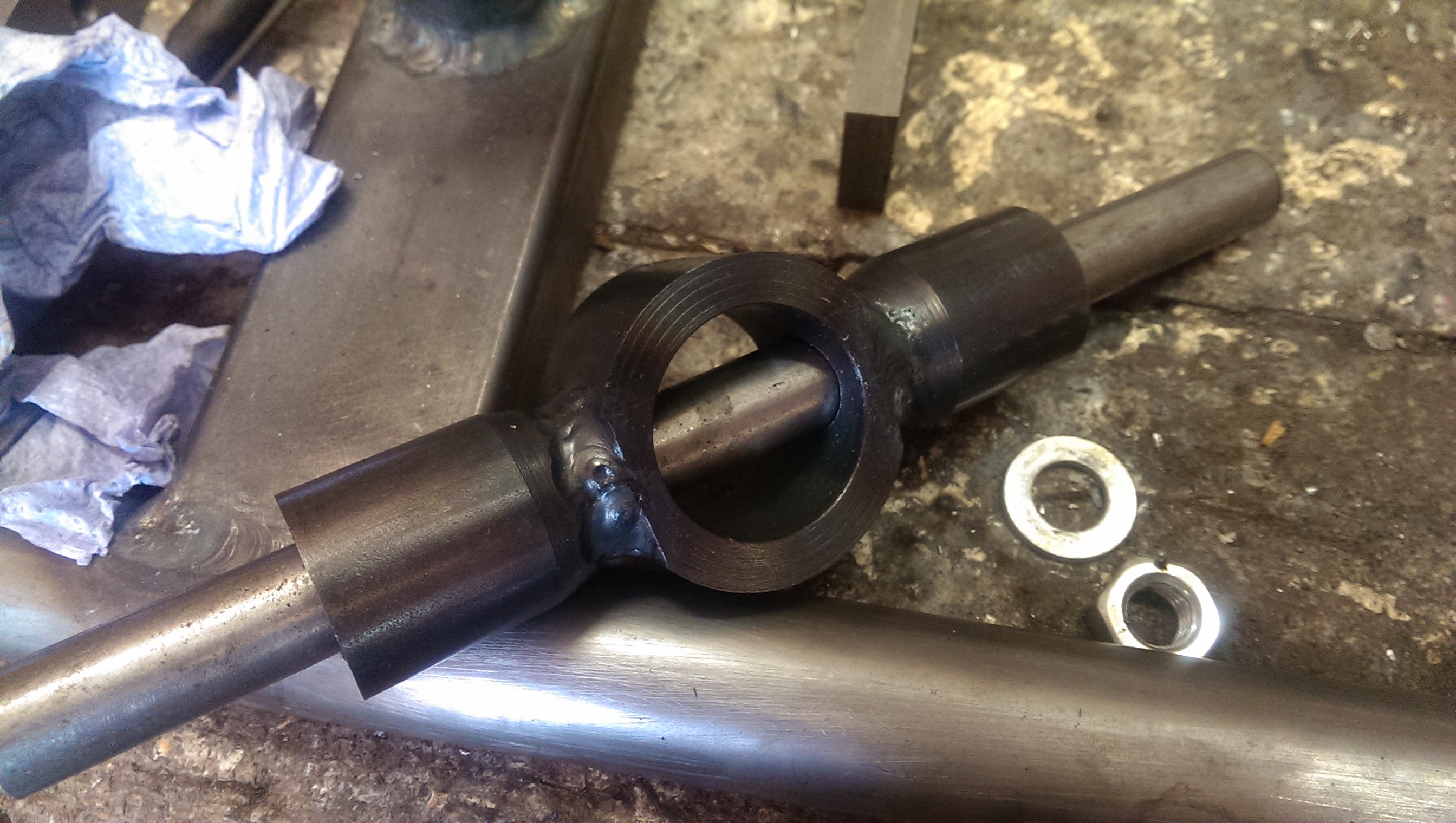

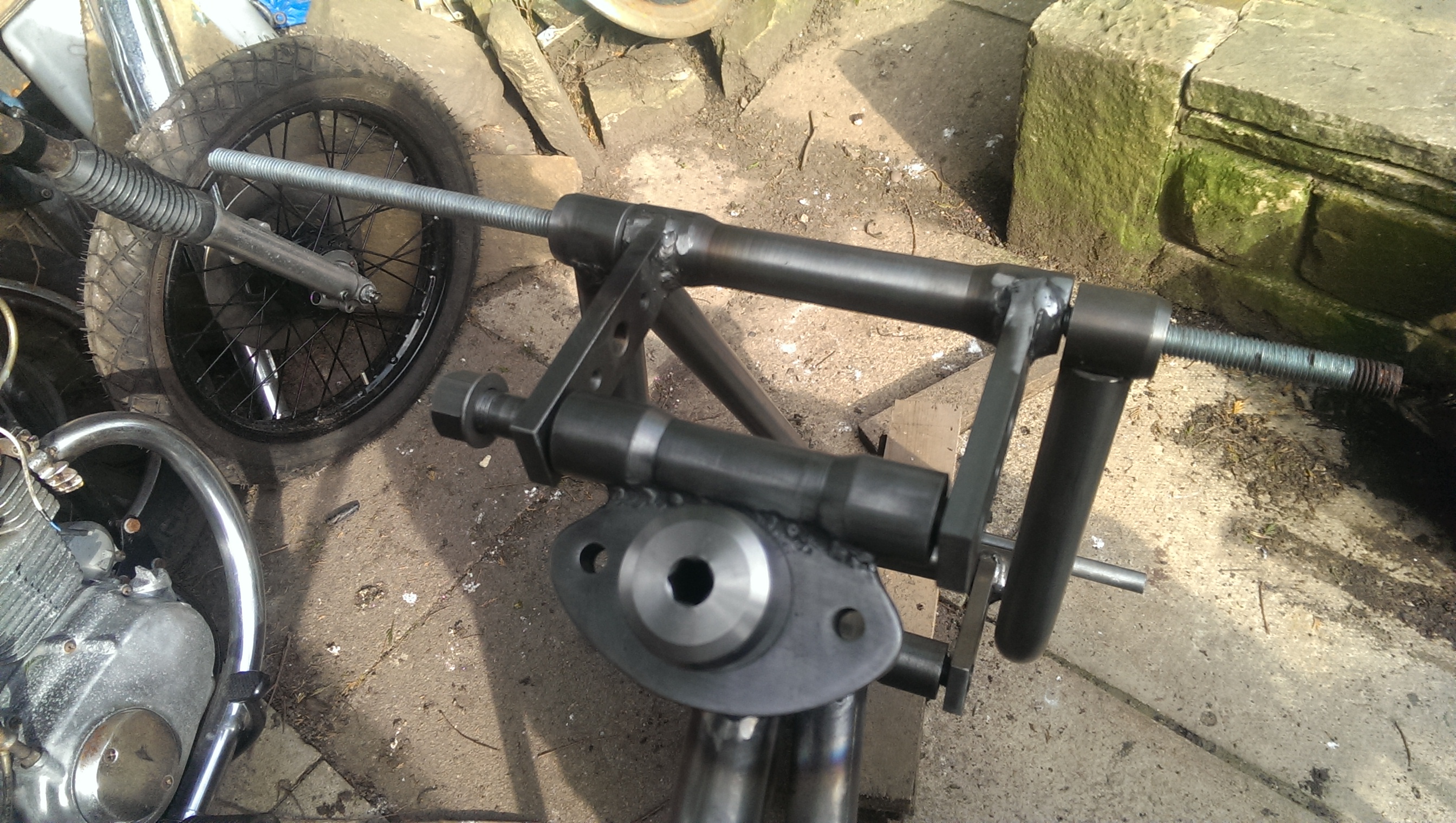

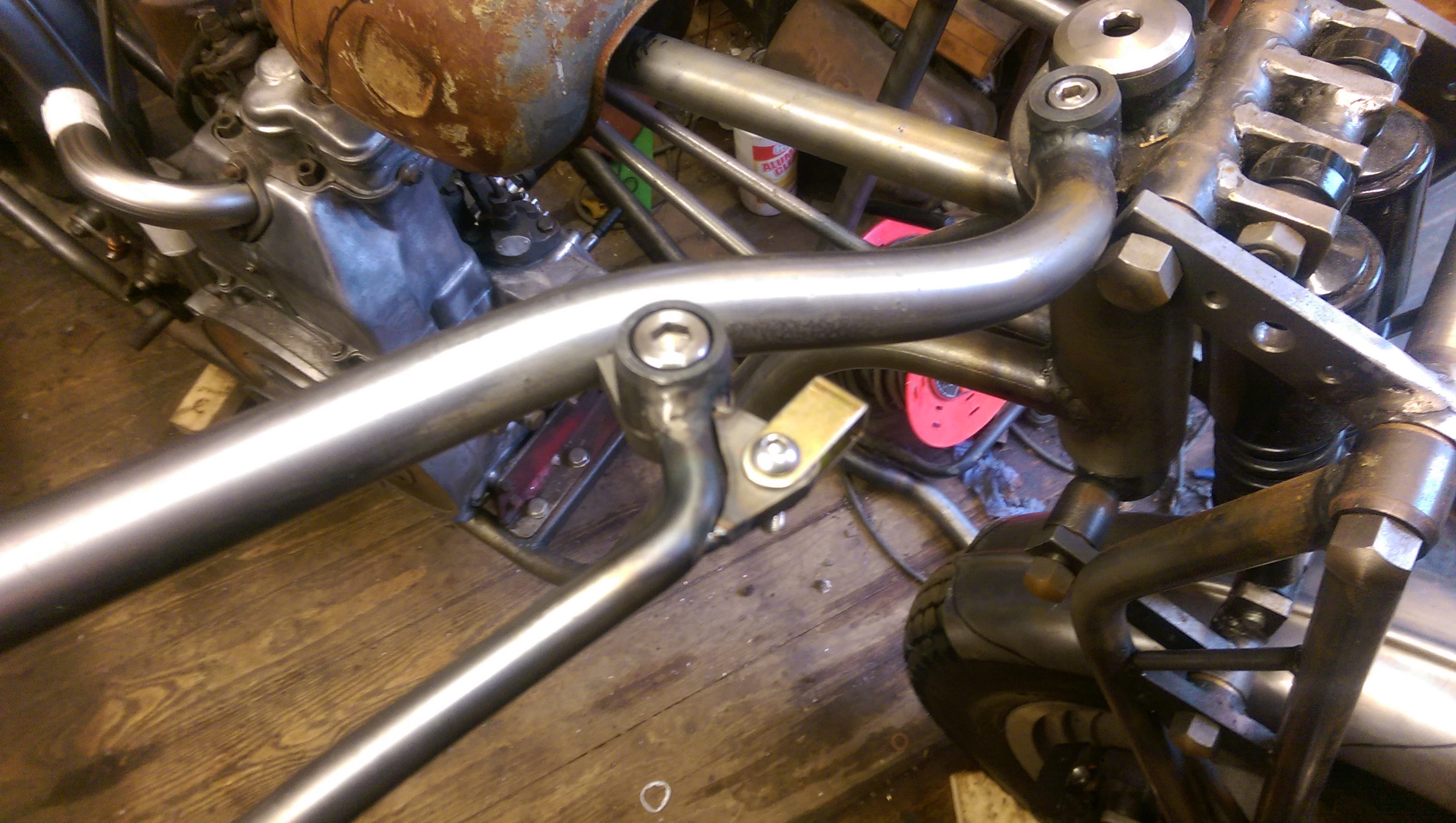

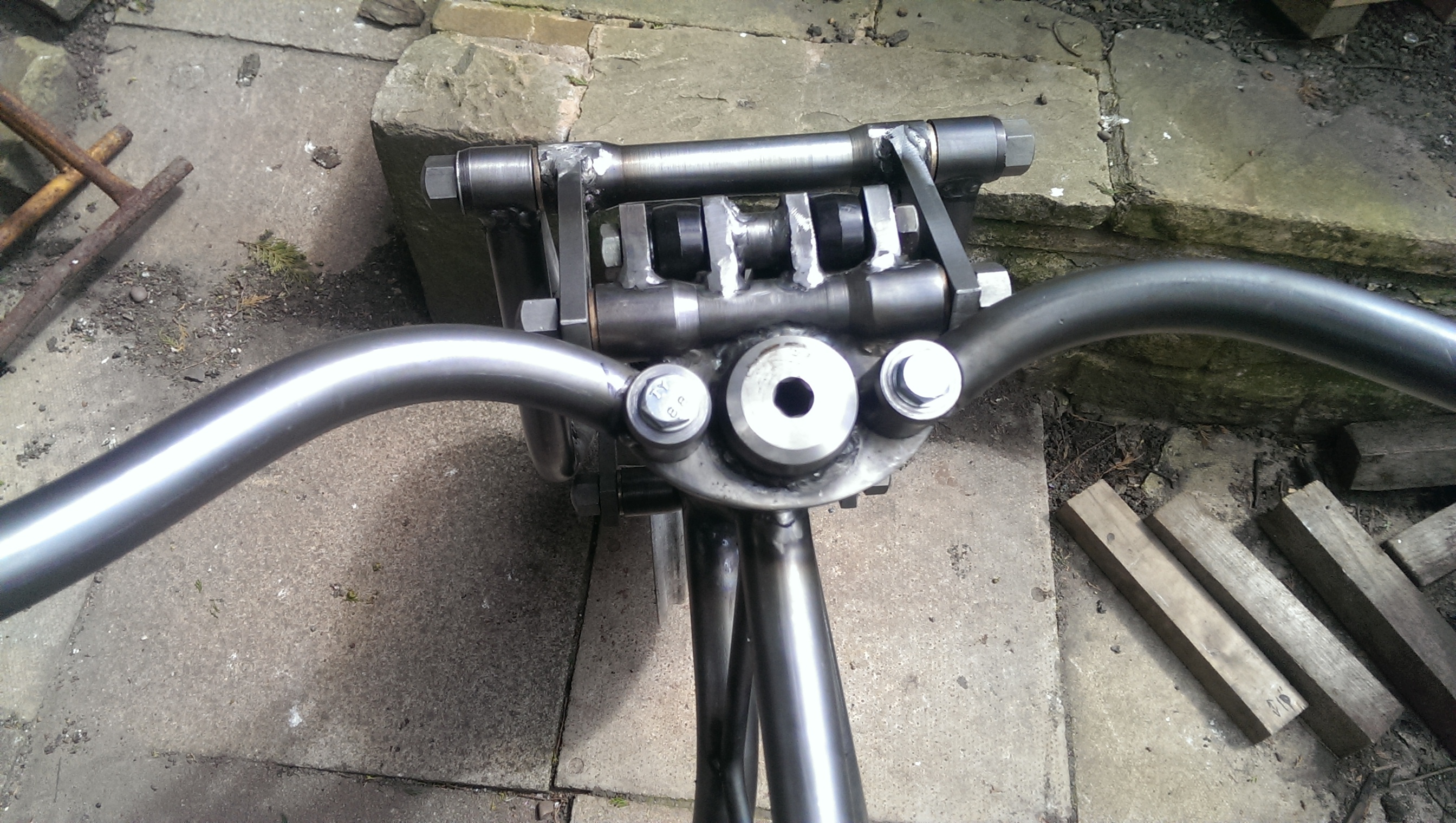

the girder front end

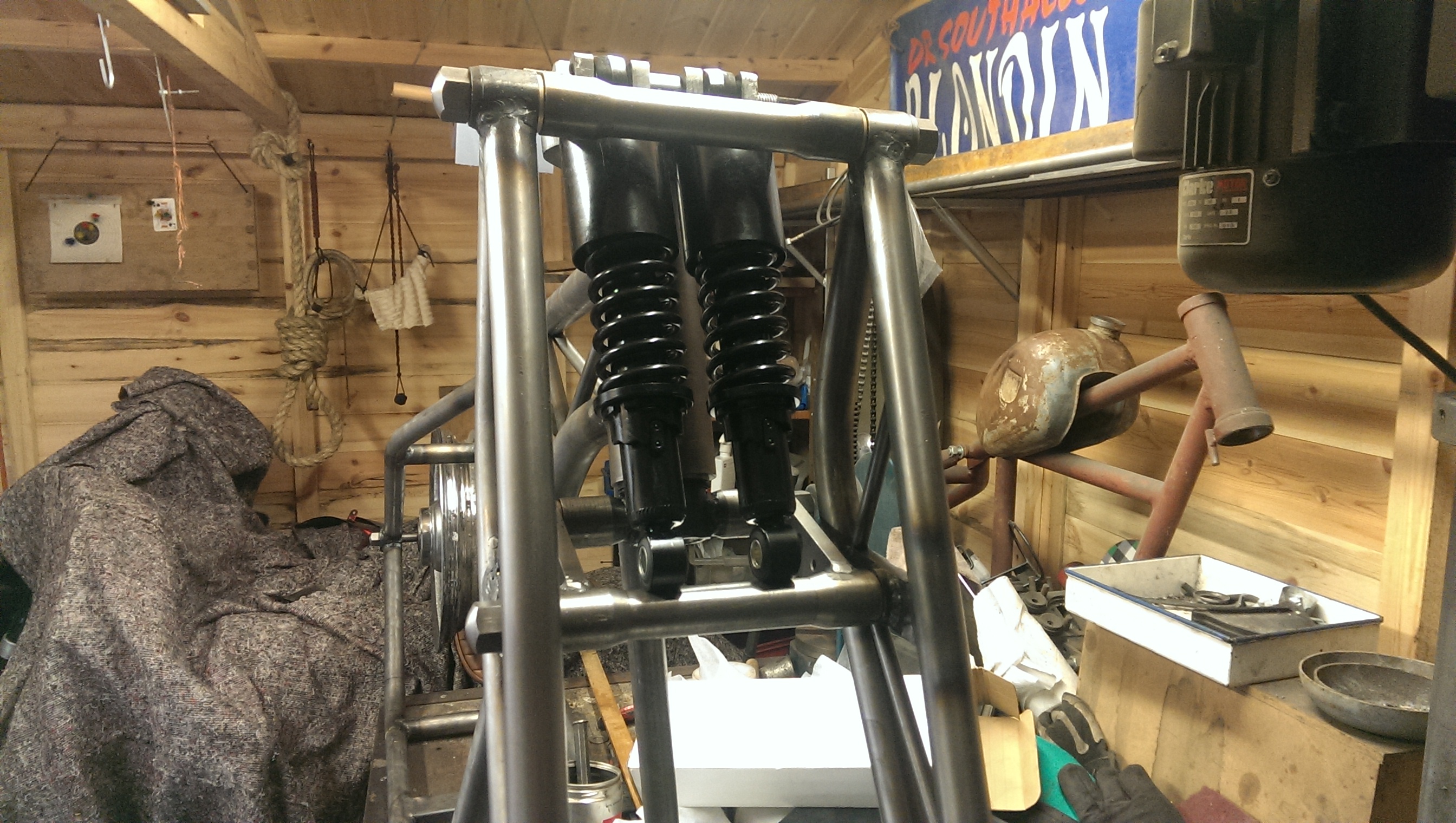

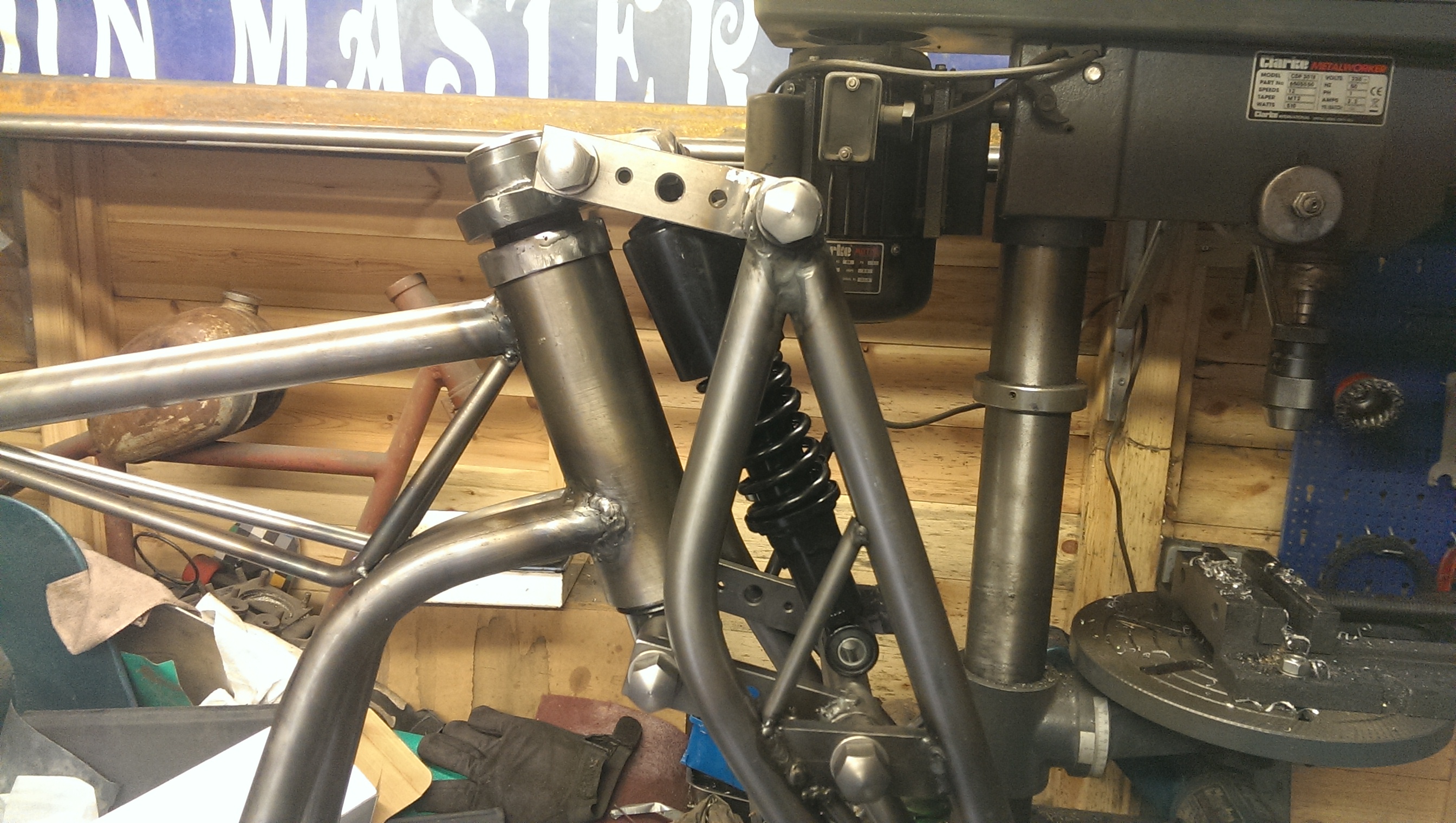

front shocks going on

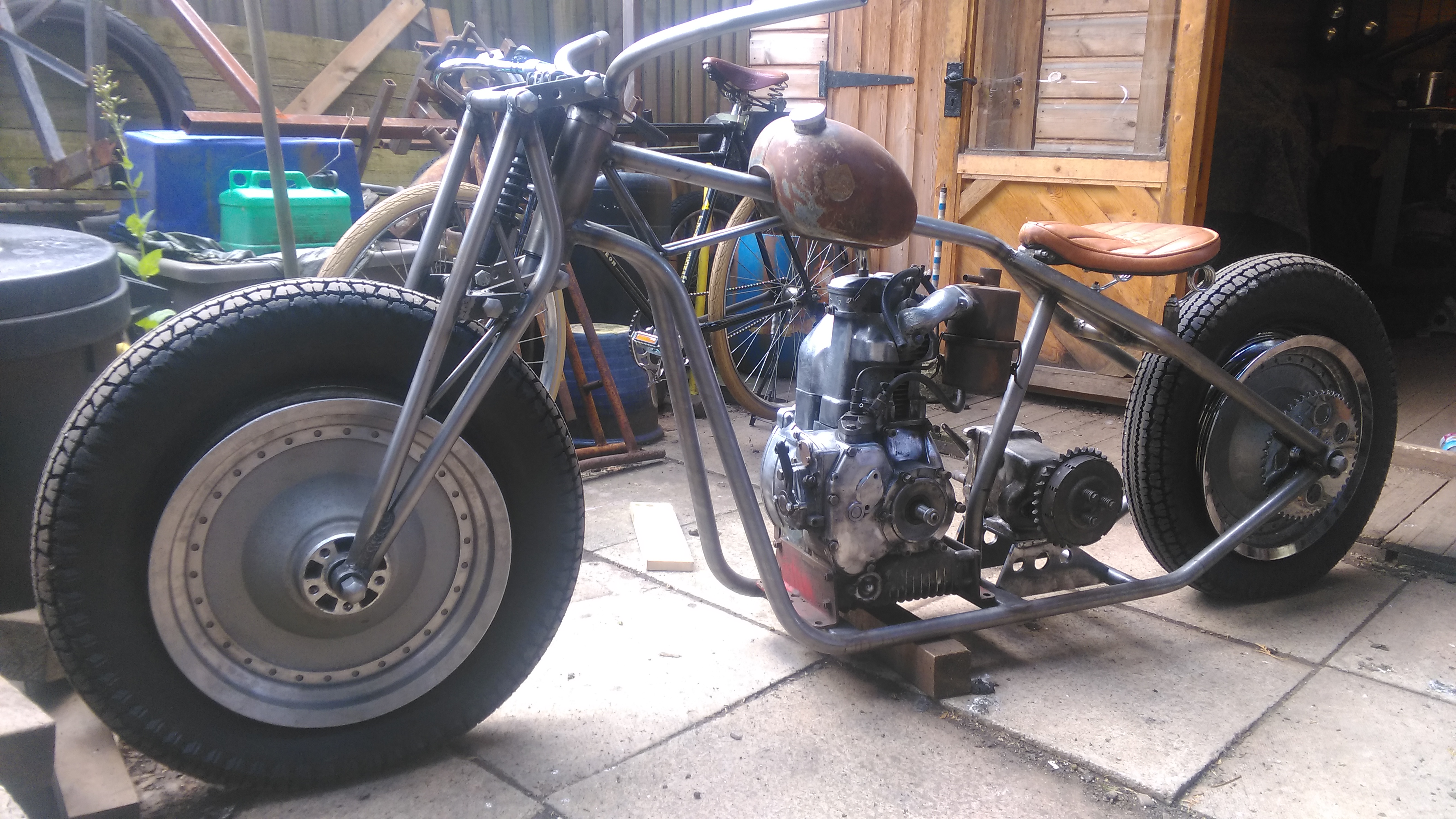

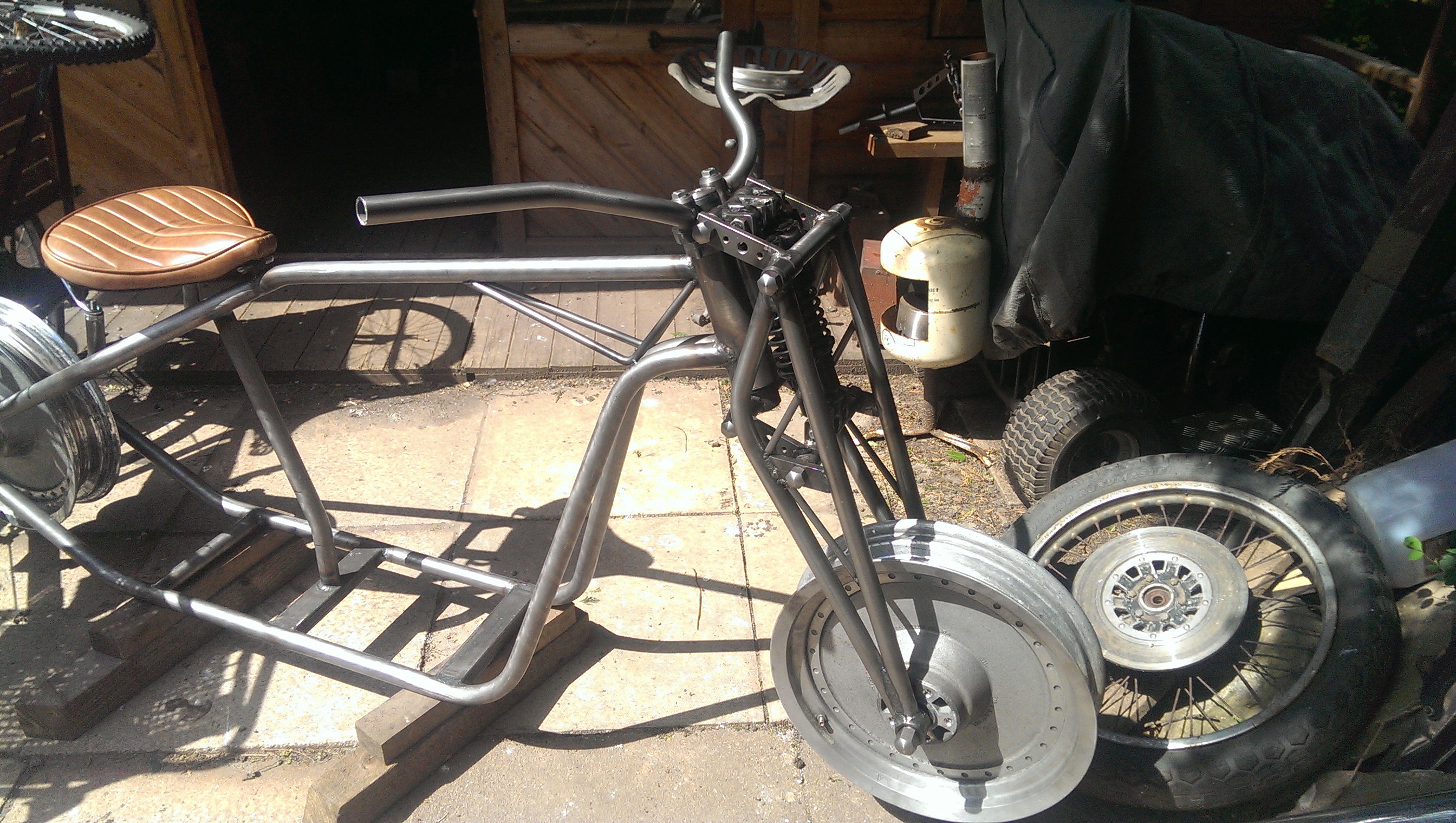

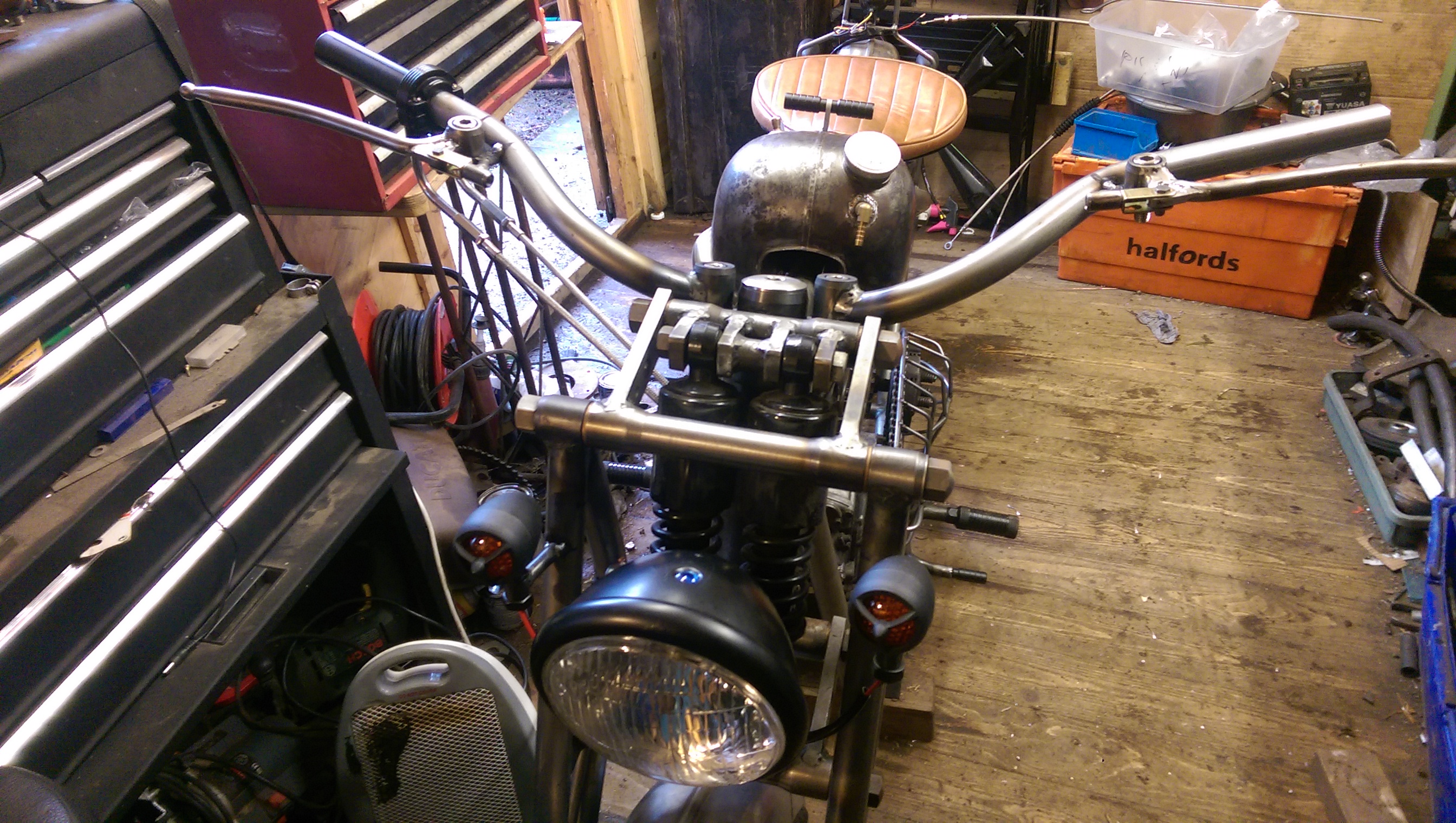

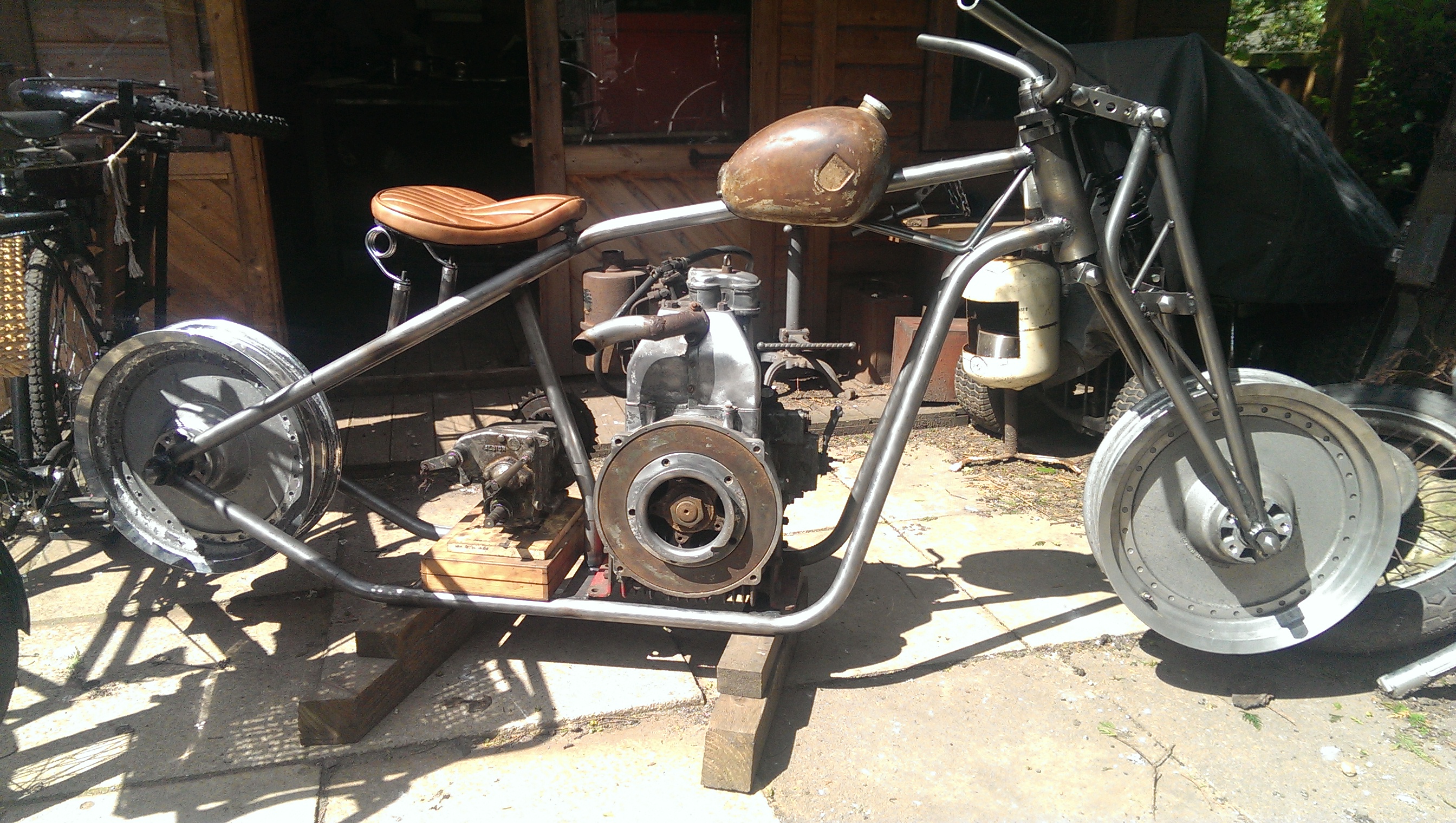

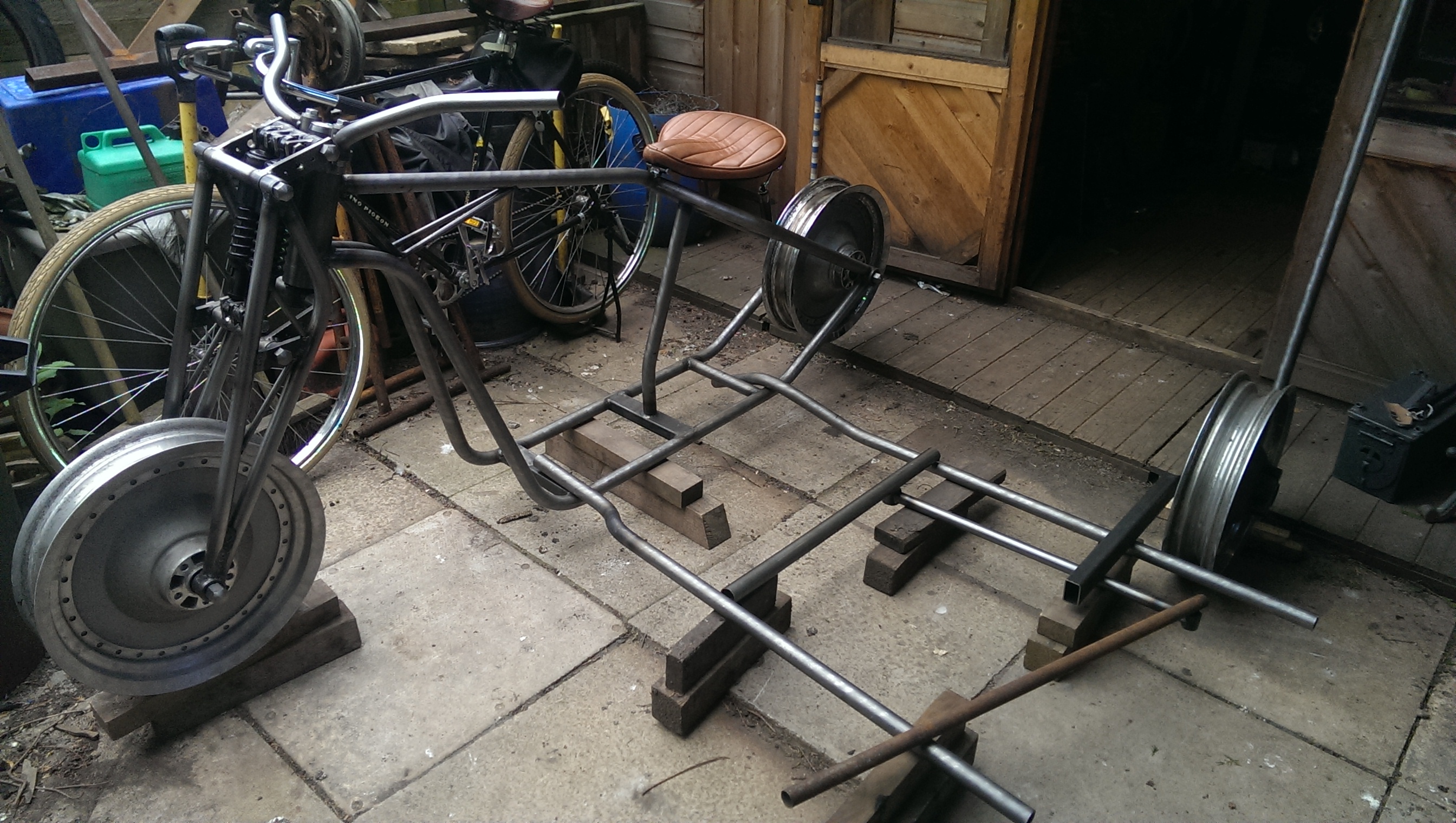

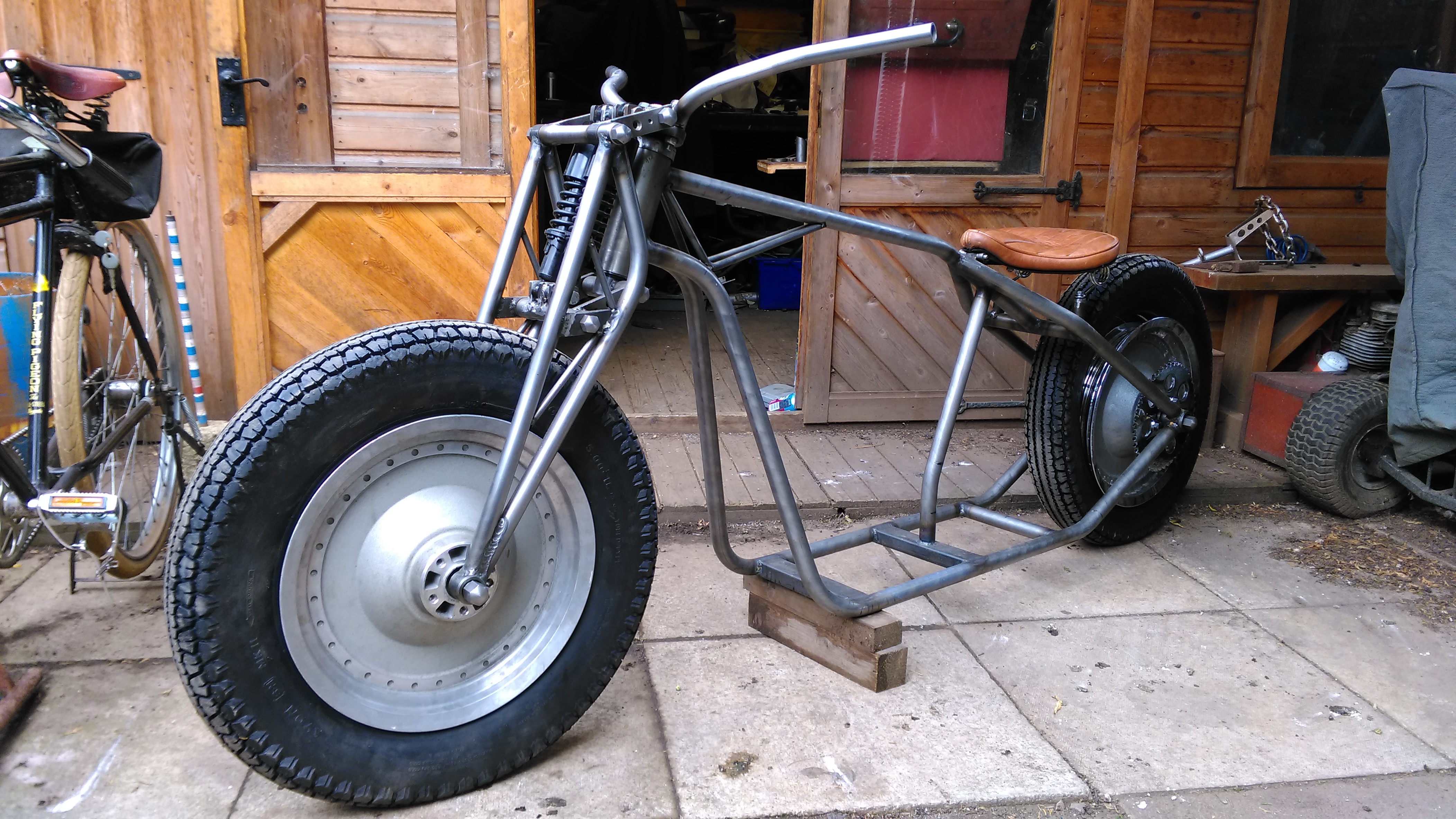

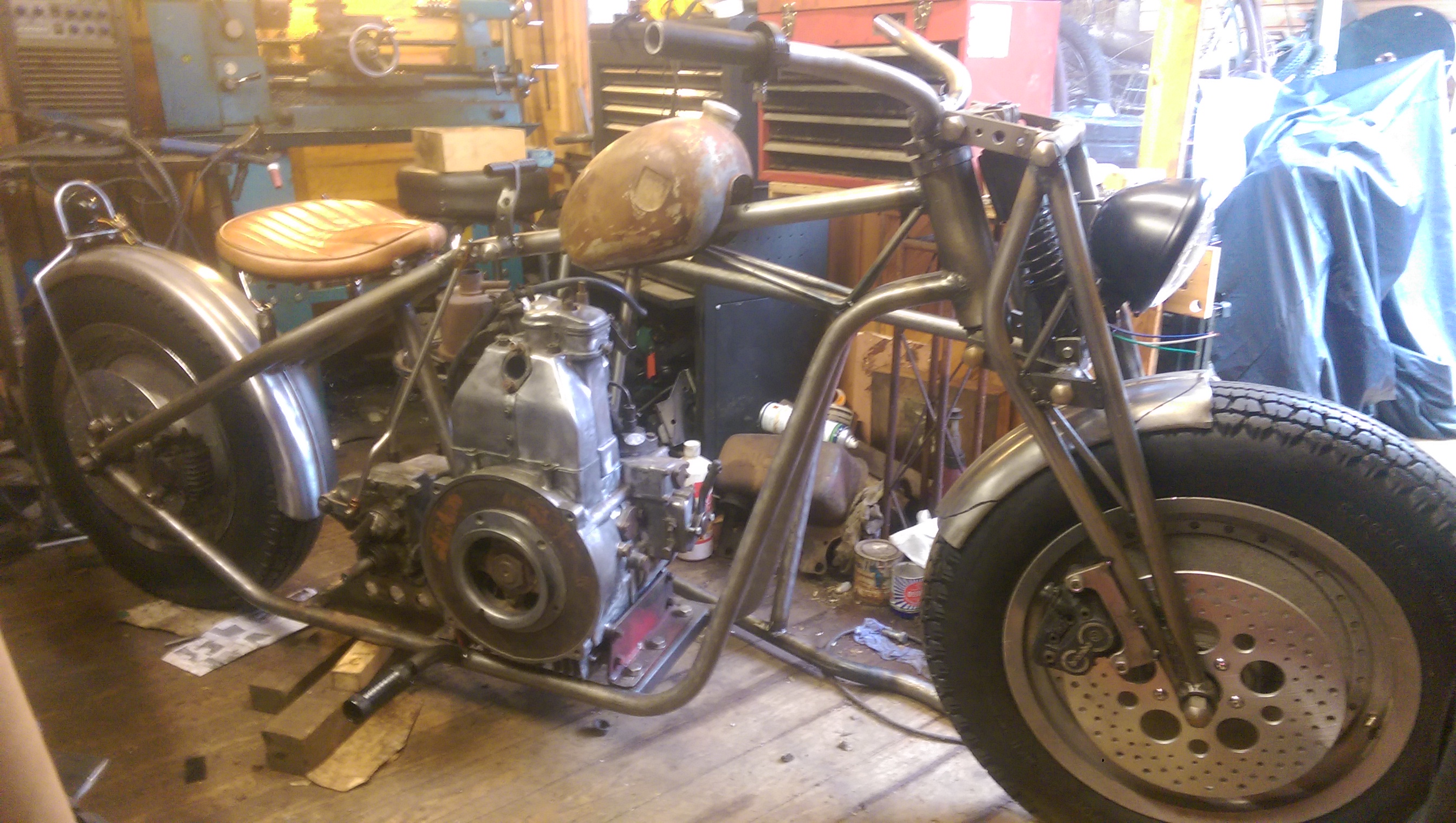

front end finished bar a bit of welding, seat tacked in place and handlebars designed and made

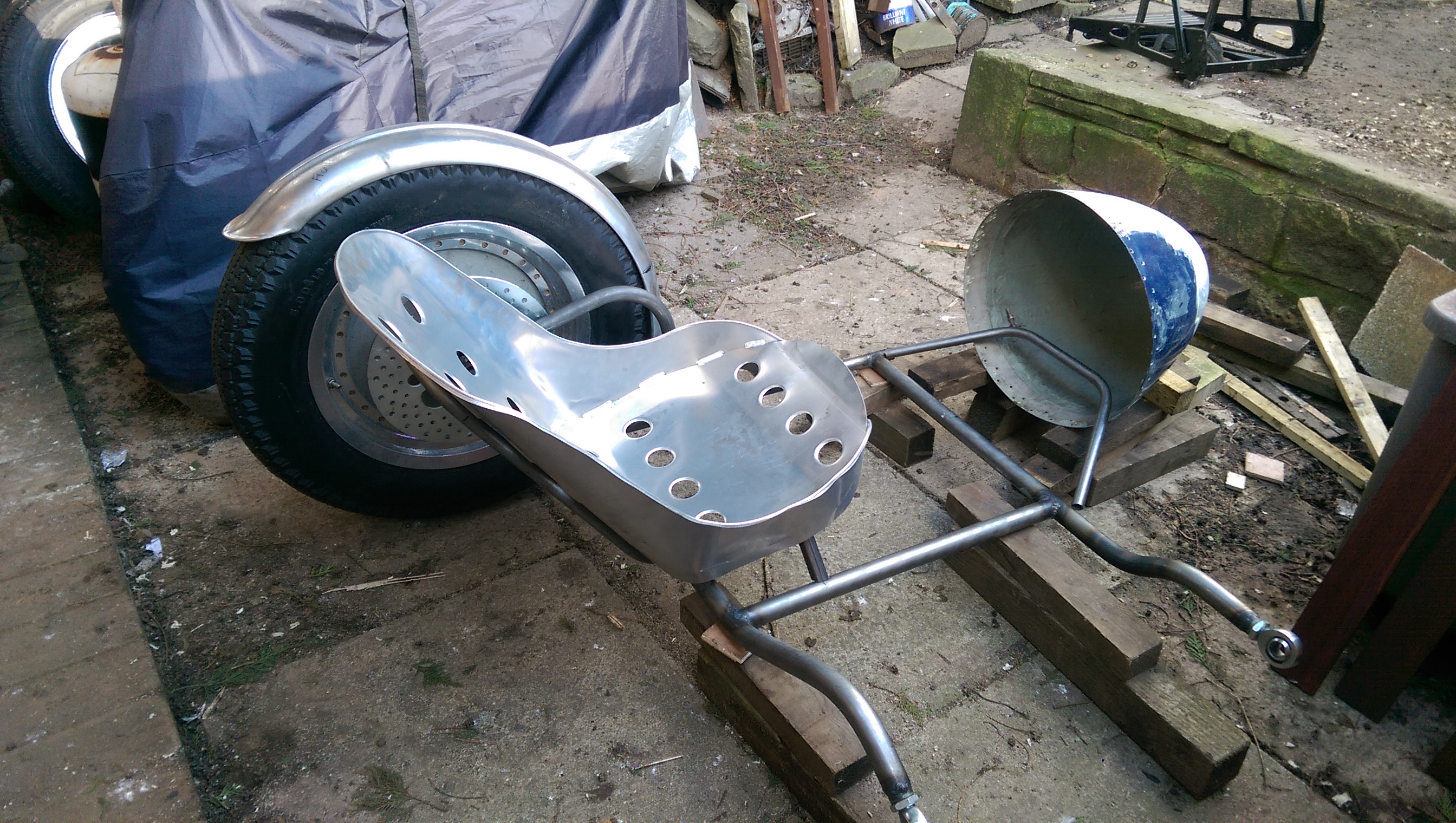

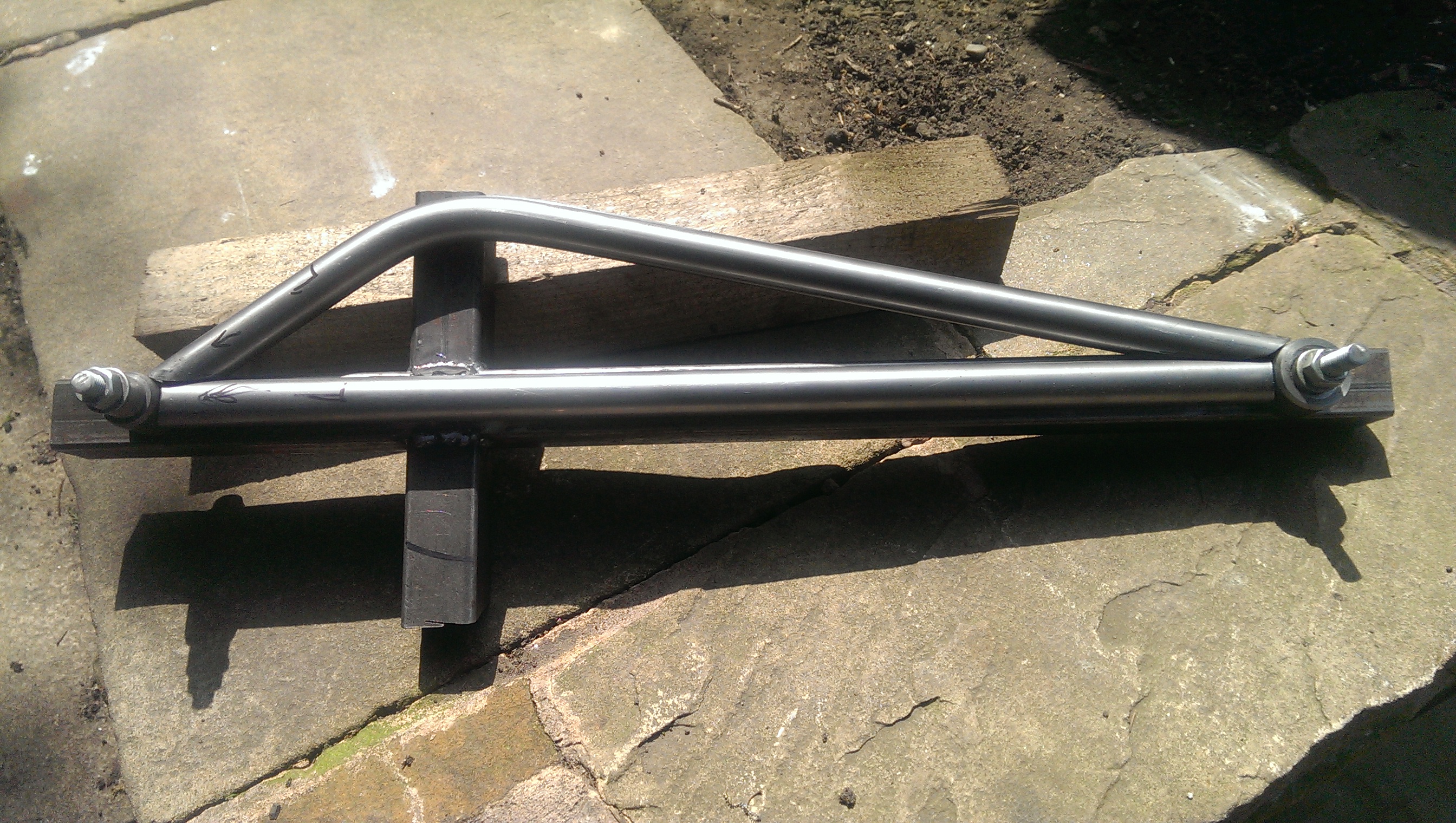

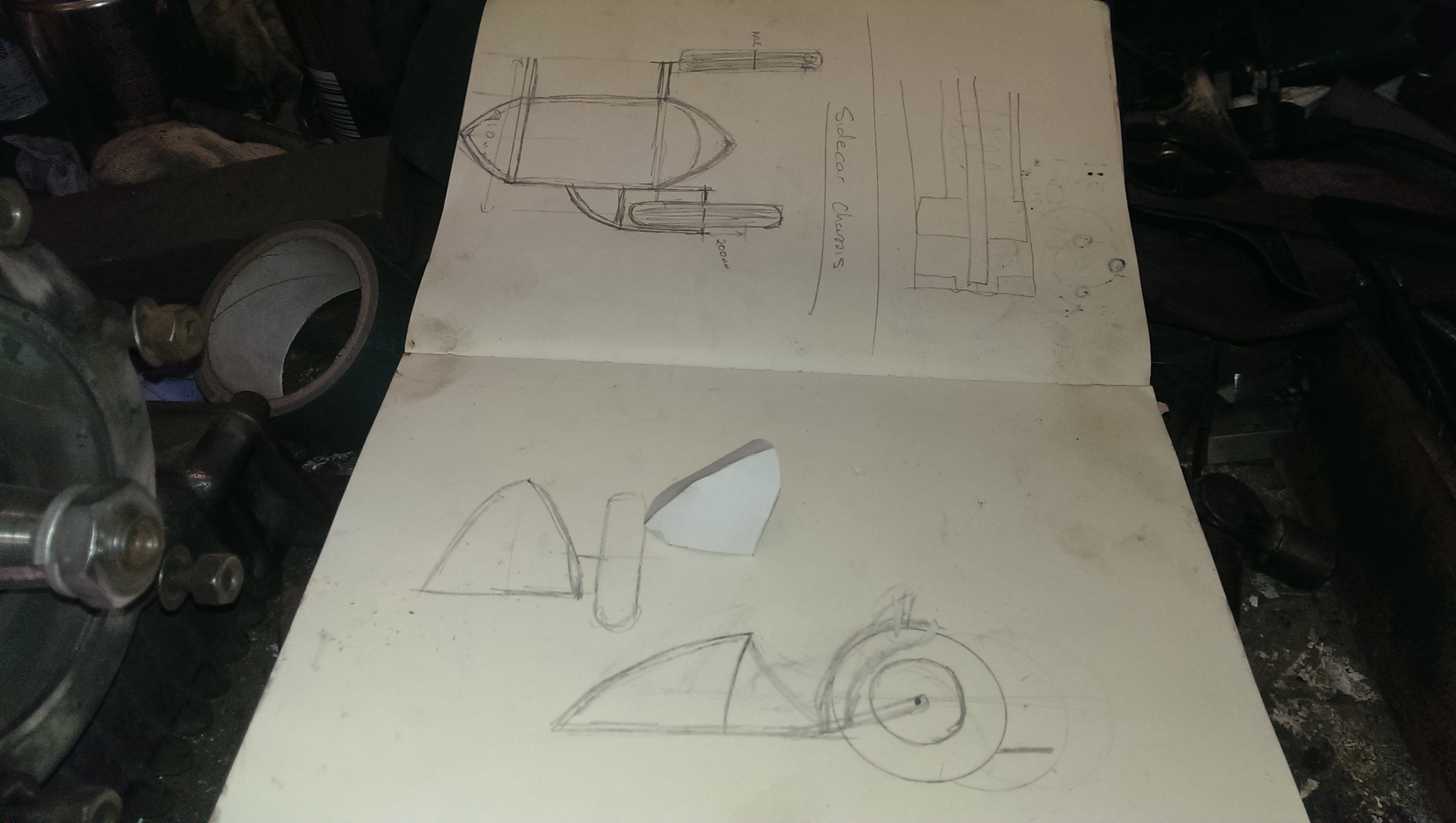

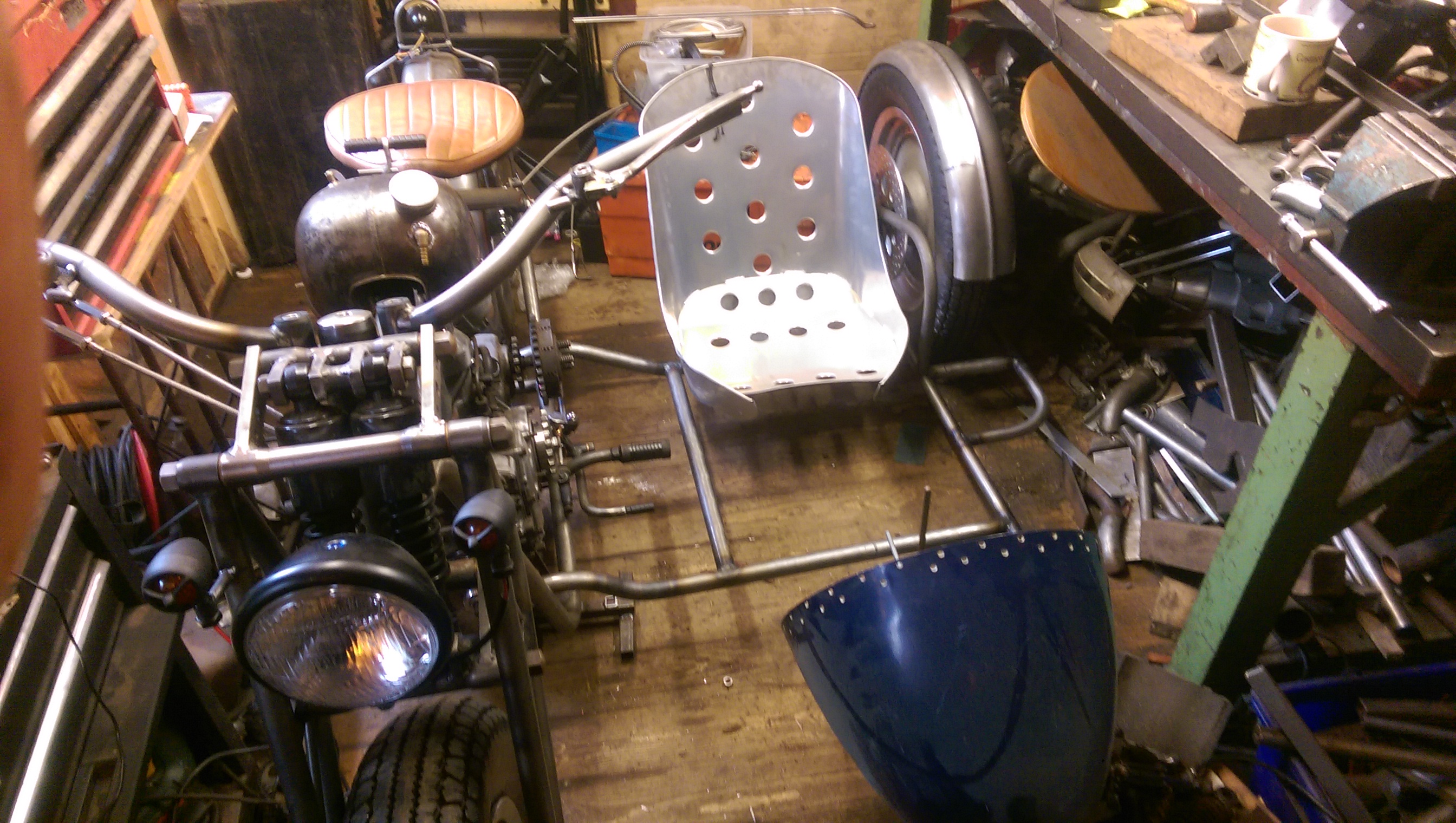

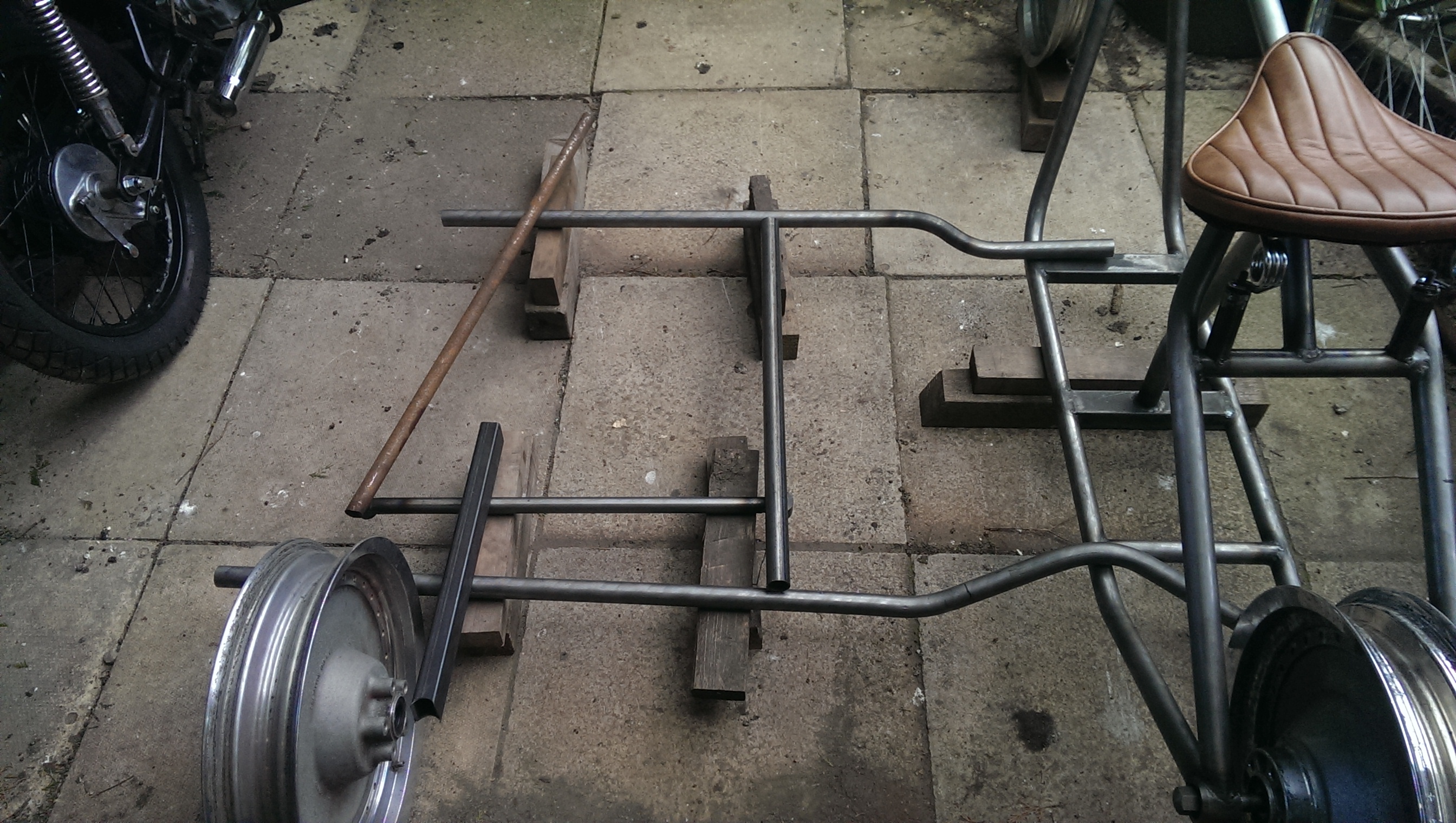

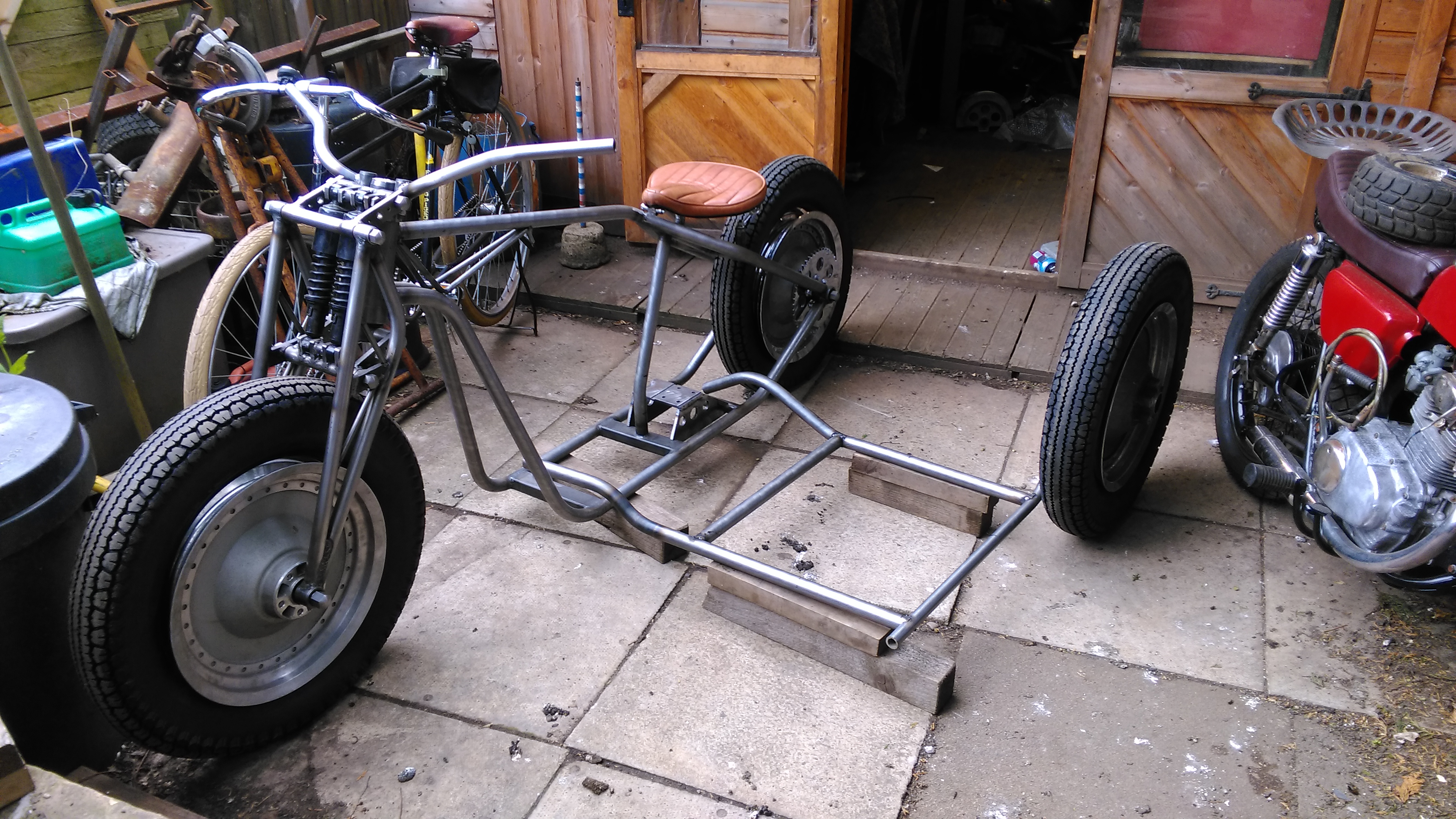

initial design ideas for the sidecar

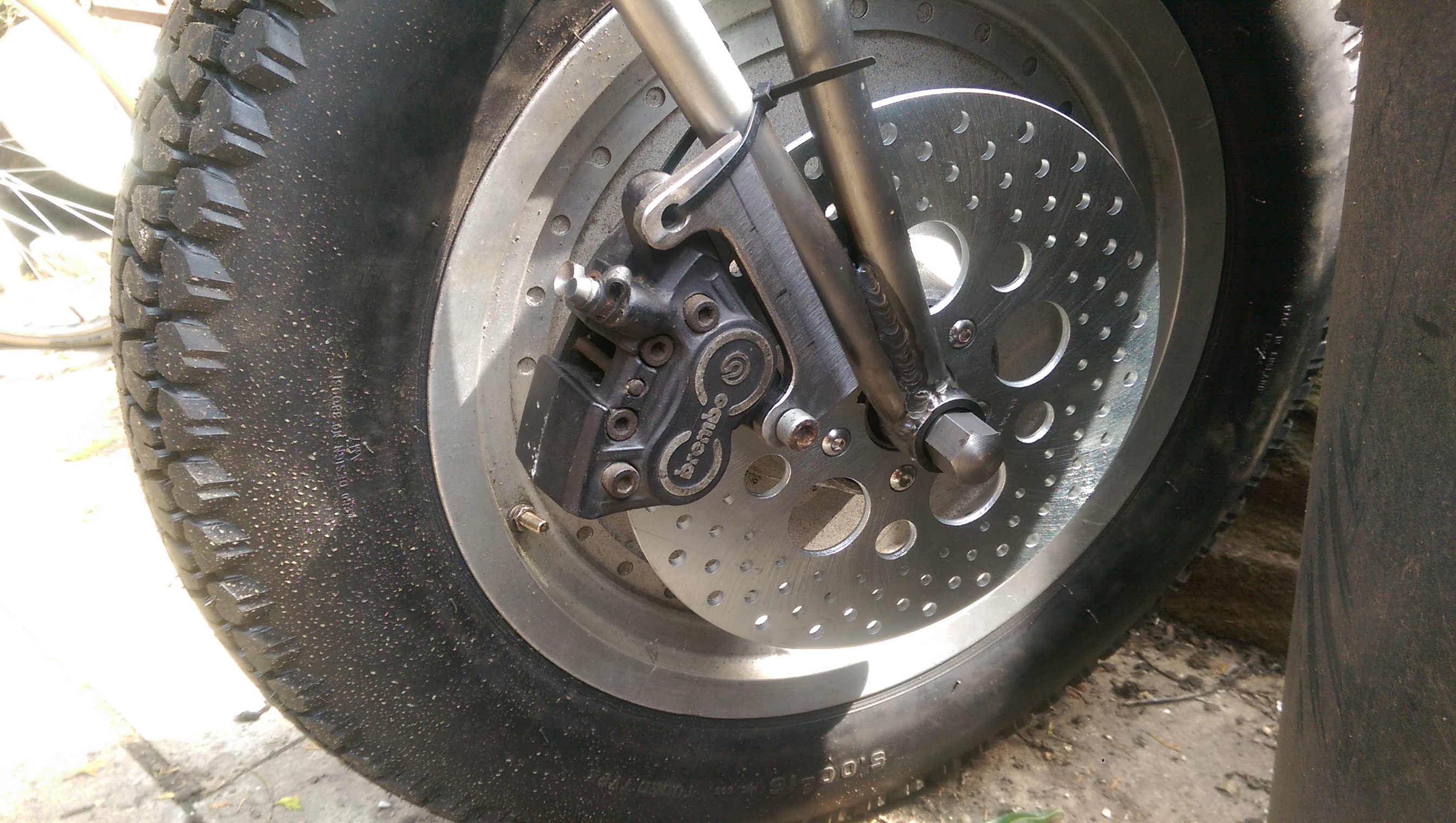

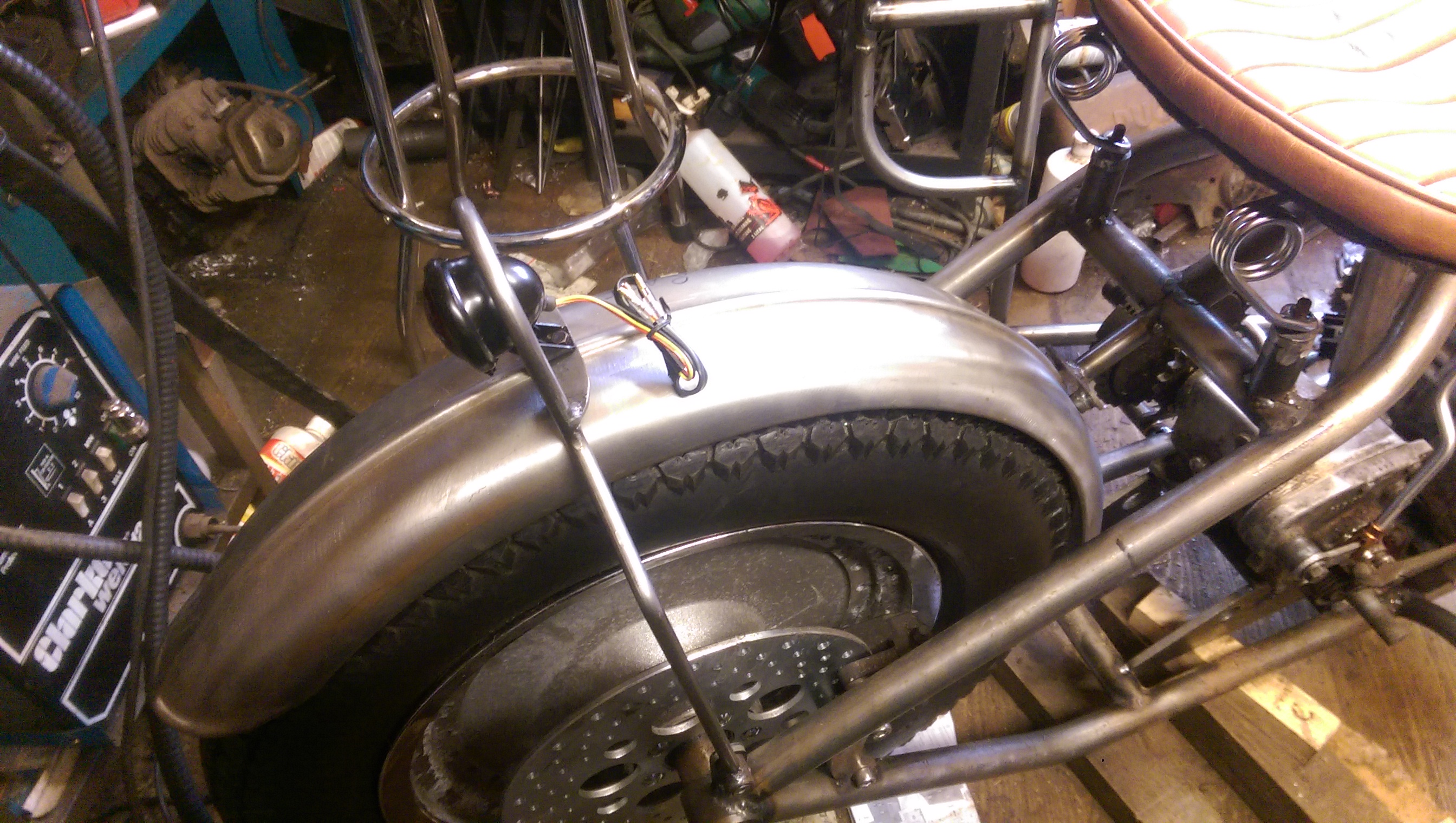

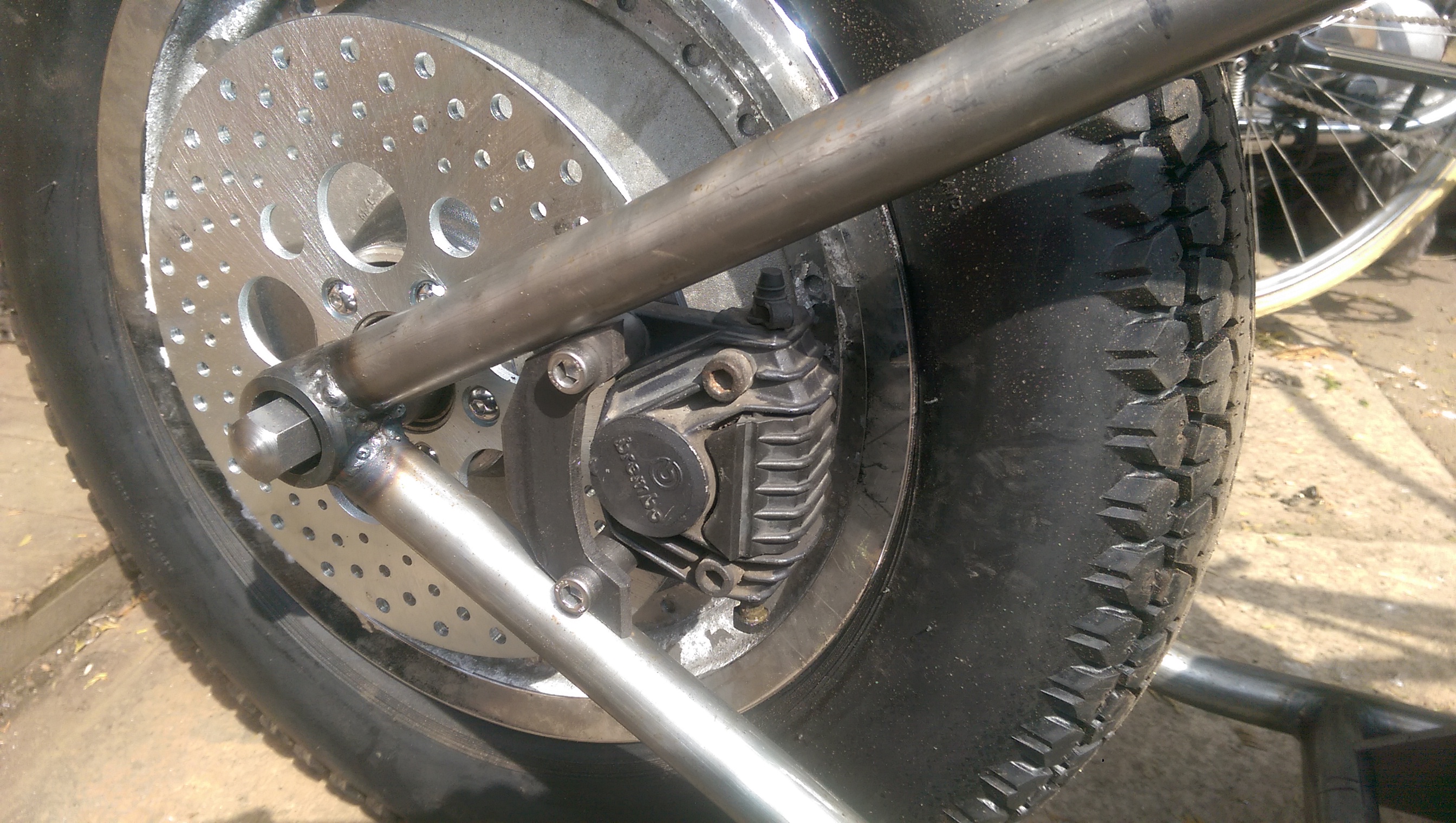

Brembo brake callipers on custom mounts

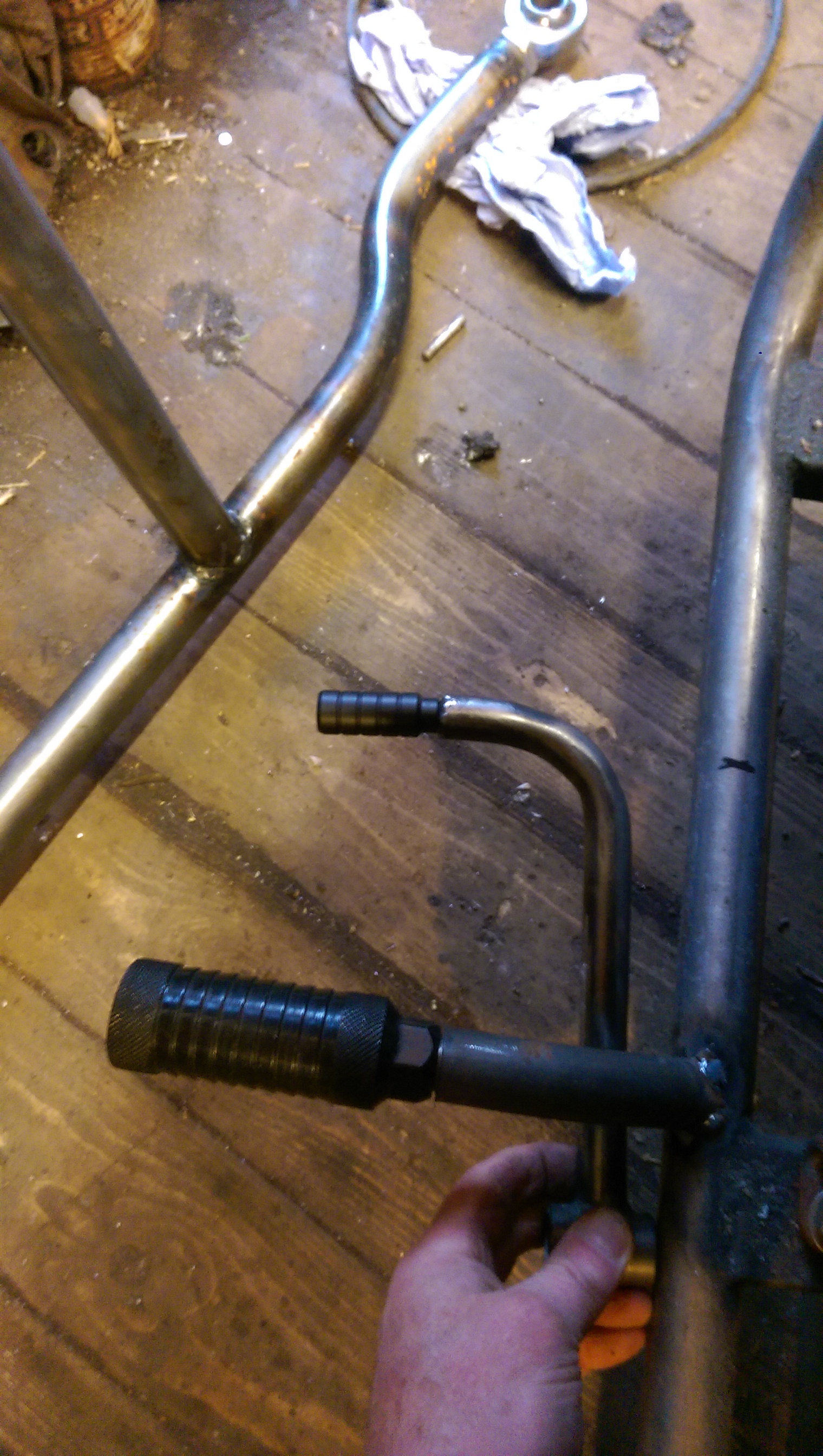

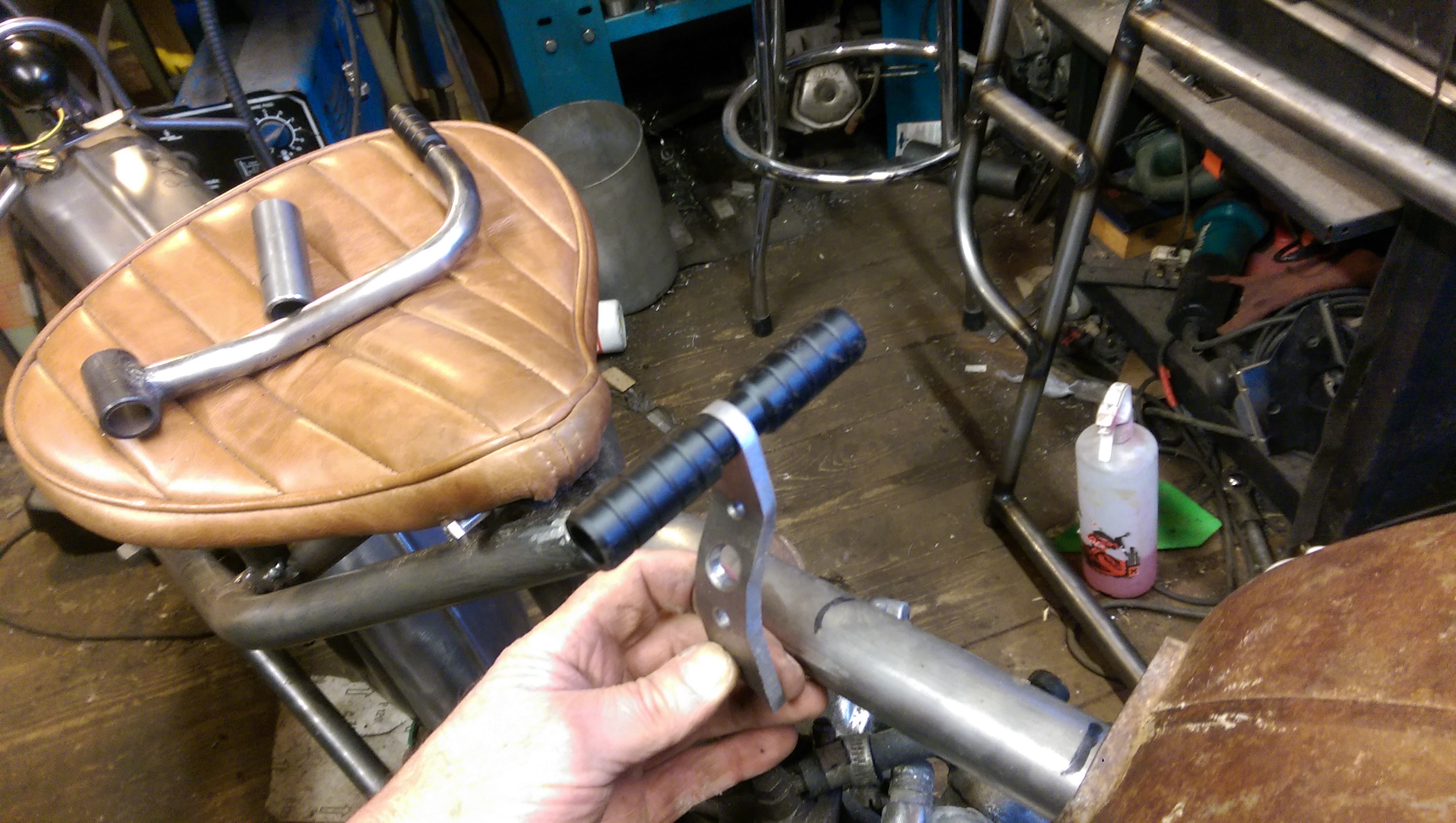

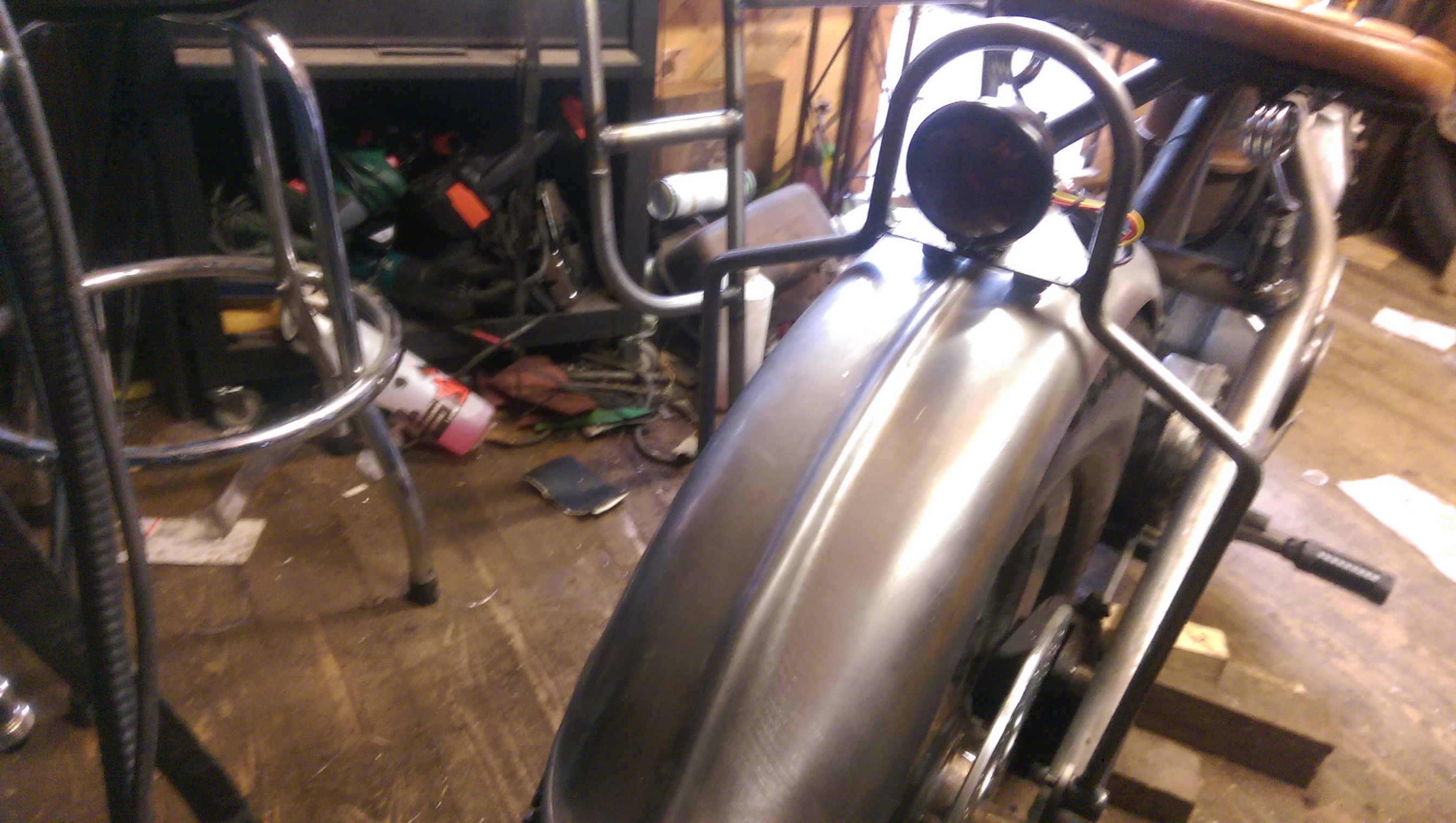

foot pegs and bits

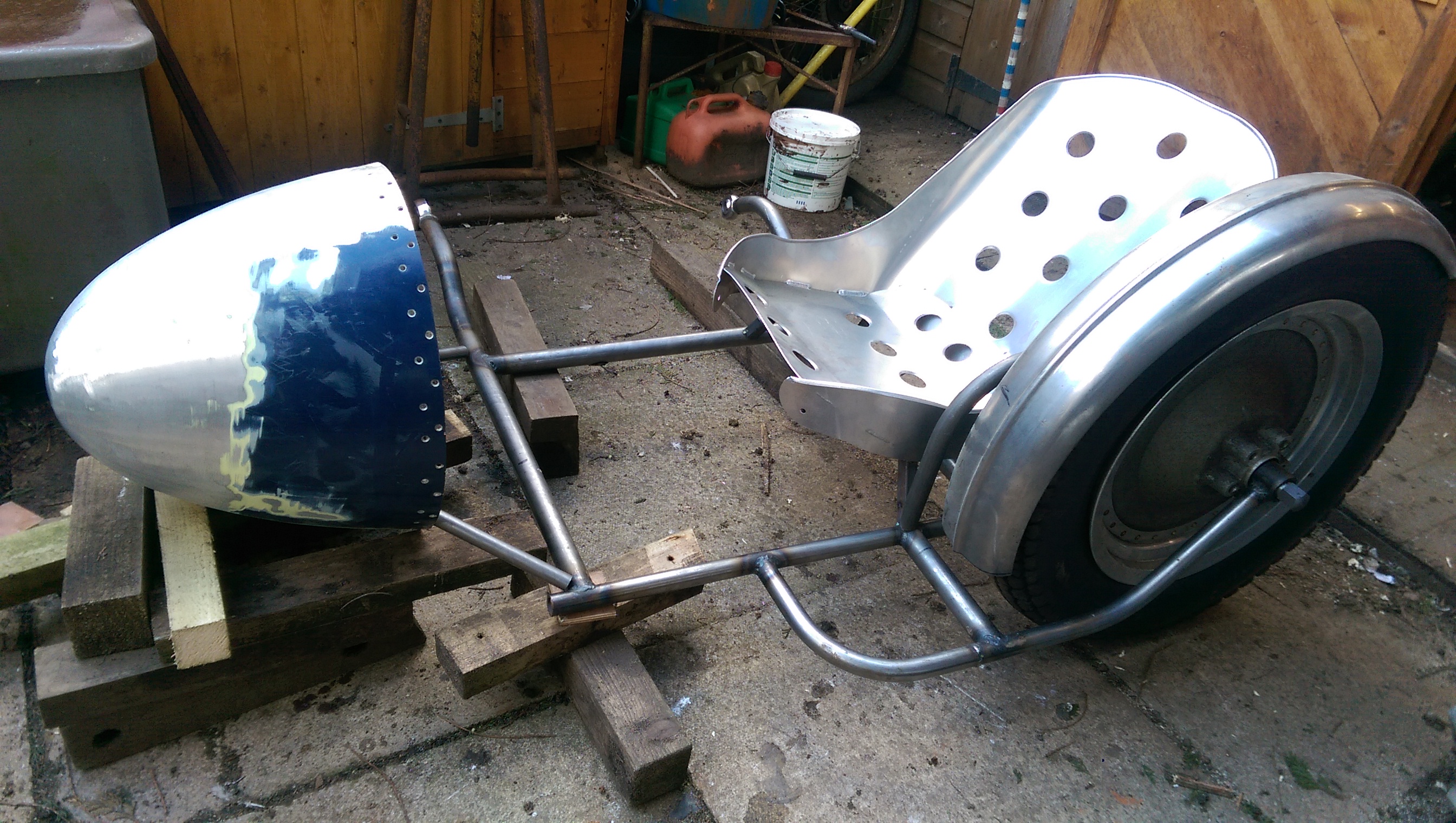

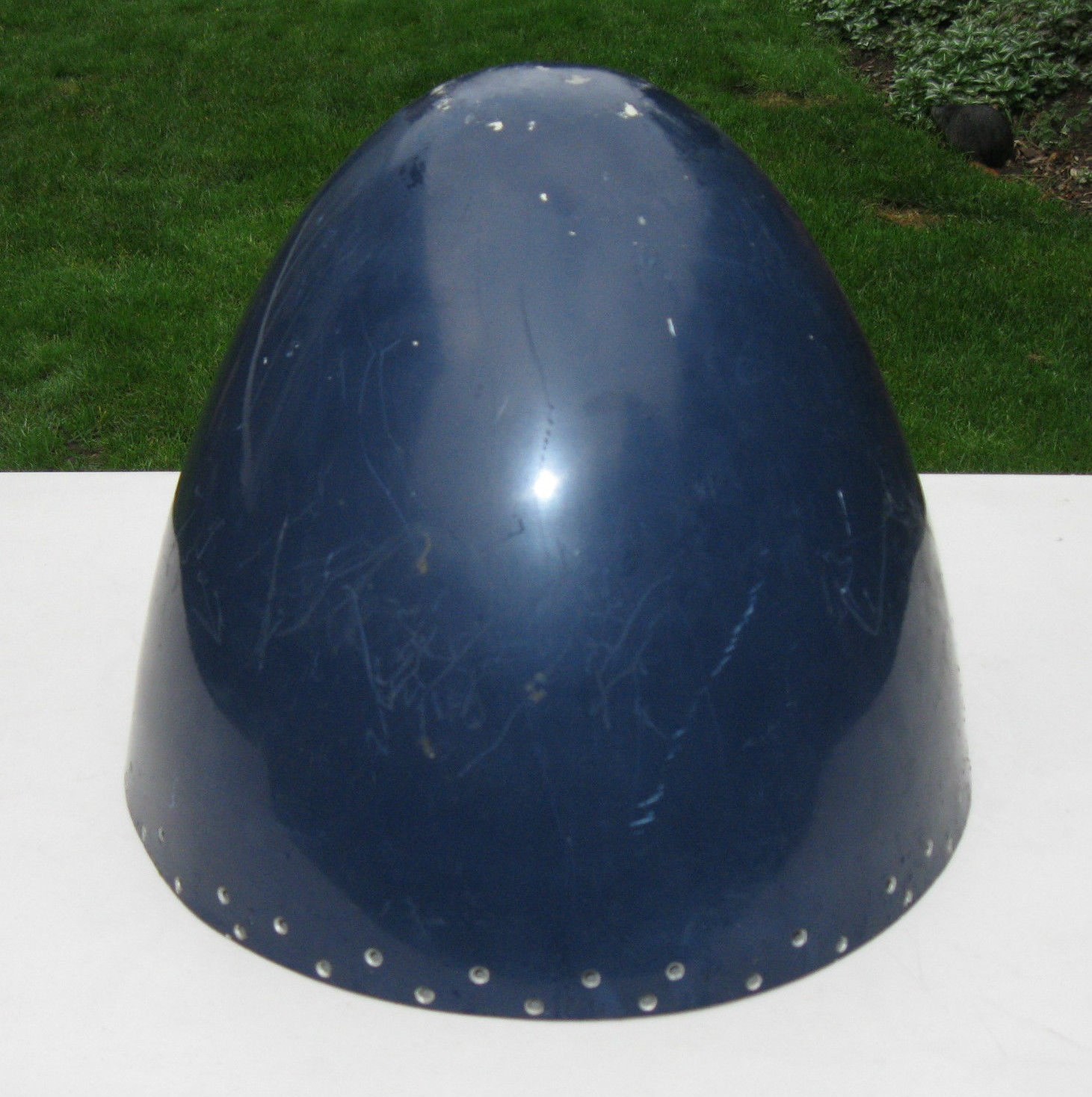

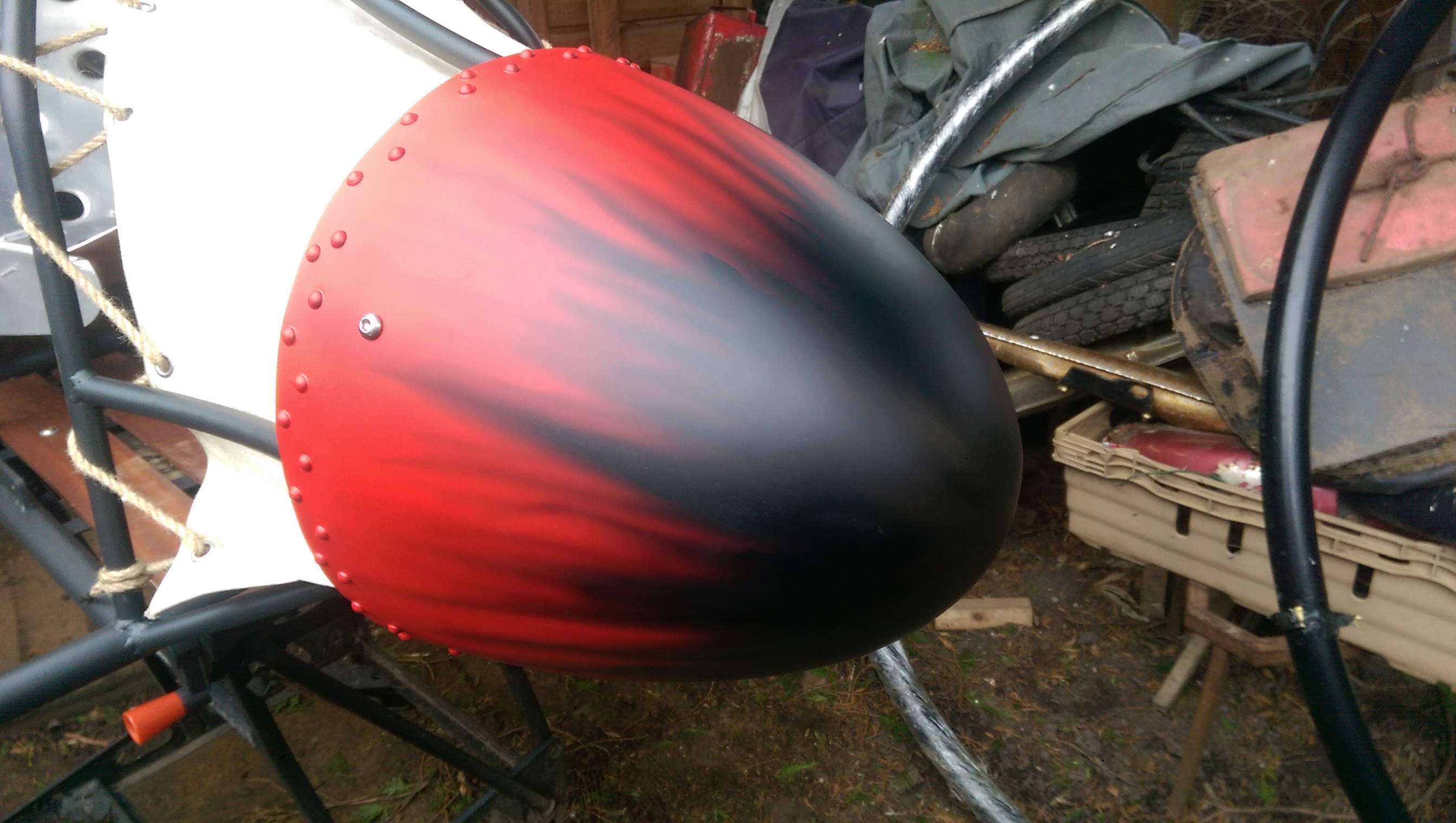

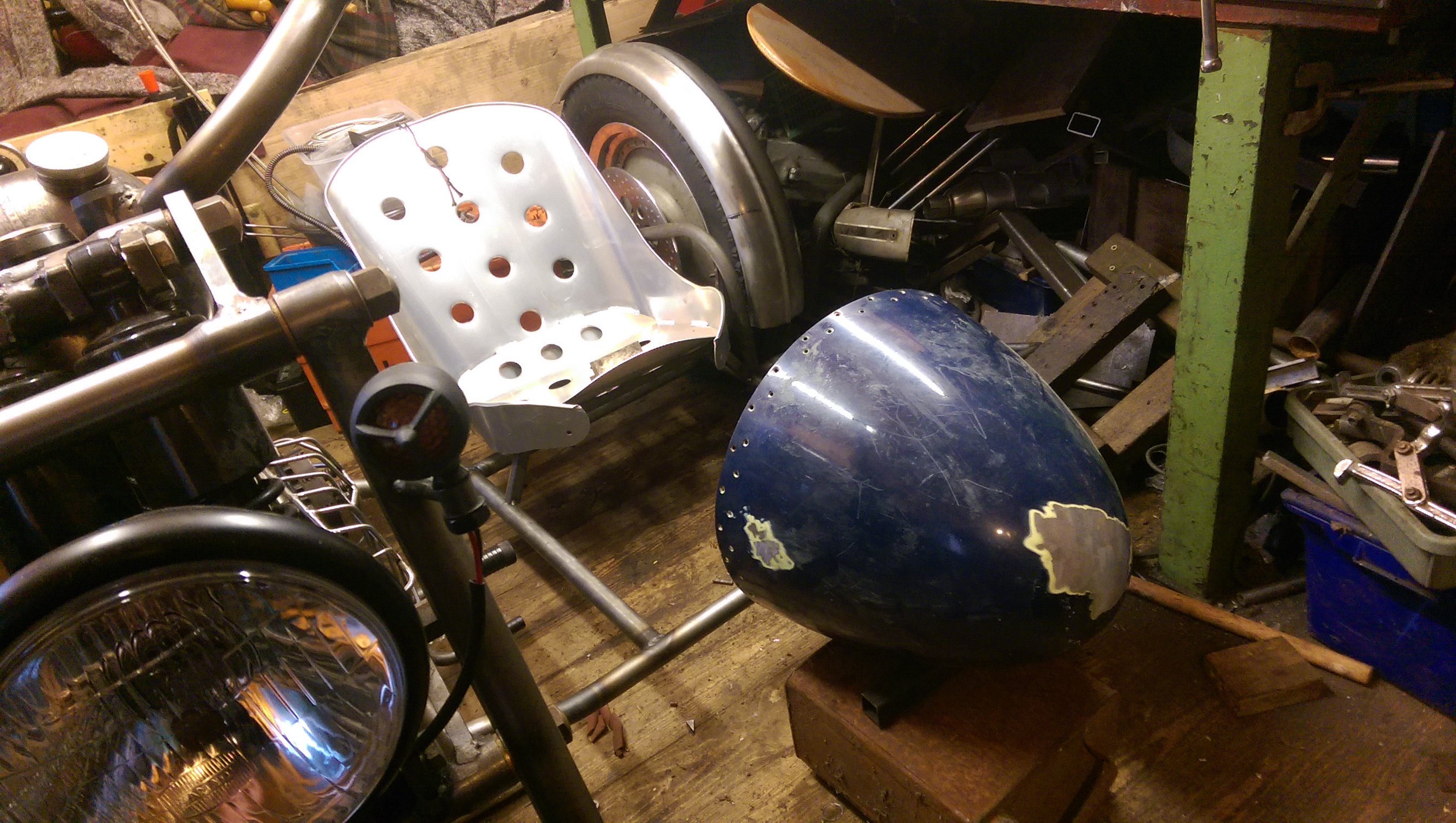

nose cone of unidentified WW2 aircraft

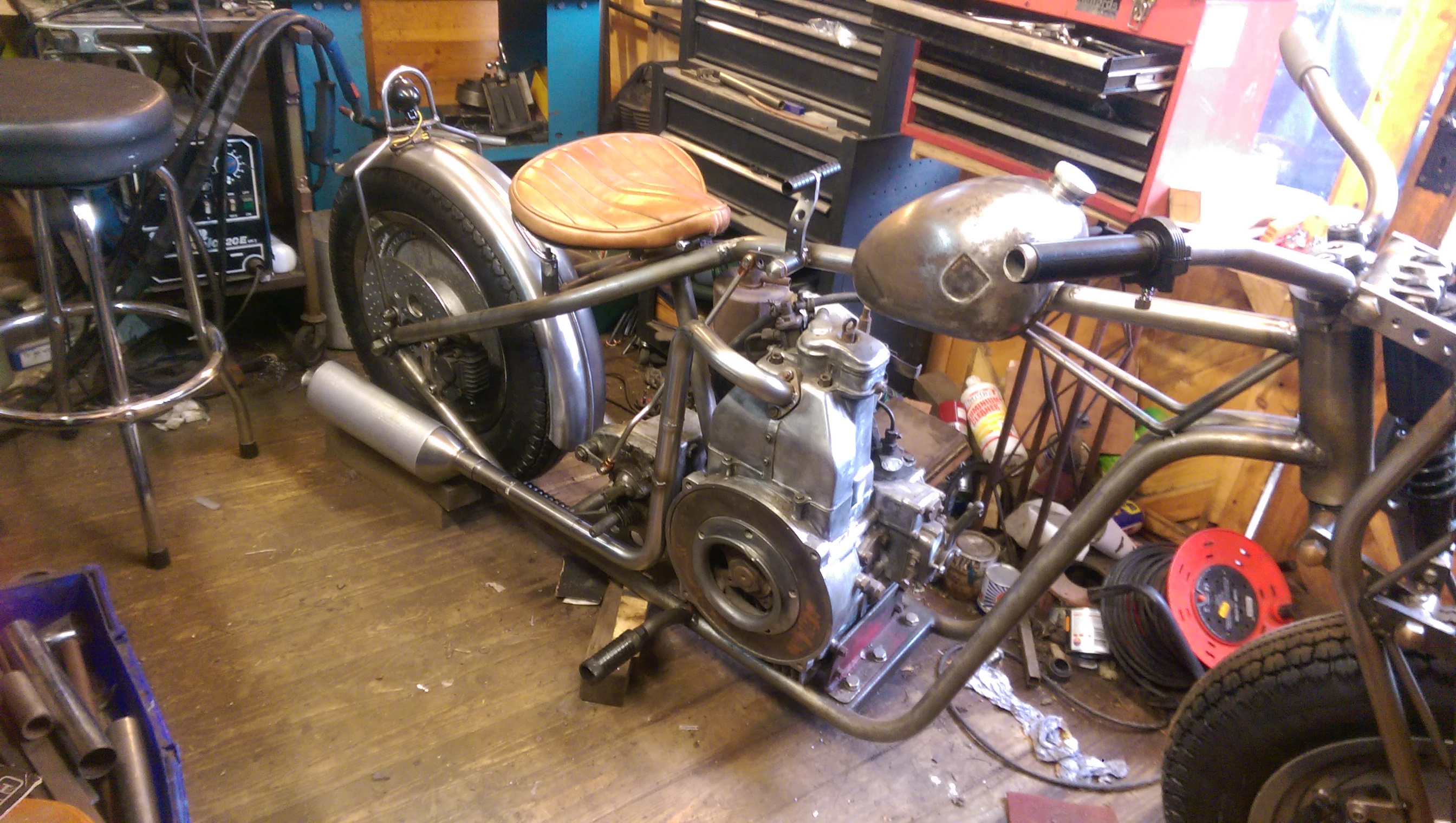

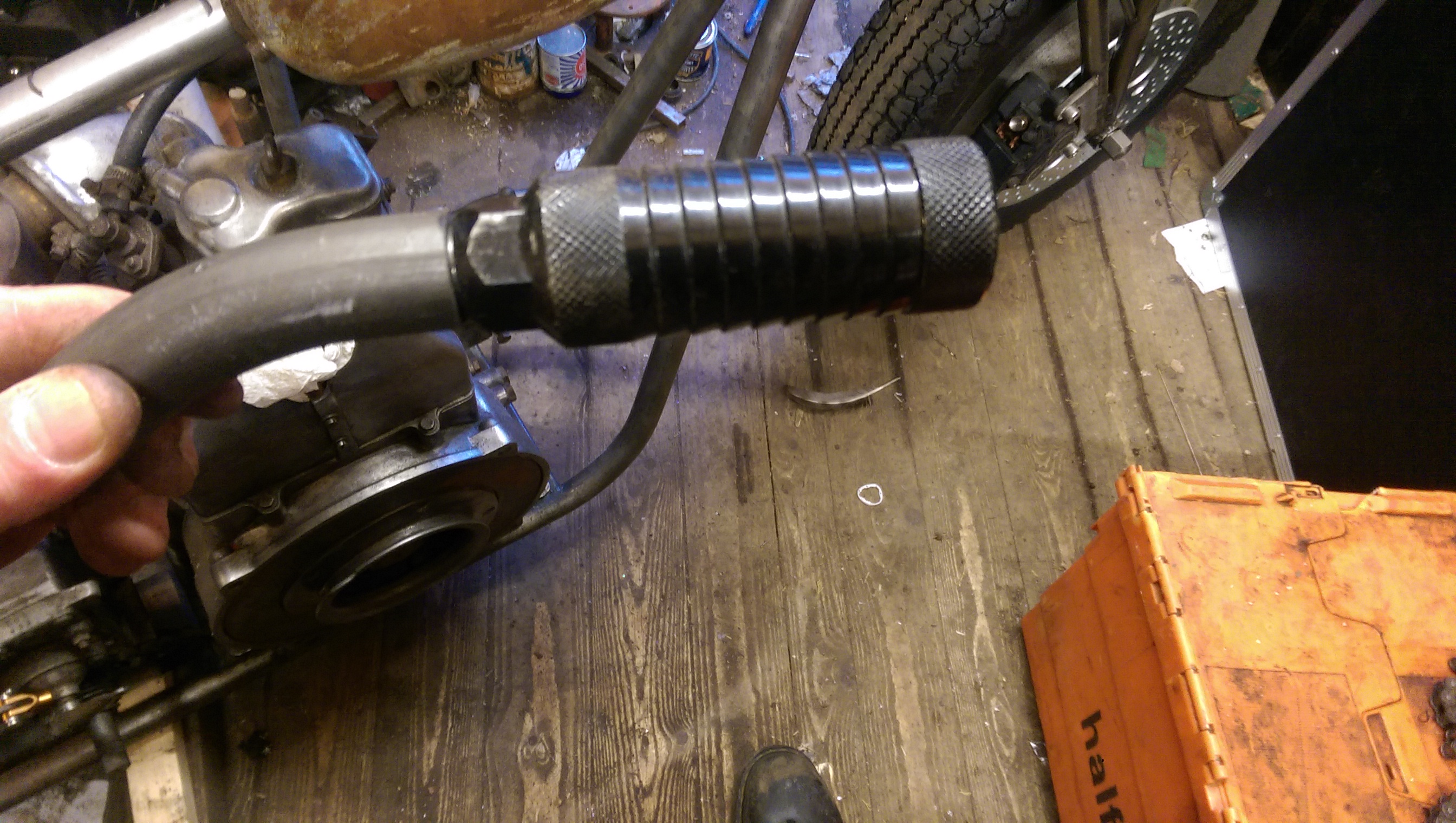

exhaust started

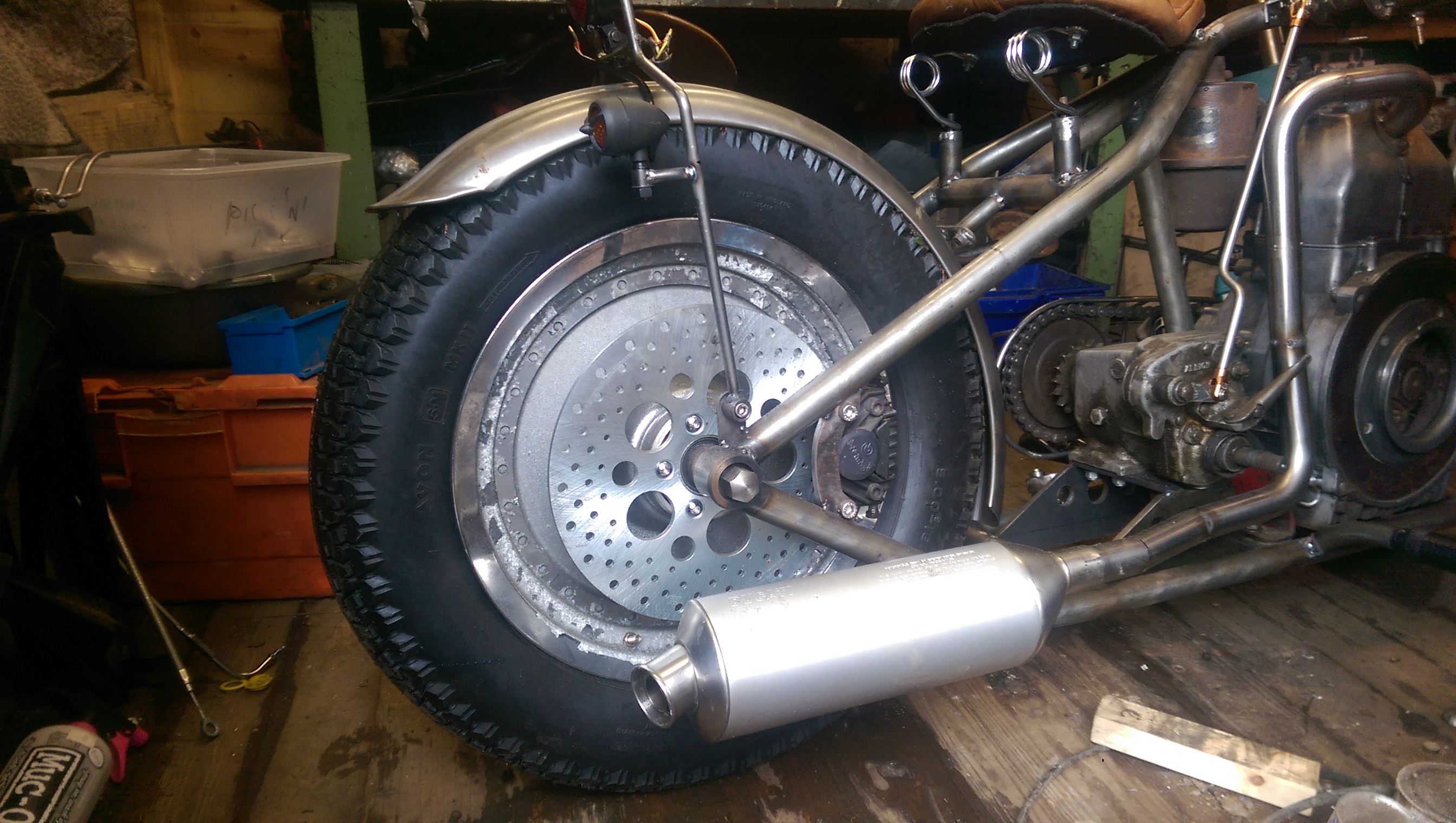

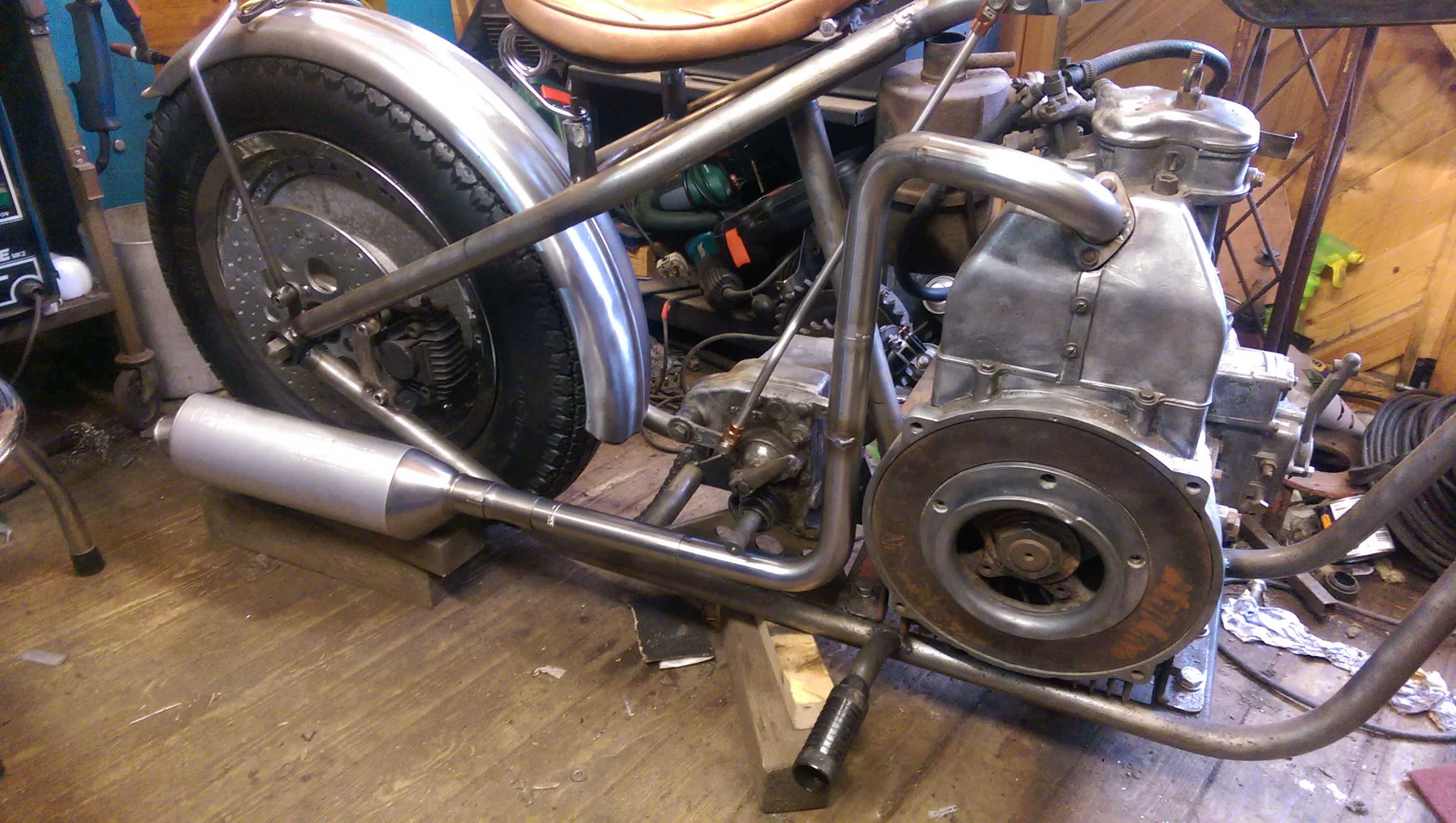

exhaust mockup

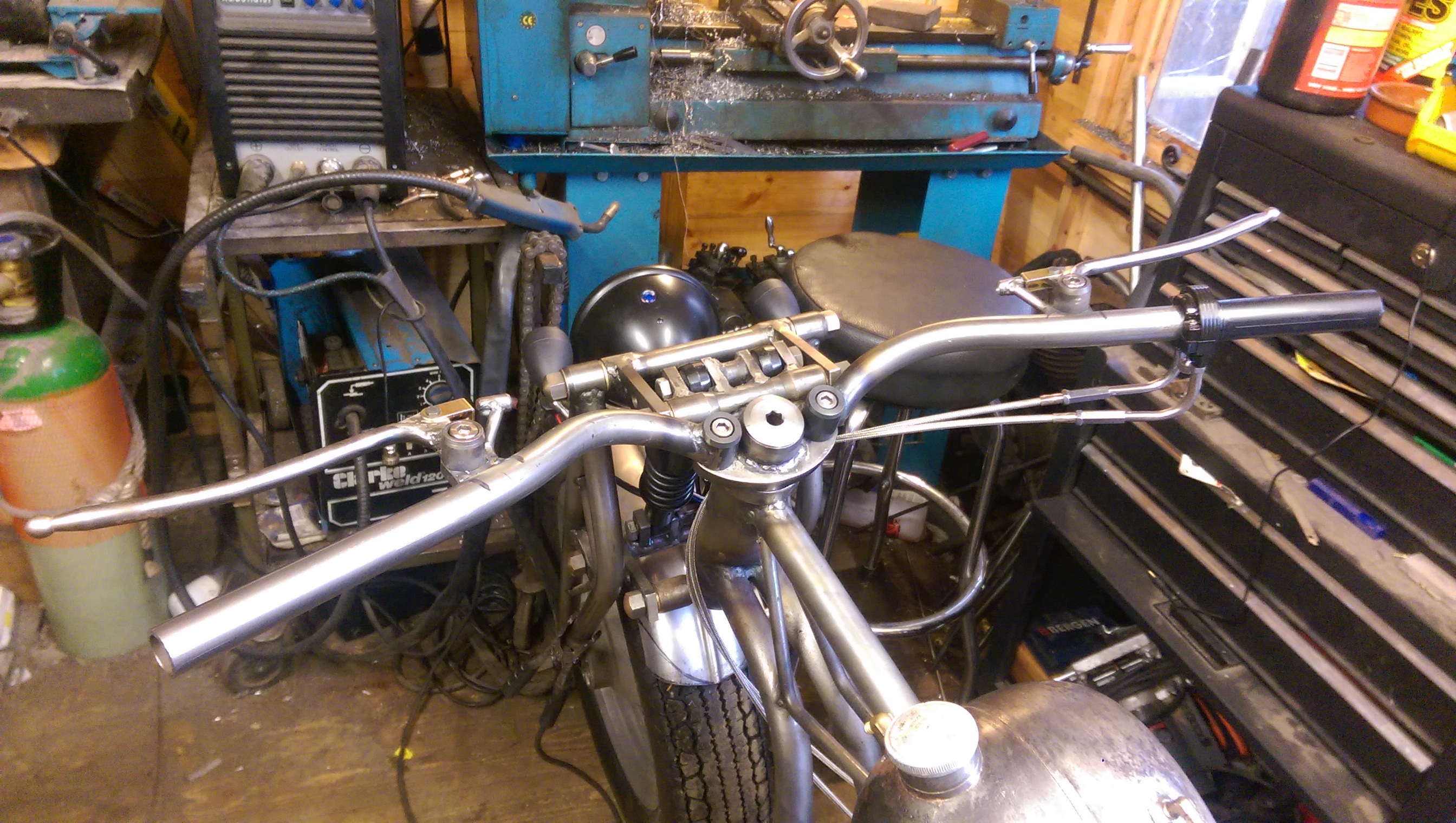

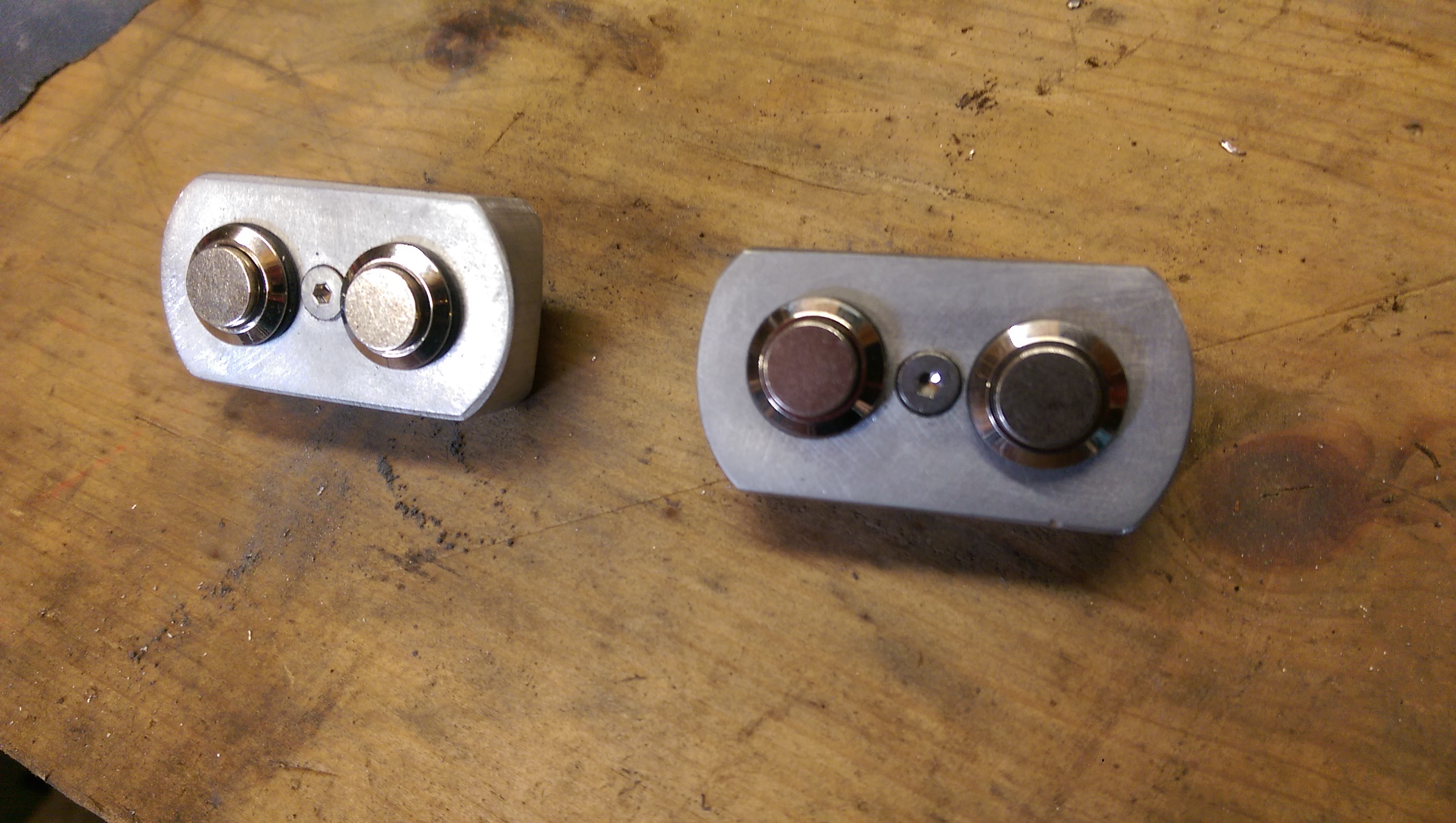

bar switches

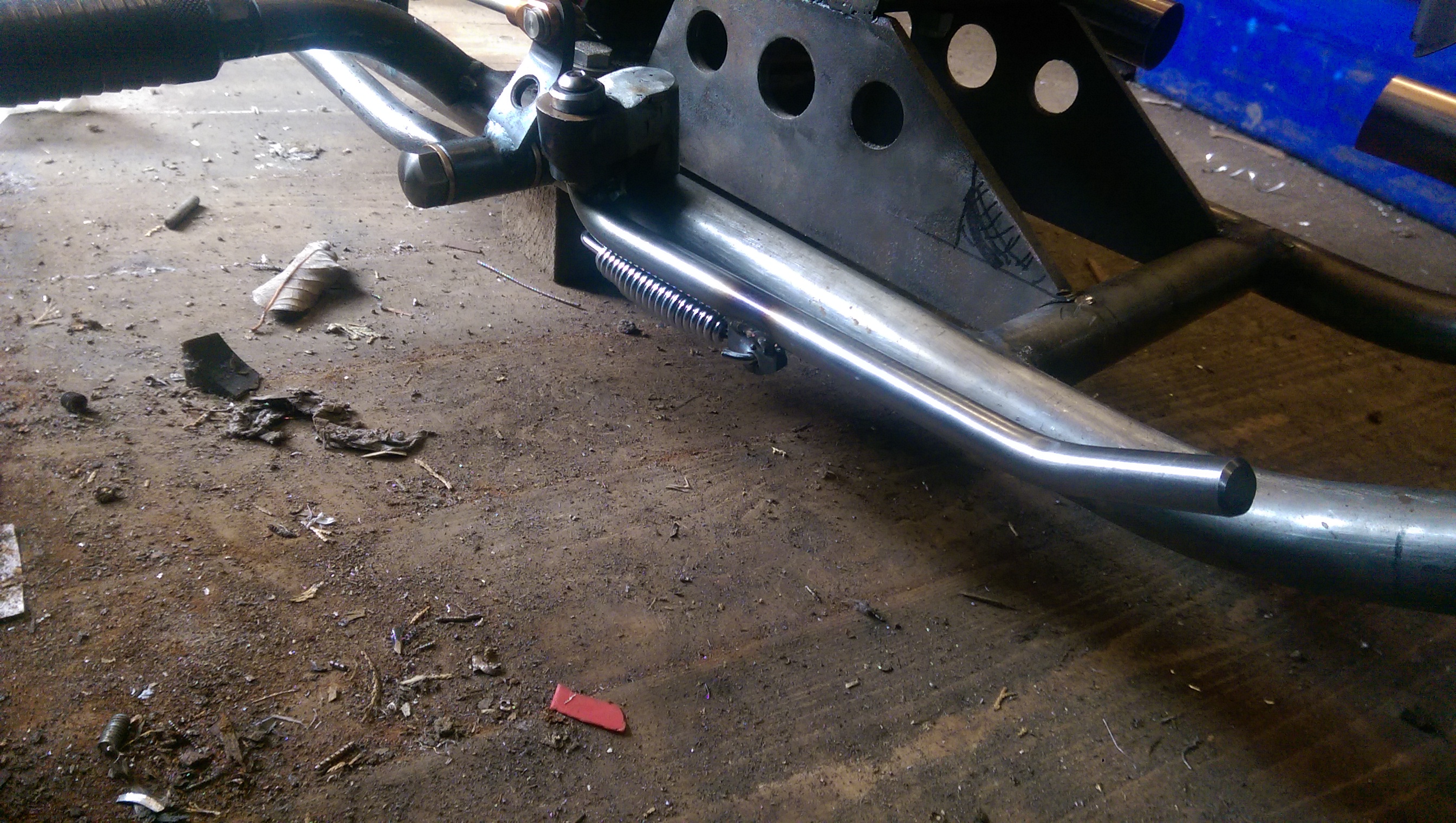

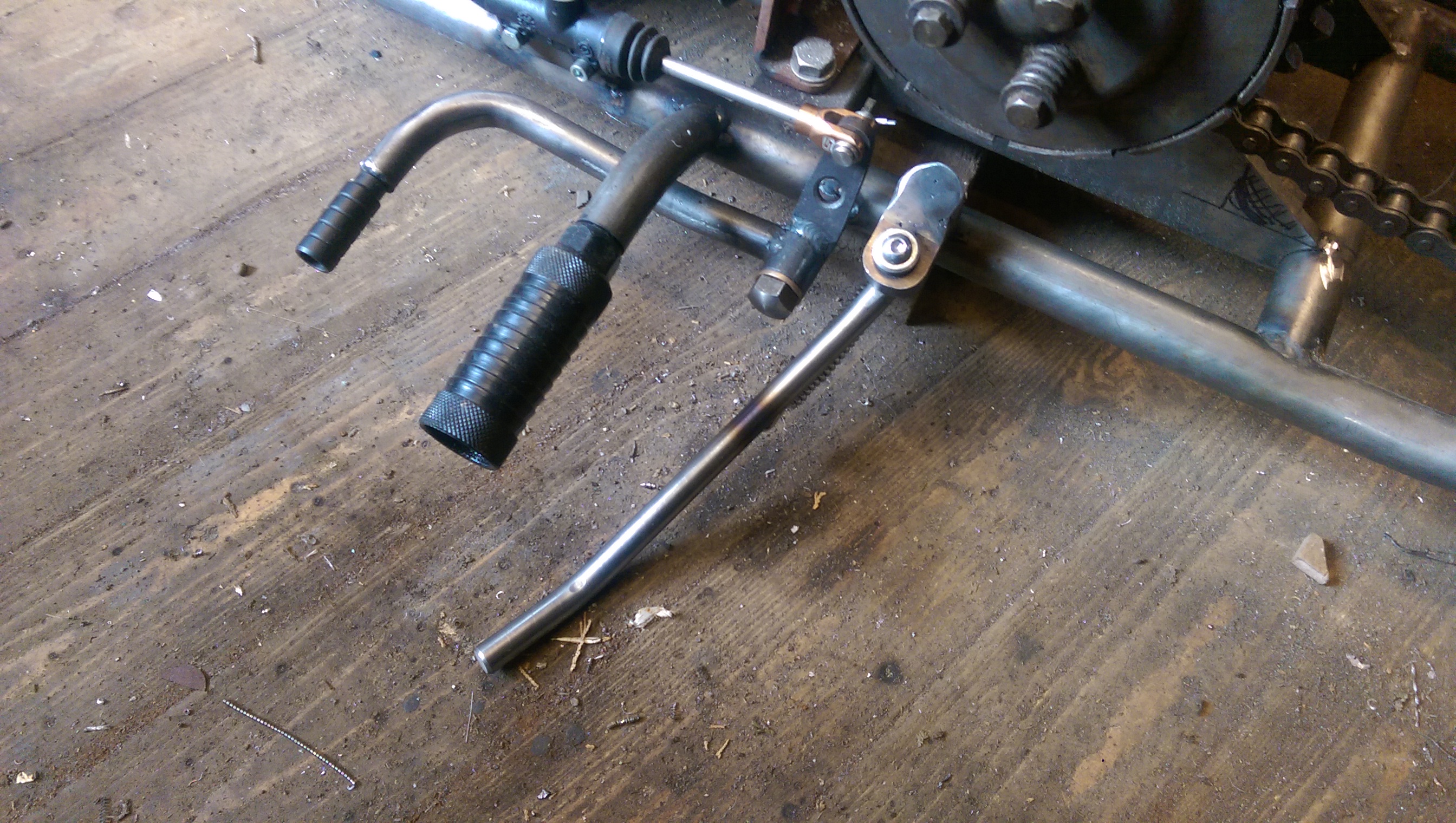

side stand

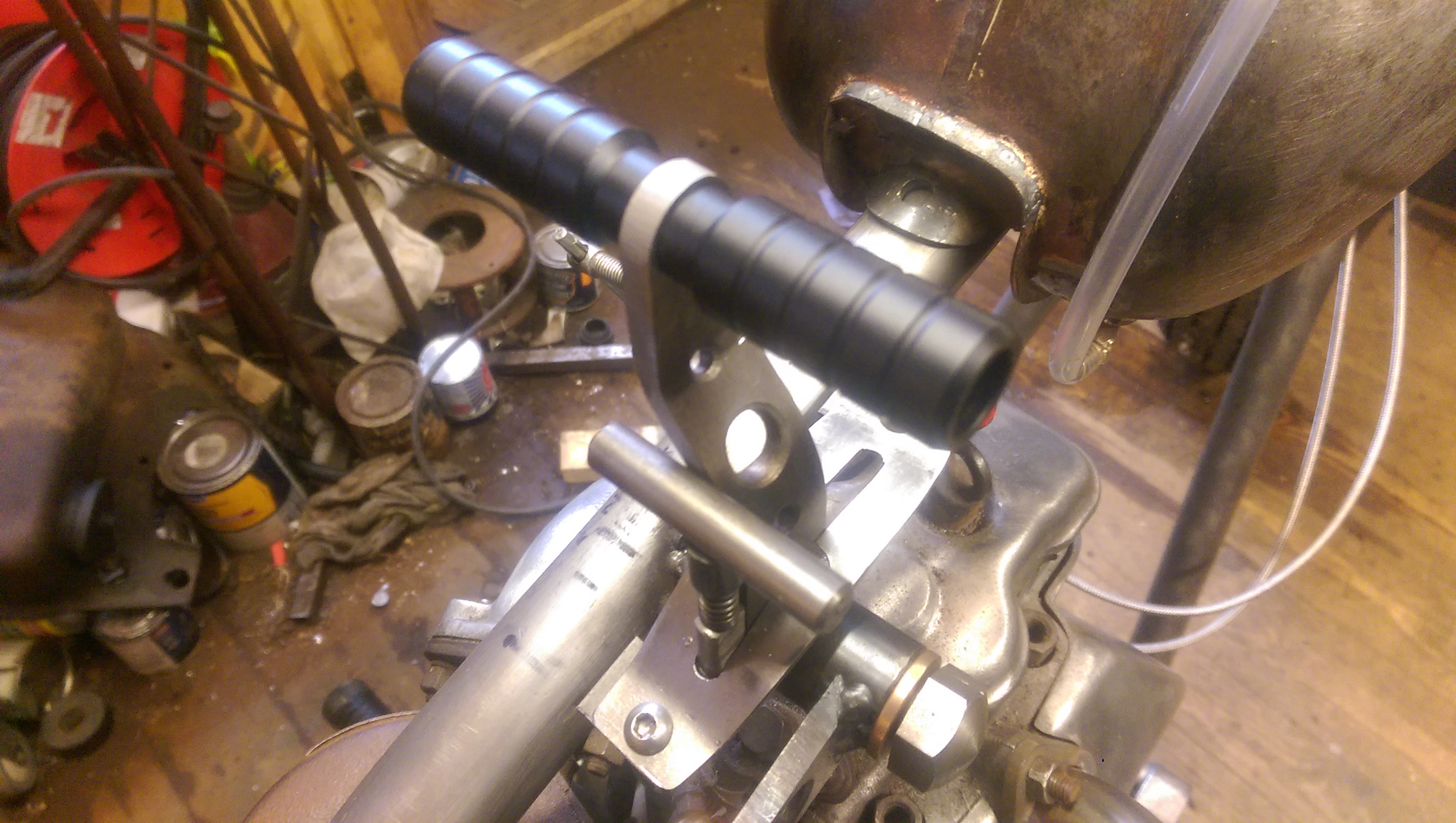

fuel gauge and gated gear lever

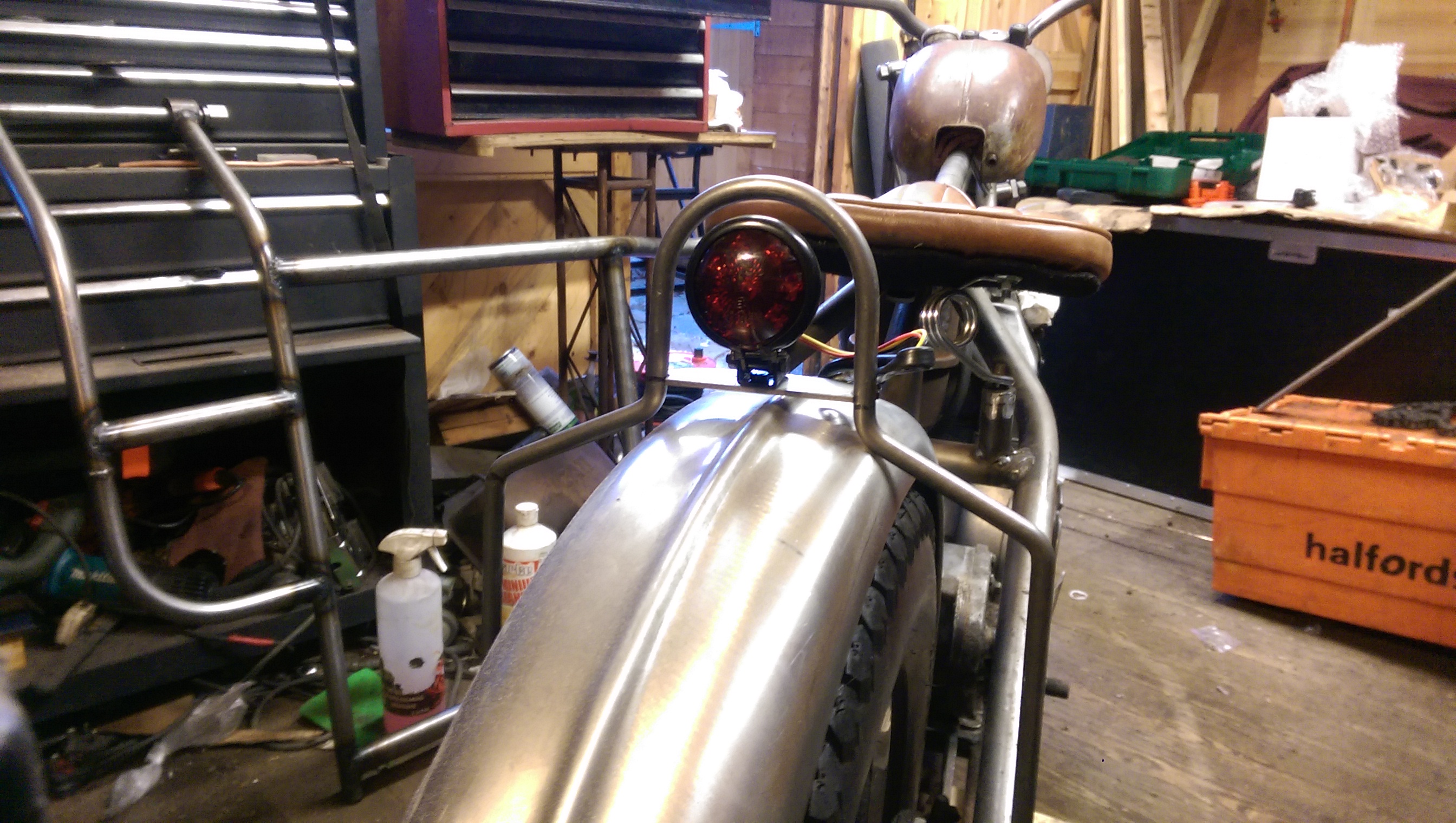

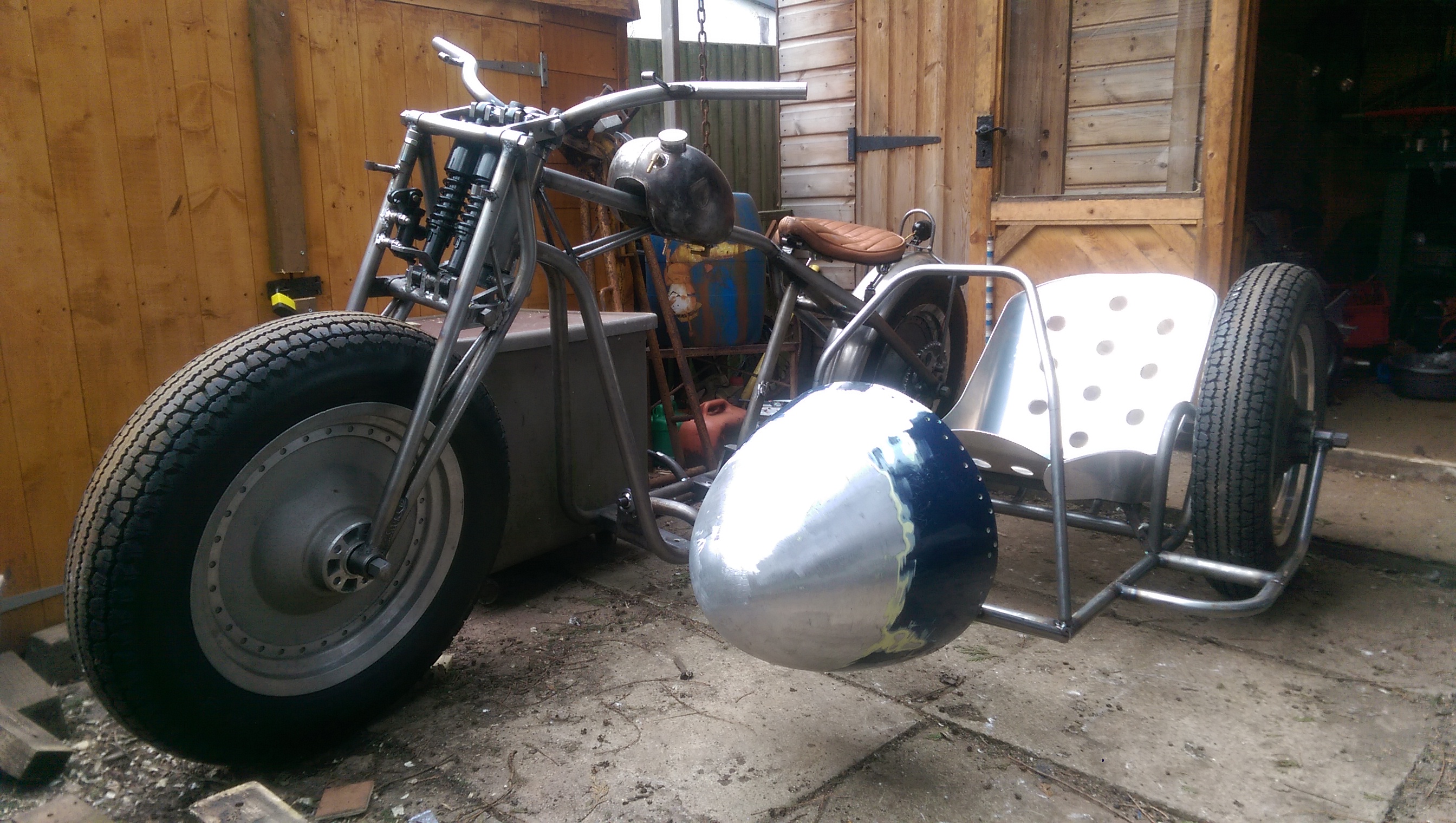

latest progress

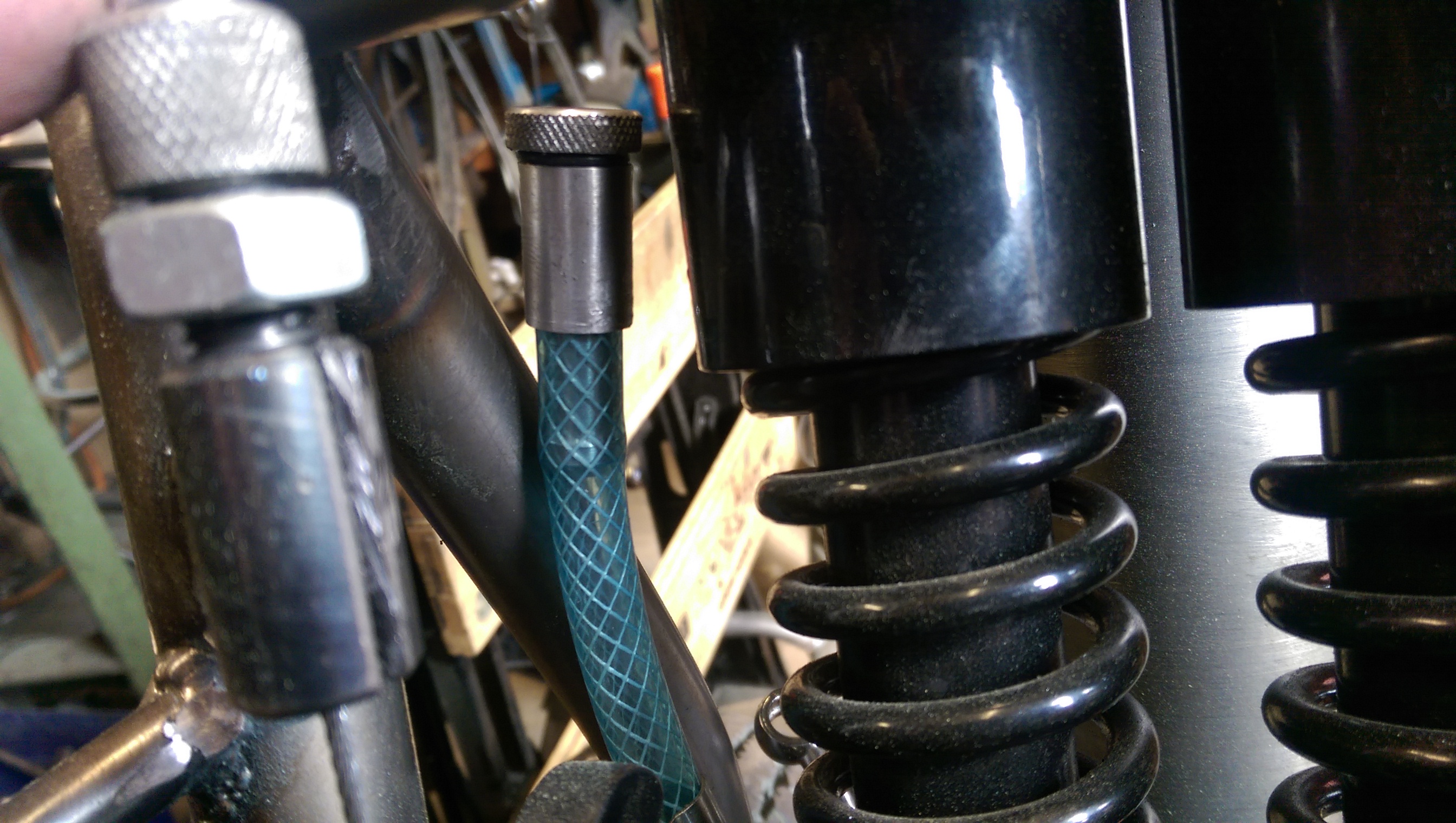

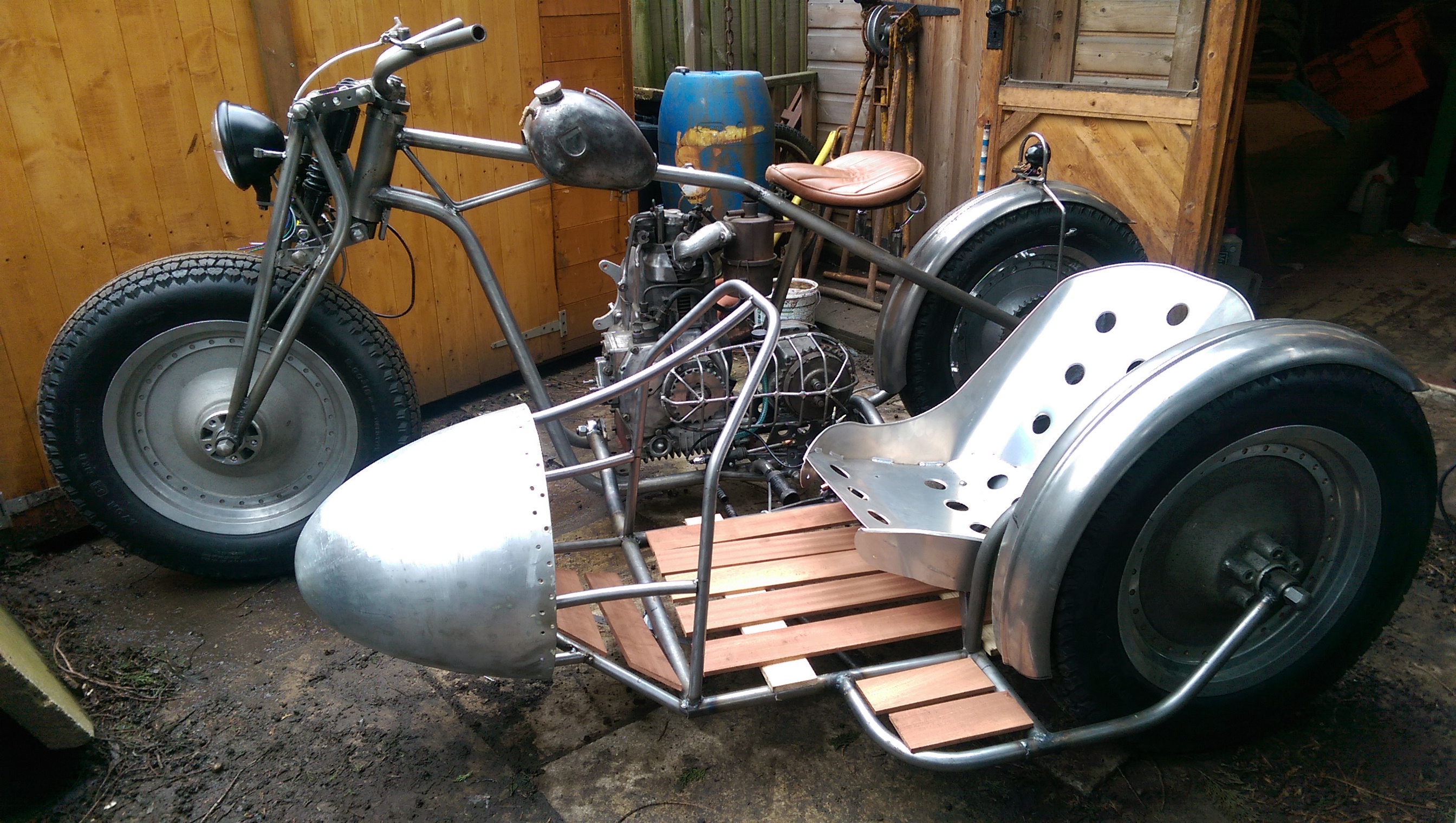

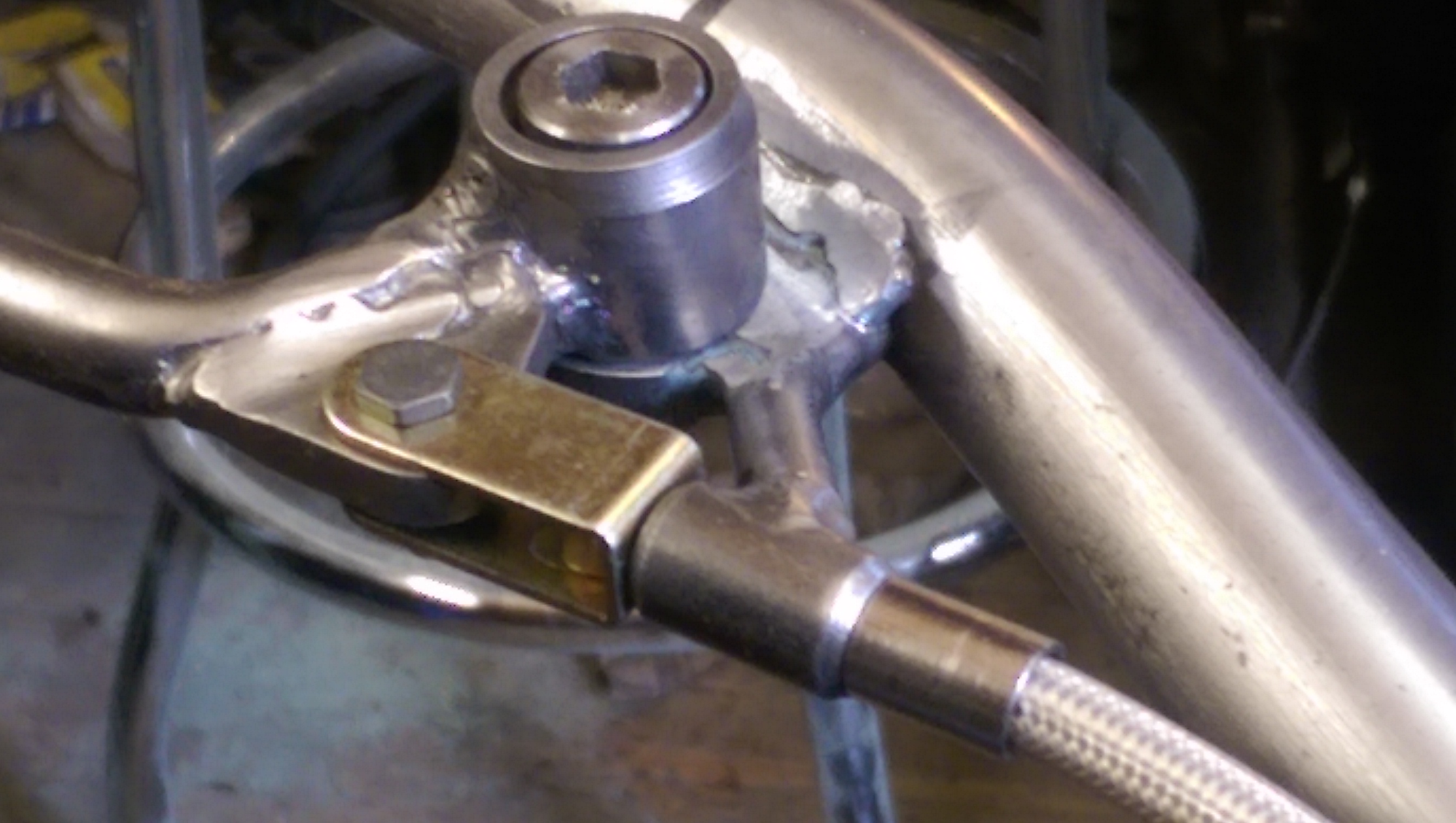

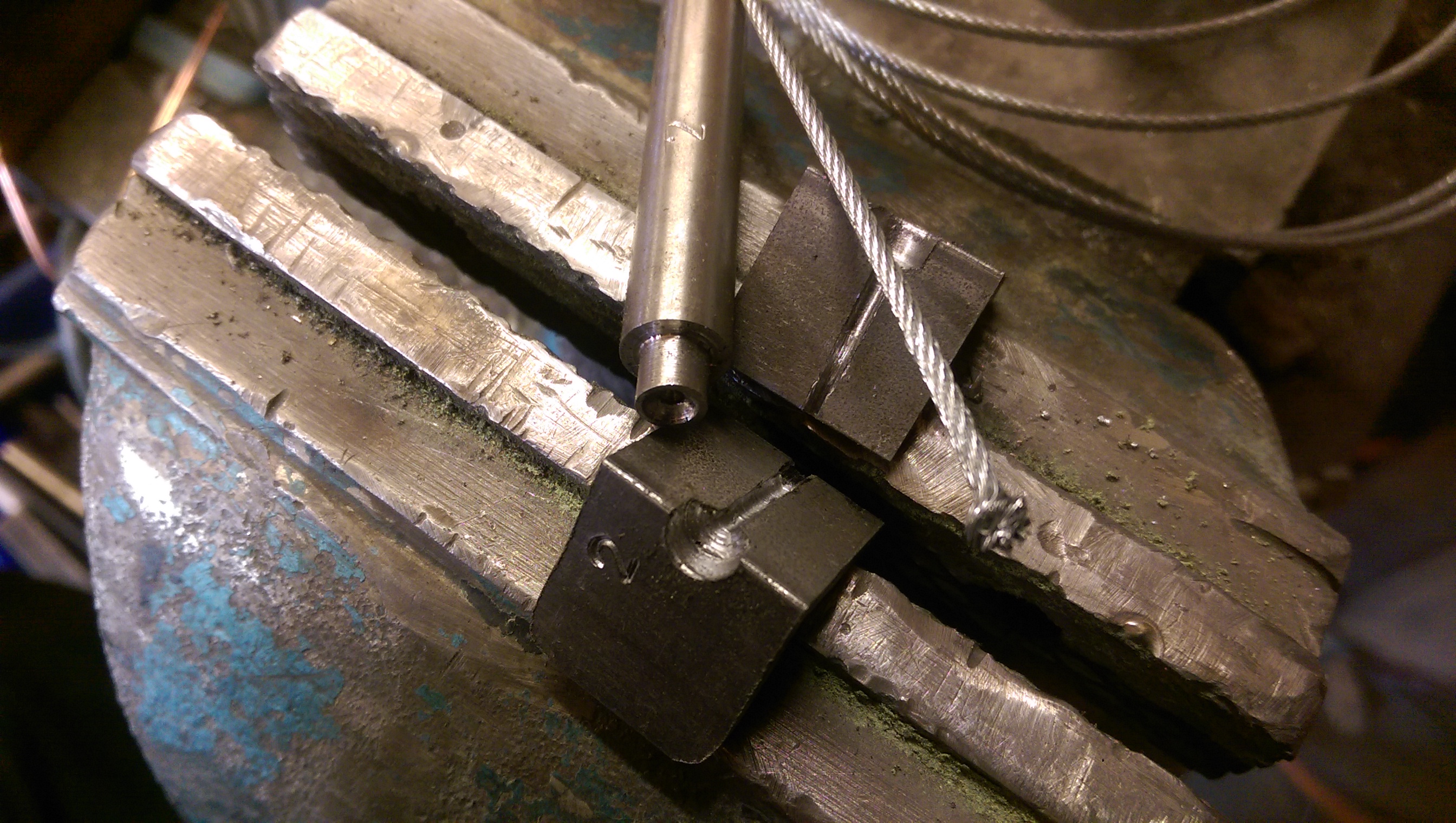

sidecar getting there and brake tools, custom reservoir, etc

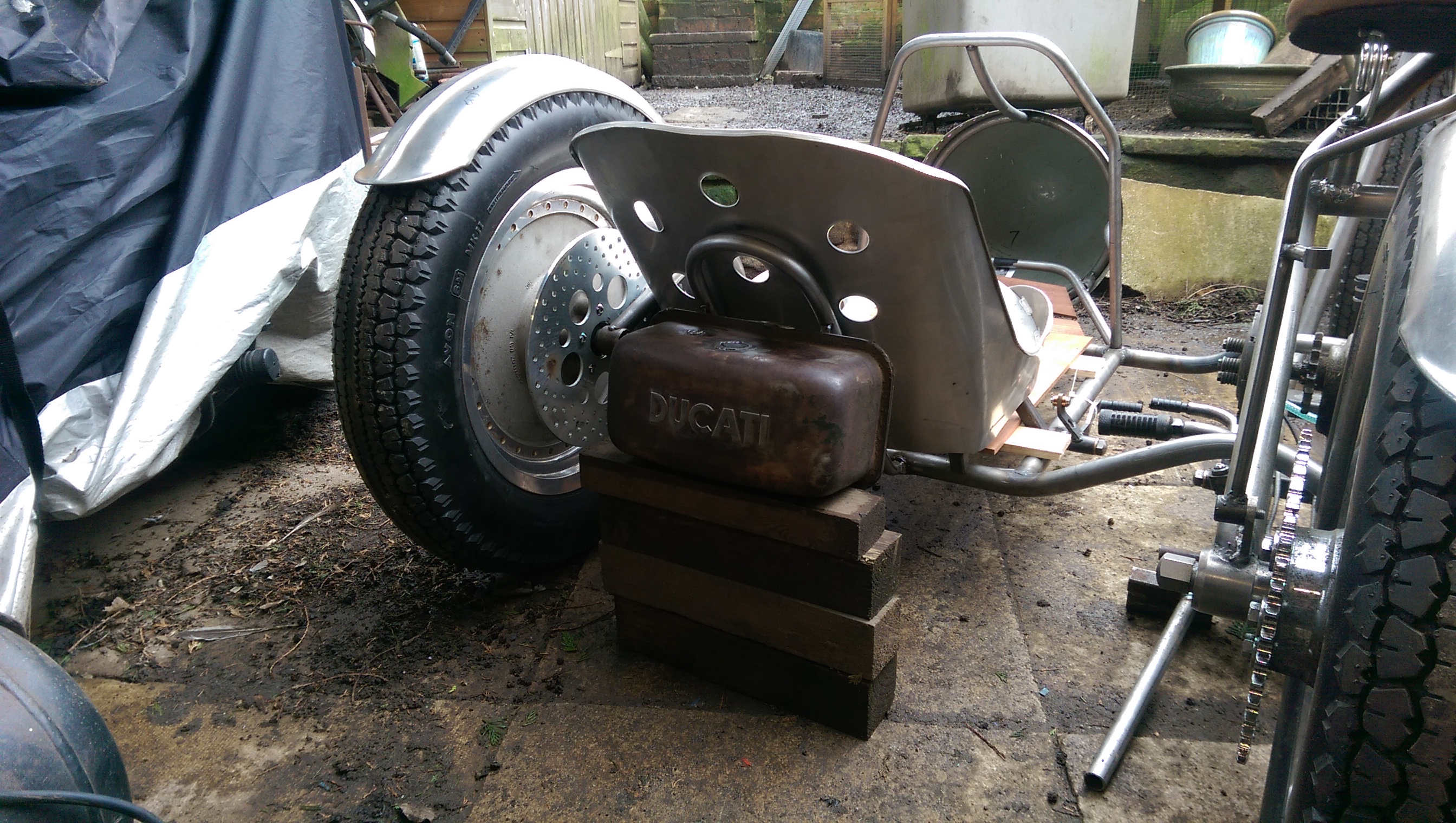

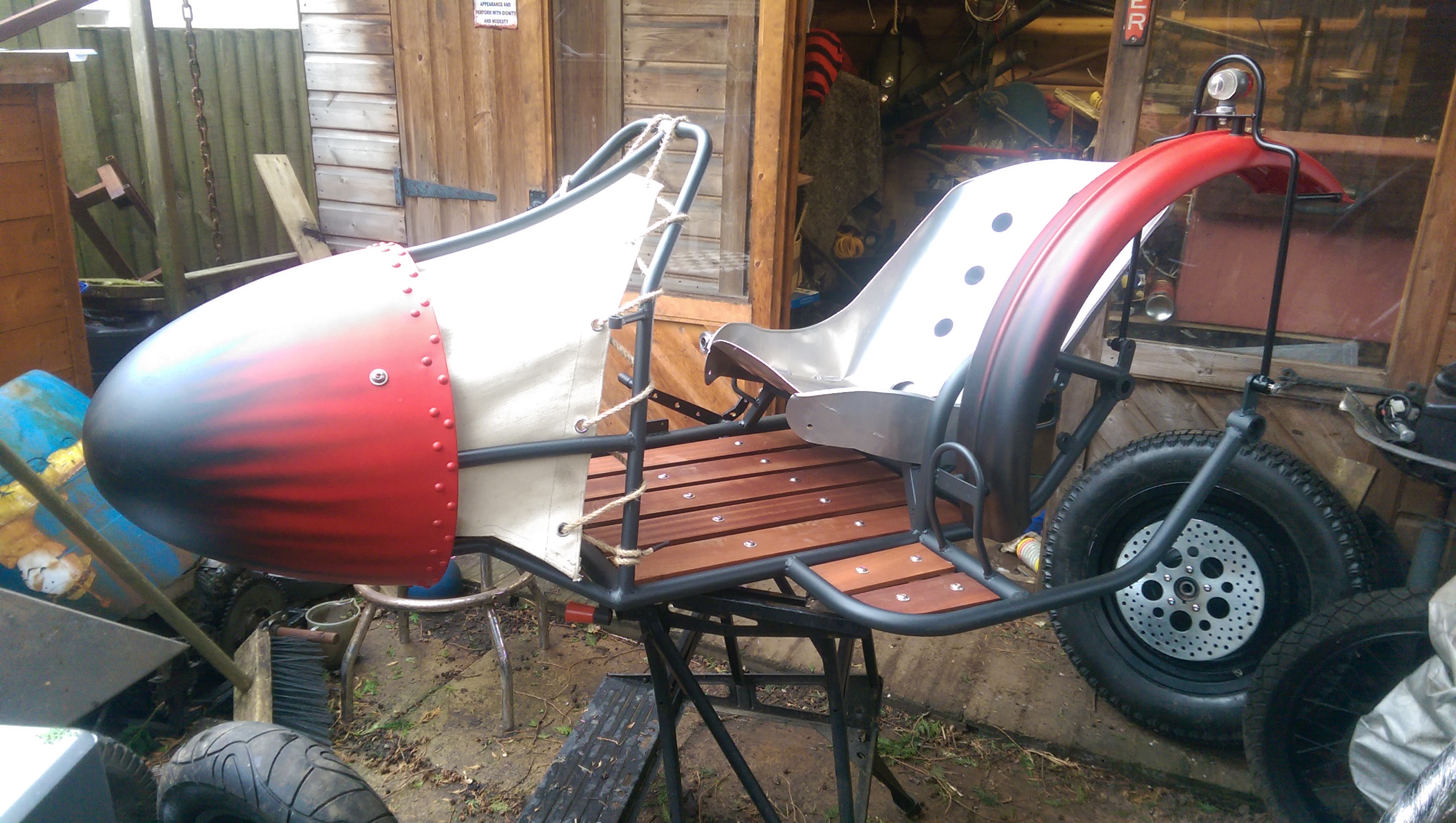

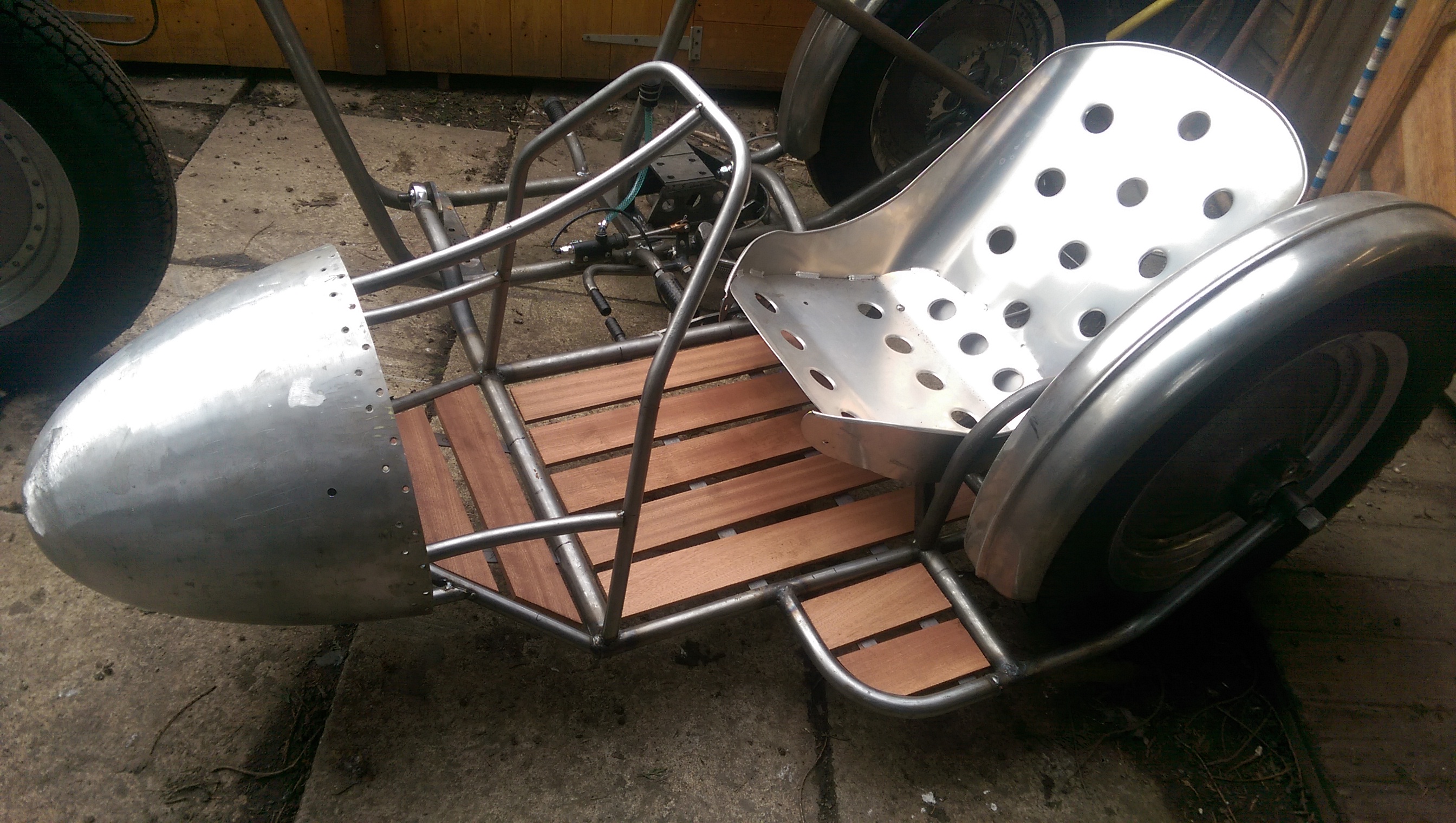

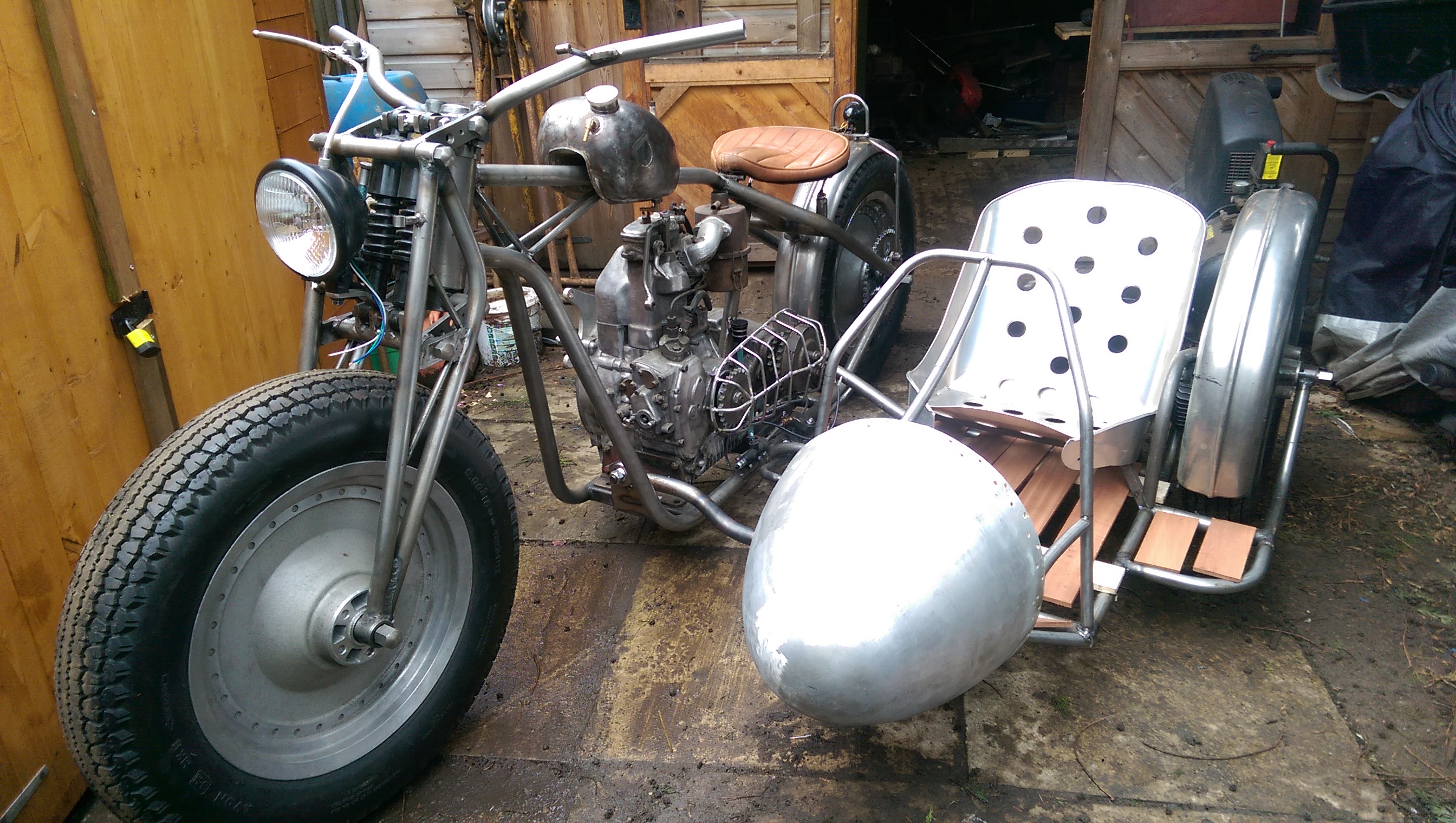

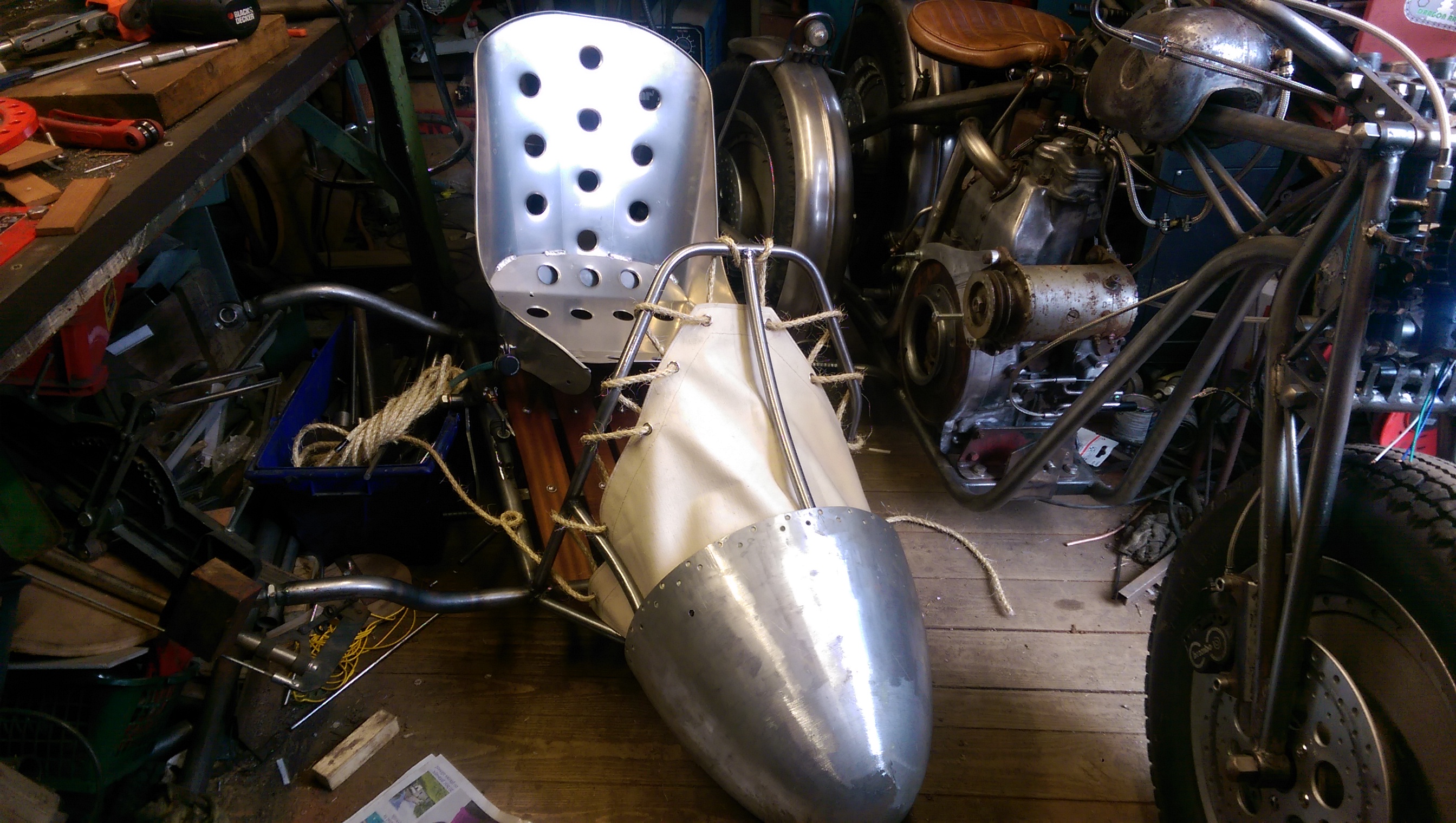

more work done on the sidecar

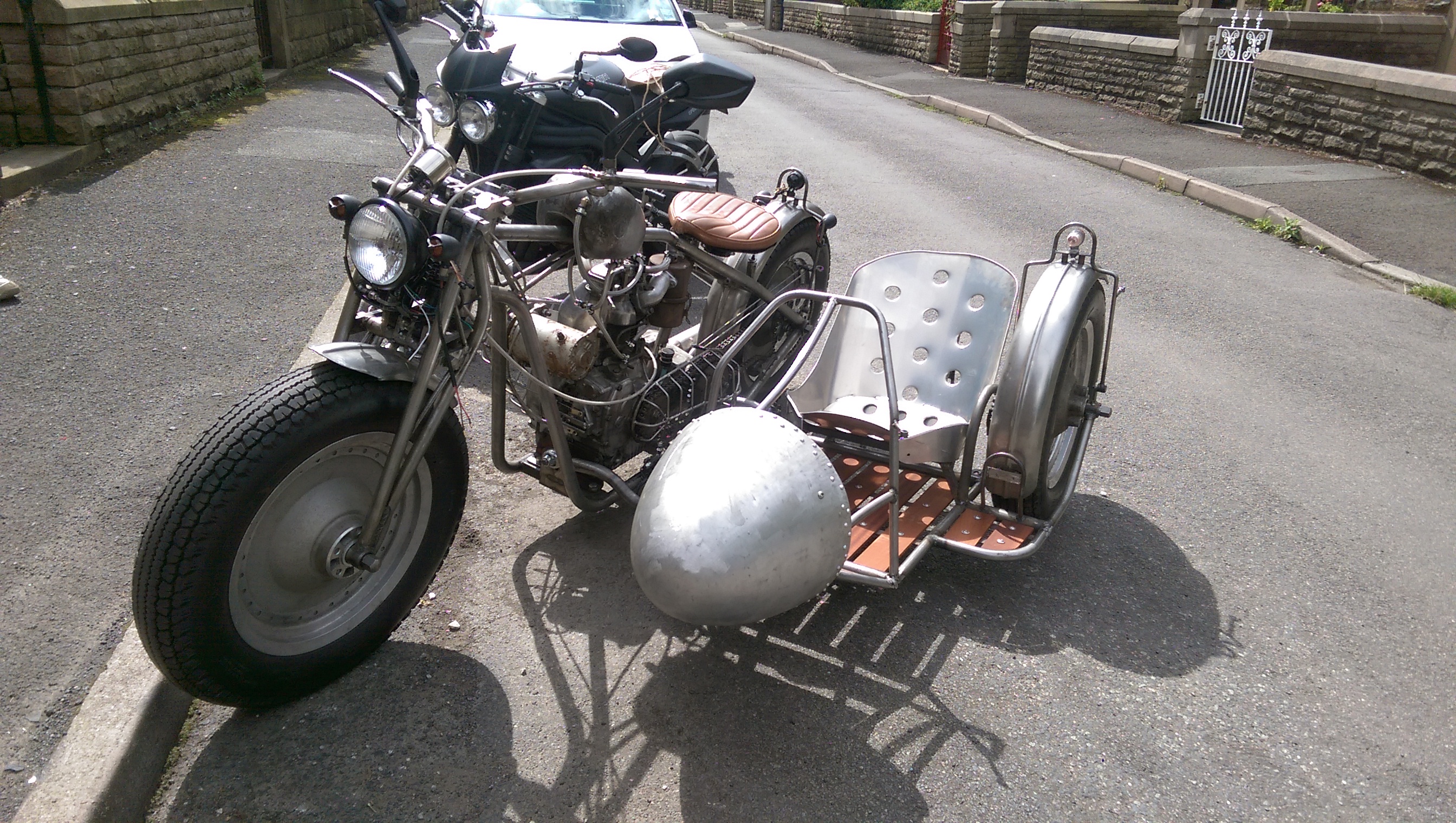

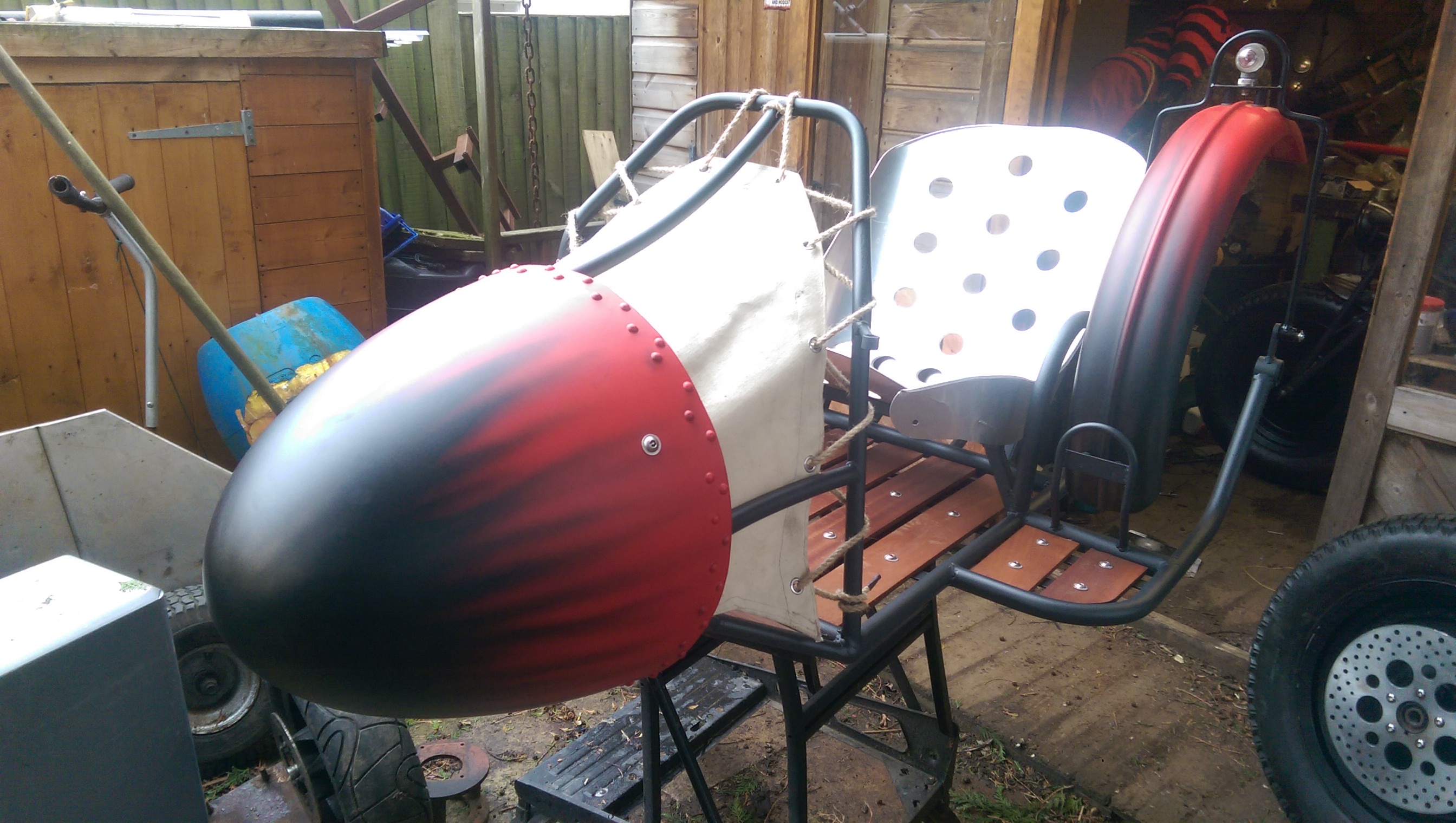

side car now with canvas

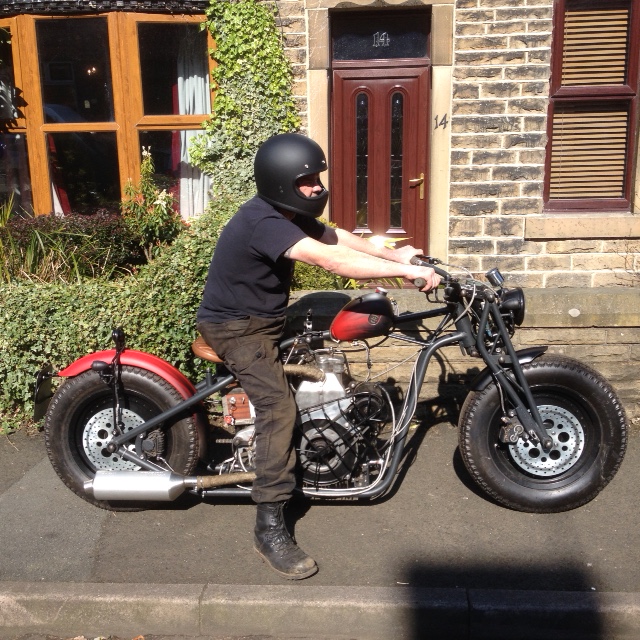

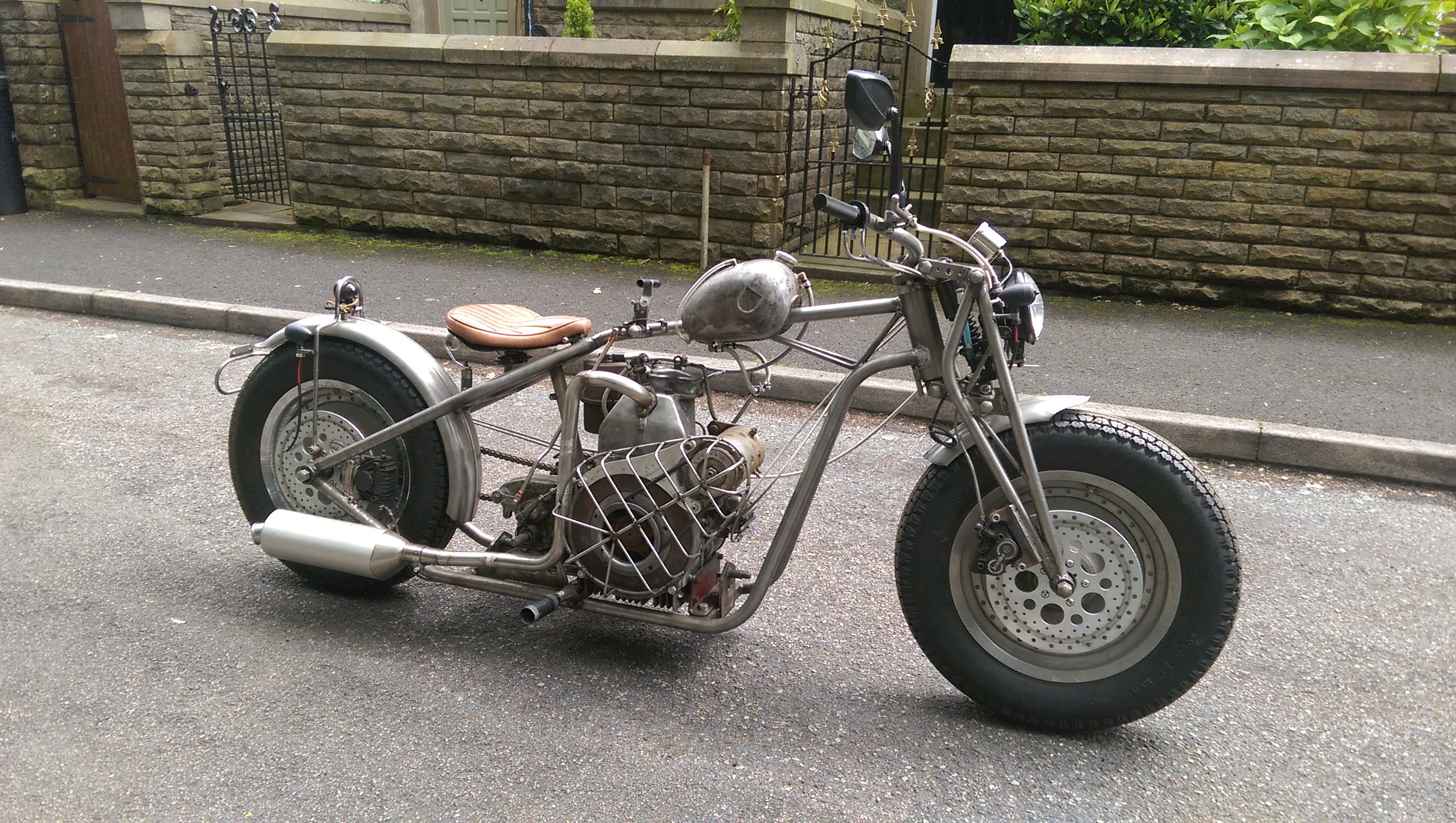

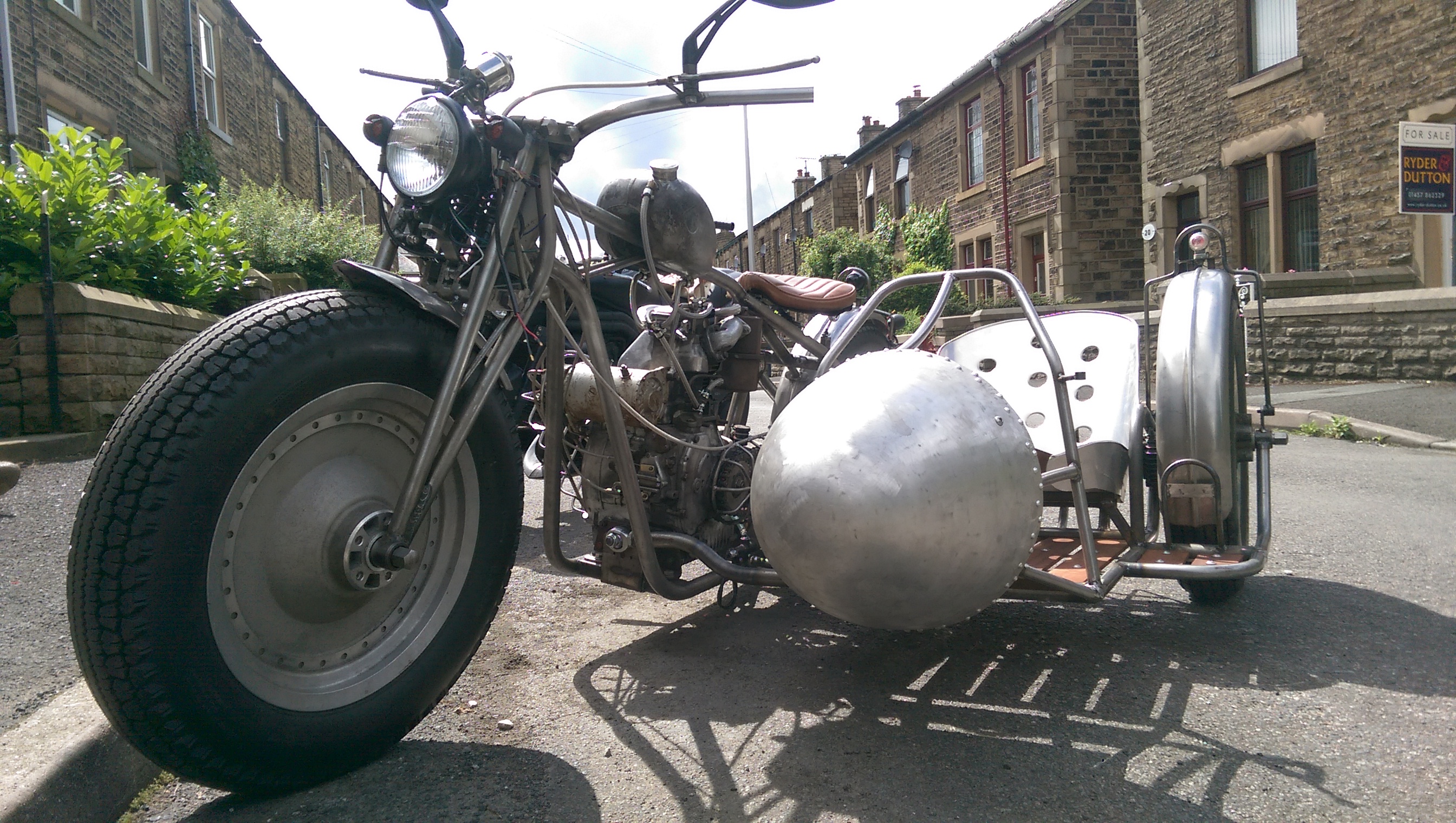

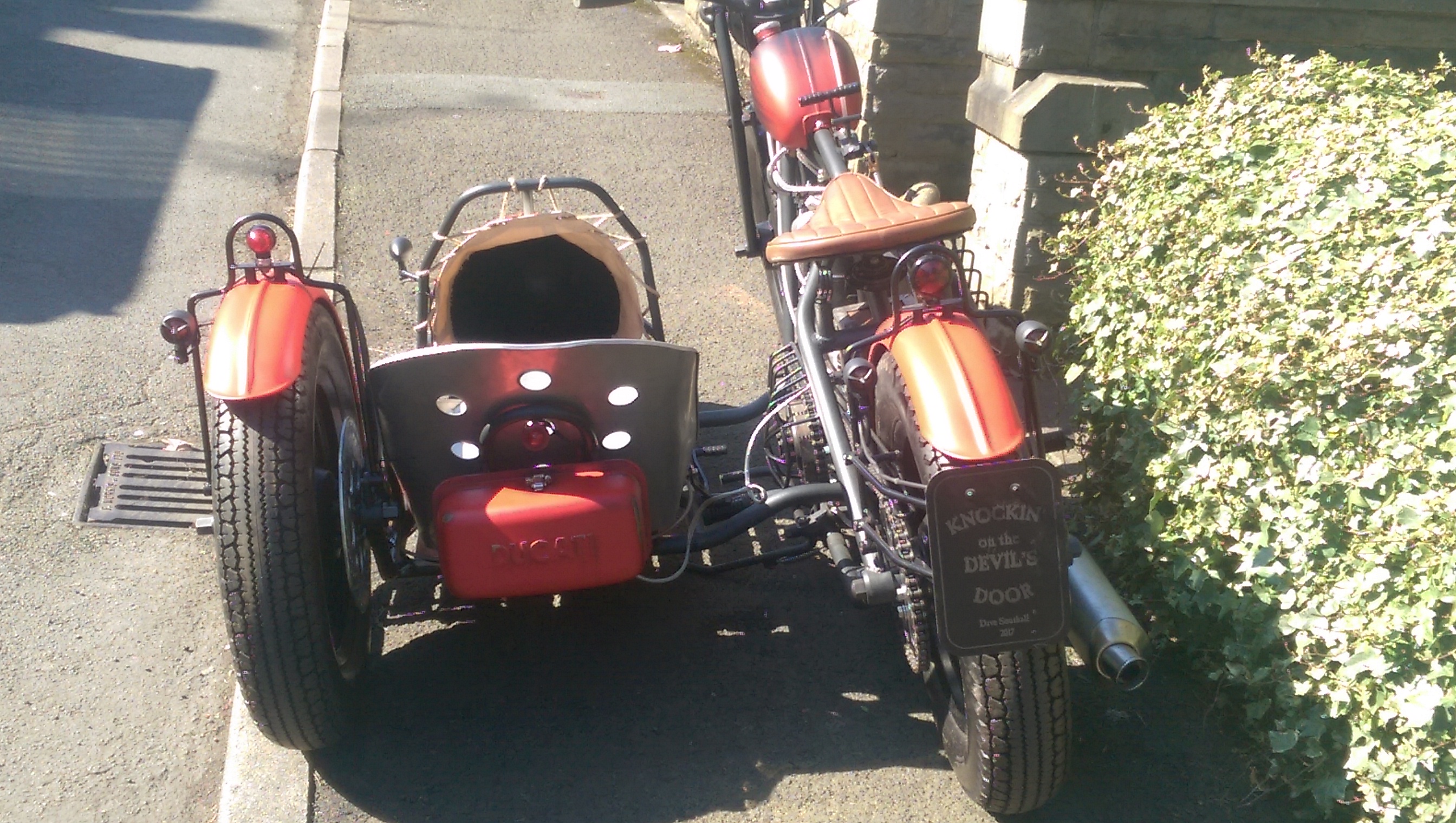

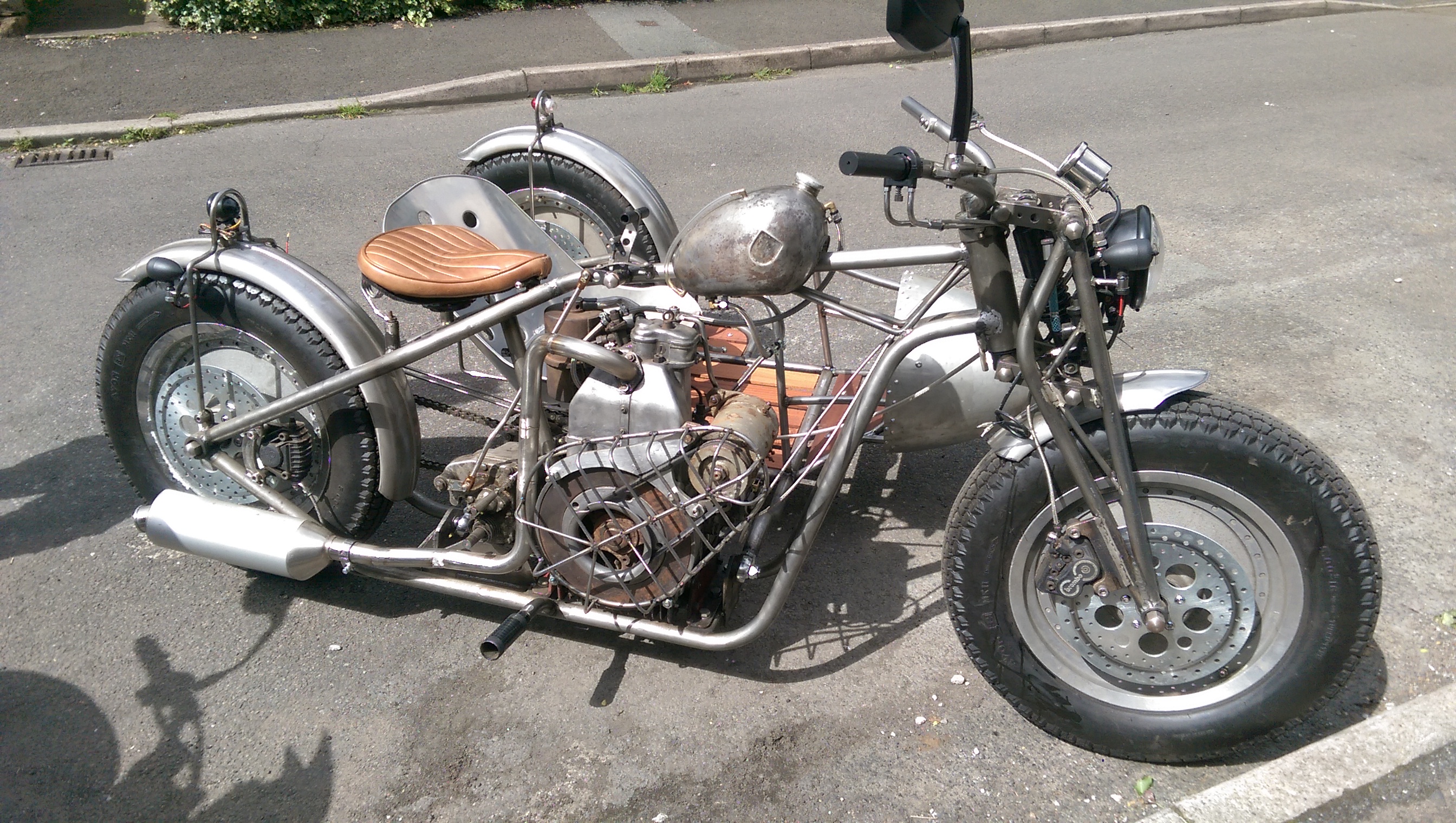

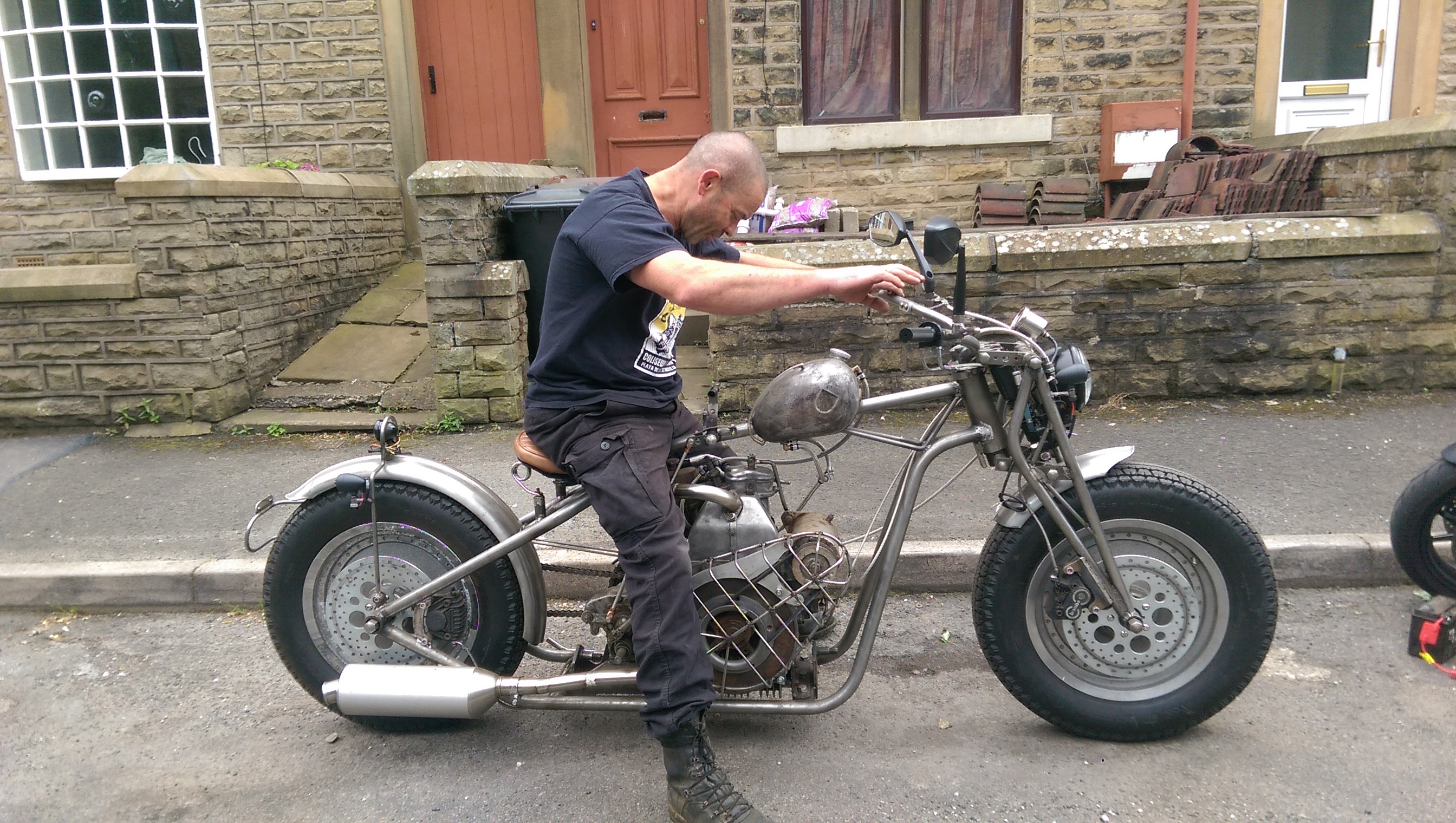

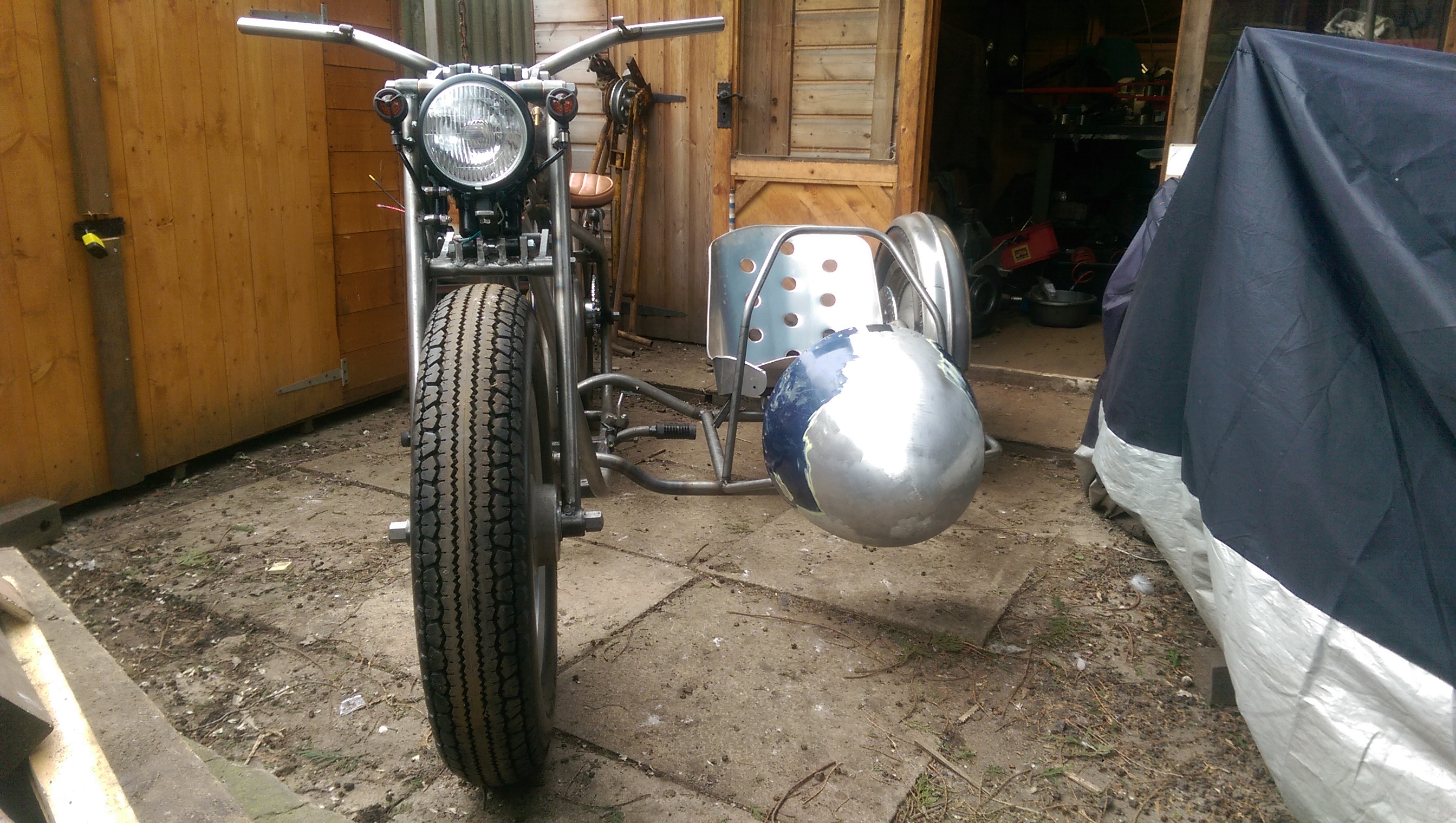

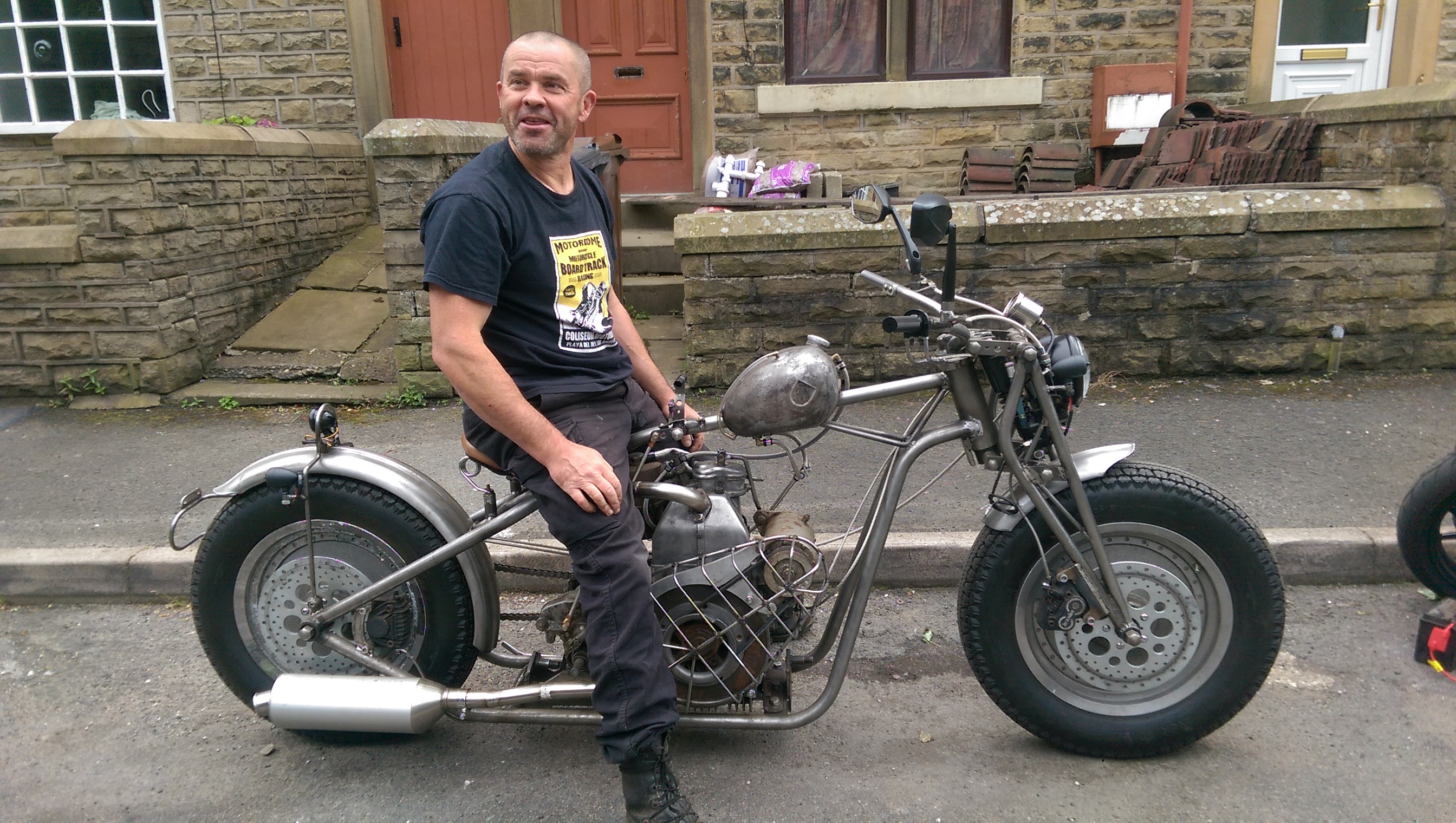

out on the street

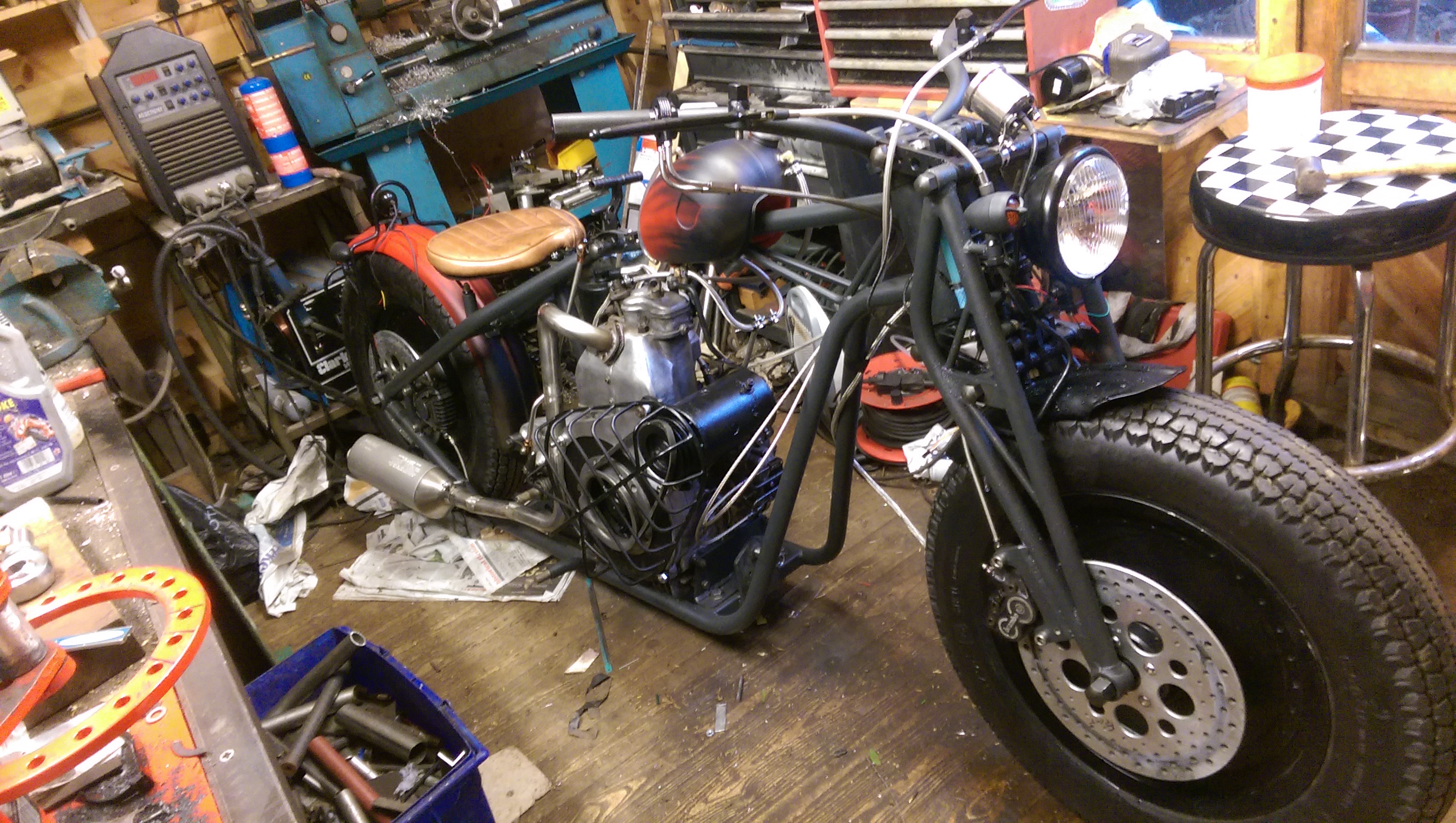

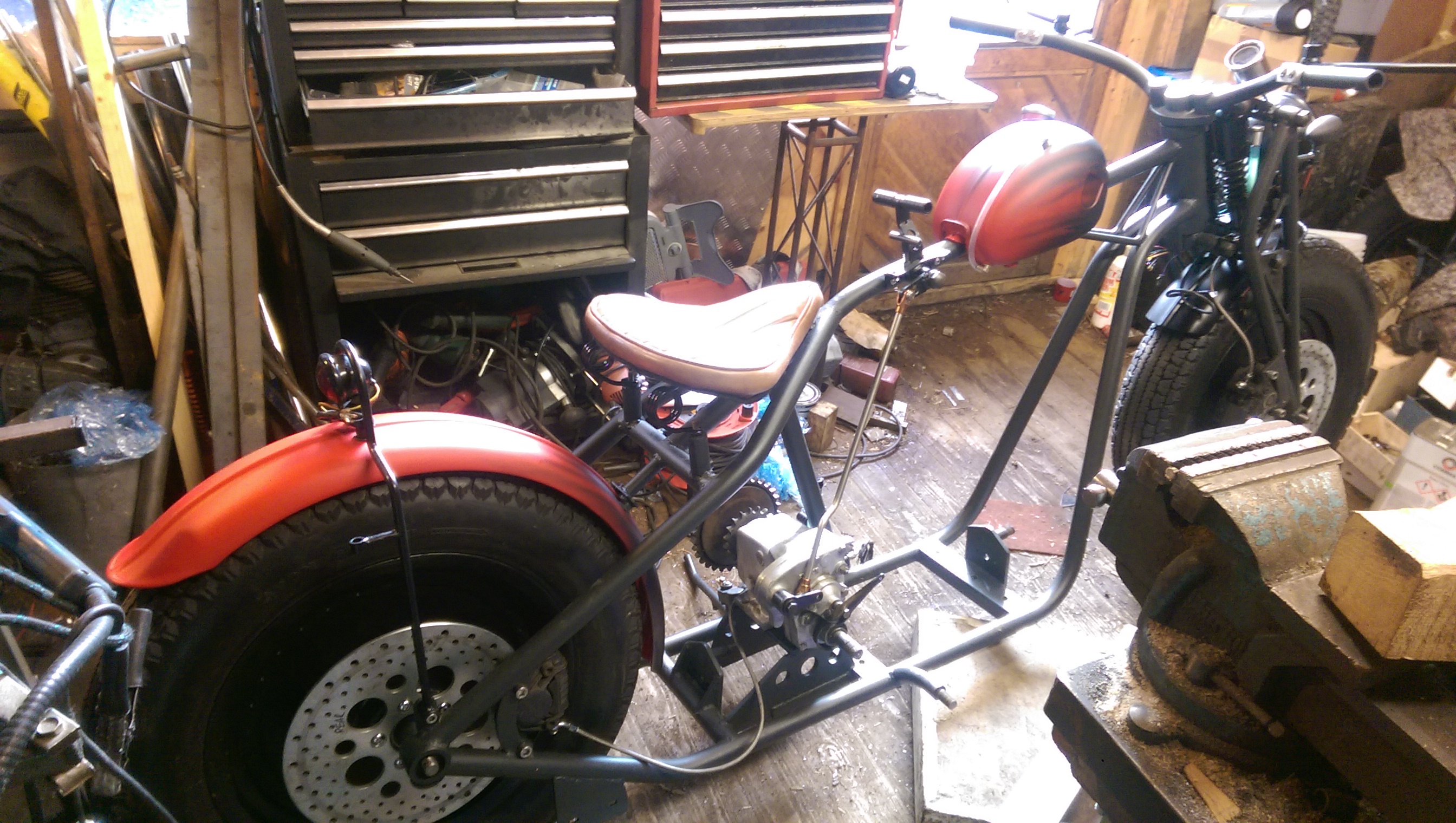

Beginning of final assembly

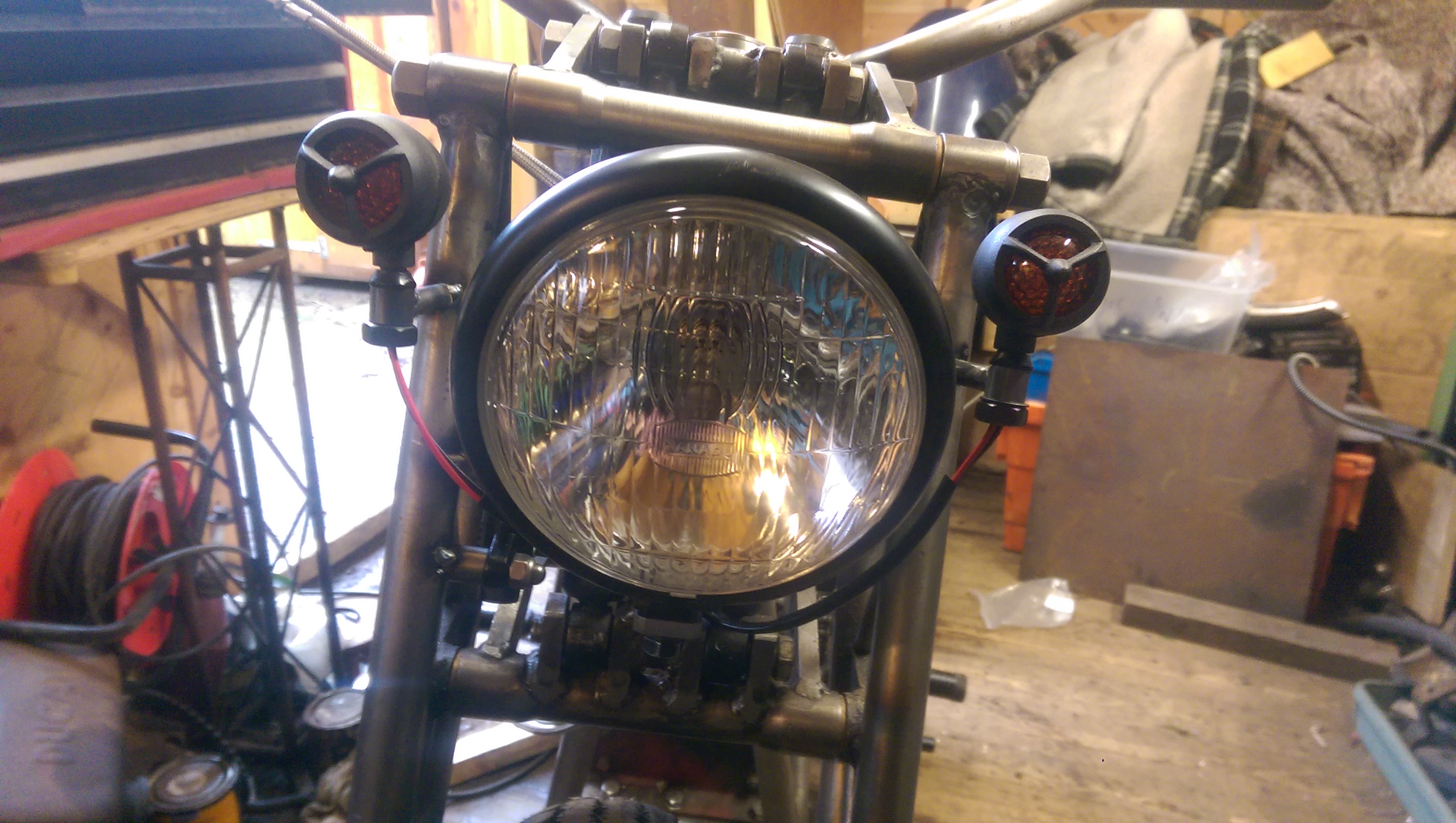

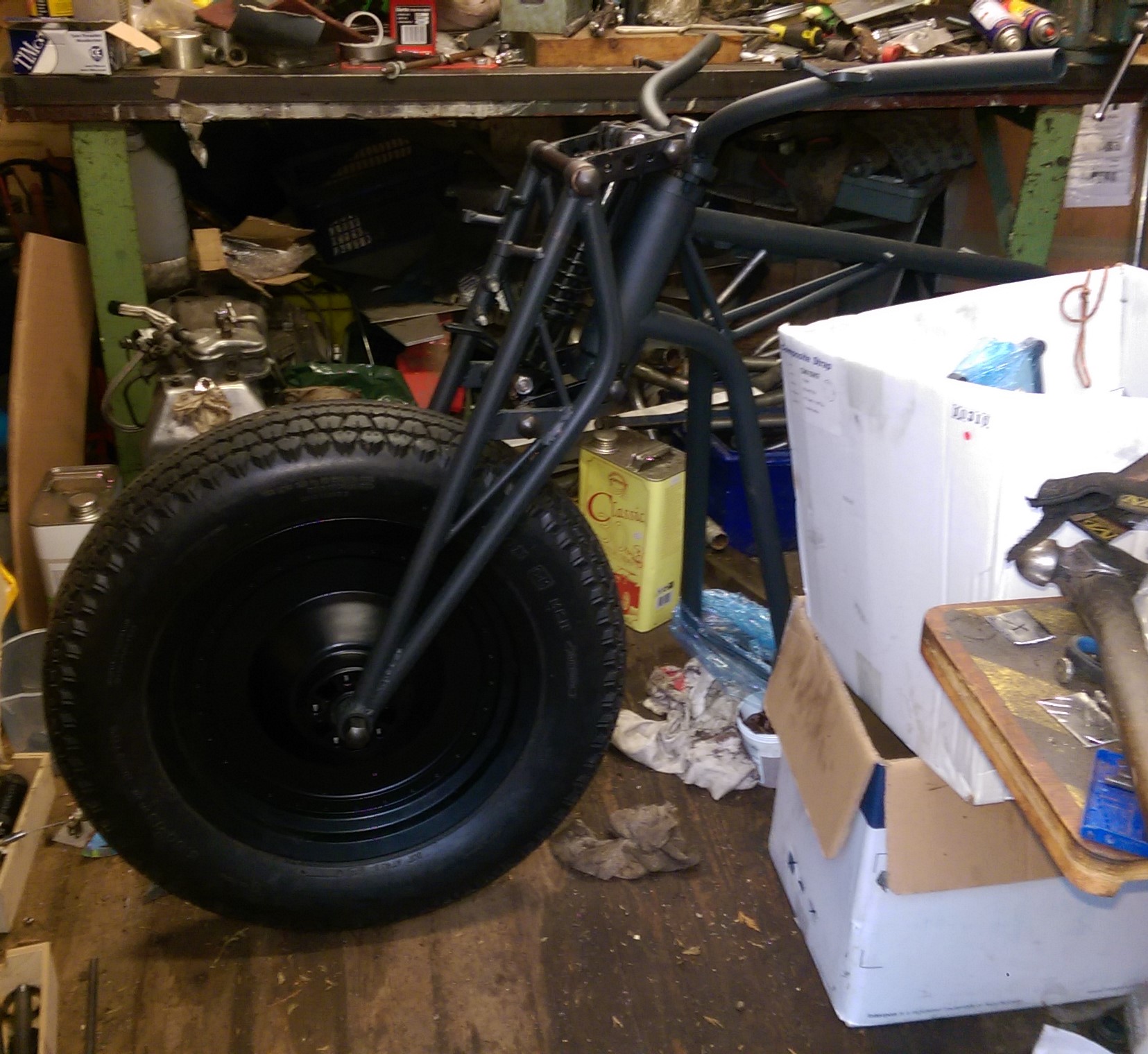

front end

tin ware has come back from the painters

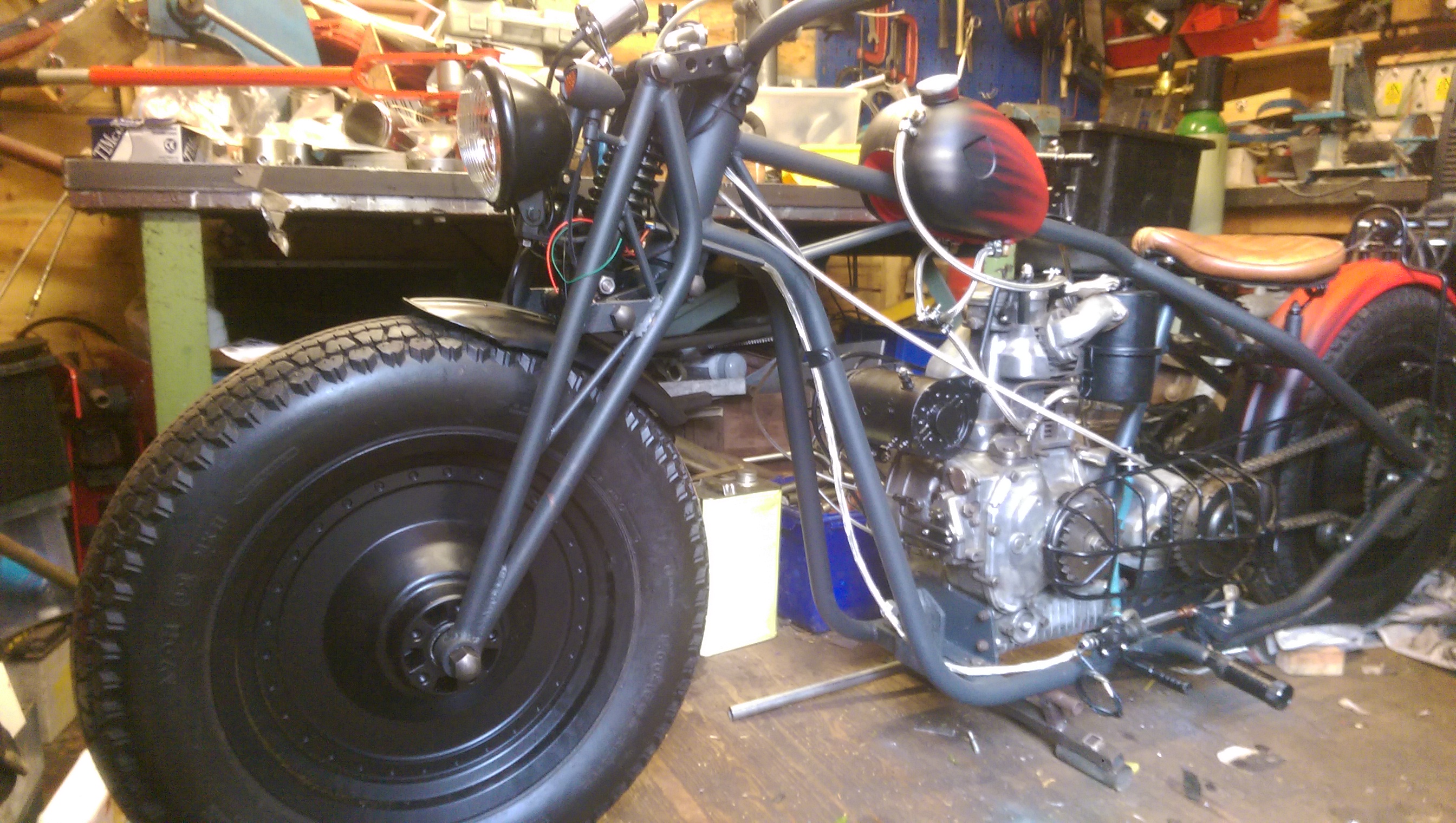

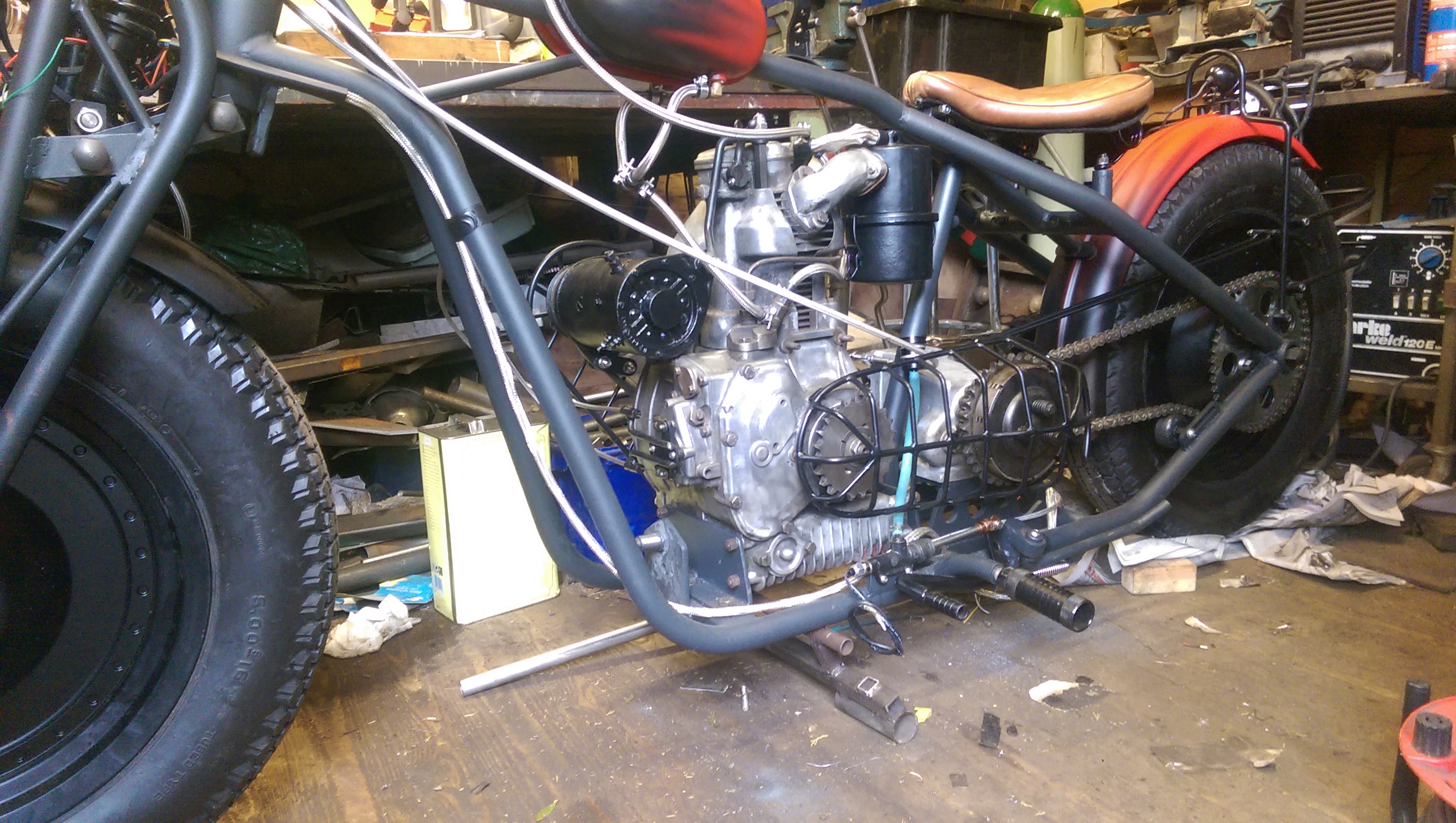

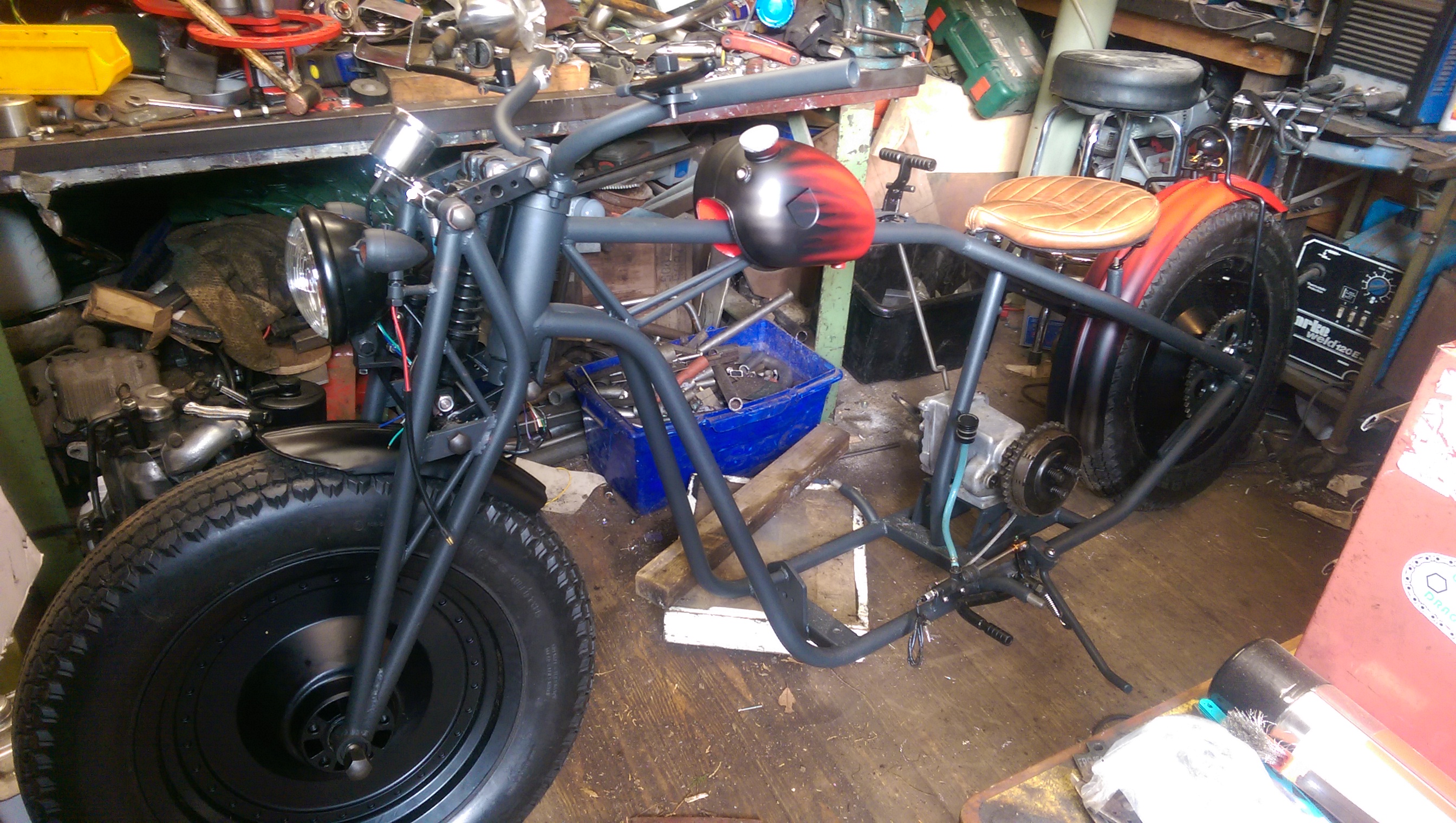

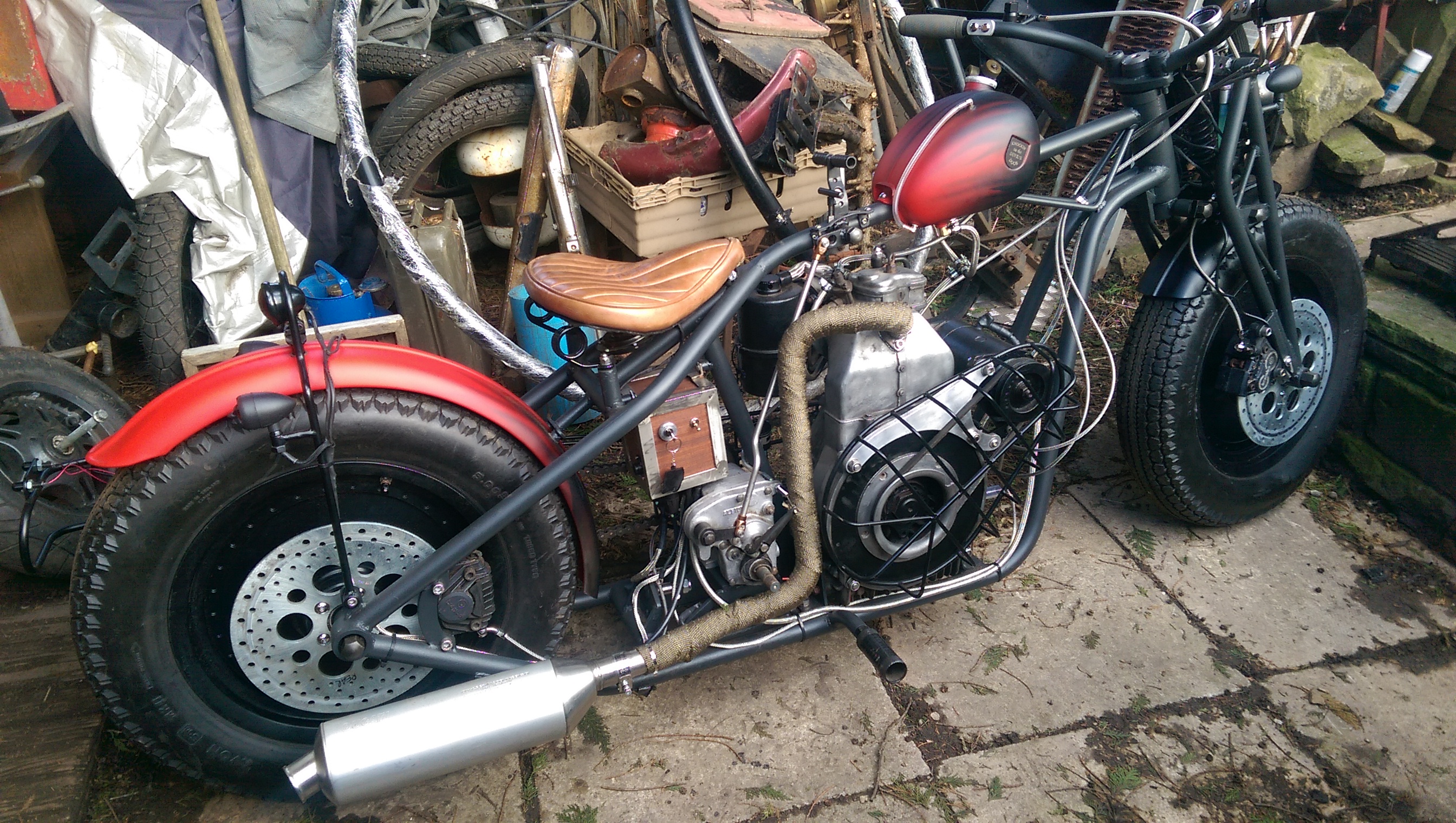

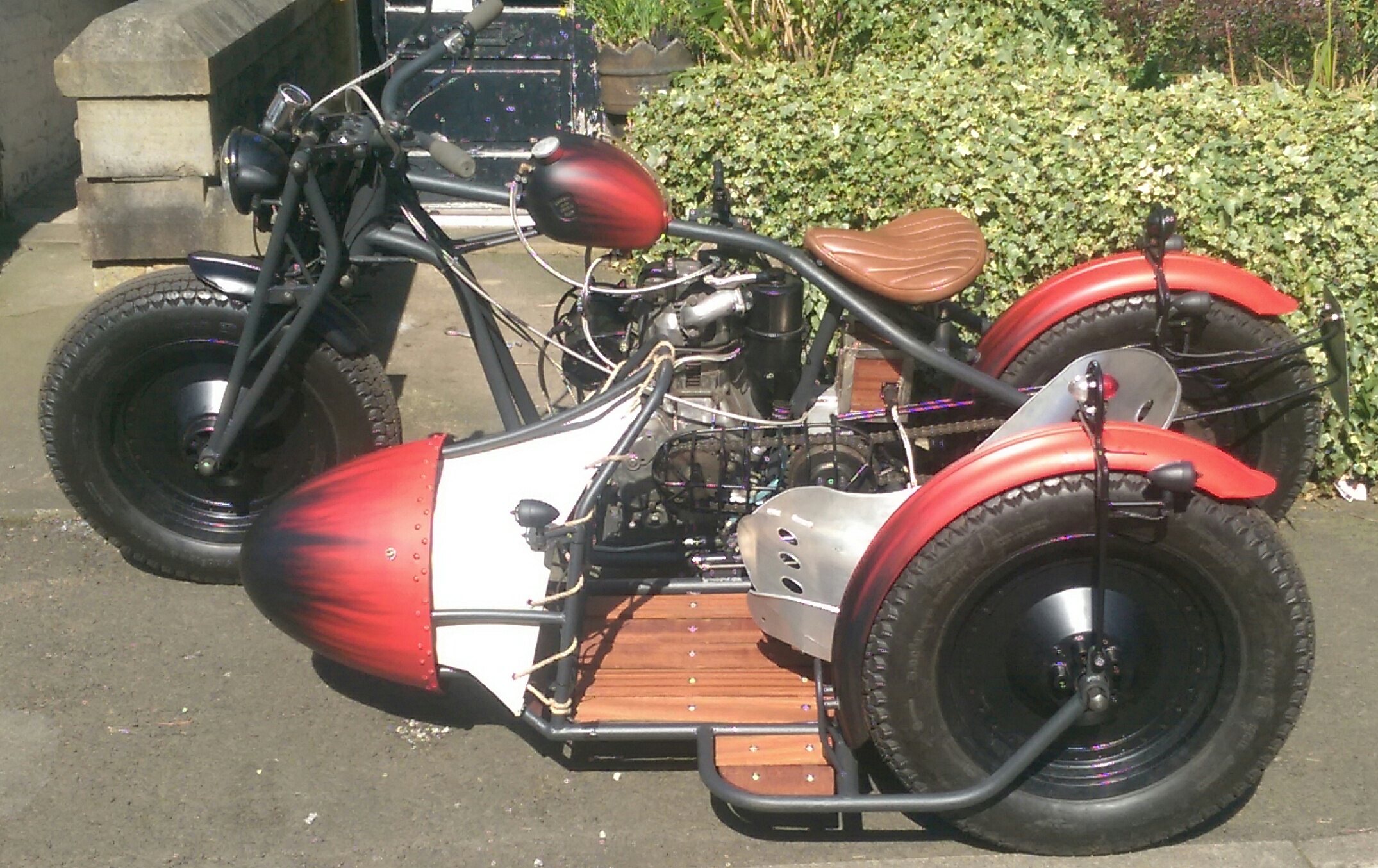

finally! the build up.....















Home


Movies

    this is a video the lad I bought it off took of it running

engine running in the frame, IT LIVES!!!!

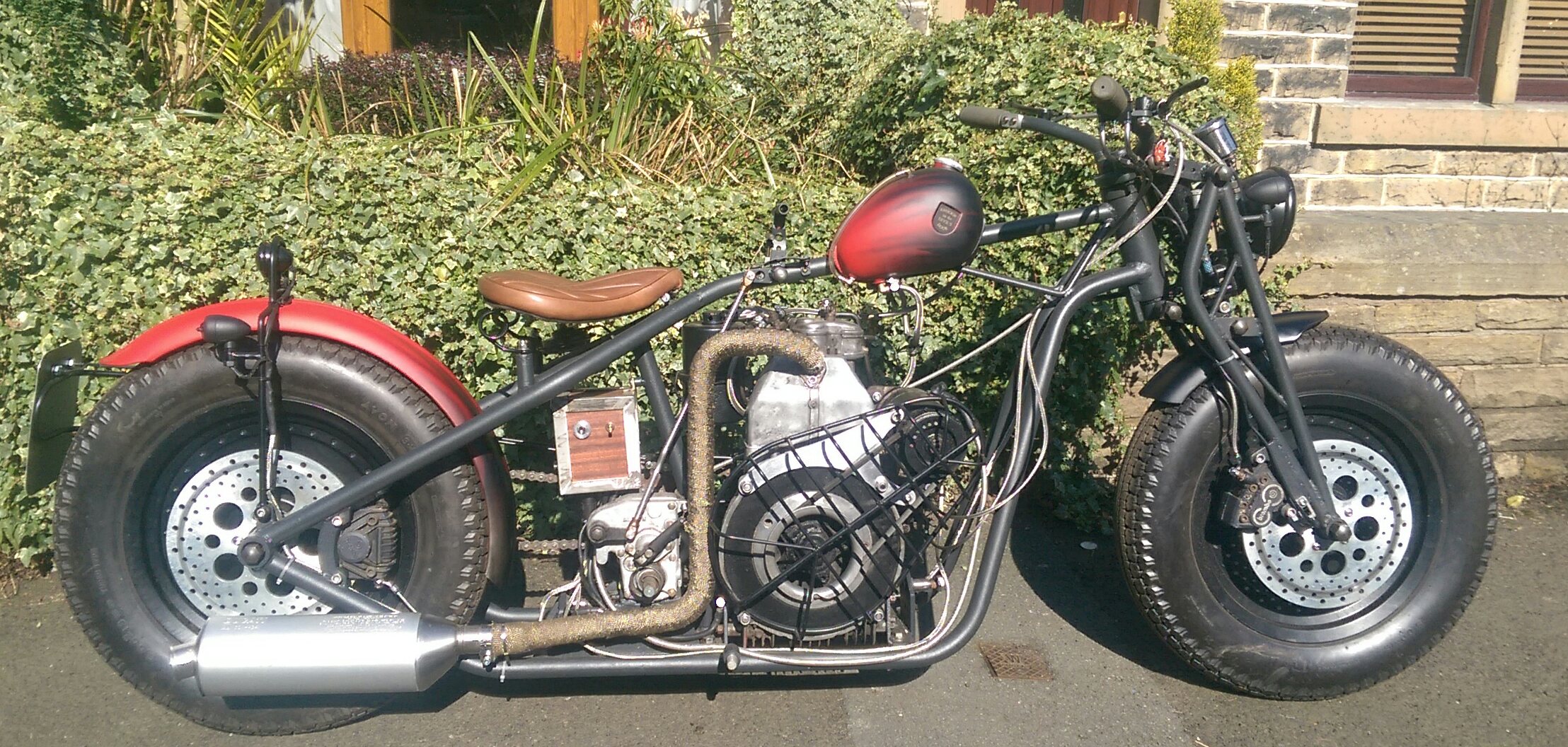

Testing as a solo

testing as an outfit

going backwards!

Home


What's it like to ride ?

it will be a beast.

Home


Questions

    If you have to ask why? then you will never understand...........

Q. why a diesel, they're noisy and slow?

A. and different!

Q. why no rear chain adjuster?

A. wanted it to look simple and 'clean', I will use a tensioner.

Q. That tank looks ridiculous; it's too small

A. your wrong. It holds a gallon and that should be enough for 140 or so miles. Don't need a big tank. And I like it.

Q. Why a 'leaner' sidecar? and what the hell is one?

A. see the link at the top of this page. Basically you can ride the bike as normal and the sidecar 'pivots on the frame. My butchers bike and sidecar works in a similar way.
